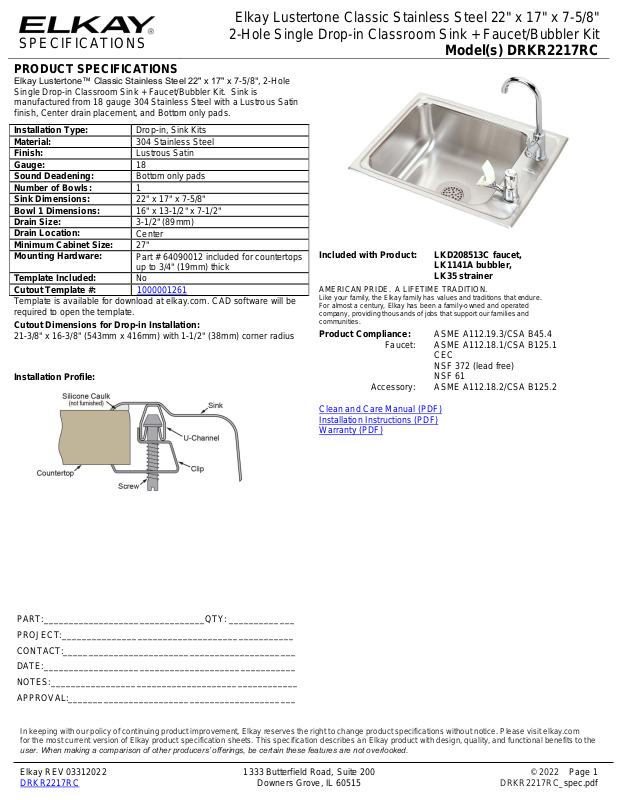

Page 1
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 22" x 17" x 7-5/8"
2-Hole Single Drop-in Classroom Sink + Faucet/Bubbler Kit
Model(s) DRKR2217RC
PRODUCT SPECIFICATIONS
Elkay Lustertone™ Classic Stainless Steel 22" x 17" x 7-5/8", 2-Hole
Single Drop-in Classroom Sink + Faucet/Bubbler Kit. Sink is
manufactured from 18 gauge 304 Stainless Steel with a Lustrous Satin
finish, Center drain placement, and Bottom only pads.
Installation Type:
Drop-in, Sink Kits
Material:
304 Stainless Steel
Finish:
Lustrous Satin
Gauge:
18
Sound Deadening:
Bottom only pads
Number of Bowls:
1
Sink Dimensions:
22" x 17" x 7-5/8"
Bowl 1 Dimensions:
16" x 13-1/2" x 7-1/2"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Template Included:
No
Cutout Template #:
1000001261
Template is available for download at elkay.com. CAD software will be
required to open the template.
Cutout Dimensions for Drop-in Installation:
21-3/8" x 16-3/8" (543mm x 416mm) with 1-1/2" (38mm) corner radius
Installation Profile:
Included with Product:
LKD208513C faucet,
LK1141A bubbler,
LK35 strainer
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Faucet:
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 03312022 1333 Butterfield Road, Suite 200 © 2022 Page 1
DRKR2217RC Downers Grove, IL 60515 DRKR2217RC_spec.pdf
Page 2
SPECIFICATIONS
Elkay Lustertone Classic Stainless Steel 22" x 17" x 7-5/8"
2-Hole Single Drop-in Classroom Sink + Faucet/Bubbler Kit
Model(s) DRKR2217RC
Included Accessories
LK1141A
Elkay Flexi-Guard Classroom Bubbler
Spec Sheet (PDF)
LK35
Elkay 3-1/2" Drain Fitting Type 304 Stainless Steel Body Strainer Basket and Tailpiece
Spec Sheet (PDF)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 03312022 1333 Butterfield Road, Suite 200 © 2022 Page 2
DRKR2217RC Downers Grove, IL 60515 DRKR2217RC_spec.pdf
