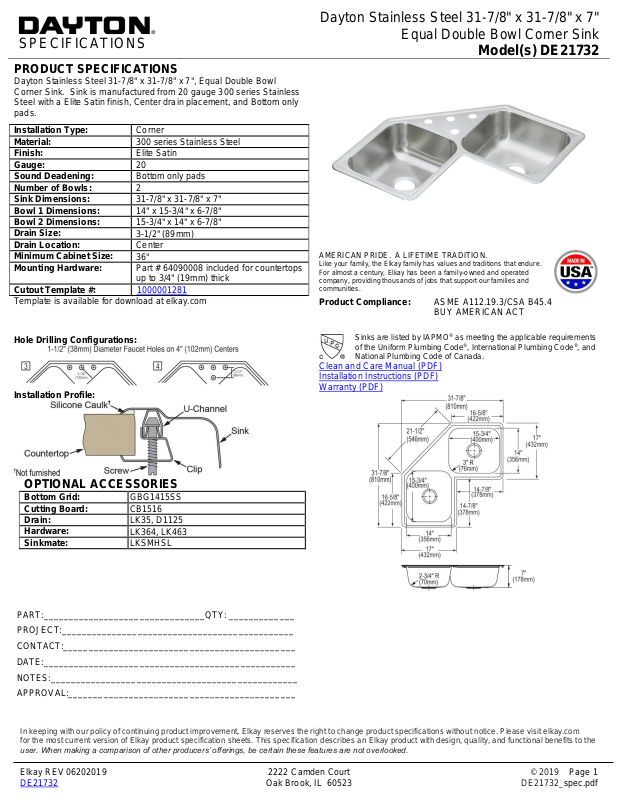

SPECIFICATIONS
Dayton Stainless Steel 31-7/8" x 31-7/8" x 7"
Equal Double Bowl Corner Sink
Model(s) DE21732
PRODUCT SPECIFICATIONS
Dayton Stainless Steel 31-7/8" x 31-7/8" x 7", Equal Double Bowl
Corner Sink. Sink is manufactured from 20 gauge 300 series Stainless
Steel with a Elite Satin finish, Center drain placement, and Bottom only
pads.
Installation Type:
Corner
Material:
300 series Stainless Steel
Finish:
Elite Satin
Gauge:
20
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
31-7/8" x 31-7/8" x 7"
Bowl 1 Dimensions:
14" x 15-3/4" x 6-7/8"
Bowl 2 Dimensions:
15-3/4" x 14" x 6-7/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090008 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001281
Template is available for download at elkay.com
Hole Drilling Configurations:
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
OPTIONAL ACCESSORIES
Bottom Grid:
GBG1415SS
Cutting Board:
CB1516
Drain:
LK35, D1125
Hardware:
LK364, LK463
Sinkmate:
LKSMHSL
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 06202019 2222 Camden Court © 2019 Page 1
DE21732 Oak Brook, IL 60523 DE21732_spec.pdf
