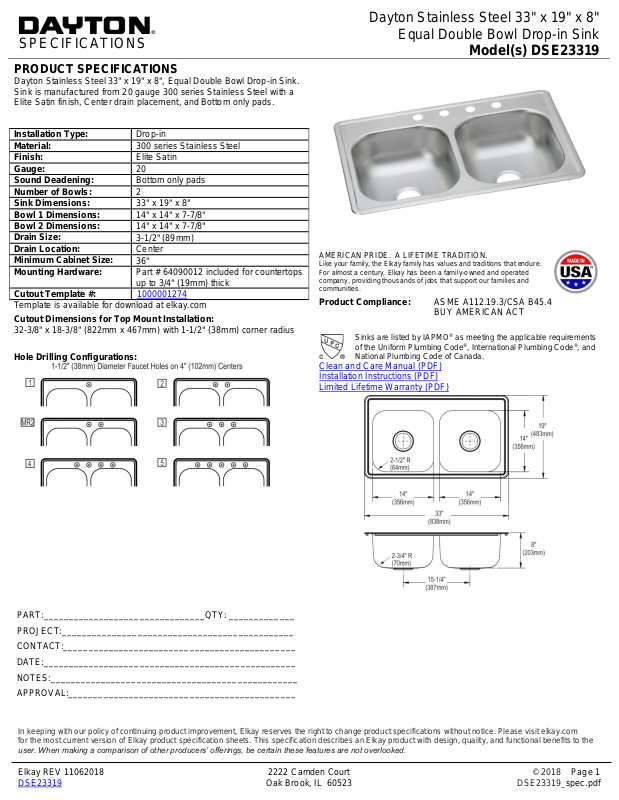

Page 1
SPECIFICATIONS
Dayton Stainless Steel 33" x 19" x 8"
Equal Double Bowl Drop-in Sink
Model(s) DSE23319
PRODUCT SPECIFICATIONS
Dayton Stainless Steel 33" x 19" x 8", Equal Double Bowl Drop-in Sink.
Sink is manufactured from 20 gauge 300 series Stainless Steel with a
Elite Satin finish, Center drain placement, and Bottom only pads.
Installation Type:
Drop-in
Material:
300 series Stainless Steel
Finish:
Elite Satin
Gauge:
20
Sound Deadening:
Bottom only pads
Number of Bowls:
2
Sink Dimensions:
33" x 19" x 8"
Bowl 1 Dimensions:
14" x 14" x 7-7/8"
Bowl 2 Dimensions:
14" x 14" x 7-7/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090012 included for countertops
up to 3/4" (19mm) thick
Cutout Template #:
1000001274
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
32-3/8" x 18-3/8" (822mm x 467mm) with 1-1/2" (38mm) corner radius
Hole Drilling Configurations:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 1
DSE23319 Oak Brook, IL 60523 DSE23319_spec.pdf
Page 2
SPECIFICATIONS
Dayton Stainless Steel 33" x 19" x 8"
Equal Double Bowl Drop-in Sink
Model(s) DSE23319
Installation Profile:
OPTIONAL ACCESSORIES
Bottom Grid:
GBG1414SS
Hardware:
LK364, LK463
Sinkmate:
LKSMHSL
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11062018 2222 Camden Court © 2018 Page 2
DSE23319 Oak Brook, IL 60523 DSE23319_spec.pdf
