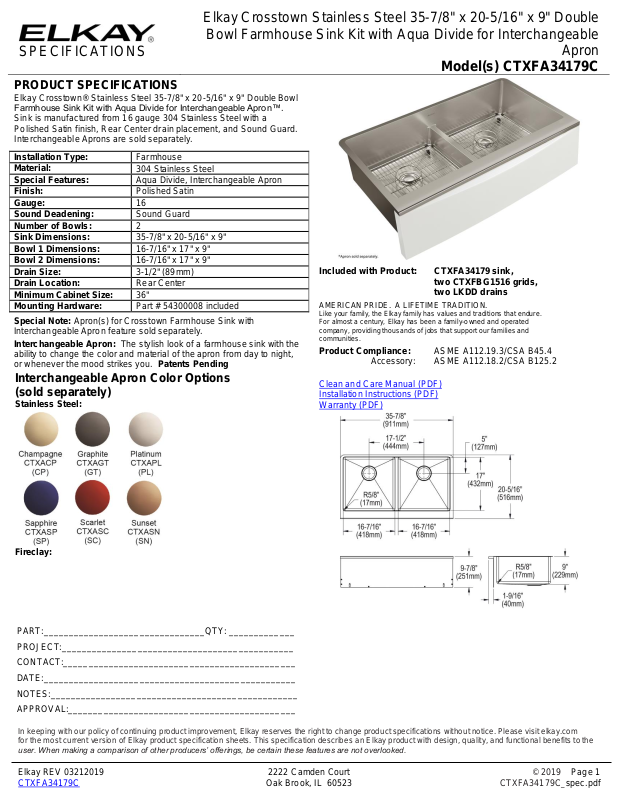

Page 1
SPECIFICATIONS
Elkay Crosstown Stainless Steel 35-7/8" x 20-5/16" x 9" Double
Bowl Farmhouse Sink Kit with Aqua Divide for Interchangeable
Apron
Model(s) CTXFA34179C
PRODUCT SPECIFICATIONS
Elkay Crosstown® Stainless Steel 35-7/8" x 20-5/16" x 9" Double Bowl
Farmhouse Sink Kit with Aqua Divide for Interchangeable Apron™.
Sink is manufactured from 16 gauge 304 Stainless Steel with a
Polished Satin finish, Rear Center drain placement, and Sound Guard.
Interchangeable Aprons are sold separately.
Installation Type:
Farmhouse
Material:
304 Stainless Steel
Special Features:
Aqua Divide, Interchangeable Apron
Finish:
Polished Satin
Gauge:
16
Sound Deadening:
Sound Guard
Number of Bowls:
2
Sink Dimensions:
35-7/8" x 20-5/16" x 9"
Bowl 1 Dimensions:
16-7/16" x 17" x 9"
Bowl 2 Dimensions:
16-7/16" x 17" x 9"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300008 included
Special Note: Apron(s) for Crosstown Farmhouse Sink with
Interchangeable Apron feature sold separately.
Interchangeable Apron: The stylish look of a farmhouse sink with the
ability to change the color and material of the apron from day to night,
or whenever the mood strikes you. Patents Pending
Interchangeable Apron Color Options
(sold separately)
Stainless Steel:
Fireclay:
Included with Product:
CTXFA34179 sink,
two CTXFBG1516 grids,
two LKDD drains
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 03212019 2222 Camden Court © 2019 Page 1
CTXFA34179C Oak Brook, IL 60523 CTXFA34179C_spec.pdf
Page 2
SPECIFICATIONS
Elkay Crosstown Stainless Steel 35-7/8" x 20-5/16" x 9" Double
Bowl Farmhouse Sink Kit with Aqua Divide for Interchangeable
Apron
Model(s) CTXFA34179C
Installation Profile:
OPTIONAL ACCESSORIES
Drain:
LK99S, LK35
Faucet:
LKAV4061, LKEC2031, LKEC2037,
LKAV4032
