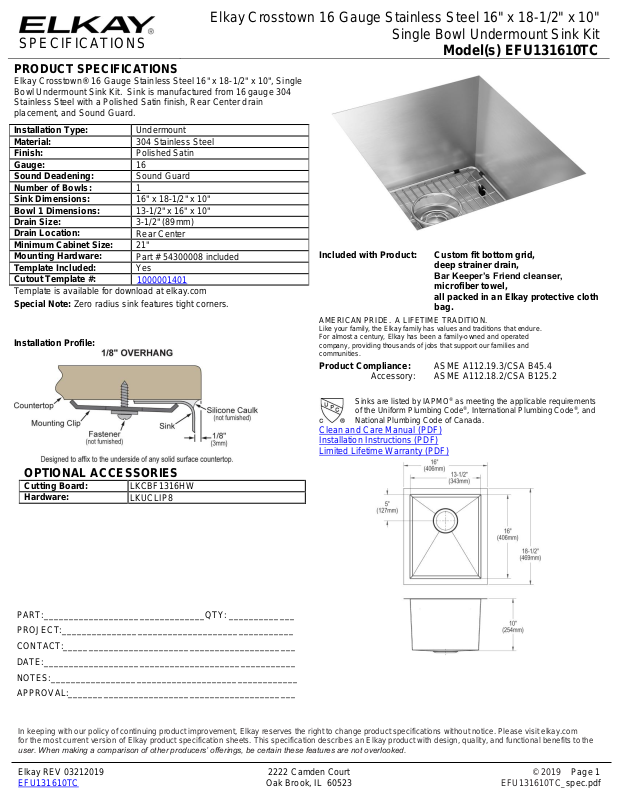

Page 1
SPECIFICATIONS
Elkay Crosstown 16 Gauge Stainless Steel 16" x 18-1/2" x 10"
Single Bowl Undermount Sink Kit
Model(s) EFU131610TC
PRODUCT SPECIFICATIONS
Elkay Crosstown® 16 Gauge Stainless Steel 16" x 18-1/2" x 10", Single
Bowl Undermount Sink Kit. Sink is manufactured from 16 gauge 304
Stainless Steel with a Polished Satin finish, Rear Center drain
placement, and Sound Guard.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Polished Satin
Gauge:
16
Sound Deadening:
Sound Guard
Number of Bowls:
1
Sink Dimensions:
16" x 18-1/2" x 10"
Bowl 1 Dimensions:
13-1/2" x 16" x 10"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
21"
Mounting Hardware:
Part # 54300008 included
Template Included:
Yes
Cutout Template #:
1000001401
Template is available for download at elkay.com
Special Note: Zero radius sink features tight corners.
Installation Profile:
Included with Product:
Custom fit bottom grid,
deep strainer drain,
Bar Keeper’s Friend cleanser,
microfiber towel,
all packed in an Elkay protective cloth
bag.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
OPTIONAL ACCESSORIES
Cutting Board:
LKCBF1316HW
Hardware:
LKUCLIP8
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 03212019 2222 Camden Court © 2019 Page 1
EFU131610TC Oak Brook, IL 60523 EFU131610TC_spec.pdf
