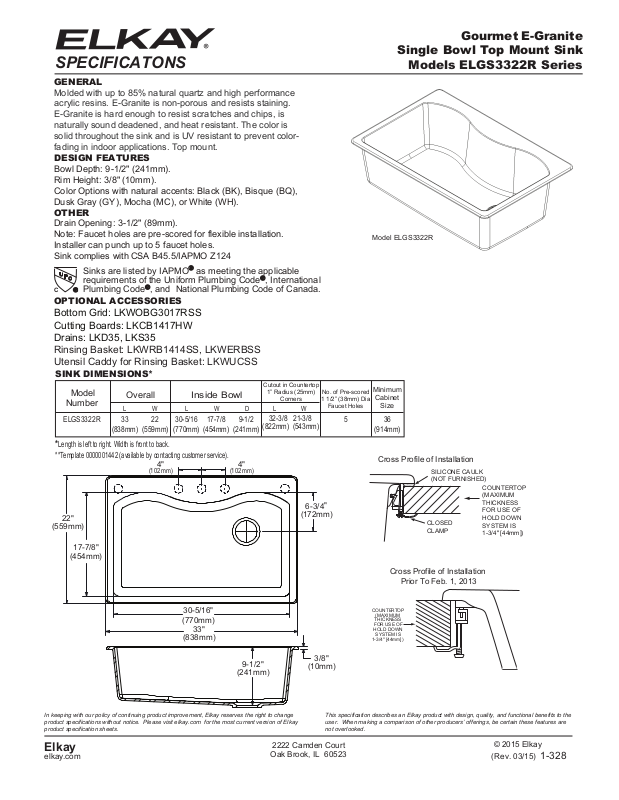

Elkay ELGS3322R User Manual

SPECIFICATONS

GENERAL

Molded with up to 85% natural quartz and high performance
acrylic resins. E-Granite is non-porous and resists staining.
E-Granite is hard enough to resist scratches and chips, is
naturally sound deadened, and heat resistant. The color is
solid throughout the sink and is UV resistant to prevent color­fading in indoor applications. Top mount.

DESIGN FEATURES

Bowl Depth: 9-1/2" (241mm).
Rim Height: 3/8" (10mm).
Color Options with natural accents: Black (BK), Bisque (BQ),
Dusk Gray (GY), Mocha (MC), or White (WH).

OTHER

Drain Opening: 3-1/2" (89mm).
Note: Faucet holes are pre-scored for flexible installation.
Installer can punch up to 5 faucet holes.
Sink complies with CSA B45.5/IAPMO Z124

Sinks are listed by IAPMO as meeting the applicable
requirements of the Uniform Plumbing Code , International
Plumbing Code , and National Plumbing Code of Canada.

C

OPTIONAL ACCESSORIES

Bottom Grid: LKWOBG3017RSS
Cutting Boards: LKCB1417HW
Drains: LKD35, LKS35

Rinsing Basket: LKWRB1414SS, LKWERBSS
Utensil Caddy for Rinsing Basket: LKWUCSS

SINK DIMENSIONS*

Model

Number

Overall

L W L W D L W

ELGS3322R 33

(838mm)22(559mm)

*

Length is left to right. Width is front to back.

Inside Bowl

30-5/16

(770mm)

17-7/8

(454mm)

**Template 0000001442 (available by contacting customer service).

4"

(102mm )

(102mm )

22"

(559mm)

17-7/8"

(454mm)

9-1/2

(241mm)

4"

Cutout in Countertop

1” Radius (25mm)

Corners

32-3/8 21-3/8

(822mm) (543mm)

No. of Pre-scored
1 1/2” (38mm) Dia

"

6-3/4

(172mm)

Faucet Holes

5 36

Gourmet E-Granite

Single Bowl Top Mount Sink

Models ELGS3322R Series

Model ELGS3322R

Minimum

Cabinet

Size

(914mm)

Cross Profile of Installation

SILICONE CAULK
(NOT FURNISHED)

CLOSED
CLAMP

Cross Profile of Installation

Prior To Feb. 1, 2013

COUNTERTOP
(MAXIMUM
THICKNESS
FOR USE OF
HOLD DOWN
SYSTEM IS
1-3/4" [44mm])

30-5/16"

(770mm)

33"

(838mm)

9-1/2"

(241mm)

In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.

Elkay

elkay.com

2222 Camden Court

Oak Brook, IL 60523

COUNTERTOP

(MAXIMUM
THICKNESS
FOR USE OF

HOLD DOWN

SYSTEM IS

1-3/4" [44mm])

3/8"

(10mm)

This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are
not overlooked.

© 2015 Elkay

(Rev. 03/15)

1-328
