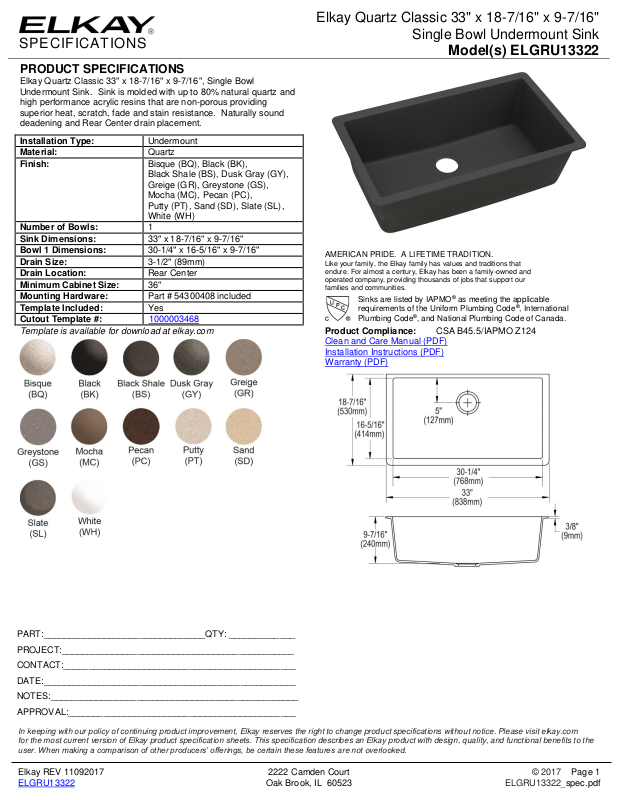

Page 1
SPECIFICATIONS
Elkay Quartz Classic 33" x 18-7/16" x 9-7/16"
Single Bowl Undermount Sink
Model(s) ELGRU13322
PRODUCT SPECIFICATIONS
Elkay Quartz Classic 33" x 18-7/16" x 9-7/16", Single Bowl
Undermount Sink. Sink is molded with up to 80% natural quartz and
high performance acrylic resins that are non-porous providing
superior heat, scratch, fade and stain resistance. Naturally sound
deadening and Rear Center drain placement.
Installation Type:
Undermount
Material:
Quartz
Finish:
Bisque (BQ), Black (BK),
Black Shale (BS), Dusk Gray (GY),
Greige (GR), Greystone (GS),
Mocha (MC), Pecan (PC),
Putty (PT), Sand (SD), Slate (SL),
White (WH)
Number of Bowls:
1
Sink Dimensions:
33" x 18-7/16" x 9-7/16"
Bowl 1 Dimensions:
30-1/4" x 16-5/16" x 9-7/16"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300408 included
Template Included:
Yes
Cutout Template #:
1000003468
Template is available for download at elkay.com
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Product Compliance:
CSA B45.5/IAPMO Z124
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 11092017 2222 Camden Court © 2017 Page 1
ELGRU13322 Oak Brook, IL 60523 ELGRU13322_spec.pdf
Page 2
SPECIFICATIONS
Elkay Quartz Classic 33" x 18-7/16" x 9-7/16"
Single Bowl Undermount Sink
Model(s) ELGRU13322
OPTIONAL ACCESSORIES
Bottom Grid:
LKOBG2915SS
Drain:
LKQS35, LKQD35, LK99
Faucet:
LKGT3031, LK6000CR, LKEC2031
Soap Dispenser:
LKGT1054
Installation Profile:
