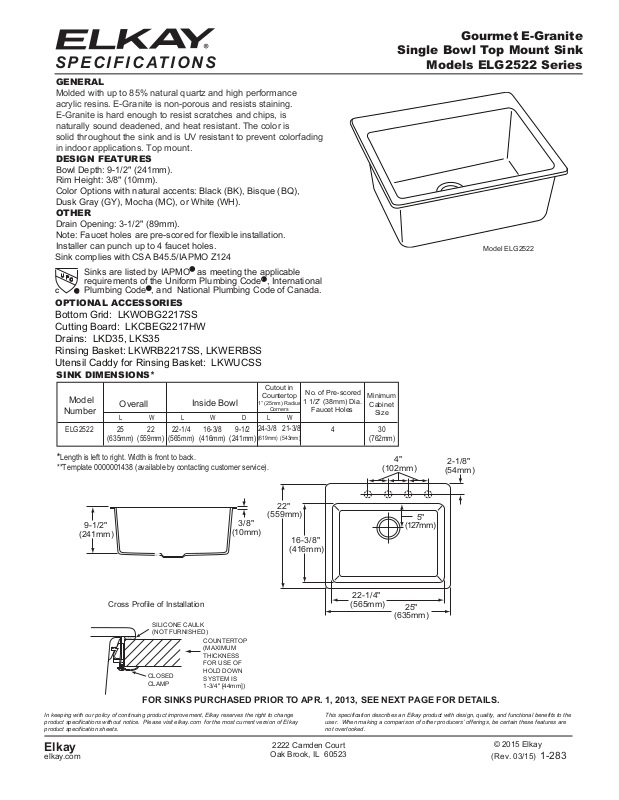

Page 1
S P E C I F I C AT I O N S
GENERAL
Molded with up to 85% natural quartz and high performance
acrylic resins. E-Granite is non-porous and resists staining.
E-Granite is hard enough to resist scratches and chips, is
naturally sound deadened, and heat resistant. The color is
solid throughout the sink and is UV resistant to prevent colorfading
in indoor applications. Top mount.
DESIGN FEATURES
Bowl Depth: 9-1/2" (241mm).
Rim Height: 3/8" (10mm).
Color Options with natural accents: Black (BK), Bisque (BQ),
Dusk Gray (GY), Mocha (MC), or White (WH).
OTHER
Drain Opening: 3-1/2" (89mm).
Note: Faucet holes are pre-scored for flexible installation.
Installer can punch up to 4 faucet holes.
Sink complies with CSA B45.5/IAPMO Z124
Sinks are listed by IAPMO as meeting the applicable
requirements of the Uniform Plumbing Code , International
Plumbing Code , and National Plumbing Code of Canada.
C
OPTIONAL ACCESSORIES
Bottom Grid: LKWOBG2217SS
Cutting Board: LKCBEG2217HW
Drains: LKD35, LKS35
Rinsing Basket: LKWRB2217SS, LKWERBSS
Utensil Caddy for Rinsing Basket: LKWUCSS
SINK DIMENSIONS*
Model
Number
ELG2522 25
(635mm)22(559mm)
Cutout in
Countertop
22-1/4
(565mm)
Inside Bowl
16-3/8
(416mm)
Overall
L W L W D L W
9-1/2
(241mm)
1” (25mm) Radius
Corners
24-3/8 21-3/8
(619mm) (543mm)
No. of Pre-scored
1 1/2” (38mm) Dia.
Faucet Holes
Gourmet E-Granite
Single Bowl Top Mount Sink
Models ELG2522 Series
Model ELG2522
Minimum
Cabinet
Size
4 30
(762mm)
*
Length is left to right. Width is front to back.
**Template 0000001438 (available by contacting customer service).
22"
(559mm)
9-1/2"
(241mm)
3/8"
(10mm)
(416mm)
Cross Profile of Installation
SILICONE CAULK
(NOT FURNISHED)
CLOSED
CLAMP
COUNTERTOP
(MAXIMUM
THICKNESS
FOR USE OF
HOLD DOWN
SYSTEM IS
1-3/4" [44mm])
FOR SINKS PURCHASED PRIOR TO APR. 1, 2013, SEE NEXT PAGE FOR DETAILS.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
16-3/8"
4"
(102mm)
2-1/8"
(54mm)
5"
(127mm)
22-1/4"
(565mm)
25"
(635mm)
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are
not overlooked.
© 2015 Elkay
(Rev. 03/15)
1-283
Page 2
S P E C I F I C AT I O N S
SINK DIMENSIONS*
Cutout in
9-1/2
Countertop
1” (25mm) Radius
Corners
24-1/8 21-1/8
(613mm) (537mm)
2-1/8"
(54mm)
Model
Number
Overall
L W L W D L W
ELG2522 25
(635mm)22(559mm)
*
Length is left to right. Width is front to back.
22-3/8
(568mm)
Inside Bowl
16-3/8
(416mm)
(241mm)
**Template 74180483 (available by contacting customer service).
4"
(102mm)
22"
(559mm)
5"
(127mm) 3/8"
16-3/8"
(416mm)
No. of Pre-scored
1 1/2” (38mm) Dia.
Faucet Holes
4 30
9-1/2"
(241mm)
Gourmet E-Granite
Single Bowl Top Mount Sink
Models ELG2522 Series
Minimum
Cabinet
Size
(762mm)
(10mm)
22-3/8"
(568mm)
25"
(635mm)
Cross Profile of Installation
COUNTERTOP
(MAXIMUM
THICKNESS
FOR USE OF
HOLD DOWN
SYSTEM IS
1-3/4" [44mm])
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are
not overlooked.
© 2015 Elkay
(Rev. 03/15)
1-283
