SINK PACKAGE(S)
Undermount Single Bowl Sink
SP ECIFIC ATI O NS
GENERAL
Highest quality sink fabricated of #16 (1.6mm) gauge, type 304
(18-8) nickel bearing stainless steel. Undermount.
DESIGN FEATURES
Bowl Depth: 10" (254mm).
Coved Corners: Zero radius.
Finish: Exposed surfaces have a Polished Satin finish.
Underside: Fully protected by heavy duty Sound Guard
coating to dampen sound and reduce condensation.
OTHER
Drain Opening: 3-1/2" (89mm).
NOTE: All Elkay undermount sinks are designed to attach to the
underside of any solid surface countertop.
Sink complies with ASME A112.19.3-2008 / CSA B45.4-08
These sinks are listed by the International Association
of Plumbing and Mechanical Officials as meeting the
requirements of the Uniform Plumbing Code.
MODEL SINK BOTTOM GRID QTY DRAIN QTY
EFU131610DBG EFU131610 LKFOBG1316SS 1 LK99 1
SINK DIMENSIONS*
Model
Number L W L W D Countertop Size
EFU131610 16 181/2 131/2 16 10 See 21
*Length is left to right. Width is front to back.
**Template is packed with every sink.
Overall Inside Bowl
(406mm) (470mm) (343mm) (406mm) (254mm) Template** (533mm)
16"
(406mm)
®
under-
Cutout in Cabinet
Minimum
Avado
Model EFU131610
Model EFU131610
™
13-1/2"
(343mm)
5"
(127mm)
18-1/2"
(470mm)
16"
(406mm)
10"
(254mm)

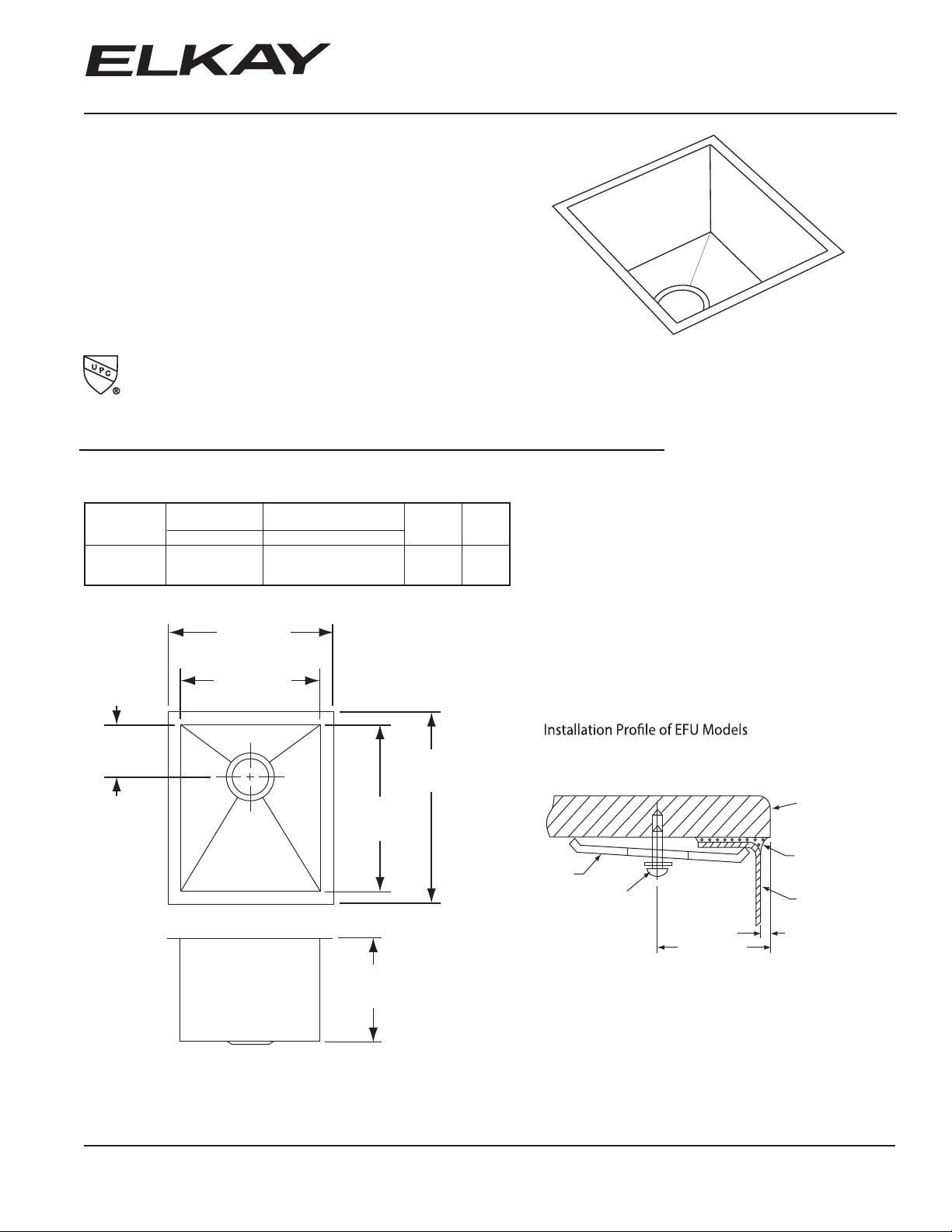

Model EFU131610 Illustrated
In keeping wit h our polic y of co ntinuing product imp rovement, Elkay reserves the right to change
product sp ecifications without not ice. Please visit elkayusa.com fo r most c urrent version of Elkay
product sp ecification sheets.
Elkay
elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
The template provided with each EFU sink provides
the only type of installation recommended by Elkay.
COUNTERTOP
MOUNTING
CLIP LKUCLIP8
(NOT FURNISHED)
FASTENER
(NOT FURNISHED)
1/8" (3mm)
Countertop Overhang
(EFU Models)
This sp ecification describ es an Elkay product with design, quality and functional b enefits to the
user. When making a c omparison of othe
overlooked.
1-3/8" +1/4"
_
(35mm) (6mm)
r producers’ o fferings, b e cert ain these features are not
SILICONE CAULK
(NOT FURNISHED)
SINK
1/8" (3mm) (APPROX.)
OVERHANG
Printed in U.S.A.
©2010 Elkay
(Rev. 01/10) 1-212D
®

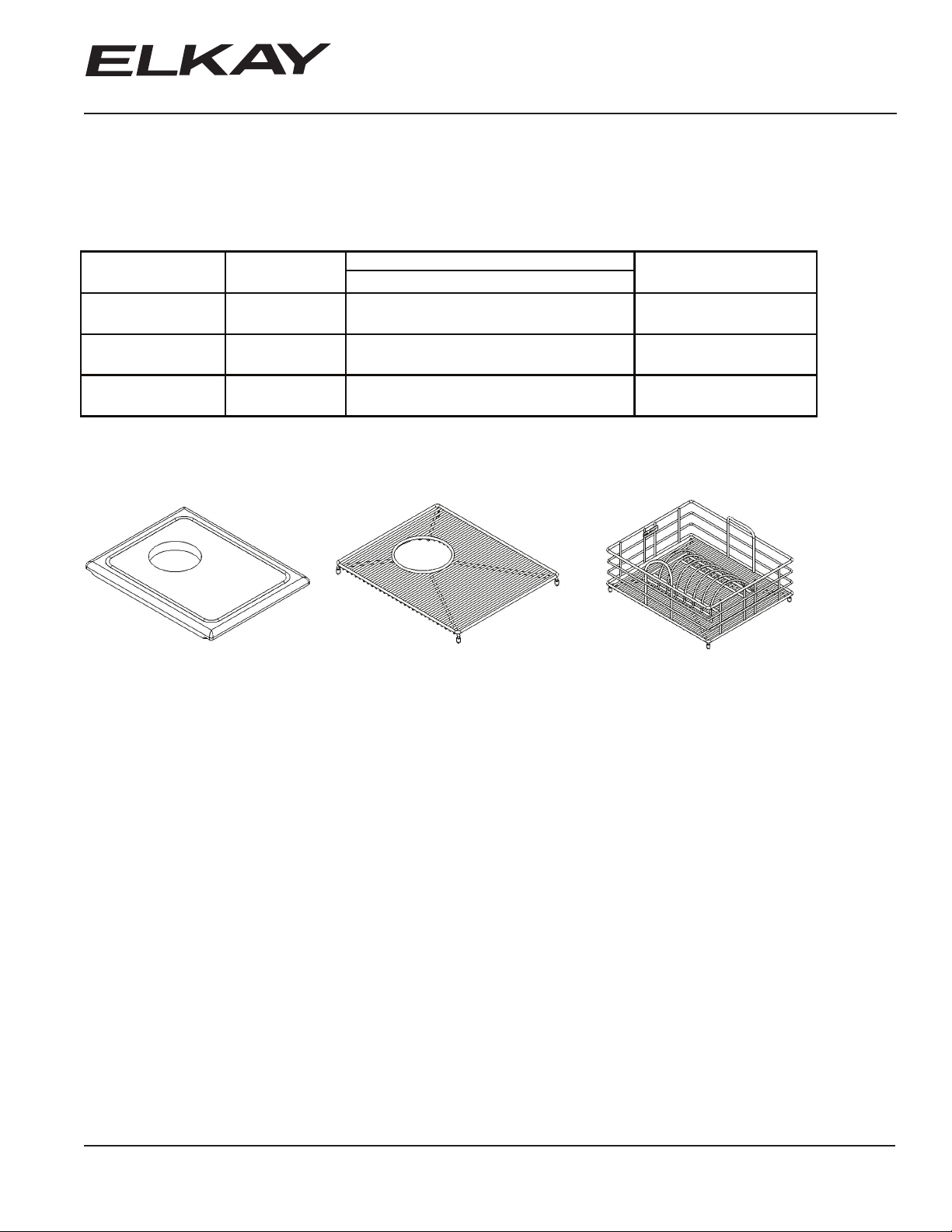

Mounting Clips: LKUCLIP8
Cutting Board**
13-1/4"
16-7/8"
1"
12-1/2"
15"
1-1/8"
Model Number
Description
Material/Finish
SP ECIFIC ATI O NS
OPTIONAL ACCESSORIES
Utensil Caddy for Rinsing Basket: LKWUCSS
Drain: LK99
For Additional Accessories see table below
L W Depth/Thickness
LKCBF1316HW
(337mm)
LKFOBG1316SS Bottom Grid
(318mm)
LKFRB1316SS Rinsing Basket 12-1/2"
(318mm)
*Length is left to right. Width is front to back.
** Fits Countertop opening
Overall
(429mm)
(381mm)
15"
(381mm)
(25mm)
(29mm)
5 5/16"
(135mm)
Avado
Undermount Single Bowl Sink
Model EFU131610
Hardwood
Polished stainless steel
Polished stainless steel
™
LKCBF1316HW LKFOBG1316SS LKFRB1316SS
