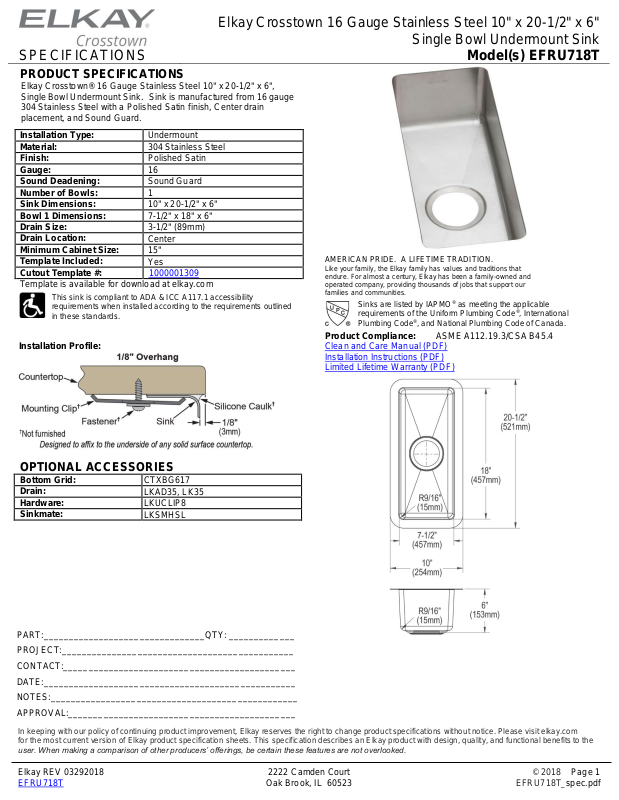

Elkay EFRU718T Specs

SPECIFICATIONS

Elkay Crosstown 16 Gauge Stainless Steel 10" x 20-1/2" x 6"

Single Bowl Undermount Sink

Model(s) EFRU718T

PRODUCT SPECIFICATIONS

Elkay Crosstown® 16 Gauge Stainless Steel 10" x 20-1/2" x 6",
Single Bowl Undermount Sink. Sink is manufactured from 16 gauge
304 Stainless Steel with a Polished Satin finish, Center drain
placement, and Sound Guard.

Installation Type:

Undermount

Material:

304 Stainless Steel

Finish:

Polished Satin

Gauge:

16

Sound Deadening:

Sound Guard

Number of Bowls:

1

Sink Dimensions:

10" x 20-1/2" x 6"

Bowl 1 Dimensions:

7-1/2" x 18" x 6"

Drain Size:

3-1/2" (89mm)

Drain Location:

Center

Minimum Cabinet Size:

15"

Template Included:

Yes

Cutout Template #:

1000001309

Template is available for download at elkay.com

This sink is compliant to ADA & ICC A117.1 accessibility
requirements when installed according to the requirements outlined
in these standards.

AMERICAN PRIDE. A LIFETIME TRADITION.

Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.

Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.

Product Compliance:

ASME A112.19.3/CSA B45.4

Clean and Care Manual (PDF)

Installation Instructions (PDF)

Limited Lifetime Warranty (PDF)

OPTIONAL ACCESSORIES

Bottom Grid:

CTXBG617

Drain:

LKAD35, LK35

Hardware:

LKUCLIP8

Sinkmate:

LKSMHSL

Installation Profile:

PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay REV 03292018 2222 Camden Court © 2018 Page 1

EFRU718T Oak Brook, IL 60523 EFRU718T_spec.pdf

SPECIFICATIONS

Elkay Crosstown 16 Gauge Stainless Steel 10" x 20-1/2" x 6"

Single Bowl Undermount Sink

Model(s) EFRU718T

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay REV 03292018 2222 Camden Court © 2018 Page 2

EFRU718T Oak Brook, IL 60523 EFRU718T_spec.pdf
