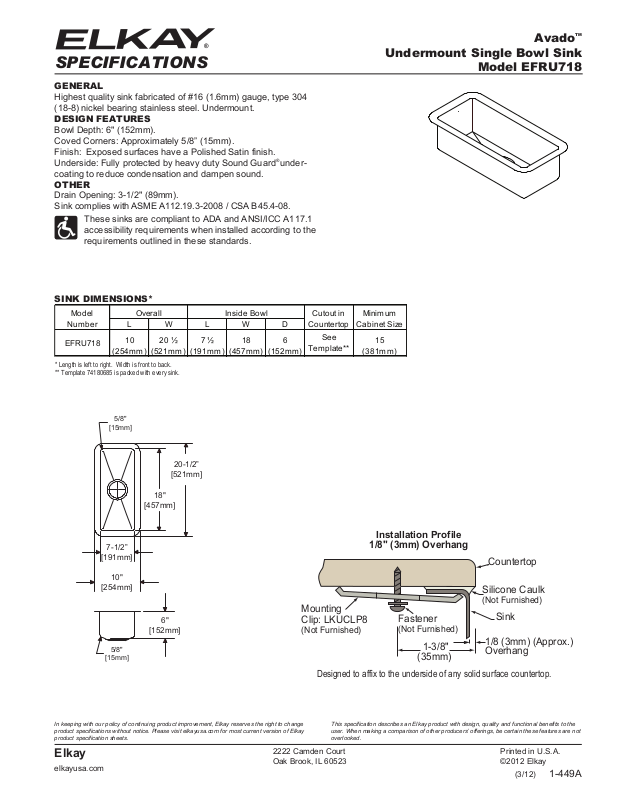

Elkay EFRU718 User Manual
®
Num ber
Countertop
Cabinet Size
SPECIFICATIONS
GENERAL
Highest quality sink fabricated of #16 (1.6mm) gauge, type 304
(18-8) nickel bearing stainless steel. Undermount.
DESIGN FEATURES
Bowl Depth: 6" (152mm).
Coved Corne
Finish: Exposed surfaces have a Polished Satin finish.
Und
erside: Fully protected by heavy duty Sound Guard
coating to reduce condensation and dampen sound.
OTHER
Drain Opening: 3-1/2" (89mm).
Sink complies with ASME A112.19.3-2008 / CSA B45.4-08.
SINK DIMENSIONS*
Model
EFRU718
* Length is left to right. Width is front to back.
** Template 74180685 is packed with every sink.
rs: Approximately 5/8” (15mm).
®
under-
These sinks are compliant to ADA and ANSI/ICC A117.1
accessibility requirements when installed according to the
requirements outlined in these standards.
Overall Inside Bowl Cutout in
L W L W D
10
(254m m)
20 ½
(521m m)
7 ½
(191m m)18(457m m)6(152m m)
See
Template**
Undermount Single Bowl Sink
Model EFRU718
Minimum
15
(381m m)
Avado
TM
5/8"
15mm]
[
7-1/2”
191mm]
[
10"
254mm]
[
5/8"
15mm]
[
18"
457mm]
[
6"
152mm]
[
20-1/2”
521mm]
[
Installation Profile
1/8" (3mm) Overhang
Countertop
Silicone Caulk
Mounting
Clip: LKUCLP8
(Not Furnished)
Fastener
(Not Furnished)
1-3/8"
(35mm)
Designed to affix to the underside of any solid surface countertop.
(Not Furnished)
Sink
1/8 (3mm) (Approx.)
Overhang
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2012 Elkay
(3/12)
1-
449A
®
(165m m)
(381m m)
(178m m)
Steel
Material / Finish
Num ber
Des cription
SPECIFICATIONS
OPTIONAL ACCESSORIES
Mounting Clips: LKUCLIP8
Utensil Caddy for Rinsing Basket: LKWUCSS
Drain: LK99
For Additional Accessories see table below
Model
L W Depth / Thicknes s
LKFBG718SS Bottom Grid
LKCBF718HW Cutting Board**
LKFRB715SS Rins ing Bas ket
6-1/2
(165m m)17(432m m)
8-1/2
(216m m)19(483m m)
6-1/2
*Length is left to right. Width is front to back.
** Fits countertop opening.
Overall
15
1-1/4
(32m m)
1
(25m m)
7
Undermount Single Bowl Sink
Polis hed Stainless
Steel
Hardwood
Polis hed Stainless
Avado
Model EFRU718
TM
LKFBG718SS LKCBF718HW
LKFRB715SS
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2012 Elkay
(3/12)
1-
449A
