EDFPA117FPC, EDFPA117FPRAC
Installation/Care/Use Manual
EDFPA117FPC & EDFPA117FPRAC
®
Swirlflo
EDFPA117FPC
Installer
To assure you install this model easily and correctly, PLEASE READ THESE SIMPLE
INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER APPLICABLE
CODES. After installation, leave these instructions inside the fountain for future reference.
This Freeze Resistant Fountain is shipped in two separate cartons. The second carton
contains the Freeze Resistant Package LK616A that is installed on an interior heated
wall. Refer to the Freeze Resistant Package for the rough-in dimensions for installation.
Freeze Resistant Fountain
EDFPA117FPRAC
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO
WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY
OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK
INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN
INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING
THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER
SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING
PLUMBING SYSTEM.
1/4" O.D. TUBE
WATER INLET
TO COOLER
FIG. 1
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY
NOTE: WATER FLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS
SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
FIG. 2
97729C (Rev. C - 1/04)
EDFPA117FPC, EDFPA117FPRAC
EDFPA117FPC ROUGH-IN
FIG. 3
LEGEND:
A = 7/8" (22mm) DIA. HOLE FOR WATER SUPPLY TUBE
B = 1-3/4" (44mm) DIA. HOLE FOR WASTE LINE
C = 1/4" (6mm) DIA. HOLE FOR MOUNTING PLATE TO WALL
*Note: All dimensions are taken from the finished floor on the side of the wall
that the fountain is installed on.
97729C (Rev. C - 1/04)
PAGE 2
NOTE: REINFORCE WALL IN SHADED AREAS.
EDFPA117FPC, EDFPA117FPRAC
EDFPA117FPRAC ROUGH-IN
FIG. 4
LEGEND:
A = 7/8" (22mm) DIA. HOLE FOR WATER SUPPLY TUBE
B = 1-3/4" (44mm) DIA. HOLE FOR WASTE LINE
C = 1/4" (6mm) DIA. HOLE FOR MOUNTING PLATE TO WALL
*Note: All dimensions are taken from the finished floor on the side of the wall
that the fountain is installed on.
PAGE 3
NOTE: REINFORCE WALL IN SHADED AREAS.
97729C (Rev. C - 1/04)
EDFPA117FPC, EDFPA117FPRAC

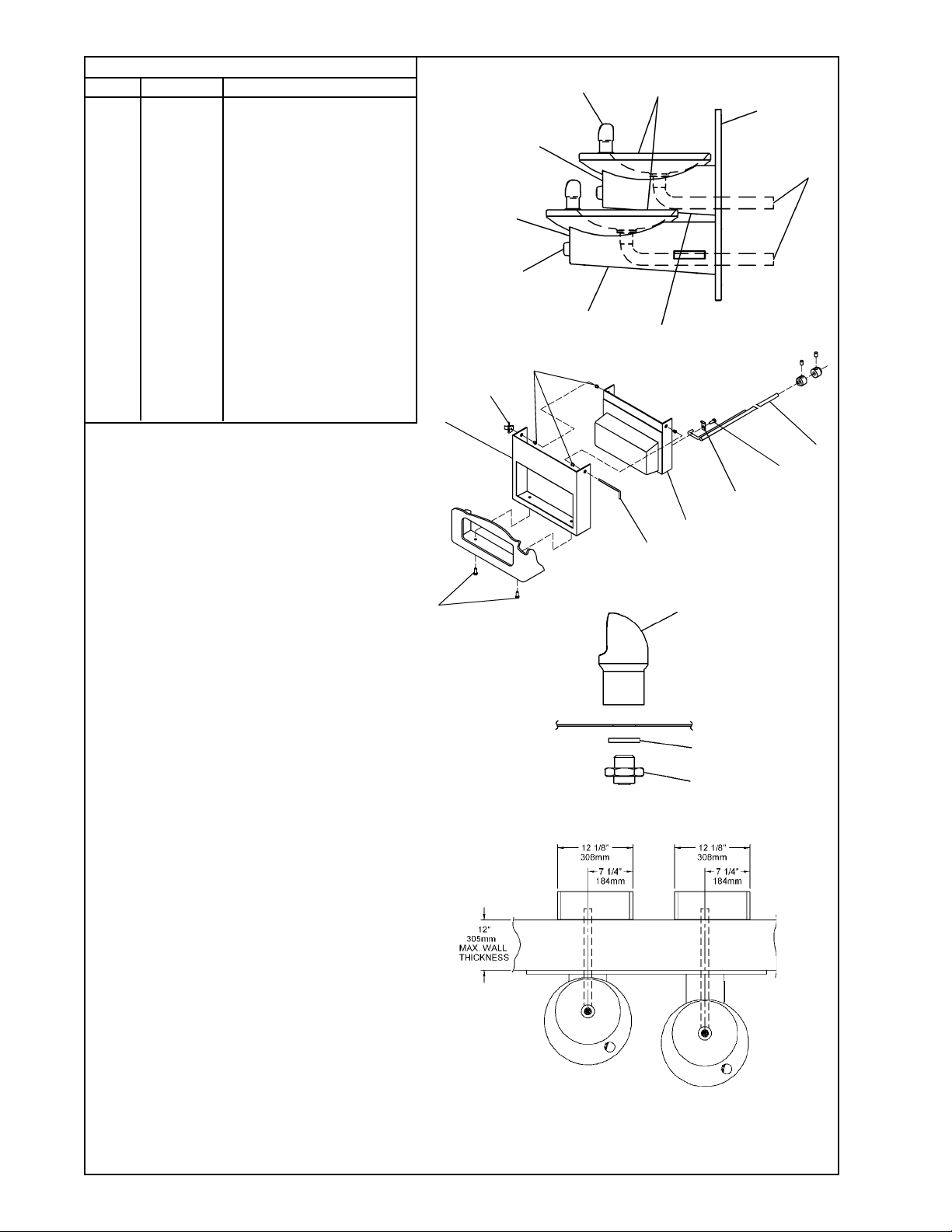

PARTS LIST
ITEM NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NS
NS
* PARTS ARE SUPPLIED WITH FREEZE RESISTANT BOX
PART NO.
21705C
28322C
21810C
21822C
21823C
21845C
21846C
28227C
28229C
50198C
55001026
70002C
15009C
100322740560
45392C
70410C
70426C
75555C
*75559C
*72000833
75570C
56092C
75520C
CLIP-PUSH ROD
BRACKET-PUSH BAR MTG.
PUSH BAR ASSY
FTN BODY&SHELL EDFP110C
FTN BODY&SHELL EDFP114C
COVER PLATE EDFP110C
COVER PLATE EDFP114C
BACK PANEL EDFPA117FRC
BACK PANEL EDFPA117FPRAC
BUSHING-SNAP
BASIN
SCREW-#10 X .50 HHSM
NIPPLE ASSEMBLY
GASKET
BUBBLER
ROD-PIVOT
SCREW #8-32 X .25 THMS
CLIP -.125 STUD LOCK
PUSH ROD ASSY
WASTE ARM ASSEMBLY
SCREW-#10 X .50 PINNED TORX
POLY TUBING (CUT TO LENGTH)
BIT-PINNED TORX T-25
DESCRIPTION
INSTALLATION INSTRUCTIONS
2
4
5
SEE FIG. 5
9
17
SEE FIG. 6
7, 20
10
8
19
6, 20
18
11
1
1. Wall should already be framed for the fountain using
the positioning dimensions shown in Figure 3 & 4.
Shown dimensions pertain to installation location
(framing must support up to 300 lbs. weight). These
dimensions are required for compliance with ANSI
Standard A117.1/ADA requirements.
2. Install back panel. Place the upper edge of the panel
above mounting plate on the wall. Slide the panel
down until it engages the mounting plate. Be sure back
panel is firmly engaged before releasing it.
3. Remove bottom covers from fountains and save the
screws. Assemble push rods to fountains. See Fig. 5.
(Push rods provided with freeze-resistant boxes).
4. Secure the fountains to the wall. Install the fountains
to the back panel using (2) bolts and washers
(provided) per each fountain. Next secure the fountain
bodies to the back panel using (4) bolts and washers
(provided) per each fountain. Tighten securely.
5. Attach drain tubes (supplied with freeze-resistant
box) to fountains and cut to required length using
freeze resistant box as a guide.
6. Install freeze-resistant box - see box instructions.
7. Install a service stop (not provided) and make water
supply connection from the stop to the strainers in
the freeze-resistant box.
16
3
15
FIG. 5
14
13
12
FIG. 6
8. Connect fountain water line to freeze-resistant
box - see box instructions. Replace bottom covers.
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
ELKAY MANUFACTURING COMPANY 2222 CAMDEN COURT OAK BROOK, IL 60523 630.574.8484
97729C (Rev. C - 1/04)
FIG. 7
PAGE 4
