Page 1
21
EDFA1 1C*A EDF A1 1FC*A EDFAC21 1C*A
Installation/Care/Use Manual
Semi-Recessed Fountain/Cuspidor
®
SEE
FIG. 3
22
with FLEXI-GUARD
SEE
FIG. 7
SEE
FIG. 4
FIG. 9
20
SEE
EDFA11C EDFAC211CEDFA11FC
Installer
T o assure you install this model easily and correctly , PLEASE READ THESE SIMPLE
INSTRUCTIONS BEFORE ST ARTING THE INST ALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER APPLICABLE
CODES. After installation, leave these instructions inside the fountain for future reference.
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. T O WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MA Y BE IN THE BUILDING OR MA Y OCCUR AW A Y FROM THE
BUILDING . THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNT AIN, CREATING AN ELECTROLYSIS WHICH CAUSES A MET ALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WA TER.
THIS CONDITION IS A VOIDABLE BY USING THE PROPER MATERIALS AS INDICA TED. ANY DRAIN FITTINGS
PROVIDED BY THE INST ALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALL Y ISOLA TE THE FOUNT AIN
FROM THE BUILDING PLUMBING SYSTEM.
INST ALLATION INSTRUCTIONS
1. Prepare wall opening(s) and attach wall hanger bracket(s) for the fountain (and cuspidor when applicable) using dimensions
shown in Figures 1 and 2.
2. Water supply is 3/8" O.D. unplated copper and waste tailpiece(s) are 1-1/4" O.D. Contractor is to supply waste trap(s) and
service stop valve in accordance with local codes.
3. Connecting lines to be unplated copper and thoroughly flushed to remove all foreign matter before connecting to fountain
assembly.
4. Install fountain (and cuspidor) into rough-in opening(s).
5. Connect the fountain to the supply line with a shut off valve and install a 3/8" (10mm) water line between the valve and
strainer. Push the tubes straight into the fittings until they reach a positive stop, approximately 3/4". See Figs. 5 and 6. DO NOT
SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE O-RINGS MA Y RESUL T.
6. On cuspidor models, connect 1/4 tube coiled in fountain to spreader.
7. Turn water supply on and check thoroughly for leaks.
8. Release air from tank by depressing push bar; a steady stream of water assures all air is removed.
9. Re-check for leaks.
10. Stream height is factory set at 35 PSI. If supply pressure varies greatly from this, turn adjustment screw on regulator (item 23).
Clockwise adjustment will raise the stream height and counter-clockwise adjustment will lower stream height. For best adjust
ment, stream should hit basin approximately 6-1/2" from the bubbler.
TROUBLE SHOOTING AND MAINTENANCE
1. Orifice Assy: Mineral deposits on orifice can cause water flow to spurt or not regulate. Mineral deposits may be removed from
orifice with a small round file not over 1/8 diameter or a small diameter wire. CAUTION: Do not file or cut orifice materials.
2. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring water seal.
To remove tubing from the fitting, relieve water pressure, push in on the gray collar while pulling on the tubing (See Fig. 6). To
insert tubing, push tube straight into the fitting until it reaches a positive stop, approximatley 3/4".
97163C (Rev. J - 1/05)
Page 2
EDFA1 1C*A EDF A1 1FC*A EDFAC21 1C*A
FINISHED FLOOR LINE
EDF A1 1C ROUGH-IN
FIG. 1
C = WALL HANGER - 12" (305mm) x 1" (25mm) FURNISHED LOOSE.
D = MOUNTING HOLES FOR 1/4" DIA. (6mm) SCREWS.
97163C (Rev. J - 1/05)
PAGE 2
LEGEND:
A = W A TER INLET LOCA TION. 3/8" O.D. UNPLA TED COPPER
TUBE CONNECT.
B = FOUNT AIN WASTE OUTLET LOCA TION.
1-1/4" O.D. DRAIN (TRAP NOT FURNISHED)

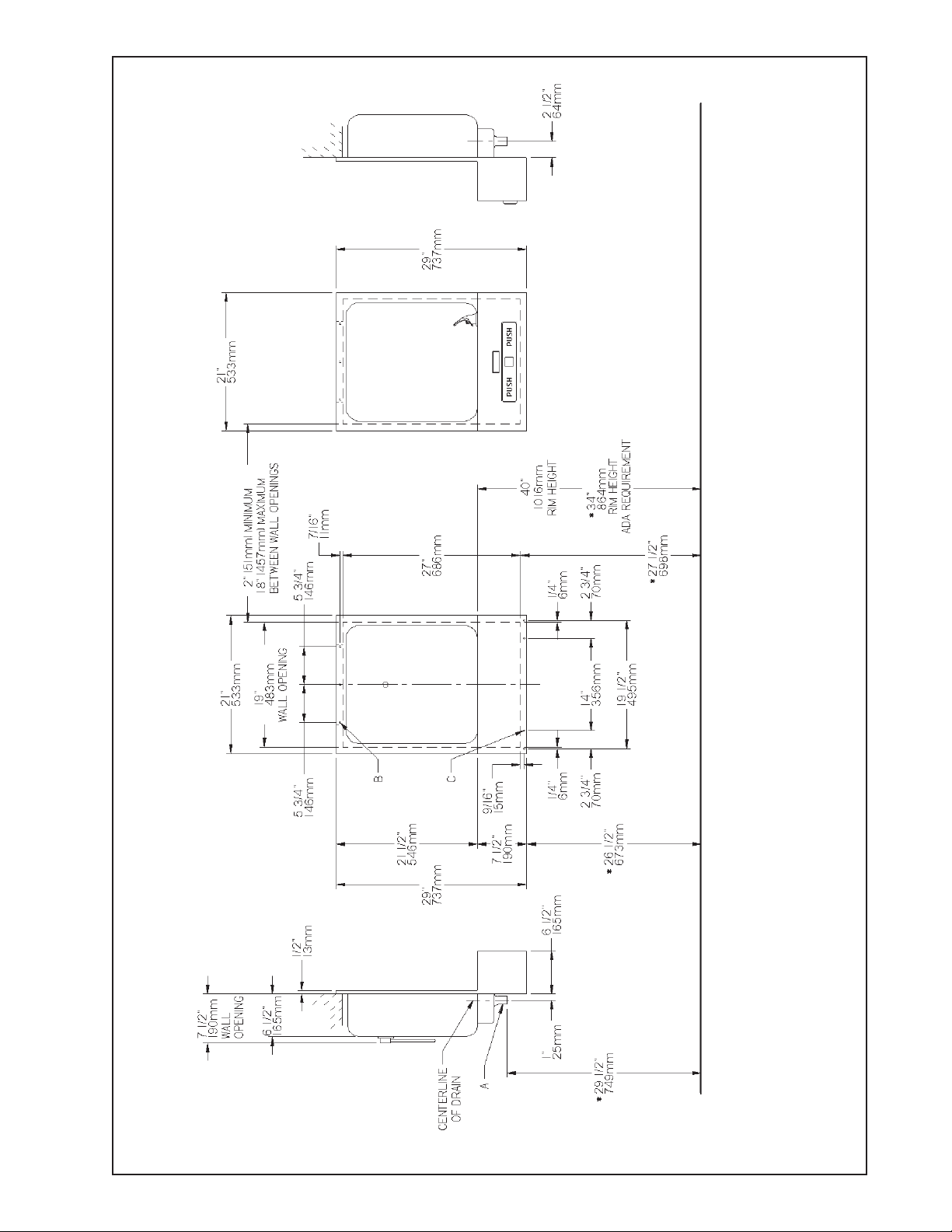

Page 3
EDFA1 1C*A EDF A1 1FC*A EDFAC21 1C*A
FINISHED FLOOR LINE
EDF AC21 1C ROUGH-IN
FIG. 2
C = MOUNTING HOLES FOR 1/4" DIA. (6mm) SCREWS.
PAGE 3
LEGEND:
A = CUSPIDOR W ASTE OUTLET LOCA TION.
1-1/4" O.D. DRAIN (TRAP NOT FURNISHED) B = W ALL HANGER - 12" (305mm) x 1" (25mm) FURNISHED LOOSE.
97163C (Rev. J - 1/05)
Page 4
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
NS
NS
EDFA1 1C*A EDF A1 1FC*A EDFAC21 1C*A

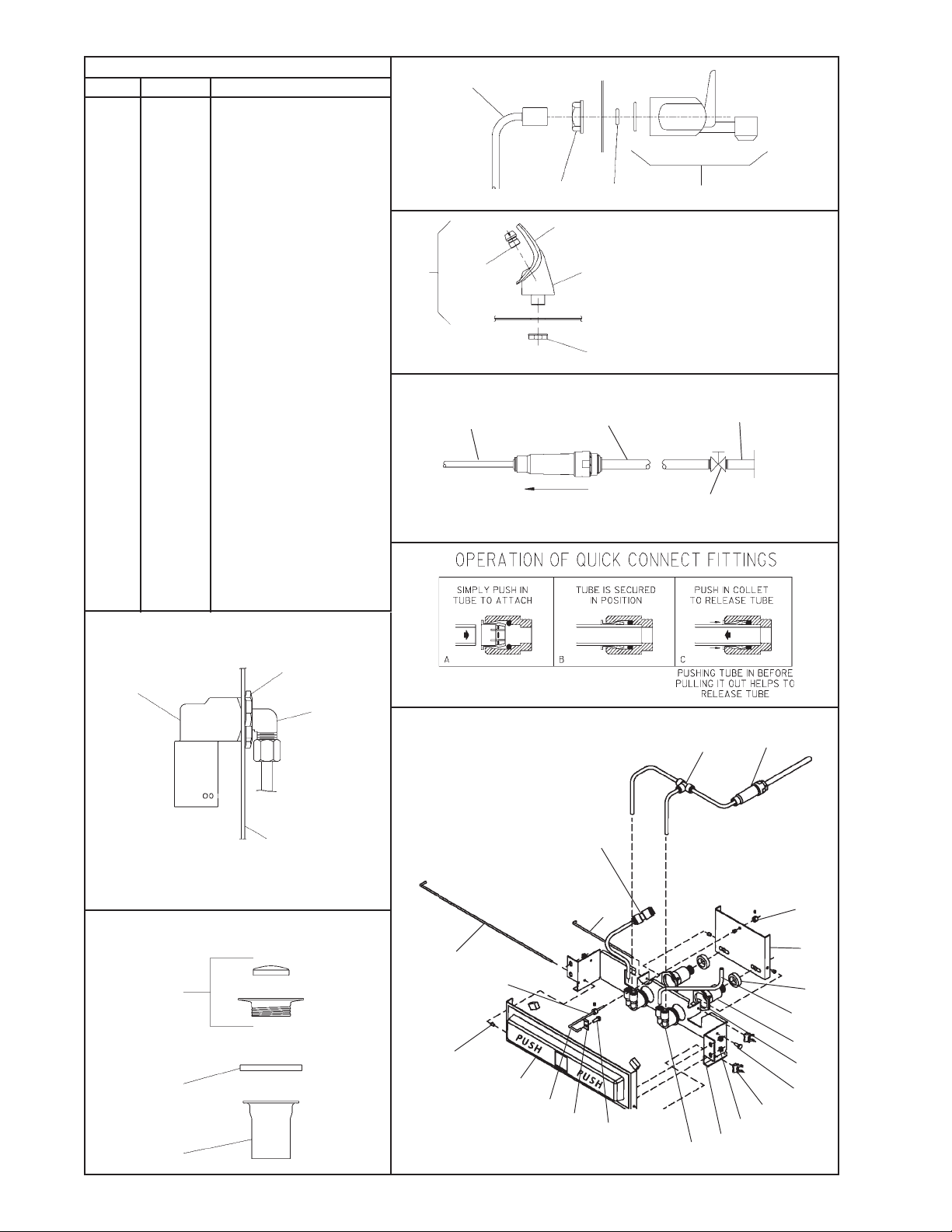

PAR TS LIST
PAR TS LIST
PAR T NO.ITEM NO.
1
15005C
2
21705C
3
21708C
4
5
6
7
8
9
22911C
22912C
31525028
40045C
40206000
40322C
40493C
40572C
40575C
40624C
50074C
55997C
50198C
56011C
50986C
56073C
55001099
55001097
55001098
61314C
62084C
70002C
70012C
70018C
70278C
70378C
55996C
70682C
70920C
70971C
70977C
75555C
70683C
56092C
CP11
28579C
DESCRIPTION
NUT - RETAINING
CLIP - PUSH ROD
PUSH BAR ASSY
BRKT - LEVER PUSH
BRKT - PUSH BAR MTG
O-RING
HEX NUT - UNPLTD
RETAINER
ORIFICE ASSY
GLASS FILLER
TAILPIPE (CUSPIDOR)
STRAINER/FERRULE ASSY
HEAD-SPREADER
GASKET - T AILPIPE
PEDESTAL
BUSHING - SNAP
HOUSING ASSY
HOLDER - REGULAT OR
BUBBLER ASSY
CUSPIDOR
FOUNTAIN (EDFA11C)
FOUNTAIN (EDFA11FC)
REGULATOR
TUBE ASSY - GF
SCREW-#10 X .50 HHSM
NUT - 3/8-18 LKNT
NUT 1/4-20 HEX
ROD - SUPPORT
ROD - PUSH
STRAINER
TEE - 1/4
ROD - PIVOT
ELBOW
NUT - LOCK 1/2 CONDUIT
CLIP -.125 STUD LOCK
UNION 1/4"
POLY TUBING (Cut To Length)
COVER PLATE (EDFA11C/FC)
WALL HANGER BRACKET
FIG. 3
19
FIG. 4
FIG. 5
24
9
1/4" O.D. TUBE
WATER INLET
TO COOLER
26
17
15
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY
NOTE: WATER FLOW
DIRECTION
106
NOTE: WHEN INST ALLING
REPLACEMENT BUBBLER
AND PEDEST AL, TIGHTEN
NUT (ITEM 26) ONL Y T O HOLD
P ARTS SNUG IN POSITION.
DO NOT OVER TIGHTEN.
26
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
34
13
FIG. 6
33
CUSPIDOR
FIG. 7
12
14
FIG. 8 FIG. 9
97163C (Rev. J - 1/05)
11
28
16
PAGE 4
31
30
36
32
8
4
8
1
37
23
7
3
29
2
25
EDFAC21 1C
18
27
5
25
35
Page 5
EDFA1 1C*A EDF A1 1FC*A EDFAC21 1C*A
Installation Notes
Plumbing Connection Access
T o gain additional access (for Drain T rap and Water Line
Connections) the front push bar can be removed during
installation.
Front Push Bar
Front Push Bar Removal
The push bar is removed by unfastening the four retaining
nuts on the back side of the pushbar mounting bracket.
Plumbing Connections
Removing the Pushbar Bracket Assembly increases
access to the drain and water connections.
Note: For Cuspidor Units the cuspidor supply line must
be connected or capped before use.
Back View of Fountain
Push Bar and Bracket
Pushbar Bracket
Retaining Nuts
Fountain with Push Bar
Removed
Cuspidor Connection
Fitting
Pushbar and Mounting
Bracket Assembly
FOR PARTS, CONT ACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
ELKAY MANUF ACTURING COMP AN Y • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
PAGE 5
97163C (Rev. J - 1/05)
