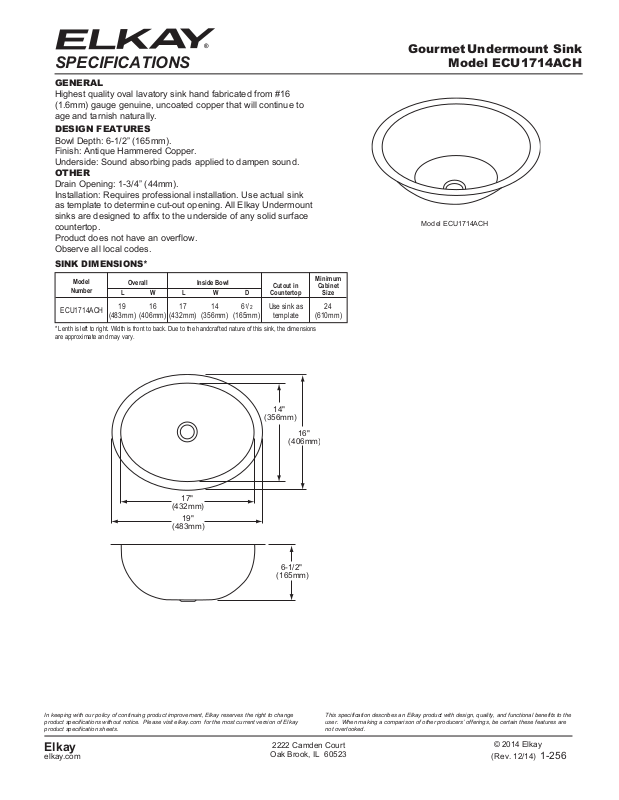

Elkay ECU1714ACH User Manual

®

(406mm)

SPECIFICATIONS

GENERAL

Highest quality oval lavatory sink hand fabricated from #16
(1.6mm) gauge genuine, uncoated copper that will continue to
age and tarnish naturally.

DESIGN FEATURES

Bowl Depth: 6-1/2” (165mm).
Finish: Antique Hammered Copper.
Underside: Sound absorbing pads applied to dampen sound.

OTHER

Drain Opening: 1-3/4” (44mm).
Installation: Requires professional installation. Use actual sink
as template to determine cut-out opening. All Elkay Undermount
sinks are designed to affix to the underside of any solid surface
countertop.
Product does not have an overflow.
Observe all local codes.

SINK DIMENSIONS*

Model

Number

ECU1714ACH

* Lenth is left to right. Width is front to back. Due to the handcrafted nature of this sink, the dimensions
are approximate and may vary.

Overall Inside Bowl

L W L W D Countertop Size

19 16 17 14 61/2 Use sink as 24

(483mm ) (406m m) (432mm ) (356mm ) (165mm) template (610mm )

Cutout in Cabinet

Gourmet Undermount Sink

Model ECU1714ACH

Model ECU1714ACH

Minimum

17"

(432mm)

19"

(483mm)

14"

(356mm)

16"

6-1/2"

(165mm)

In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.

Elkay

elkay.com

2222 Camden Court

Oak Brook, IL 60523

This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are
not overlooked.

© 2014 Elkay

(Rev. 12/14)

1-256
