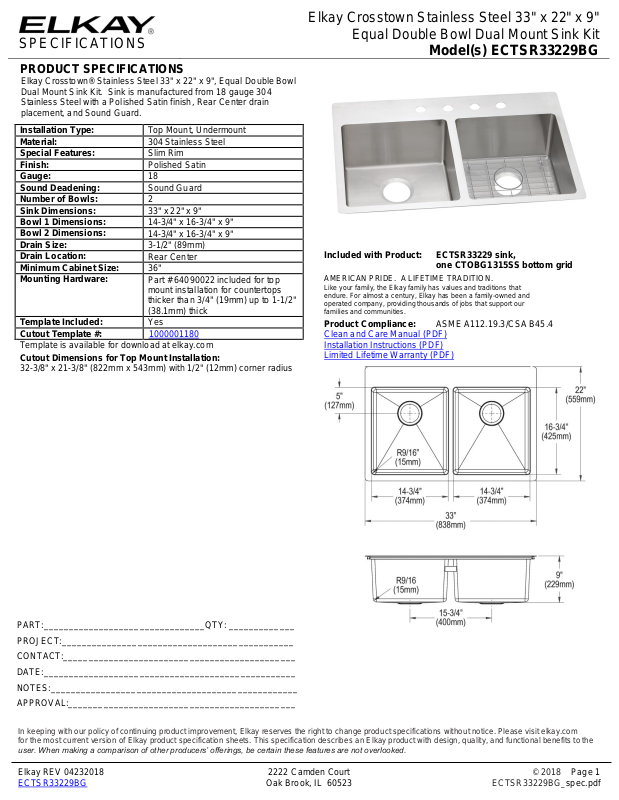

Page 1
SPECIFICATIONS
Elkay Crosstown Stainless Steel 33" x 22" x 9"
Equal Double Bowl Dual Mount Sink Kit
Model(s) ECTSR33229BG
PRODUCT SPECIFICATIONS
Elkay Crosstown® Stainless Steel 33" x 22" x 9", Equal Double Bowl
Dual Mount Sink Kit. Sink is manufactured from 18 gauge 304
Stainless Steel with a Polished Satin finish, Rear Center drain
placement, and Sound Guard.
Installation Type:
Top Mount, Undermount
Material:
304 Stainless Steel
Special Features:
Slim Rim
Finish:
Polished Satin
Gauge:
18
Sound Deadening:
Sound Guard
Number of Bowls:
2
Sink Dimensions:
33" x 22" x 9"
Bowl 1 Dimensions:
14-3/4" x 16-3/4" x 9"
Bowl 2 Dimensions:
14-3/4" x 16-3/4" x 9"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090022 included for top
mount installation for countertops
thicker than 3/4" (19mm) up to 1-1/2"
(38.1mm) thick
Template Included:
Yes
Cutout Template #:
1000001180
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
32-3/8" x 21-3/8" (822mm x 543mm) with 1/2" (12mm) corner radius
Included with Product:
ECTSR33229 sink,
one CTOBG1315SS bottom grid
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 1
ECTSR33229BG Oak Brook, IL 60523 ECTSR33229BG_spec.pdf
Page 2
SPECIFICATIONS
Elkay Crosstown Stainless Steel 33" x 22" x 9"
Equal Double Bowl Dual Mount Sink Kit
Model(s) ECTSR33229BG
OPTIONAL ACCESSORIES
Drain:
LK35, LKDS35, LK99S
Hardware:
LKUCLIP8
Sinkmate:
LKSMHSL
Installation Profile:
Hole Drilling Configurations:
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 2
ECTSR33229BG Oak Brook, IL 60523 ECTSR33229BG_spec.pdf
