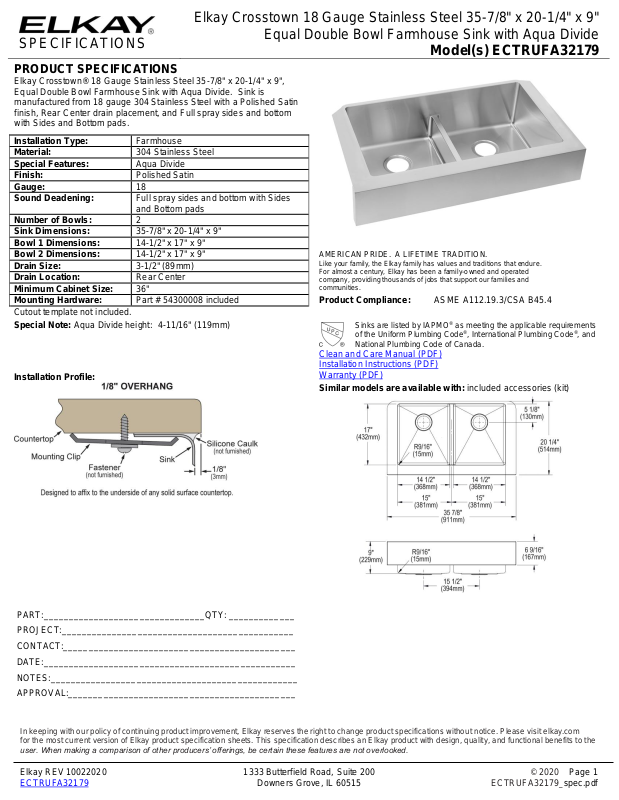

Page 1
SPECIFICATIONS
Elkay Crosstown 18 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9"
Equal Double Bowl Farmhouse Sink with Aqua Divide
Model(s) ECTRUFA32179
PRODUCT SPECIFICATIONS
Elkay Crosstown® 18 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9",
Equal Double Bowl Farmhouse Sink with Aqua Divide. Sink is
manufactured from 18 gauge 304 Stainless Steel with a Polished Satin
finish, Rear Center drain placement, and Full spray sides and bottom
with Sides and Bottom pads.
Installation Type:
Farmhouse
Material:
304 Stainless Steel
Special Features:
Aqua Divide
Finish:
Polished Satin
Gauge:
18
Sound Deadening:
Full spray sides and bottom with Sides
and Bottom pads
Number of Bowls:
2
Sink Dimensions:
35-7/8" x 20-1/4" x 9"
Bowl 1 Dimensions:
14-1/2" x 17" x 9"
Bowl 2 Dimensions:
14-1/2" x 17" x 9"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 54300008 included
Cutout template not included.
Special Note: Aqua Divide height: 4-11/16" (119mm)
Installation Profile:
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
Similar models are available with: included accessories (kit)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10022020 1333 Butterfield Road, Suite 200 © 2020 Page 1
ECTRUFA32179 Downers Grove, IL 60515 ECTRUFA32179_spec.pdf
Page 2
SPECIFICATIONS
Elkay Crosstown 18 Gauge Stainless Steel 35-7/8" x 20-1/4" x 9"
Equal Double Bowl Farmhouse Sink with Aqua Divide
Model(s) ECTRUFA32179
OPTIONAL ACCESSORIES
Bottom Grid:
CTXBG1316
Drain:
LKDD, LK35, LK99S
Faucet:
LK3000CR, LK3001CR, LK5000CR,
LK5000LS
Hardware:
LKUCLIP8
Soap Dispenser:
LK320
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 10022020 1333 Butterfield Road, Suite 200 © 2020 Page 2
ECTRUFA32179 Downers Grove, IL 60515 ECTRUFA32179_spec.pdf
