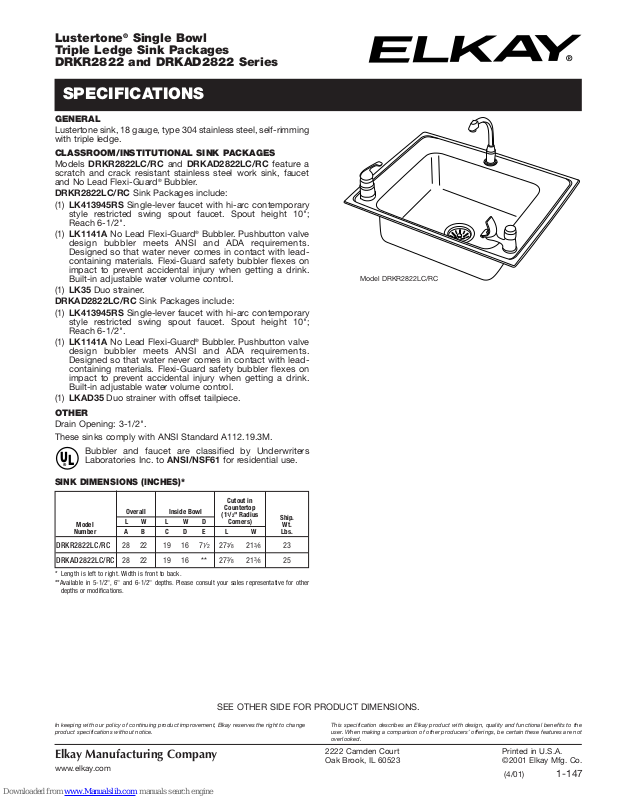

Elkay DRKAD282255RC, DRKR2822RC, DRKR2822LC, DRKAD282260RC, DRKAD282265RC Specifications
...Page 1
Lustertone®Single Bowl
®
U
L
®
Triple Ledge Sink Packages
DRKR2822 and DRKAD2822 Series
SPECIFICATIONS
GENERAL
Lustertone sink, 18 gauge, type 304 stainless steel, self-rimming
with triple ledge.
CLASSROOM/INSTITUTIONAL SINK P
Models DRKR2822LC/RC and DRKAD2822LC/RC featur
scratch and crack r
and No Lead Flexi-Guar
esistant stainless steel work sink, faucet
®
Bubbler
d
.
DRKR2822LC/RC Sink Packages include:
(1) LK413945RS Single-lever faucet with hi-ar
style restricted swing spout faucet. Spout height 10";
Reach 6-1/2".
(1) LK1141A No Lead Flexi-Guar
®
d
design bubbler meets ANSI and ADA r
Designed so that water never comes in contact with leadcontaining materials. Flexi-Guar
impact to pr
event accidental injury when getting a drink.
Built-in adjustable water volume contr
(1) LK35 Duo strainer.
DRKAD2822LC/RC Sink Packages include:
(1) LK413945RS Single-lever faucet with hi-arc contemporary
style restricted swing spout faucet. Spout height 10";
Reach 6-1/2".
(1) LK1141A No Lead Flexi-Guard®Bubbler. Pushbutton valve
design bubbler meets ANSI and ADA requirements.
Designed so that water never comes in contact with leadcontaining materials. Flexi-Guard safety bubbler flexes on
impact to prevent accidental injury when getting a drink.
Built-in adjustable water volume control.
(1) LKAD35 Duo strainer with offset tailpiece.
OTHER
Drain Opening: 3-1/2".
These sinks comply with ANSI Standard A112.19.3M.
Bubbler and faucet are classified by Underwriters
Laboratories Inc. to ANSI/NSF61 for residential use.
ACKAGES
e a
c contemporary
Bubbler
. Pushbutton valve
equirements.
d safety bubbler flexes on
ol.
Model DRKR2822LC/RC
SINK DIMENSIONS (INCHES)*
Overall Inside Bowl
Model
Number A B C D E L W Lbs.
DRKR2822LC/RC 28 22 19 16 71⁄2 273⁄8 213⁄8 23
DRKAD2822LC/RC 28 22 19 16 ** 273⁄8 213⁄8 25
* Length is left to right. Width is front to back.
**Available in 5-1/2", 6" and 6-1/2" depths. Please consult your sales representative for other
depths or modifications.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
L W L W D Corners)
Elkay Manufacturing Company
www.elkay.com
Cutout in
Countertop
(11/2" Radius
Ship.
Wt.
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
(4/01) 1-147
Page 2
8"
9-1/2"
1-3/4" R
19"4-1/2"
28"
2-1/2" 2-1/2"
2-1/2"
4-1/2"
16"
22"
1-1/2"
3-1/2" DIA. HOLE
1-3/4" R
7-1/2"
Model DRKR2822LC/RC
5"
9-1/2"
1-3/4" R
19"4-1/2" 4-1/2"
28"
2-1/2"
2-1/2"
2-1/2"
4-1/2"
16"
22"
1-1/2"
3-1/2" DIA. HOLE
1-3/4" R
5-1/2", 6" or 6-1/2"
Model DRKAD2822LC/RC
Slotted Hole
®
Lustertone®Single Bowl
HOLE CONFIGURATIONS
2-1/2"
Model DRKR2822RC
3"
2-1/2"
14"
2-1/2"
SLOTTED HOLE
(1 PLACE)
19"
2-1/2"
ModelsDRKAD282255RC
DRKAD282260RC
DRKAD282265RC
ModelsDRKAD282255LC
DRKAD282260LC
DRKAD282265LC
3"
2-1/2"
14"
2-1/2"
SLOTTED HOLE
(1 PLACE)
2-1/2"
Model DRKR2822LC
3"
2-1/2"
14"
2-1/2"
SLOTTED HOLE
(1 PLACE)
2-1/2"
3"
2-1/2"
14"
2-1/2"
SLOTTED HOLE
(1 PLACE)
19"
19"
19"
Triple Ledge Sink Packages
DRKR2822 and DRKAD2822 Series
SPECIFICATIONS
Elkay Manufacturing Company
1-147 (4/01)
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2001 Elkay Mfg. Co.
