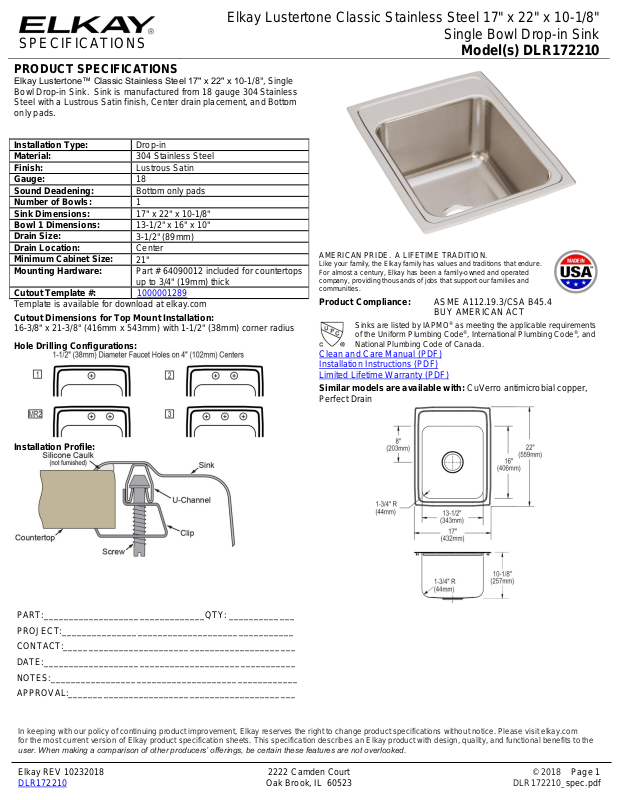

SPECIFICATIONS

Elkay Lustertone Classic Stainless Steel 17" x 22" x 10-1/8"

Single Bowl Drop-in Sink

Model(s) DLR172210

PRODUCT SPECIFICATIONS

Elkay Lustertone™ Classic Stainless Steel 17" x 22" x 10-1/8", Single
Bowl Drop-in Sink. Sink is manufactured from 18 gauge 304 Stainless
Steel with a Lustrous Satin finish, Center drain placement, and Bottom
only pads.

Installation Type:

Drop-in

Material:

304 Stainless Steel

Finish:

Lustrous Satin

Gauge:

18

Sound Deadening:

Bottom only pads

Number of Bowls:

1

Sink Dimensions:

17" x 22" x 10-1/8"

Bowl 1 Dimensions:

13-1/2" x 16" x 10"

Drain Size:

3-1/2" (89mm)

Drain Location:

Center

Minimum Cabinet Size:

21"

Mounting Hardware:

Part # 64090012 included for countertops
up to 3/4" (19mm) thick

Cutout Template #:

1000001289

Template is available for download at elkay.com

Cutout Dimensions for Top Mount Installation:
16-3/8" x 21-3/8" (416mm x 543mm) with 1-1/2" (38mm) corner radius

Hole Drilling Configurations:

Installation Profile:

AMERICAN PRIDE. A LIFETIME TRADITION.

Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.

Product Compliance:

ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT

Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.

Clean and Care Manual (PDF)

Installation Instructions (PDF)

Limited Lifetime Warranty (PDF)

Similar models are available with: CuVerro antimicrobial copper,
Perfect Drain

PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay REV 10232018 2222 Camden Court © 2018 Page 1

DLR172210 Oak Brook, IL 60523 DLR172210_spec.pdf

SPECIFICATIONS

Elkay Lustertone Classic Stainless Steel 17" x 22" x 10-1/8"

Single Bowl Drop-in Sink

Model(s) DLR172210

OPTIONAL ACCESSORIES

Bottom Grid:

LKWBG1316SS

Cutting Board:

CB1613, CB1713, CBS1316

Drain:

LK99

Faucet:

LKGT1041, LKGT2041

Hardware:

LK364, LK463

Rinsing Basket:

LKWRB1316SS

Sinkmate:

LKSMHSL

Soap Dispenser:

LKGT1054
