Elkay BSNAE Users Manual

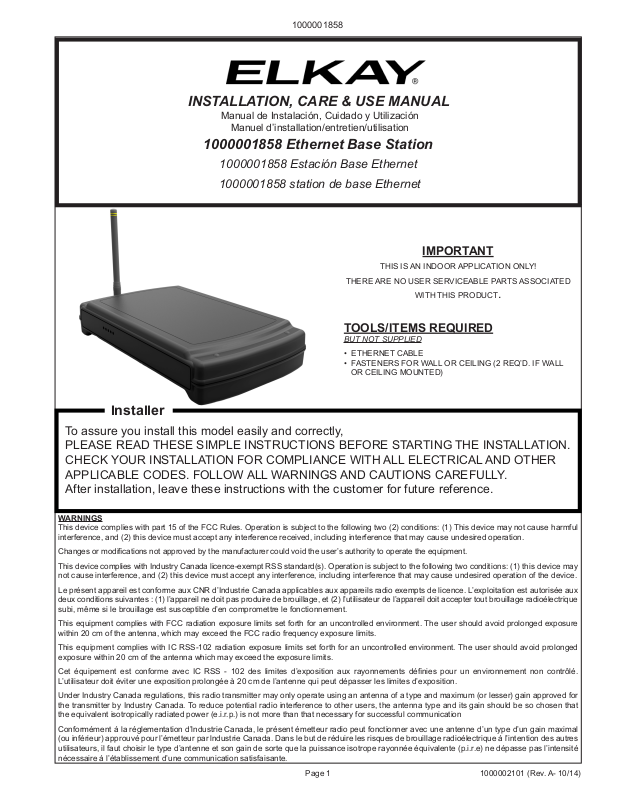

1000001858

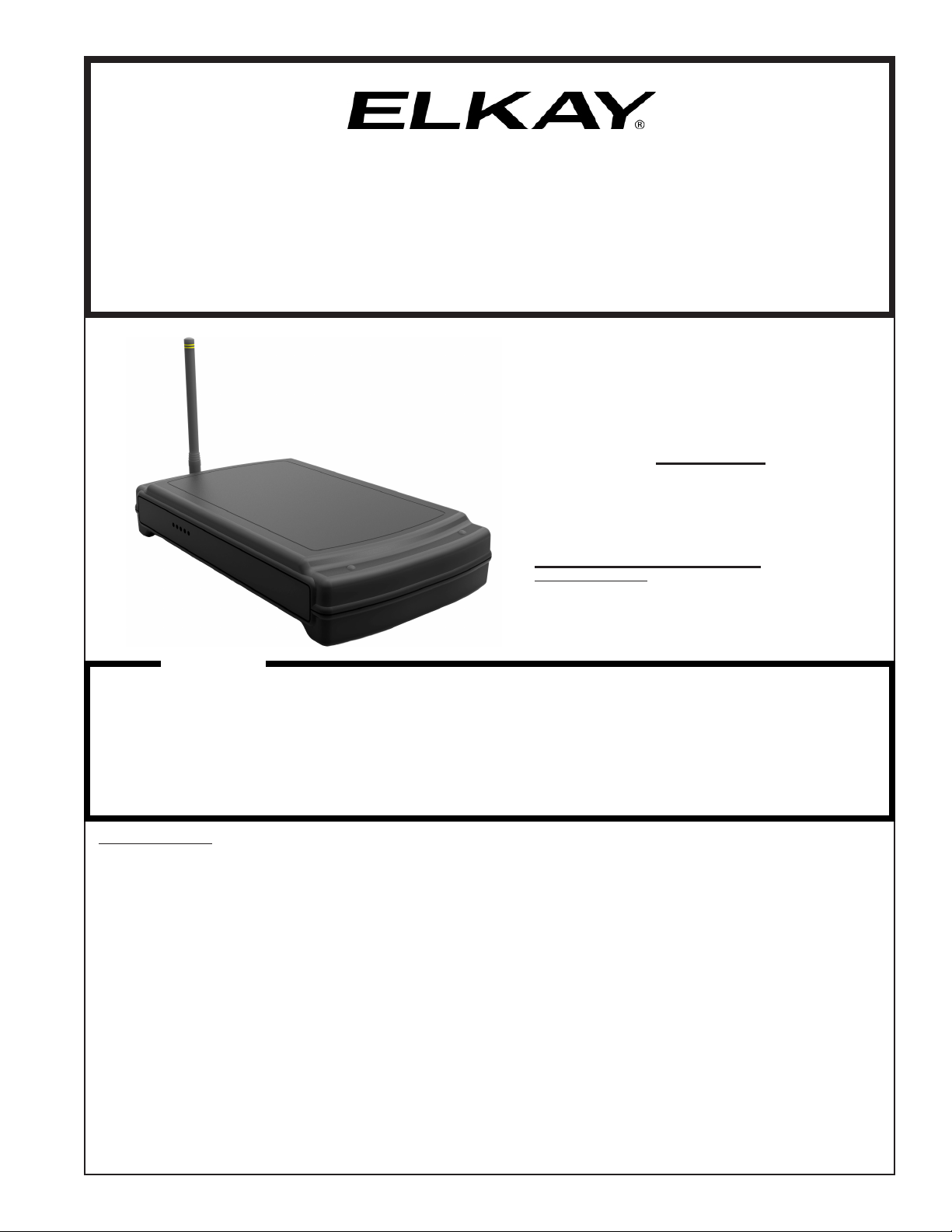

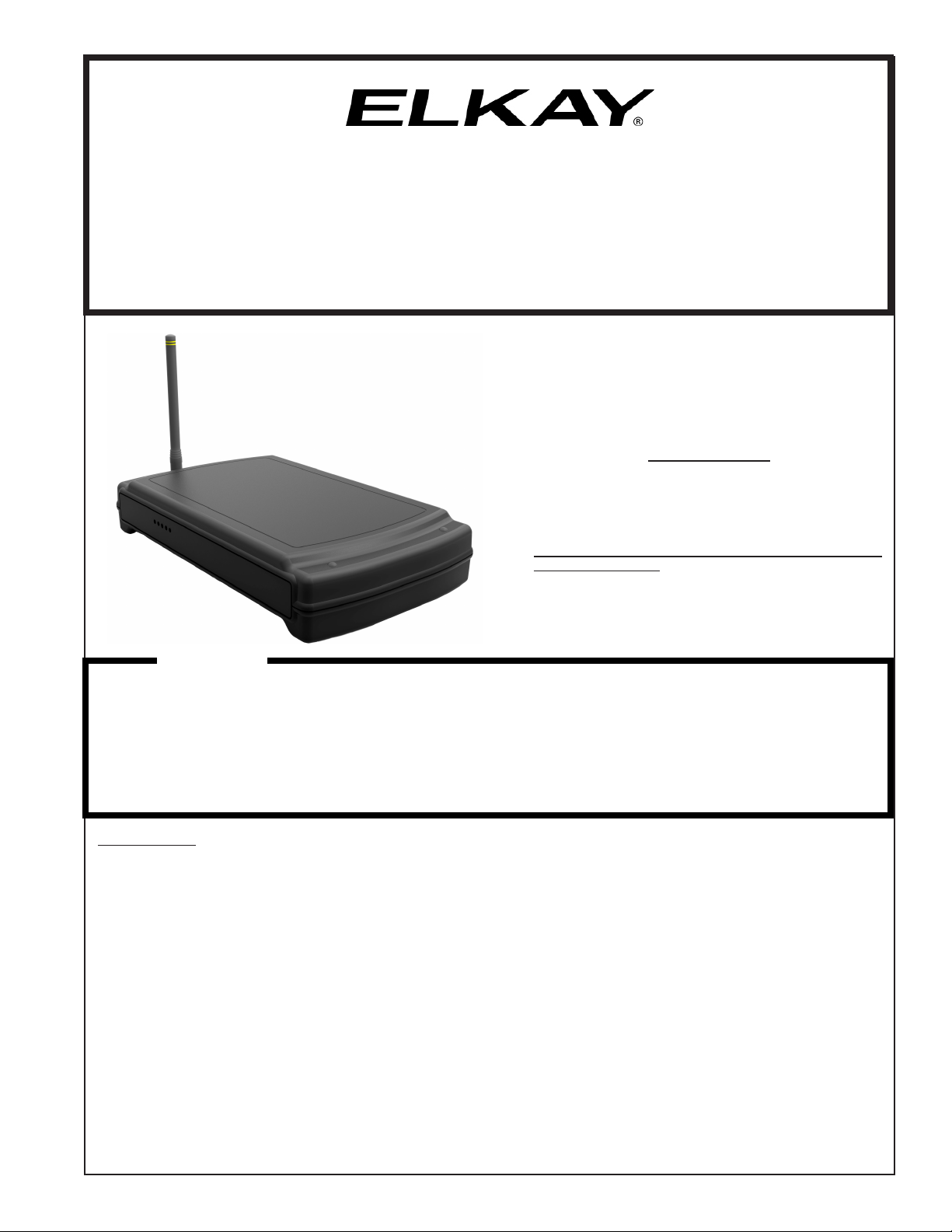

INSTALLATION, CARE & USE MANUAL
Manual de Instalación, Cuidado y Utilización
Manuel d’installation/entretien/utilisation
1000001858 Ethernet Base Station
1000001858 Estación Base Ethernet
1000001858 station de base Ethernet
IMPORTANT
THIS IS AN INDOOR APPLICATION ONLY!
THERE ARE NO USER SERVICEABLE PARTS ASSOCIATED
WITH THIS PRODUCT.
TOOLS/ITEMS REQUIRED
BUT NOT SUPPLIED
• ETHERNET CABLE
• FASTENERS FOR WALL OR CEILING (2 REQ’D. IF WALL
OR CEILING MOUNTED)
Installer
To assure you install this model easily and correctly,
PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.
CHECK YOUR INSTALLATION FOR COMPLIANCE WITH ALL ELECTRICAL AND OTHER
APPLICABLE CODES. FOLLOW ALL WARNINGS AND CAUTIONS CAREFULLY.
After installation, leave these instructions with the customer for future reference.
WARNINGS
This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not approved by the manufacturer could void the user’s authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The user should avoid prolonged exposure
within 20 cm of the antenna, which may exceed the FCC radio frequency exposure limits.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. The user should avoid prolonged
exposure within 20 cm of the antenna which may exceed the exposure limits.
Cet équipement est conforme avec IC RSS - 102 des limites d’exposition aux rayonnements dénies pour un environnement non contrôlé.
L’utilisateur doit éviter une exposition prolongée à 20 cm de l’antenne qui peut dépasser les limites d’exposition.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for
the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication
Conformément á la réglementation d’lndustrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type d’un gain maximal
(ou inférieur) approuvé pour l’émetteur par lndustrie Canada. Dans le but de réduire les risques de brouillage radioélectrique á l’intention des autres
utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e) ne dépasse pas l’intensité
nécessaire á l’établissement d’une communication satisfaisante.
Page 1 1000002101 (Rev. A- 10/14)
1000001858
5 VD C P O W ER
ETHER NET P ORT
ANTENNA
POW ER
LED
PR OCESS
LED
COMM
LED S
RADIO
LED

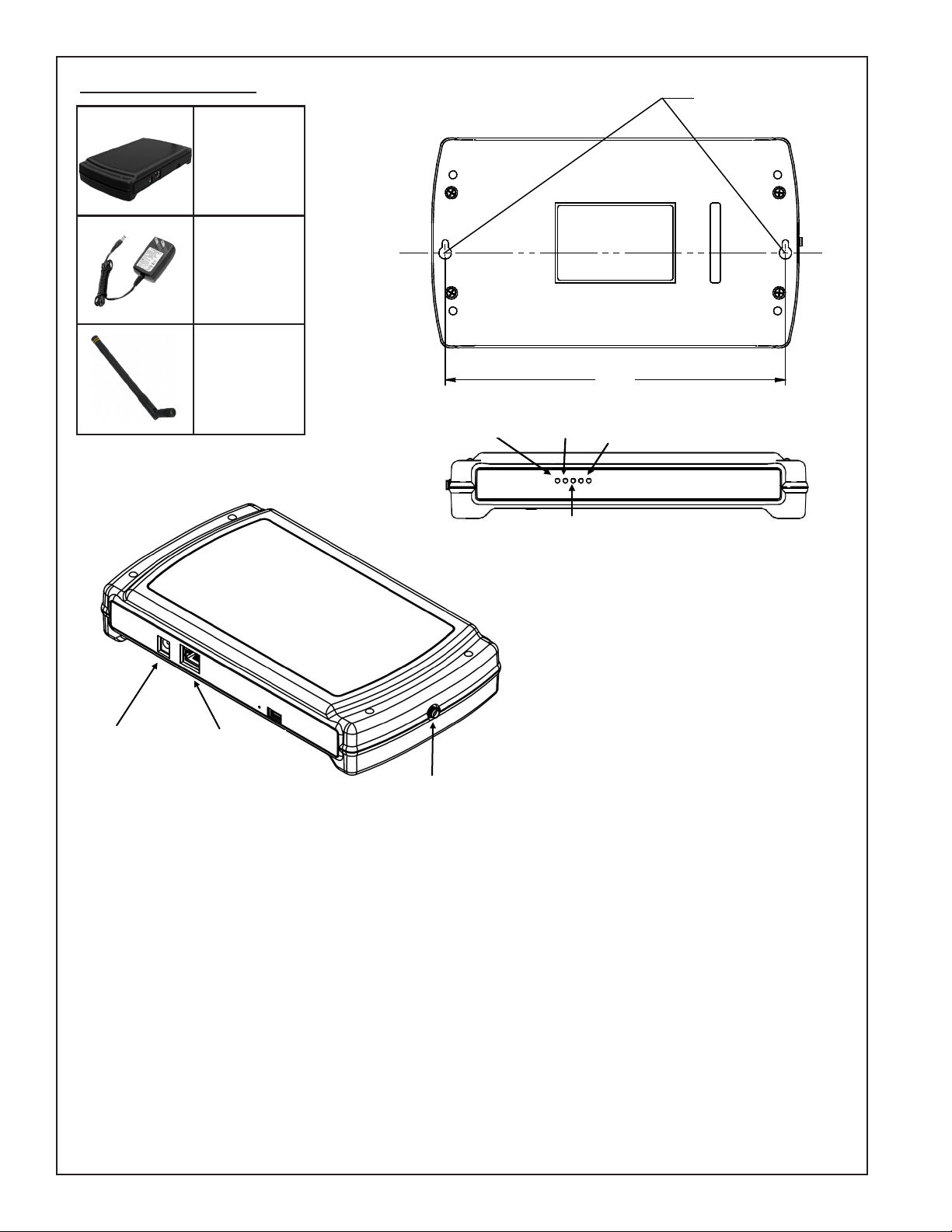

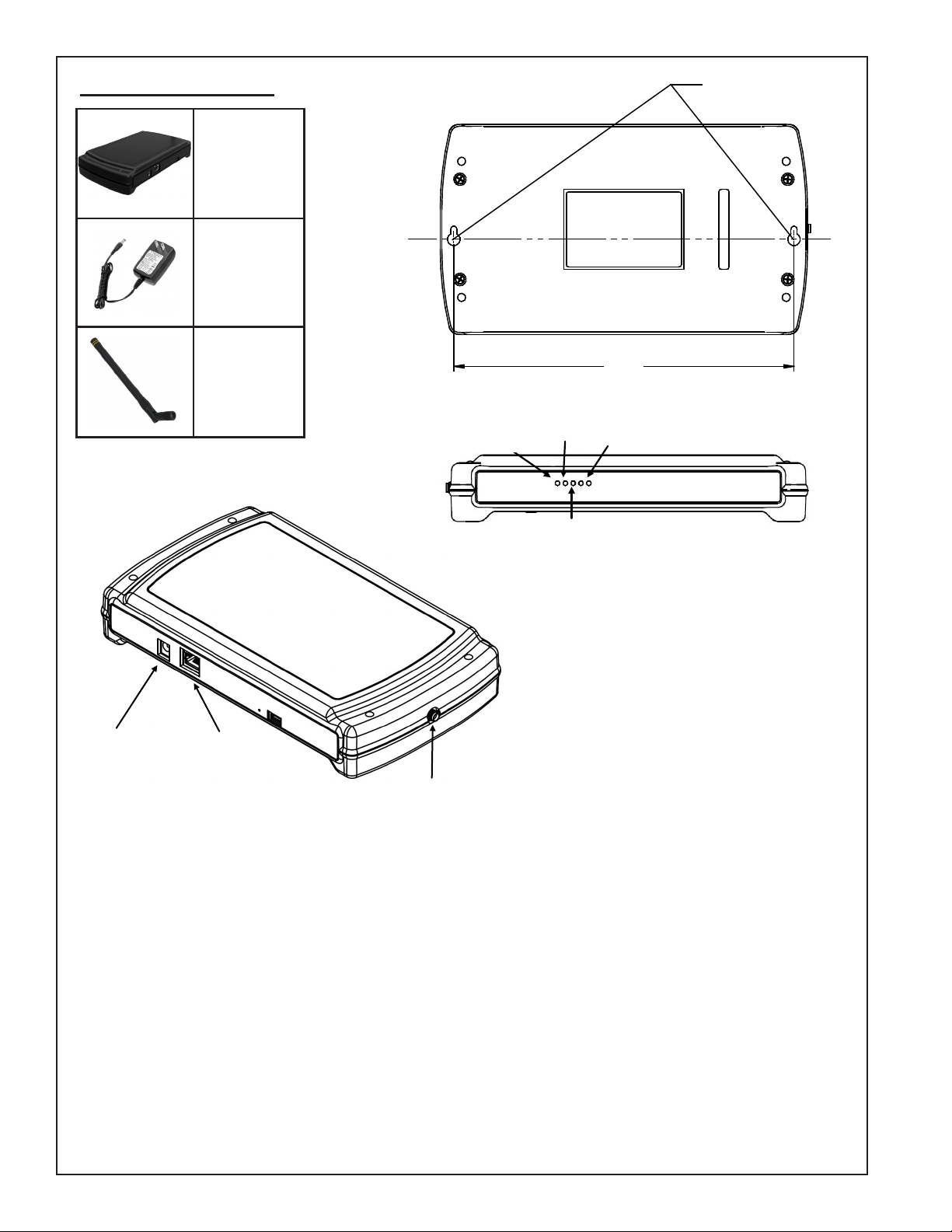

INCLUDED IN BOX
Base Station
Power Adaptor
Antenna
POWER
LED
PROCESS
LED
RADIO
LED
MOUNTING KEYHOLES
8.500
COMM
LED
5 VDC POWER ETHERNET PORT
ANTENNA
1. Choose a location for the base station that is approximately centered from the target ll stations and relatively free of obstructions. Your base station
will communicate through many types of walls and other structures, but line-of-sight is best. Each base station is designed to cover up to one
typical commercial building oor, but actual construction details will determine how many base stations are needed.
2. Ensure there is Ethernet access available.
3. Ensure that there is a standard wall outlet
4. Ensure that there is a customer account set up on the myEZH2O.com site, and that the base station IDs and ll station IDs have been added
to the customer inventory.
5. Attach the supplied antenna to the connector on the end of the base station.
6. Insert the power plug from the supplied power adapter into the 5 VDC Power connection.
7. Insert the Ethernet cable (not supplied) into the Ethernet port.
8. Plug the power adapter into the wall outlet and observe the LED array. The Power LED will illuminate when the device is correctly powered.
The Process LED will ash while the device is processing information. The Comm LEDs (one or both) will ash while the device is communicating
with the internet. The Radio LED will ash while the device is communicating with the ll stations.
9. Radio strength and other information will be available through the web portal. You may use this information to ensure that there is adequate
communication strength with all of the intended ll stations.
ELKAY MANUFACFTURING COMPANY · 2222CAMDEN COURT · OAK BROOK, IL 60523 · 630.574.8484
REPAIR AND SERVICE INFORMATION—TOLL FREE NUMBER 1.800.260.6640
1000002101 (Rev. A - 10/14)
Page 2
