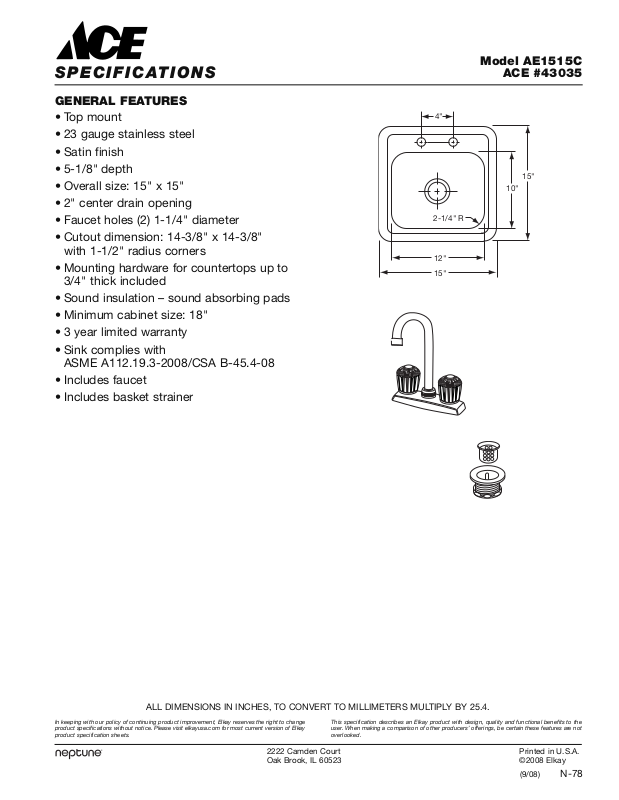

S P EC IF I C AT I O N S
4"
10"
15"
12"
2-1/4" R
15"
GENERAL FEATURES
• Top mount
• 23 gauge stainless steel
• Satin finish
• 5-1/8" depth
• Overall size: 15" x 15"
• 2" center drain opening
• Faucet holes (2) 1-1/4" diameter
• Cutout dimension: 14-3/8" x 14-3/8"
with 1-1/2" radius corners
• Mounting hardware for countertops up to
3/4" thick included
• Sound insulation – sound absorbing pads
• Minimum cabinet size: 18"
• 3 year limited warranty
• Sink complies with
ASME A112.19.3-2008/CSA B-45.4-08
Model AE1515C
ACE #43035
• Includes faucet
• Includes basket strainer
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusa.com for most current version of Elkay
product specification sheets.
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not
overlooked.
Printed in U.S.A.
©2008 Elkay
(9/08) N-78
