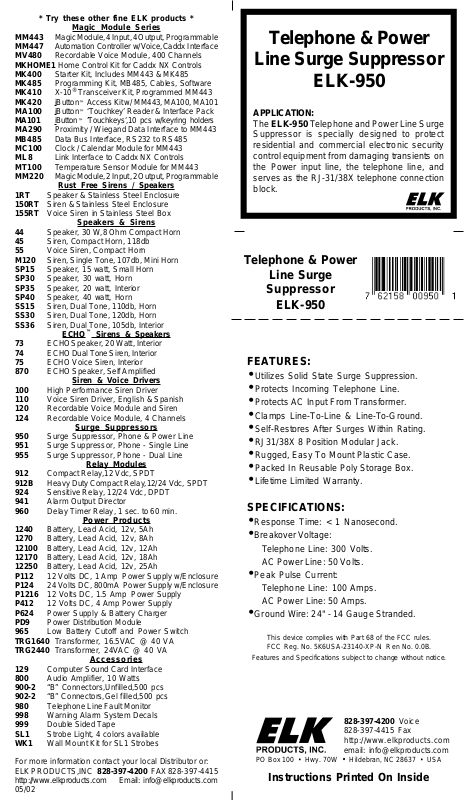

Magic Module Series
®
Transceiver Kit, Programmed MM443
iButton™ ‘Touchkeys’,10 pcs w/keyring holders
Rust Free Sirens / Speakers
Speakers & Sirens
ECHO™ Sirens & Speakers
Siren & Voice Drivers
Surge Suppressors
Relay Modules
Power Products
Accessories
Telephone & Power
Line Surge Suppressor
ELK-950
APPLICATION:
The ELK-950 Telephone and Power Line Surge
Suppressor is specially designed to protect
residential and commercial electronic security
control equipment from damaging transients on
the Power input line, the telephone line, and
serves as the RJ-31/38X telephone connection
block.
Telephone & Power
Line Surge
Suppressor
ELK-950
FEATURES:
•Utilizes Solid State Surge Suppression.
•Protects Incoming Telephone Line.
•Protects AC Input From Transformer.
•Clamps Line-To-Line & Line-To-Ground.
•Self-Restores After Surges Within Rating.
•RJ31/38X 8 Position Modular Jack.
•Rugged, Easy To Mount Plastic Case.
•Packed In Reusable Poly Storage Box.
•Lifetime Limited Warranty.
SPECIFICATIONS:
•Response Time: < 1 Nanosecond.
•Breakover Voltage:
Telephone Line: 300 Volts.
AC Power Line: 50 Volts.
•Peak Pulse Current:
Telephone Line: 100 Amps.
AC Power Line: 50 Amps.
•Ground Wire: 24" - 14 Gauge Stranded.
This device complies with Part 68 of the FCC rules.
FCC Reg. No. 5K6USA-23140-XP-N Ren No. 0.0B.
Features and Specifications subject to change without notice.
828-397-4200 Voice
828-397-4415 Fax
http://www.elkproducts.com
email: [email protected]
PO Box 100 • Hwy. 70W • Hildebran, NC 28637 • USA
Instructions Printed On Inside
Page 2
CONNECTIONS
EARTH This terminal must be connected to a good quality earth ground using a 14-16 gauge wire. The best choice of
GROUND ground is : Copper or galvanized ground rod (6' or longer) driven into the ground OR a copper cold water pipe.
Do not use PVC pipe! An acceptable but less preferred ground is the screw on an electrical outlet.
TELCO RING - Connect one side of the Incoming Telephone Line pair. (Commonly colored RED)
TIP - Connect the other side of the Incoming Telephone Line pair. (Commonly colored GREEN)
HOUSE R1 - Connect one side of the pair returning to the House Phone(s). (Commonly colored BLACK)
T1 - Connect the other side of the pair returning to the House Phone(s). (Commonly colored YELLOW)
J1 - 8 PIN Connect an 8 wire modular telephone cord from J1 to the Digital Communicator. Studies have found that the
MODULAR cord should be at least 3 feet long for best surge suppression. The pin assignments of J1 are: 4 & 5 are RING
JACK and TIP going to the control. 1 & 8 are R1 and T1 returning from the control. 2 & 7 are shorted together by
jumper EOL, creating a closed circuit tamper loop to supervise the modular plug. This loop may be converted
to a resistored EOL circuit by cutting the jumper and attaching the required resistor in series with the jumper.
POWER Optional! Provides transient/surge suppression for the low voltage transformer power line input to the control.
(DATA) CAUTION: UNPLUG TRANSFORMER UNTIL ALL CONNECTIONS ARE COMPLETE!
IN (A & B) - Connect the two wires coming from the Transformer. Max. input is 24 volts AC.
OUT (A & B) - Connect the two wires going to the Control. Polarity is not important with the AC.
NOTE: The POWER terminals may alternately be used for surge protecting data transmission wires such as a
keypad or zone expansion bus, as long as any measurable voltage on the two data wires is less than 24 volts.
Connect the data wires to the IN and OUT terminals while observing polarity using the A & B markings.

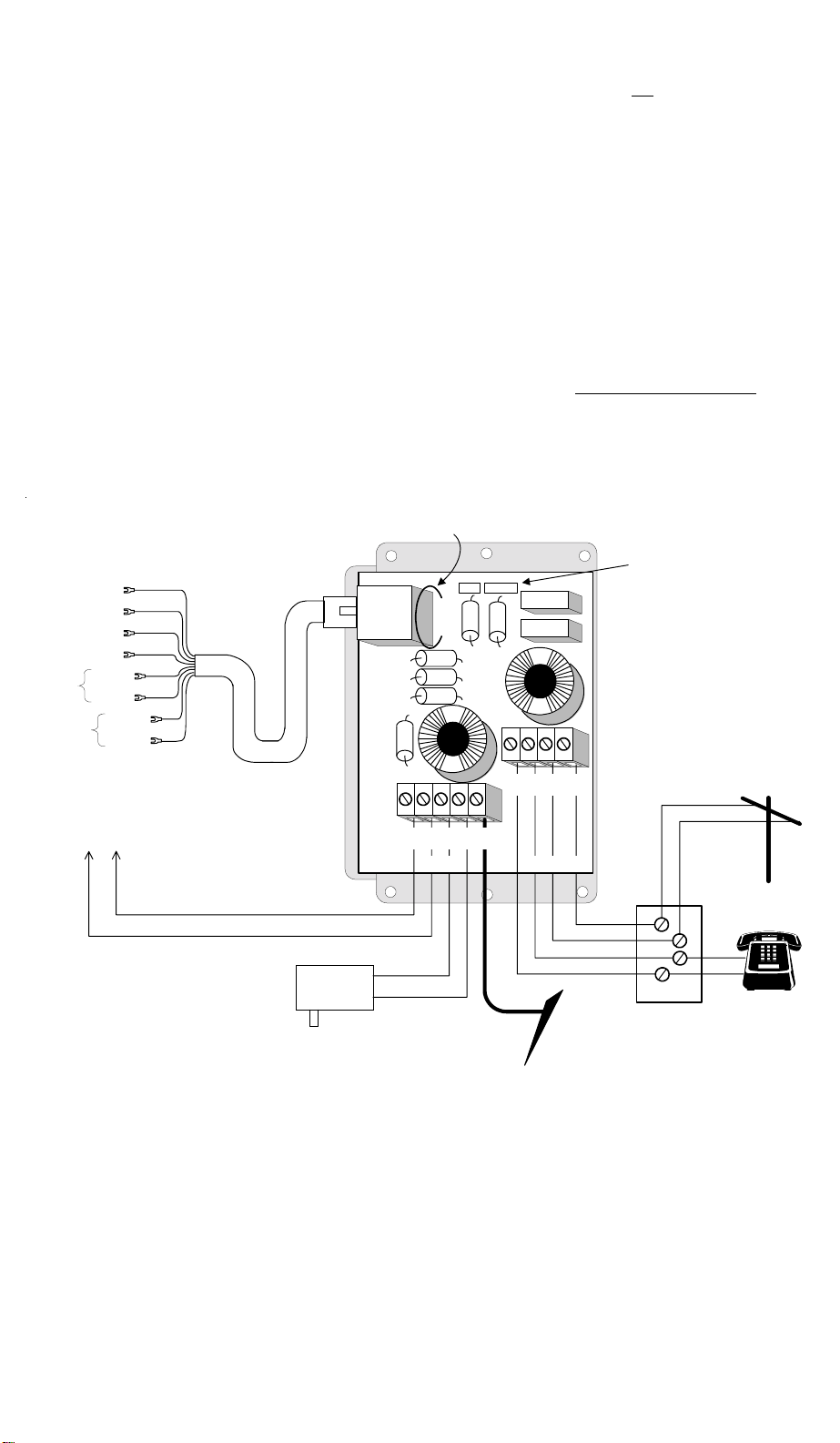

Jumper EOL shorts pins 2 & 7 for
tamper supervision of the plug.
To Digital Communicator
Inputs On Control Panel
(TIP) GREEN
(RING) RED
(T1) BROWN
(R1) GRAY
Connect
to
for
Tamper
Not
Used
ORANGE
BLUE
YELLOW
BLACK
24hr loop
TEST SET
TIP
RING
-EOL-
J1
SURGE SUPPRESSOR WITH RJ31/38X JACK
ELK-950e TELEPHONE AND P OWER LINE
Convenient points for
connecting a telephone
linemans testset
Incoming
Telephone
Line
To Transformer Input
On Control Panel
Eight (8) Wire
Modular Cord
Min. 3 Ft. Long
HOUSE TELCO
R1 T1 Tip Ring
A B A B EARTH
OUT IN GROUND
POWER TELEPHONE
AC
Transformer
24 vac Max
Earth
Ground
Telephone Co.
Demark Block
House
Phone(s)
Rod
