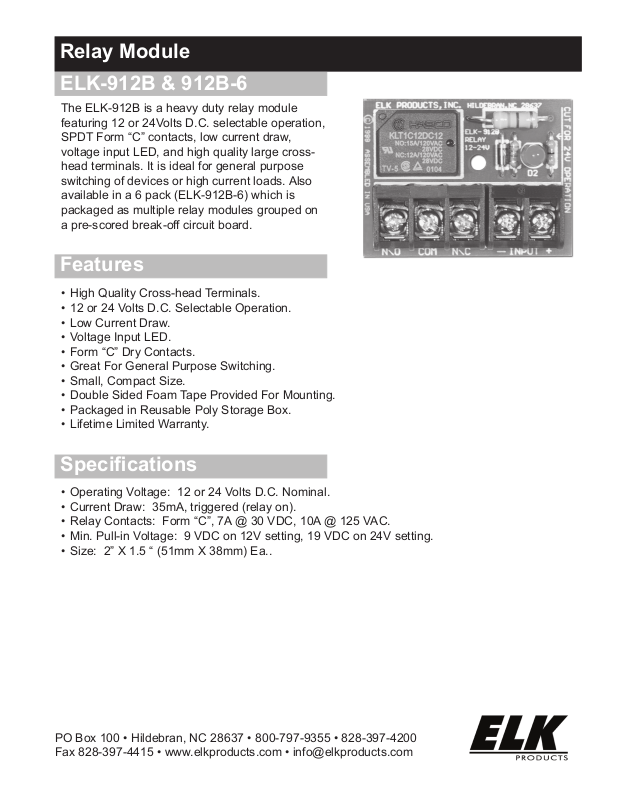

ELK 912B, 912B6 Specsheet

Relay Module

ELK-912B & 912B-6

The ELK-912B is a heavy duty relay module
featuring 12 or 24Volts D.C. selectable operation,
SPDT Form “C” contacts, low current draw,
voltage input LED, and high quality large cross­head terminals. It is ideal for general purpose
switching of devices or high current loads. Also
available in a 6 pack (ELK-912B-6) which is
packaged as multiple relay modules grouped on
a pre-scored break-off circuit board.

Features

• High Quality Cross-head Terminals.

• 12 or 24 Volts D.C. Selectable Operation.

• Low Current Draw.

• Voltage Input LED.

• Form “C” Dry Contacts.

• Great For General Purpose Switching.

• Small, Compact Size.

• Double Sided Foam Tape Provided For Mounting.

• Packaged in Reusable Poly Storage Box.

• Lifetime Limited Warranty.

Specications

• Operating Voltage: 12 or 24 Volts D.C. Nominal.

• Current Draw: 35mA, triggered (relay on).

• Relay Contacts: Form “C”, 7A @ 30 VDC, 10A @ 125 VAC.

• Min. Pull-in Voltage: 9 VDC on 12V setting, 19 VDC on 24V setting.

• Size: 2” X 1.5 “ (51mm X 38mm) Ea..
