Eljer, Inc. 9/06
1.71
Whirlpools/Tubs

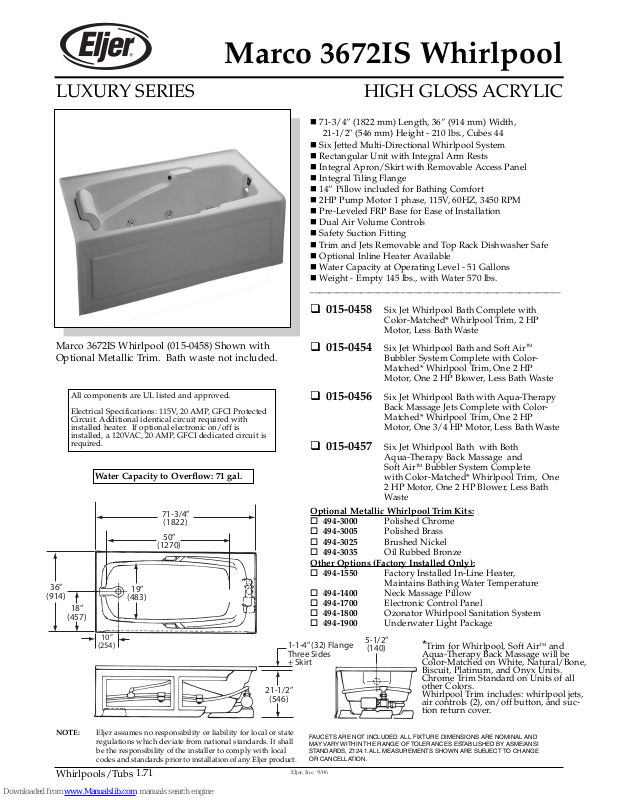

Marco 3672IS Whirlpool
HIGH GLOSS ACRYLIC
Marco 3672IS Whirlpool (015-0458) Shown with
Optional Metallic Trim. Bath waste not included.
FAUCETS ARE NOT INCLUDED. ALL FIXTURE DIMENSIONS ARE NOMINAL AND
MAY VARY WITHIN THE RANGE OF TOLERANCES ESTABLISHED BY ASME/ANSI
STANDARDS, Z124.1.ALL MEASUREMENTS SHOWN ARE SUBJECT TO CHANGE
OR CANCELLATION.
LUXURY SERIES
NOTE: Eljer assumes no responsibility or liability for local or state
regulations which deviate from national standards. It shall
be the responsibility of the installer to comply with local
codes and standards prior to installation of any Eljer product.
71-3/4” (1822 mm) Length, 36” (914 mm) Width,
21-1/2" (546 mm) Height - 210 lbs., Cubes 44
Six Jetted Multi-Directional Whirlpool System
Rectangular Unit with Integral Arm Rests
Integral Apron/Skirt with Removable Access Panel
Integral Tiling Flange
14” Pillow included for Bathing Comfort
2HP Pump Motor 1 phase, 115V, 60HZ, 3450 RPM
Pre-Leveled FRP Base for Ease of Installation
Dual Air Volume Controls
Safety Suction Fitting
Trim and Jets Removable and Top Rack Dishwasher Safe
Optional Inline Heater Available
Water Capacity at Operating Level - 51 Gallons
Weight - Empty 145 lbs., with Water 570 lbs.
_______________________________________________________
015-0458 Six Jet Whirlpool Bath Complete with
Color-Matched* Whirlpool Trim, 2 HP
Motor, Less Bath Waste
015-0454 Six Jet Whirlpool Bath and Soft Air
TM
Bubbler System Complete with ColorMatched* Whirlpool Trim, One 2 HP
Motor, One 2 HP Blower, Less Bath Waste
015-0456 Six Jet Whirlpool Bath with Aqua-Therapy
Back Massage Jets Complete with ColorMatched* Whirlpool Trim, One 2 HP
Motor, One 3/4 HP Motor, Less Bath Waste
015-0457 Six Jet Whirlpool Bath with Both
Aqua-Therapy Back Massage and
Soft Air
TM
Bubbler System Complete
with Color-Matched* Whirlpool Trim, One
2 HP Motor, One 2 HP Blower, Less Bath
Waste
Optional Metallic Whirlpool T
rim Kits:
494-3000 Polished Chrome
494-3005 Polished Brass
494-3025 Brushed Nickel
494-3035 Oil Rubbed Bronze
Other Options (Factory Installed Only):
494-1550 Factory Installed In-Line Heater,
Maintains Bathing Water Temperature
494-1400 Neck Massage Pillow
494-1700 Electronic Control Panel
494-1800 Ozonator Whirlpool Sanitation System
494-1900 Underwater Light Package
All components are UL listed and approved.
Electrical Specifications: 115V, 20 AMP, GFCI Protected
Circuit. Additional identical circuit required with
installed heater. If optional electronic on/off is
installed, a 120VAC, 20 AMP, GFCI dedicated circuit is
required.
Water Capacity to Overflow: 71 gal.
*Trim for Whirlpool, Soft Air
TM
and
Aqua-Therapy Back Massage will be
Color-Matched on White, Natural/Bone,
Biscuit, Platinum, and Onyx Units.
Chrome Trim Standard on Units of all
other Colors.
Whirlpool Trim includes: whirlpool jets,
air controls (2), on/off button, and suction return cover.
71-3/4”
(1822)
50”
(1270)
36”
(914)
18”
(457)
(254)
10”
19”
(483)
1-1-4” (32) Flange
Three Sides
+ Skirt
21-1/2”
(546)
5-1/2”
(140)
