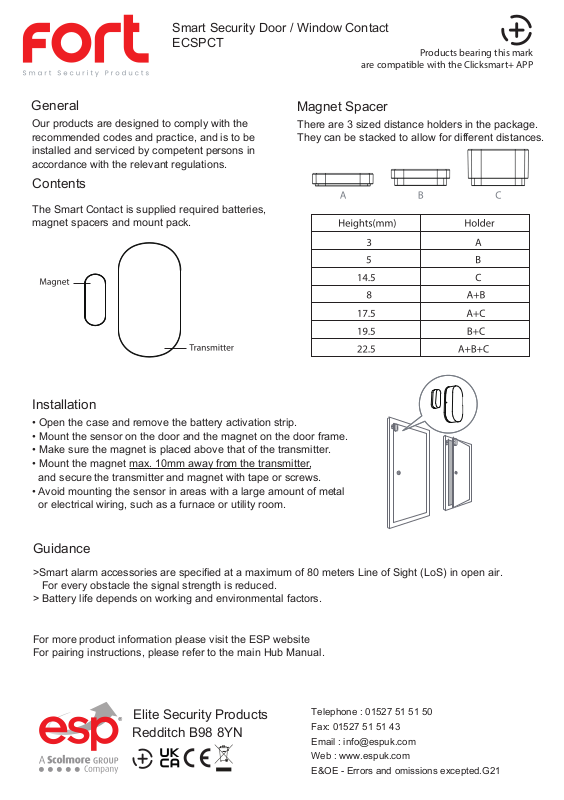

Page 1
Smart Security Door / Window Contact
ECSPCT
are compatible with the Clicksmart+ APP
Products bearing this mark
General
Our products are designed to comply with the
recommended codes and practice, and is to be
installed and serviced by competent persons in
accordance with the relevant regulations.
Magnet Spacer
There are 3 sized distance holders in the package.
They can be stacked to allow for different distances.
Contents
The Smart Contact is supplied required batteries,
magnet spacers and mount pack.
Installation
• Open the case and remove the battery activation strip.
• Mount the sensor on the door and the magnet on the door frame.
• Make sure the magnet is placed above that of the transmitter.
• Mount the magnet max. 10mm away from the transmitter,
and secure the transmitter and magnet with tape or screws.
• Avoid mounting the sensor in areas with a large amount of metal
or electrical wiring, such as a furnace or utility room.
Guidance
>Smart alarm accessories are specified at a maximum of 80 meters Line of Sight (LoS) in open air.
For every obstacle the signal strength is reduced.
> Battery life depends on working and environmental factors.
For more product information please visit the ESP website
For pairing instructions, please refer to the main Hub Manual.
Elite Security Products
Redditch B98 8YN
Telephone : 01527 51 51 50
Fax: 01527 51 51 43
Email : [email protected]
Web : www.espuk.com
E&OE - Errors and omissions excepted.G21
