APKITG | COLOUR VIDEO DOOR ENTRY SYSTEM
USER MANUAL
www.espuk.com
APKITG Manual.indd 1 26/04/2017 09:43:25
Page 2
Contents
System Components ............................................................... 3
Installation ....................................................................... 4
System Connections Example 1 ...................................................... 5
System Connections Example 2 ...................................................... 6
Lock Connections Example 1 ........................................................ 7
Lock Connections Example 2 ........................................................ 8
User Guide ........................................................................ 9
Monitor Overview .................................................................10
Setting Monitor as Master or Slave (Default Master) ...................................11
Accessing Monitor Functions .......................................................12
Accessing Monitor Adjustments ....................................................13
Installer’s Guide ................................................................. 14
System Cabling
All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable.
Part Number - A8NFORCE5EUTP
Find this product online:
elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable
2
APKITG Manual.indd 2 26/04/2017 09:43:26
Page 3

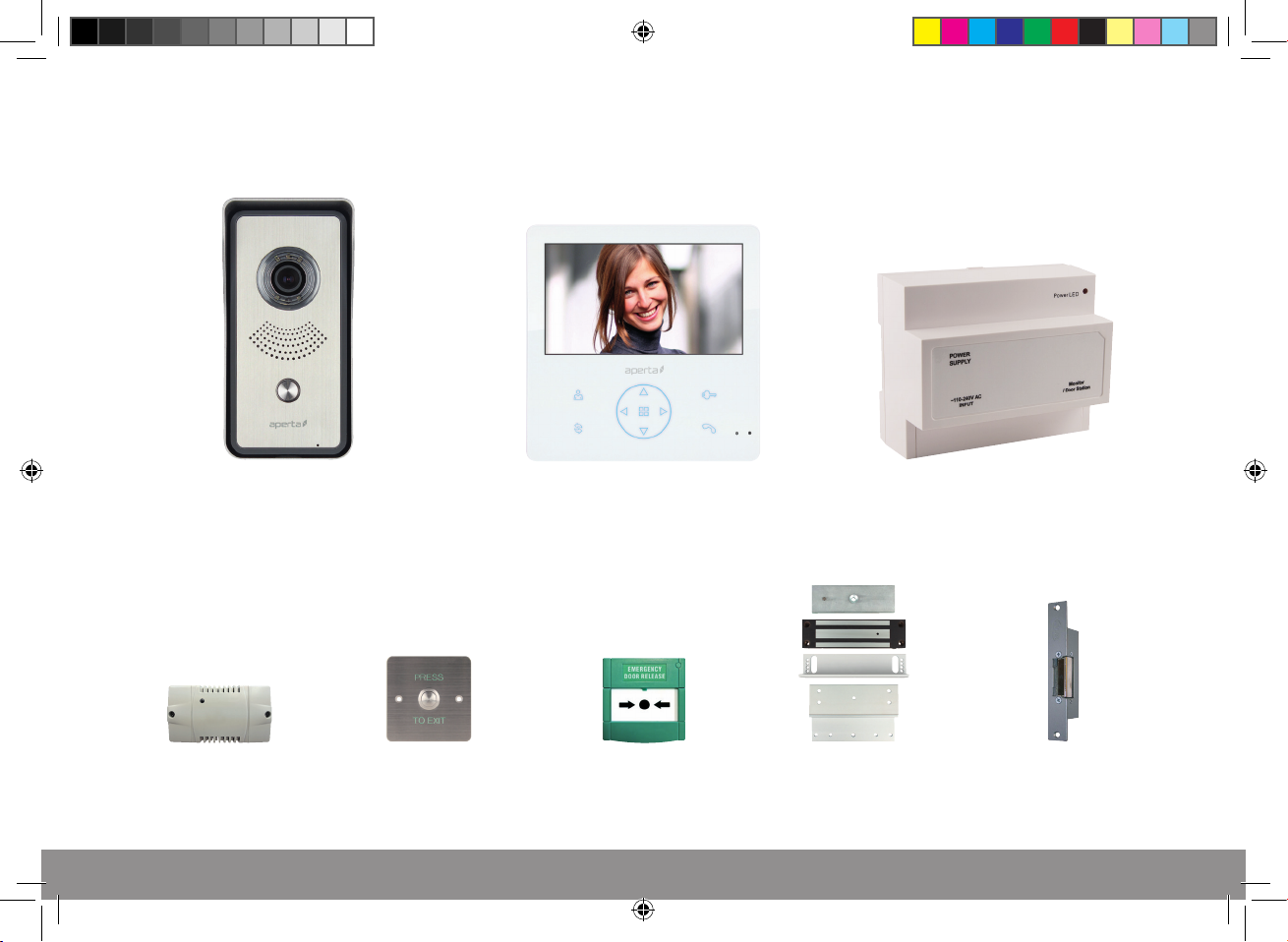

System Components
Door Station Monitor
System Power Supply
Optional Accessories
EVBPSBB
Lock Power Supply
APKITG Manual.indd 3 26/04/2017 09:43:28
EV-EXIT
Push To Release
EV-EBG
Emergency Release
EV-ML-250/500XT
Electro-magnetic Lock
ENTERD
Electric Lock
3
Page 4

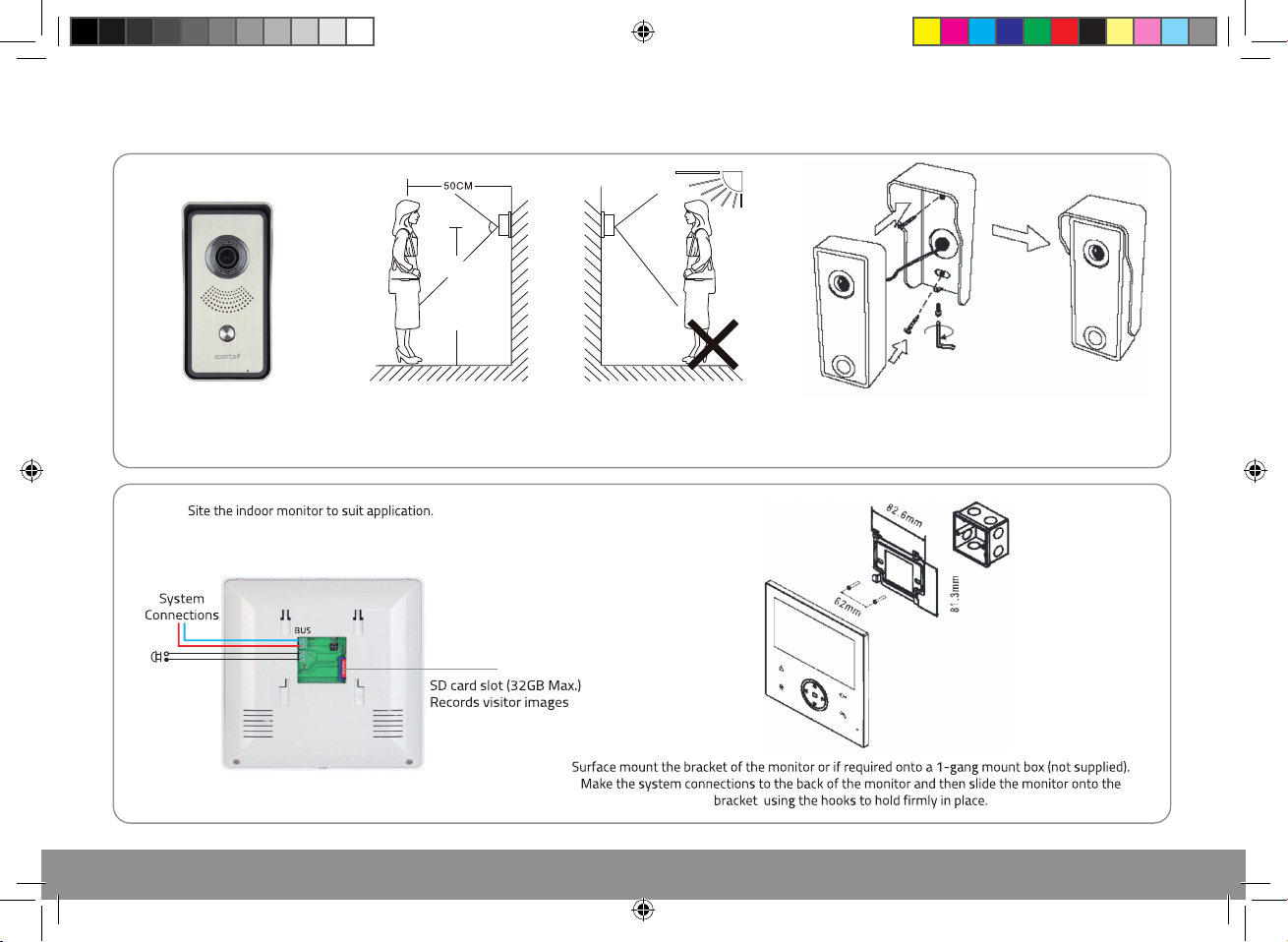

Installation
。
90
1.2 m 1.5 m～
Site the door station a
recommended 1.5 meters from
the ground, or to suit application.
Optional
door bell
connection
The camera needs to point in
the direction of where a visitor
will stand during operation.
Avoid areas of high sunlight
and noise levels.
Surface mount the sunshield of the door station and
connect the system cabling. Mount the camera to the
sunshield by fixing with the supplied hex screw.
4
APKITG Manual.indd 4 26/04/2017 09:43:29
Page 5

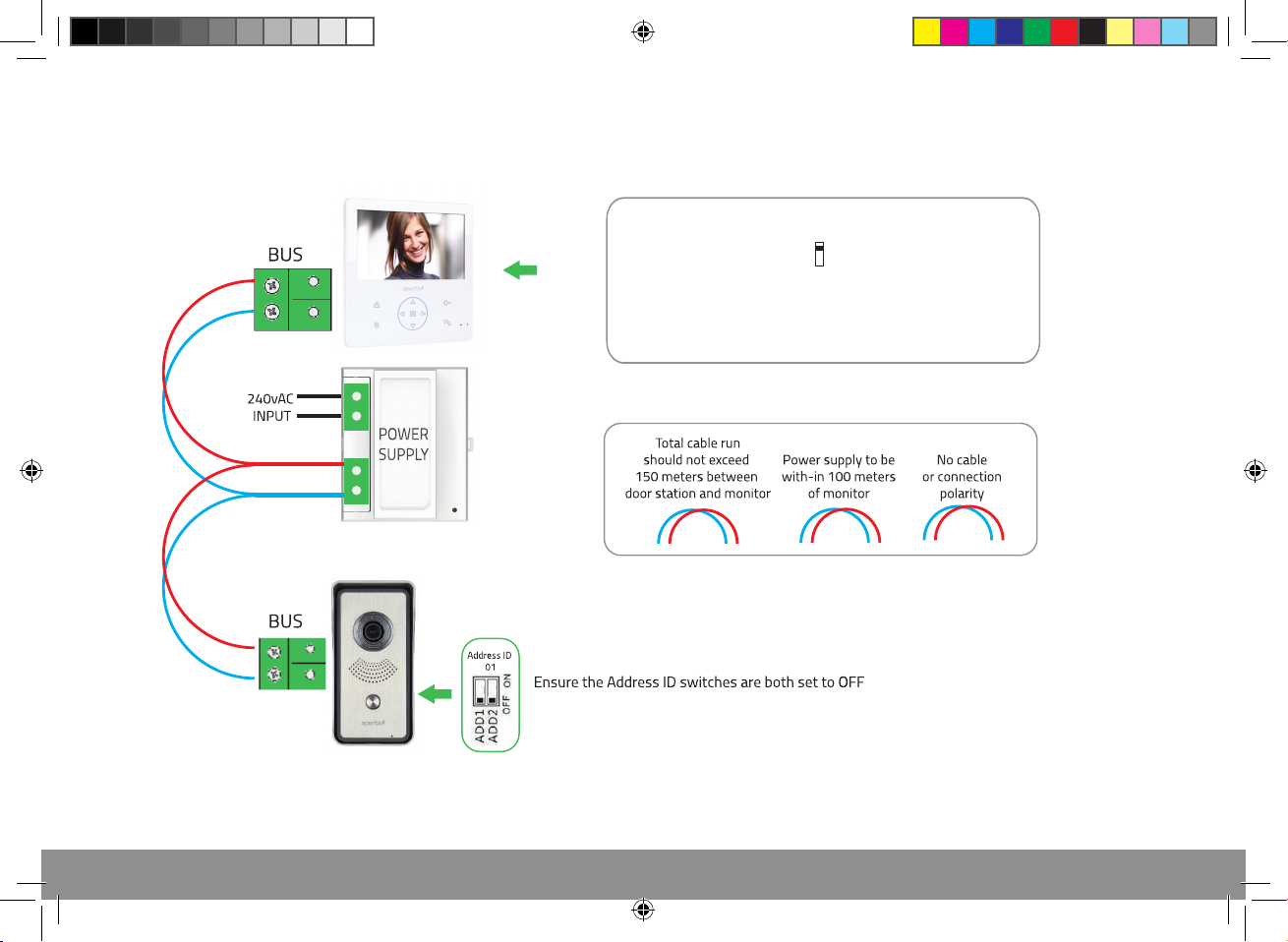

System Connections Example 1
K1
ON
1
The last monitor on the system line has
the rear ‘K1’ switched ON
APKITG Manual.indd 5 26/04/2017 09:43:30
5
Page 6

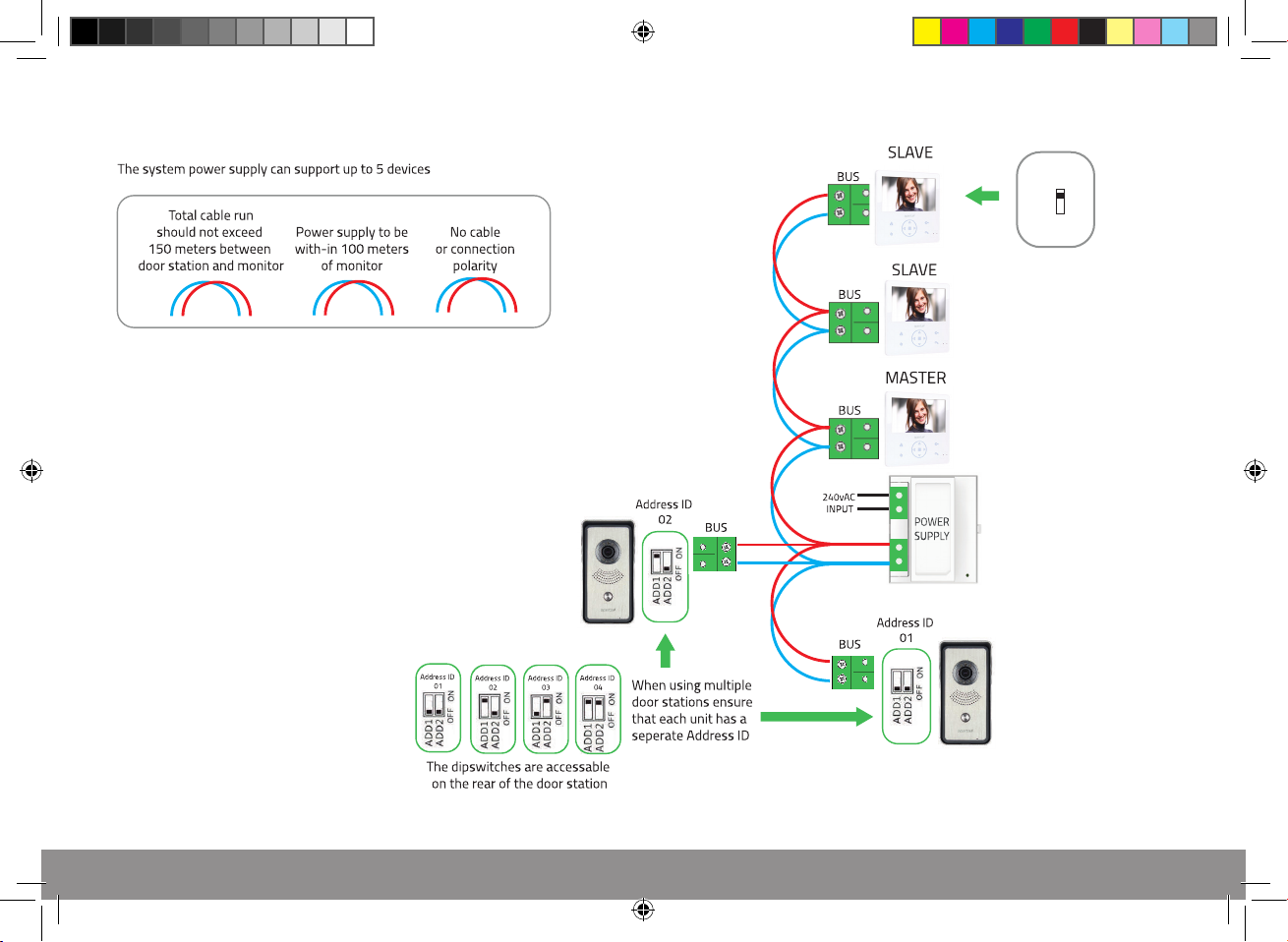

System Connections Example 2
1. The last monitor on the system line
has the rear ‘K1’ switched ON.
All other monitors ‘K1’ switch to OFF
K1
ON
1
2. Please review page XXXX to set
monitor to MASTER or SLAVE.
3. If dierent types of Monitor /handset
are being used on the same system,
please refer to the supplied instructions
to adjust Master/ Slave settings .
6
APKITG Manual.indd 6 26/04/2017 09:43:31
11 to set
Page 7

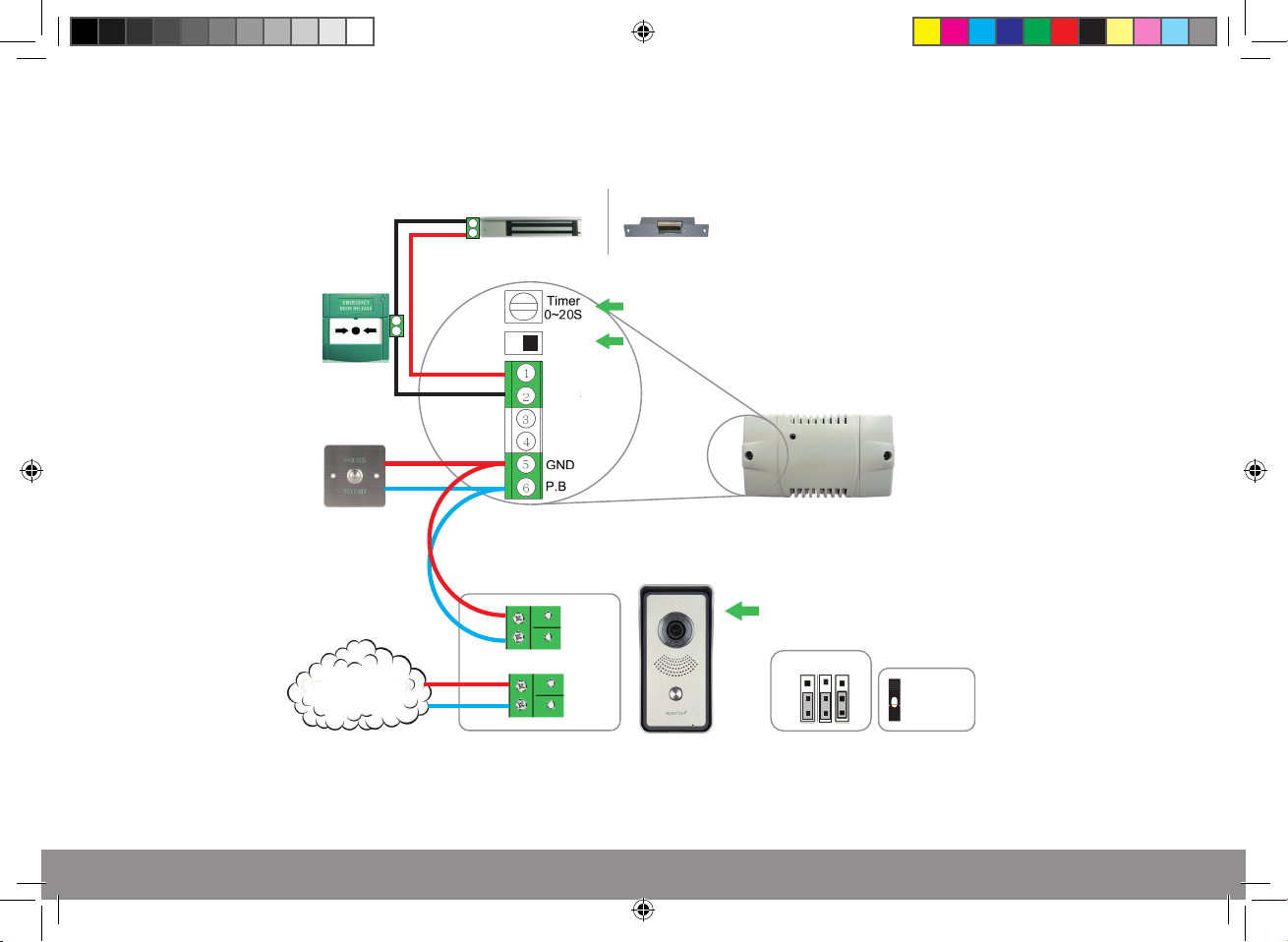

Lock Connections Example 1
System Wiring
VCC
BUS
Electronic lock
Lock -release time
N.C for Electro-magnetic lock
N.O for Electronic lock
At the rear of the door station
ensure that the jumper links cover pins
1 and 2, on both J3 and J2 positions
J2
J1
J1
J3
3
2
1
Image of
jumper link
Electro-magnetic lock
_
+
4
3
NC
+
_
+
_
LOCK1
APKITG Manual.indd 7 26/04/2017 09:43:32
7

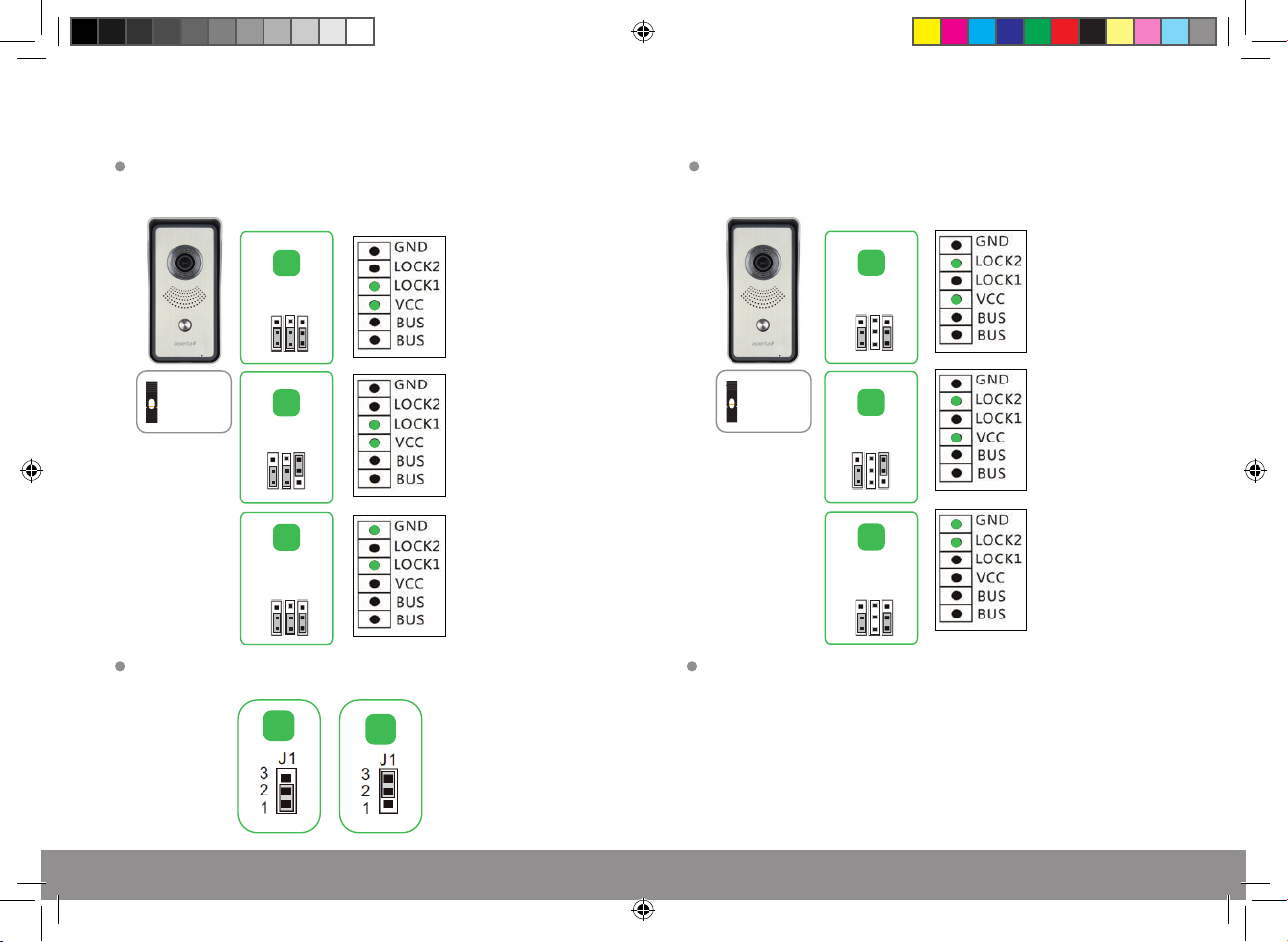

Page 8
The jumpers on the rear of the door station offer different
The door station has a secondry switch. LOCK2 options;
Lock Connections Example 2
types of release modes for alternative applications
dependent on the jumper link settings. LOCK1 options;
Image of
jumper link
N.O
Volt-free
3
2
1
N.C
Volt-free
3
2
1
J1J3 J2
J1J3 J2
N.O
12vDC300mA
MAX
J1J3 J2
3
2
1
Jumper 1 gives the option to set the release time;
5
sec.
3
sec.
Image of
jumper link
N.O
Volt-free
3
2
1
N.C
Volt-free
3
2
1
J1J3 J2
J1J3 J2
N.O
12vDC300mA
MAX
J1J3 J2
3
2
1
Please refer to the operation guide for release instructions
8
APKITG Manual.indd 8 26/04/2017 09:43:33
Page 9

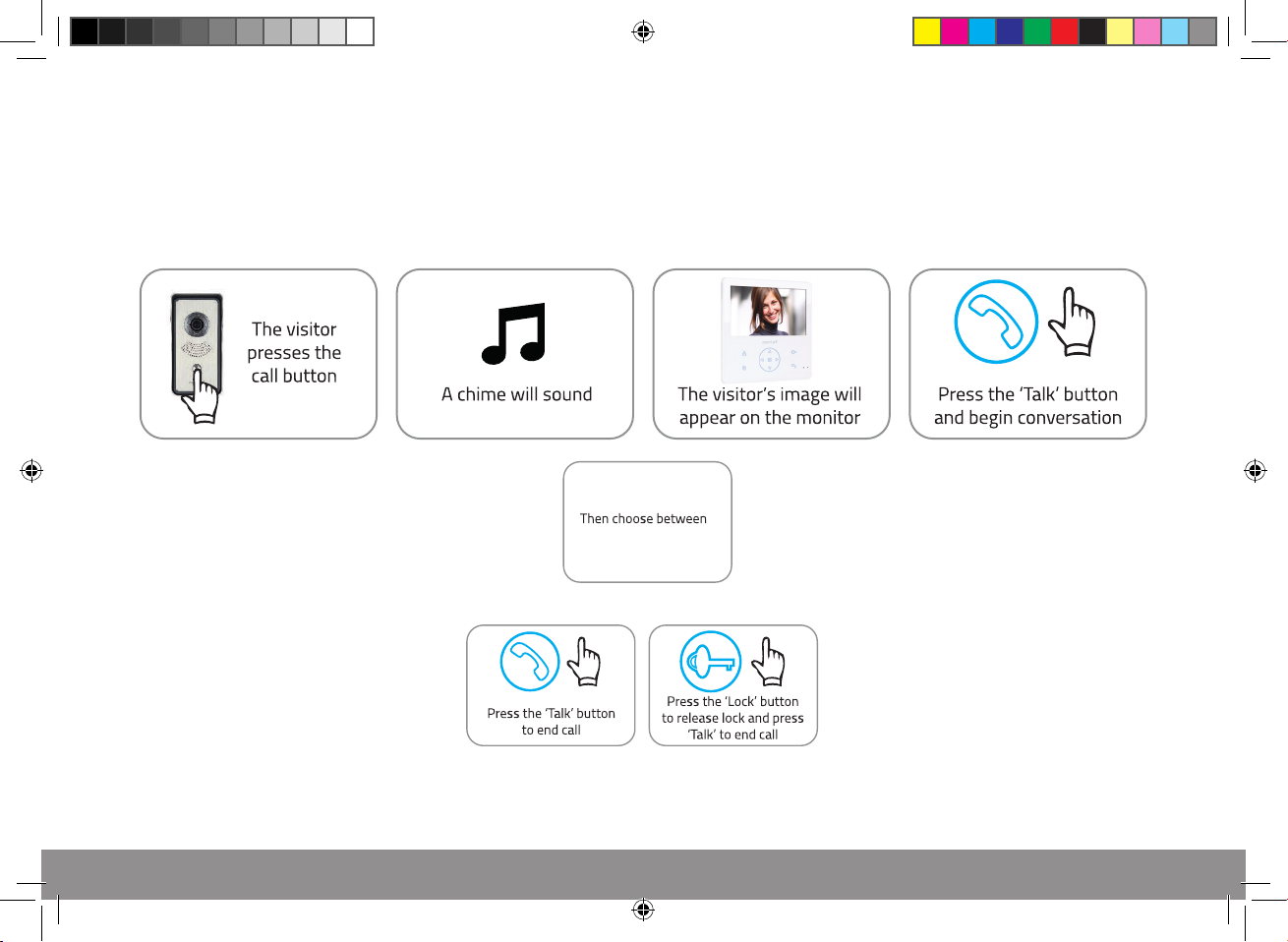

User Guide
A B C D
1 2
APKITG Manual.indd 9 26/04/2017 09:43:33
9
Page 10

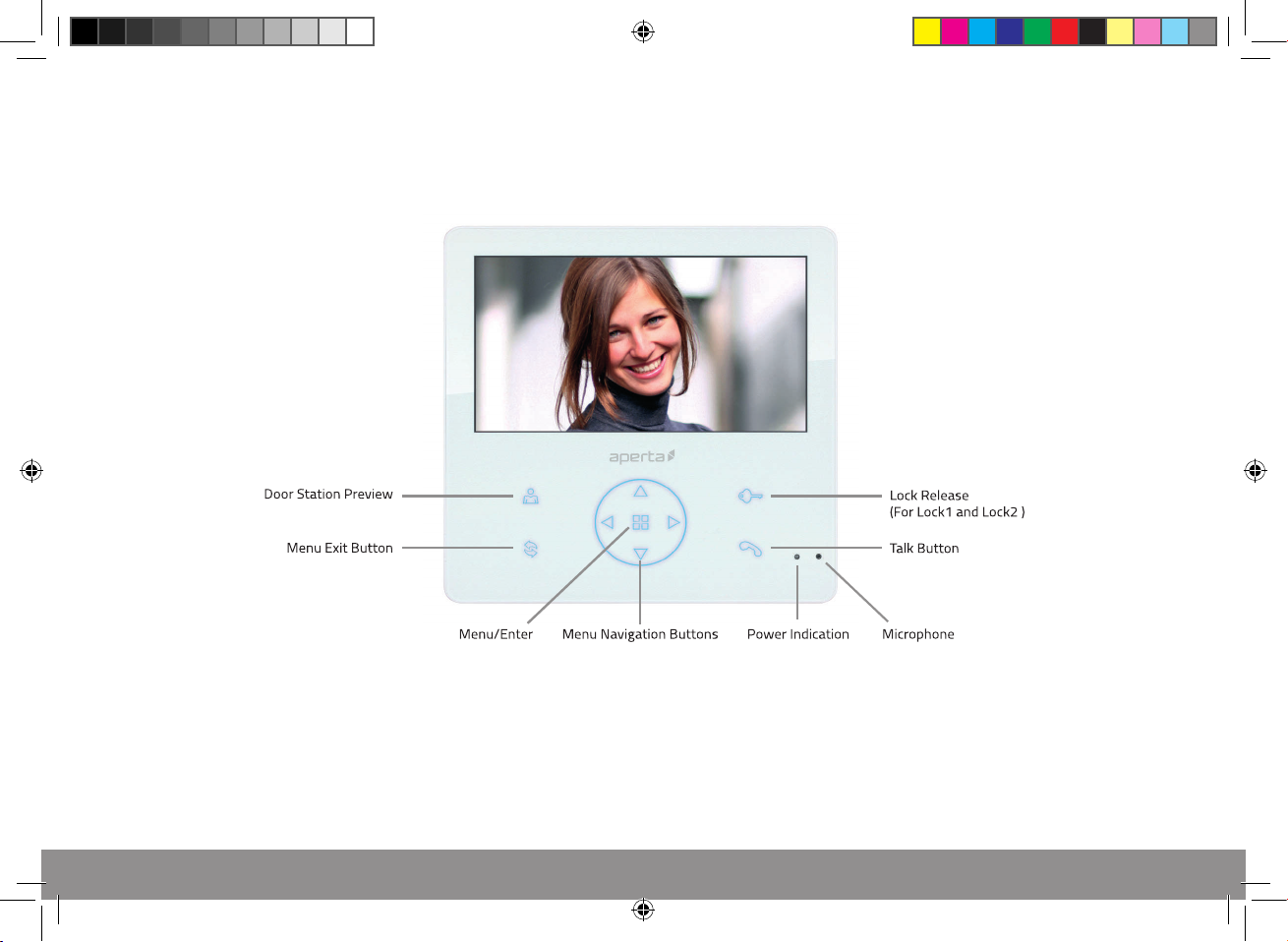

Monitor Overview
The following monitor instructions are designed to be a quick start guide alongside the informative general user
interface (GUI) . The instructions are not exhaustive and are designed to lead the user quickly to the most often
required aspects of the unit.
10
APKITG Manual.indd 10 26/04/2017 09:43:33
Page 11

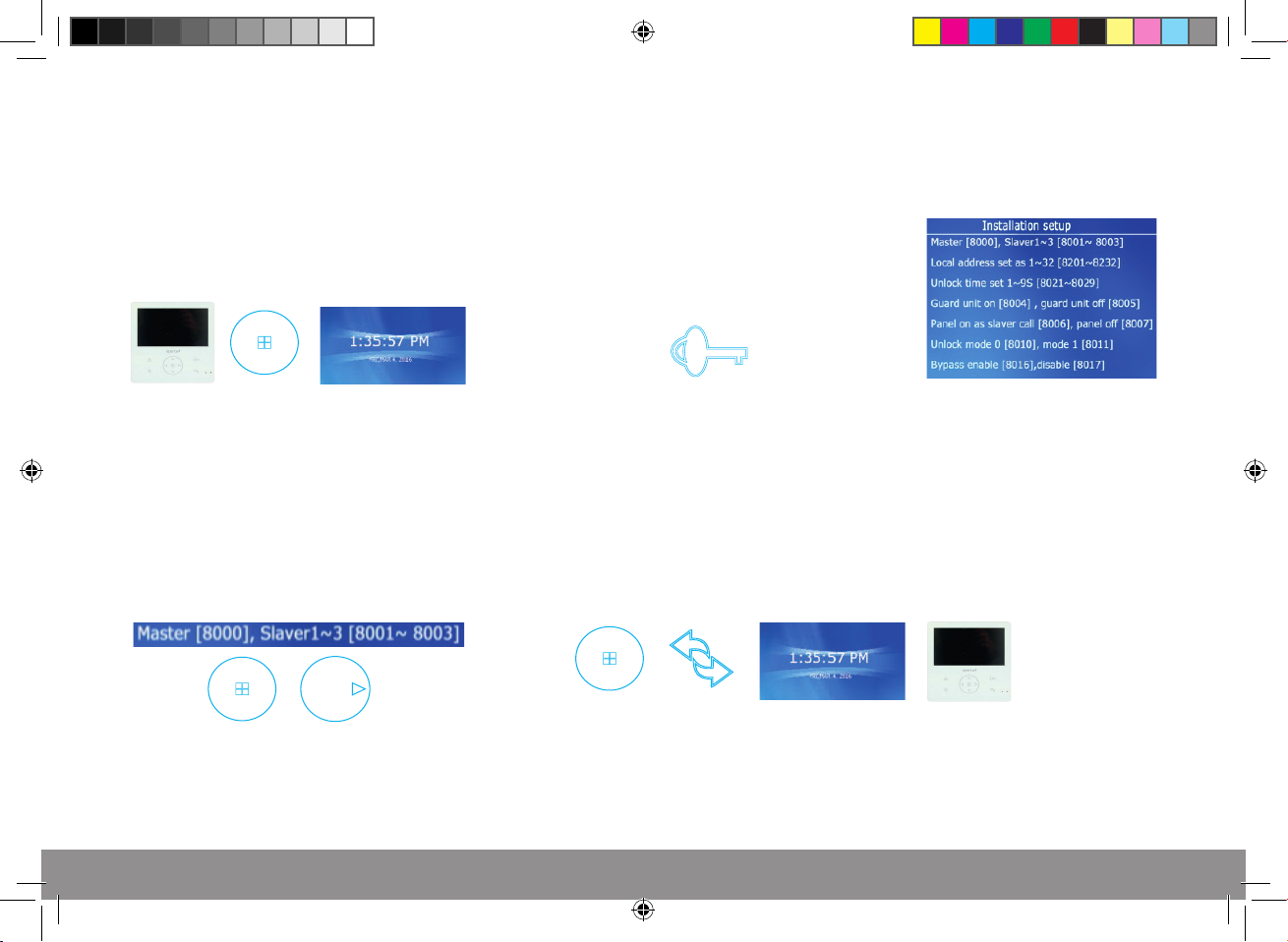

Setting Monitor as Master or Slave (Default Master)
1. In standby mode press
the menu button and the time screen
will display.
3. Press the menu button and use
the right arrow to toggle between
Master and Slave position.
2. Press and hold the Key
for 5 seconds and the Installation setup
screen will display.
4. Press the menu button to save setting, and press
the exit symbol twice. After 10 seconds the monitor returns
back to standby.
APKITG Manual.indd 11 26/04/2017 09:43:34
11
Page 12

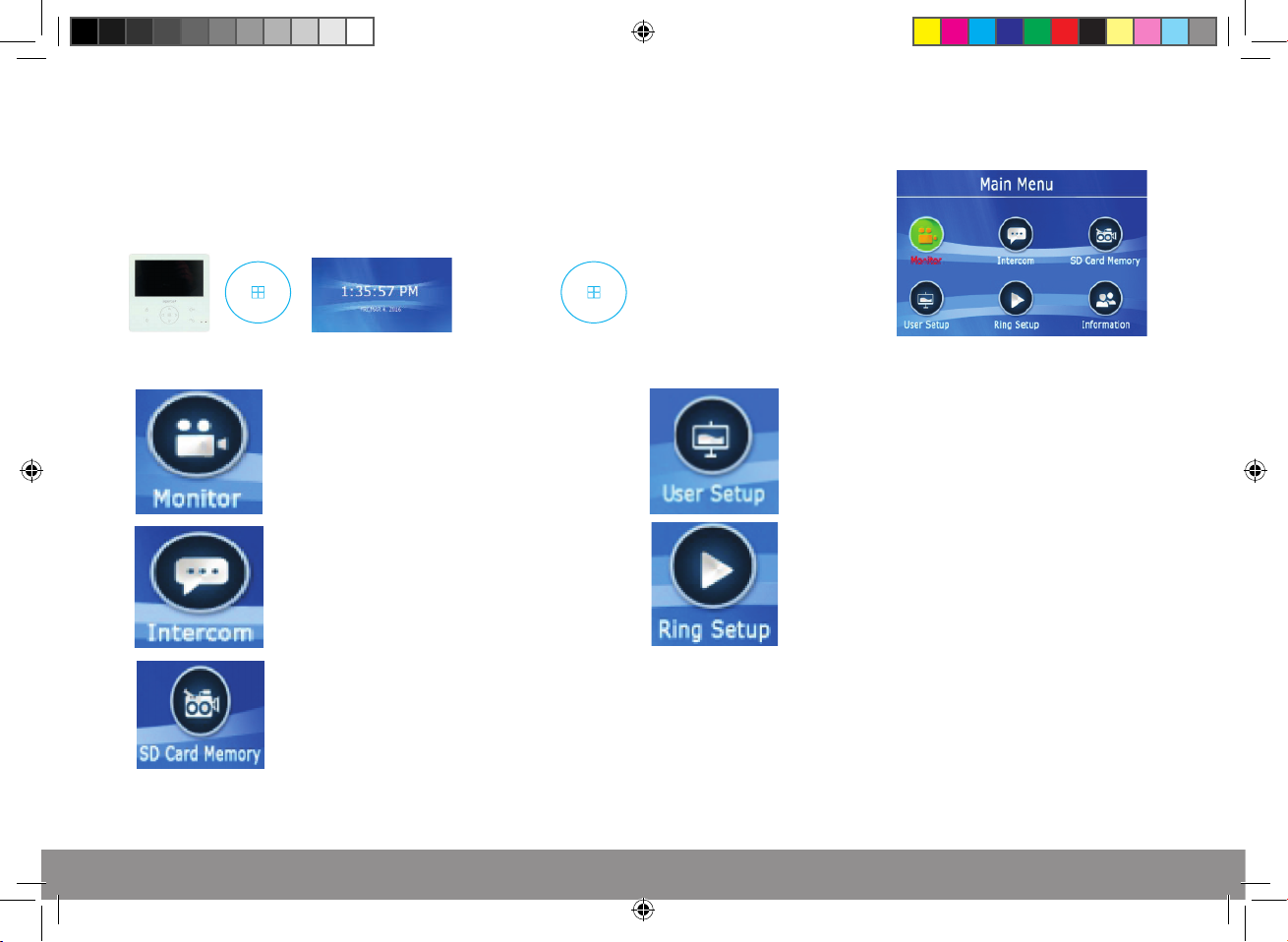

Accessing Monitor Functions
1. In standby mode press
the menu button and the time screen
will display.
PREVIEW option for all
system door stations.
INTERNAL CALL options
RECORDING & VIEWING
options can be found in the
‘SD Card Memory’ menu
2. Press the menu button whilst on the
time screen and the main menu
screen will display.
DATE and TIME settings can be found
in the ‘User Setup’ option. Also includes ‘ring
mode’ for selective ringing times.
RING TONE
Options for incoming, internal and optional
door bell tone selections.
12
APKITG Manual.indd 12 26/04/2017 09:43:34
Page 13

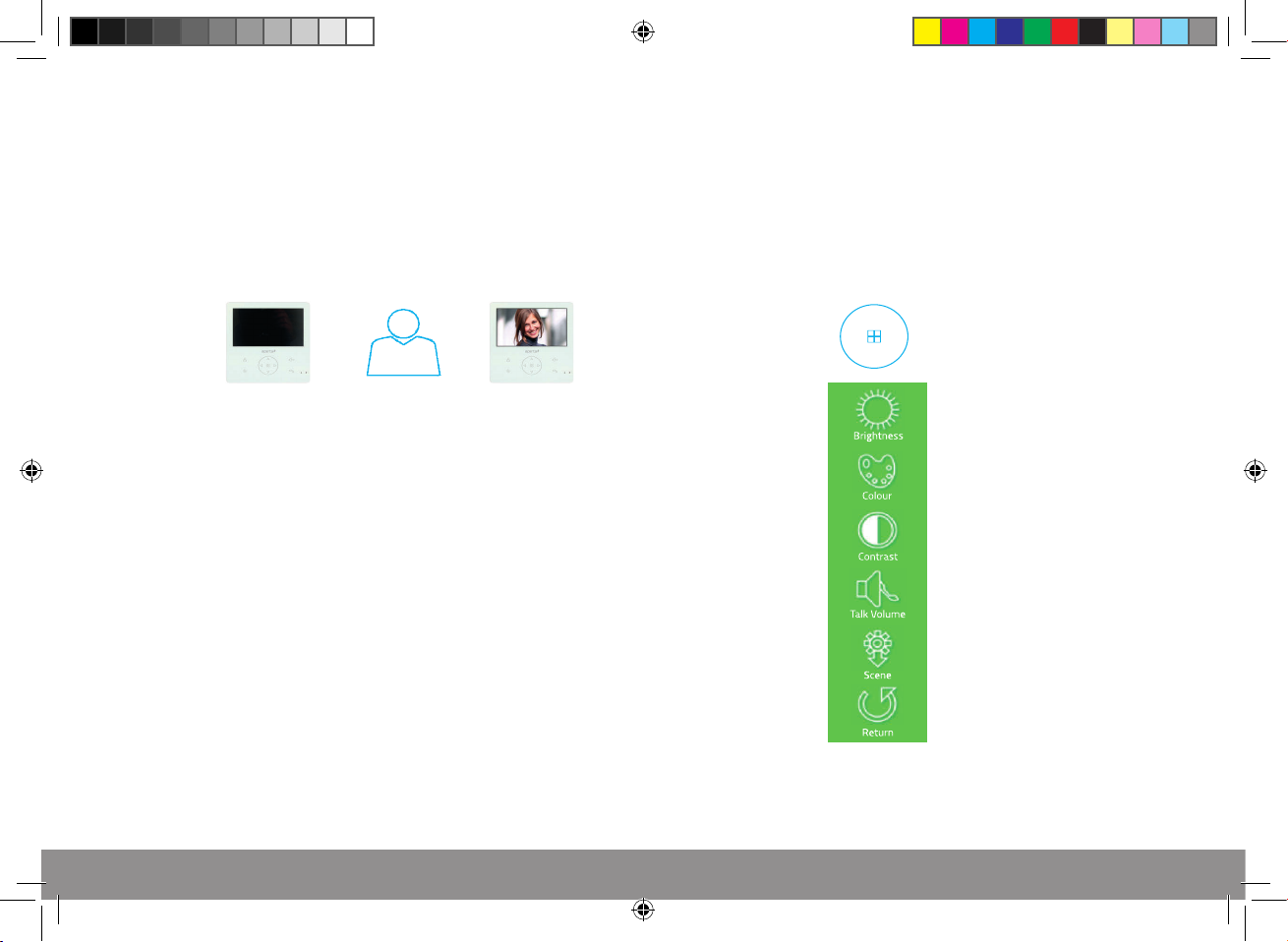

Accessing Monitor Adjustments
1. In standby mode press
the preview button and the door station’s
image will display.
2. During the preview press the menu button
the adjustment controls will appear.
APKITG Manual.indd 13 26/04/2017 09:43:34
13
Page 14
Installer’s Guide
Master / Slave Setting
In the event of no video
or audio signals coming
from the monitor, or if the
call button or audio cannot
be activated on the door
station, check the following;
In the event of a lock
release issue,
check the following;
When using multiple monitors on 1 system;
Only the 1 handset set as the MASTER will display an image when the door station is activated.
All other monitors will ring, and will display the image once the ‘Talk’ button is pressed.
A That the system is powered sufficiently.
B Each monitor needs to be set to a MASTER or SLAVE position
C All system cabling is secured and properly connected.
D All system cabling is clear of breaks or short circuits.
E Bench test the system if the issue cannot be found.
A The user instructions and operation of the monitor has been understood.
B That the lock is powered sufficiently.
C All system cabling is secured and properly connected.
D All system cabling is clear of breaks or short circuits.
E On the rear of the door station, ensure the lock output is switching when activated by the monitor.
14
APKITG Manual.indd 14 26/04/2017 09:43:34
Page 15
APKITG Manual.indd 15 26/04/2017 09:43:34
15
Page 16
Elite Security Products
Unit 7, Target Park, Shawbank Rd
Lakeside, Redditch B98 8YN
Telephone: 01527 51 51 50
Fax: 01527 51 51 43
email: [email protected]
E&OE - Errors and omissions excepted. D17
www.espuk.com
