Page 1
APKITBLK | COLOUR VIDEO DOOR ENTRY SYSTEM
USER MANUAL
www.espuk.com
APKITBLK Manual.indd 1 26/04/2017 09:39:55
Page 2
Contents
System Components ............................................................... 3
Installation ....................................................................... 4
System Connections Example 1 ...................................................... 5
System Connections Example 2 ...................................................... 6
Lock Connections Example 1 ........................................................ 7
Lock Connections Example 2 ........................................................ 8
User Guide ........................................................................ 9
Installer’s Guide ................................................................. 10
System Cabling
All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable.
Part Number - A8NFORCE5EUTP
Find this product online:
elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable
2
APKITBLK Manual.indd 2 26/04/2017 09:39:55
Page 3

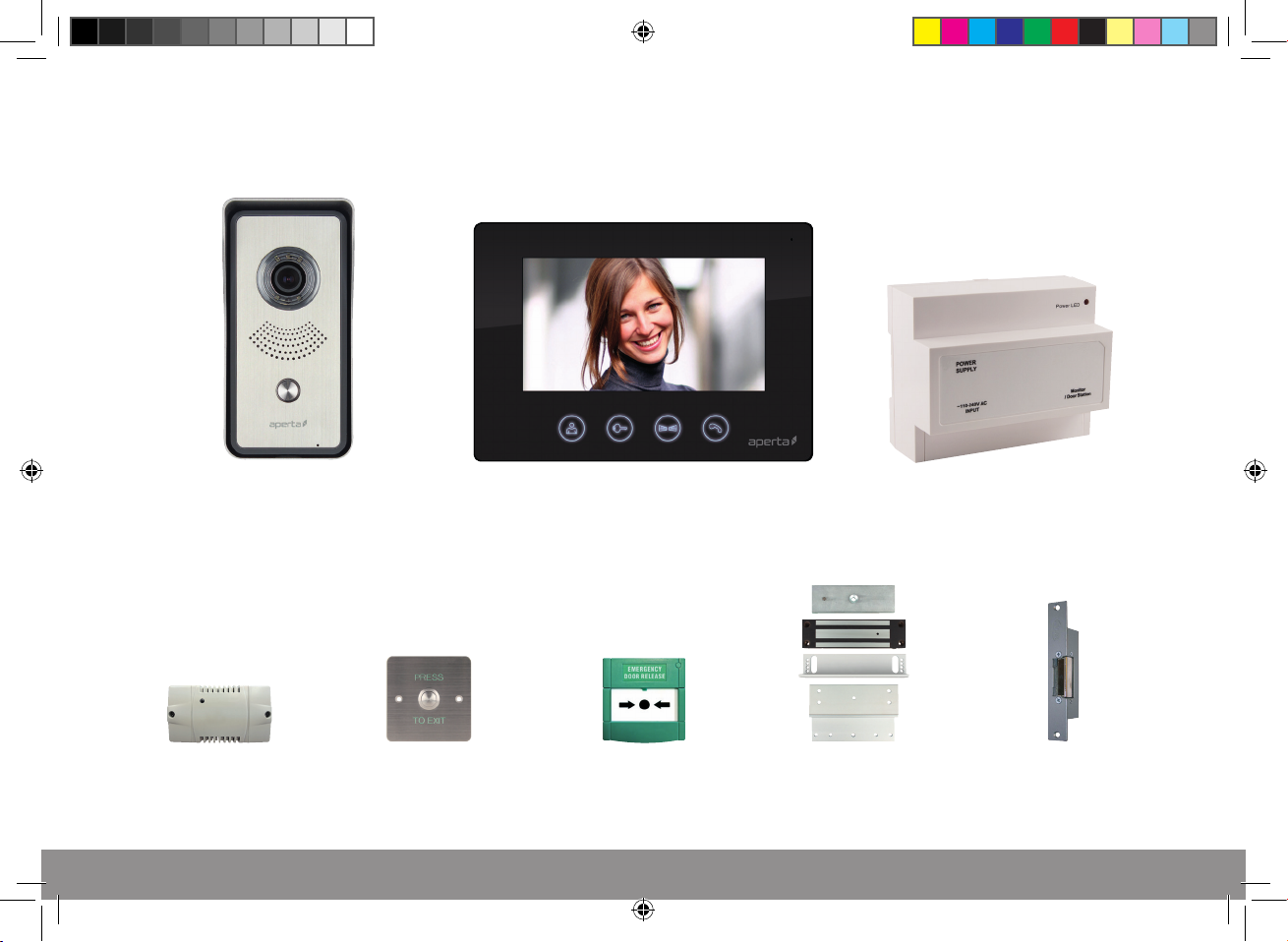

System Components
Door Station Monitor
System Power Supply
Optional Accessories
EVBPSBB
Lock Power Supply
APKITBLK Manual.indd 3 26/04/2017 09:39:57
EV-EXIT
Push To Release
EV-EBG
Emergency Release
EV-ML-250/500XT
Electro-magnetic Lock
ENTERD
Electric Lock
3
Page 4

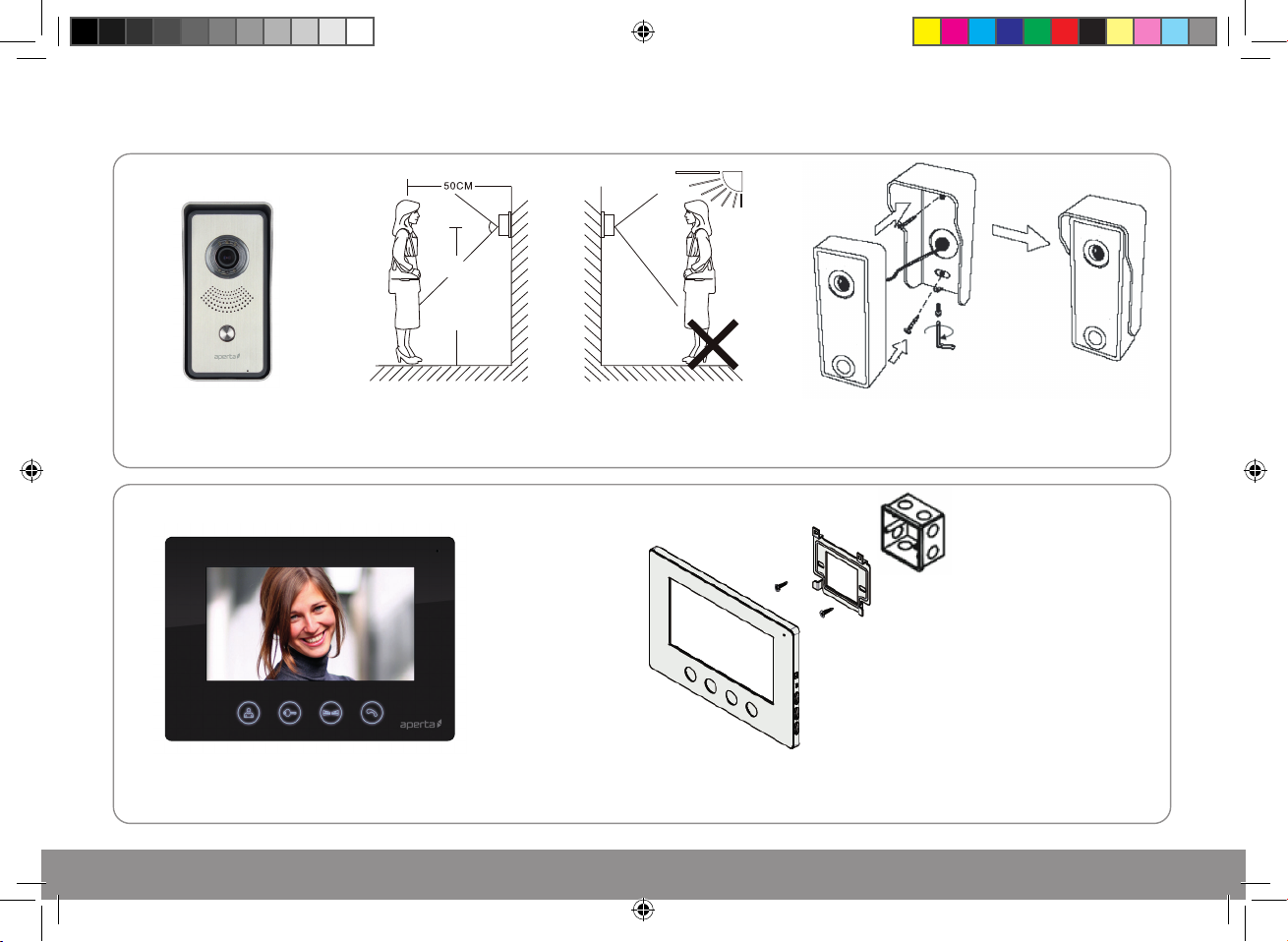

Installation
。
90
1.2 m 1.5 m～
Site the door station a
recommended 1.5 meters from
the ground, or to suit application.
Site the indoor monitor to suit application.
The camera needs to point in
the direction of where a visitor
will stand during operation.
Avoid areas of high sunlight
and noise levels.
Monitor
Surface mount the bracket of the monitor or if required onto a 1-gang mount box (not supplied).
Make the system connections to the back of the monitor and then slide the monitor onto the
bracket using the hooks to hold firmly in place.
Surface mount the sunshield of the door station and
connect the system cabling. Mount the camera to the
sunshield by fixing with the supplied hex screw.
1-Gang Mount Box
(if required, not supplied)
Monitor Mounting
Bracket
4
APKITBLK Manual.indd 4 26/04/2017 09:40:01
Page 5

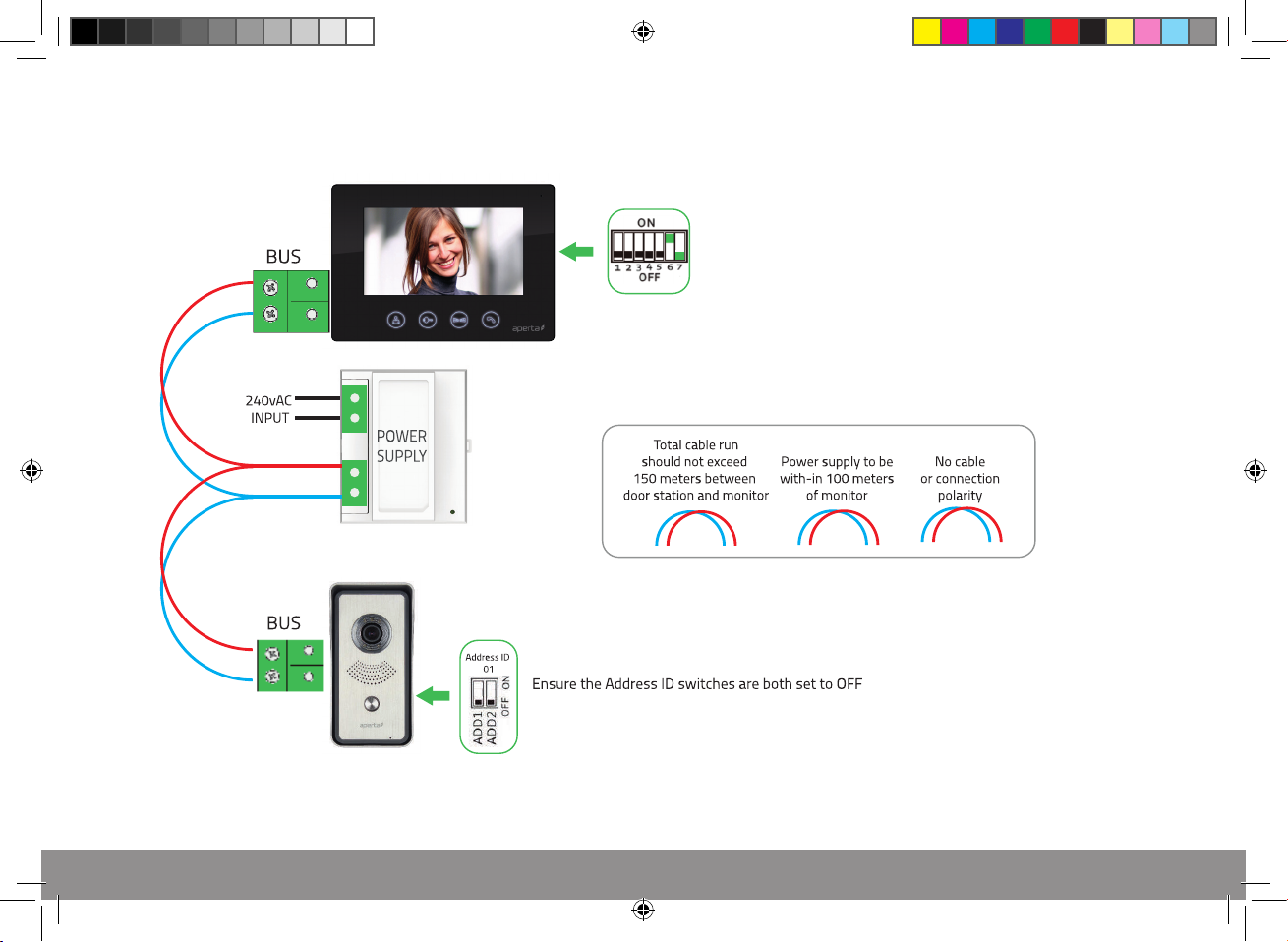

System Connections Example 1
Dip switch 6 set to ON when device is at the end of system line.
Dip switch 7 set to OFF to select monitor as the ‘Master’
Only one monitor on the system can be the ‘Master’
APKITBLK Manual.indd 5 26/04/2017 09:40:01
5
Page 6

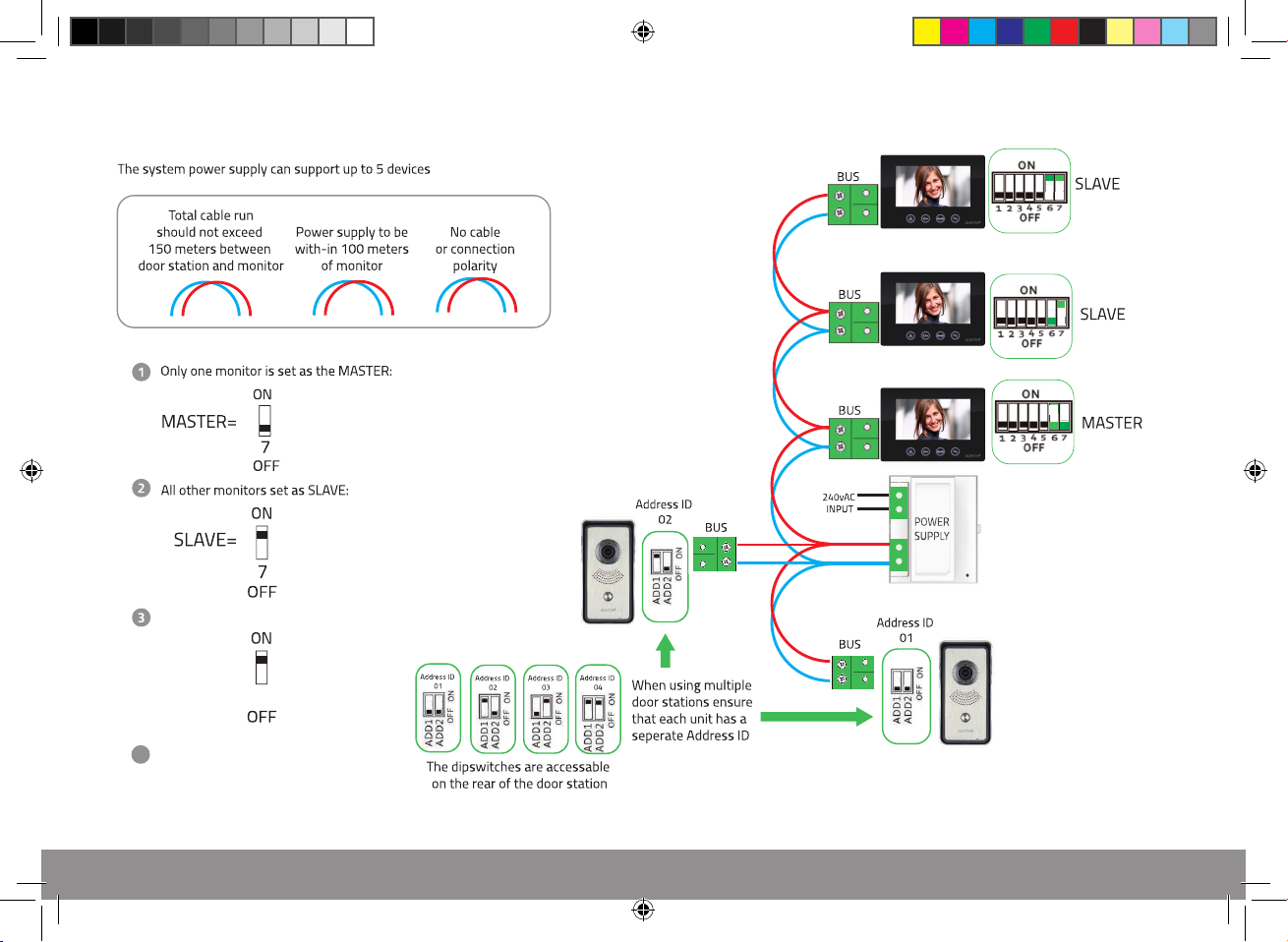

System Connections Example 2
Last monitor on system line has dip switch 6 set to ON
END OF LINE=
6
END OF LINE
When using dierent style monitors
4
on the same system, please refer to
supplied instruction to congure
Master , Slave and End of line position.
6
APKITBLK Manual.indd 6 26/04/2017 09:40:02
Page 7

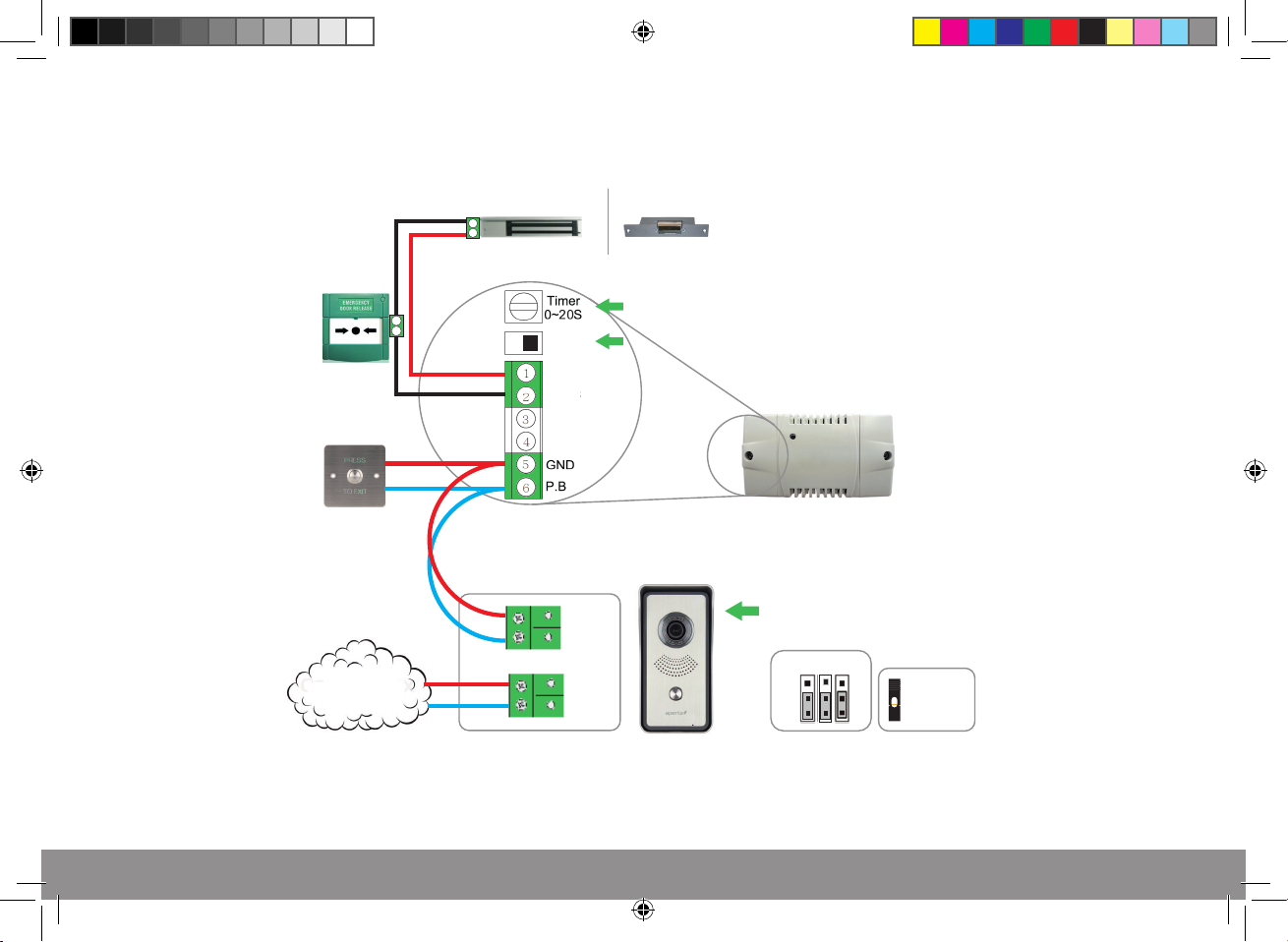

Lock Connections Example 1
System Wiring
VCC
BUS
Electronic lock
Lock -release time
N.C for Electro-magnetic lock
N.O for Electronic lock
At the rear of the door station
ensure that the jumper links cover pins
1 and 2, on both J3 and J2 positions
J2
J1
J1
J3
3
2
1
Image of
jumper link
Electro-magnetic lock
_
+
4
3
NC
+
_
+
_
LOCK1
APKITBLK Manual.indd 7 26/04/2017 09:40:02
7
Page 8

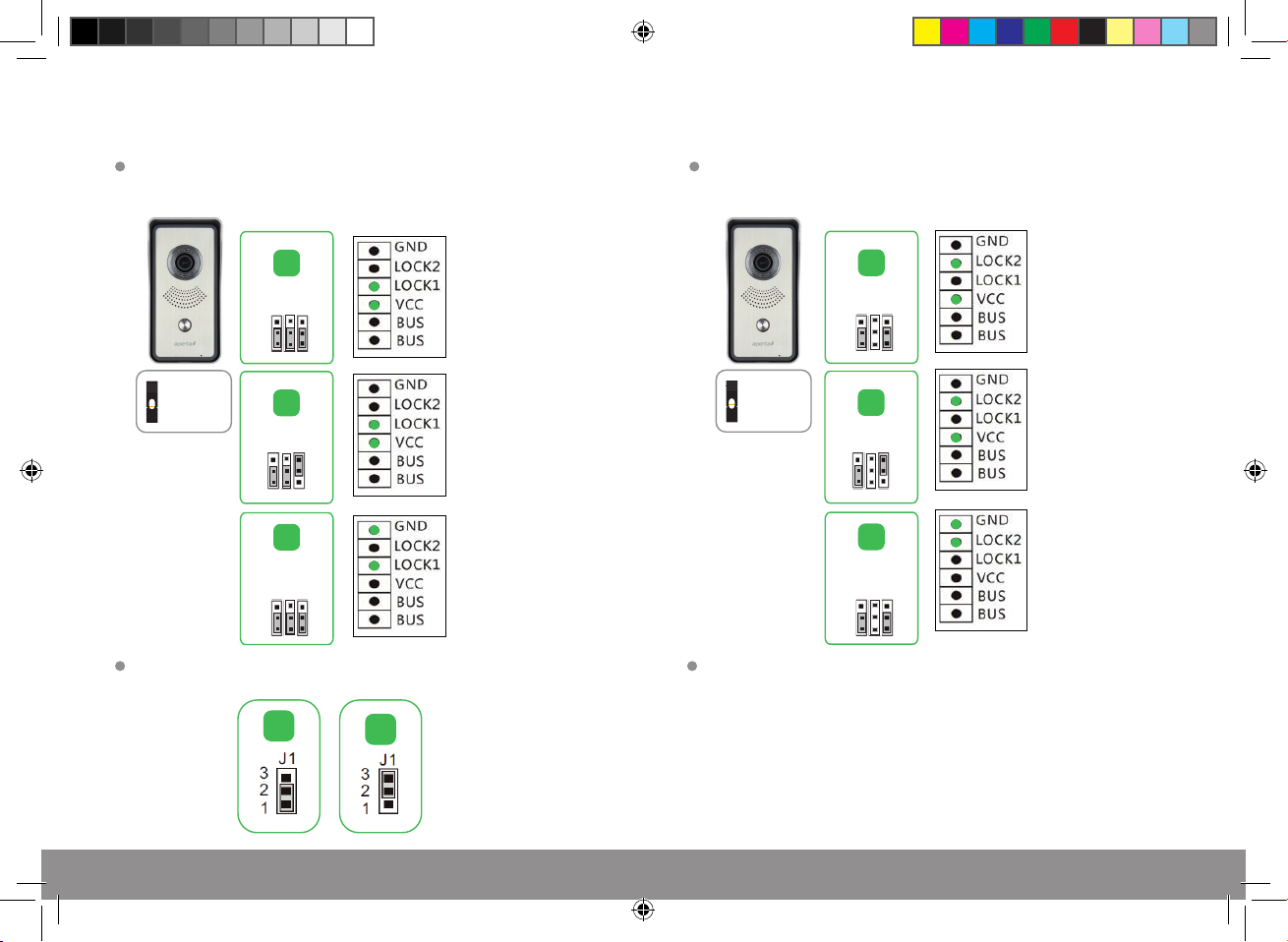

The jumpers on the rear of the door station offer different
The door station has a secondry switch. LOCK2 options;
Lock Connections Example 2
types of release modes for alternative applications
dependent on the jumper link settings. LOCK1 options;
Image of
jumper link
N.O
Volt-free
3
2
1
N.C
Volt-free
3
2
1
J1J3 J2
J1J3 J2
N.O
12vDC300mA
MAX
J1J3 J2
3
2
1
Jumper 1 gives the option to set the release time;
5
sec.
3
sec.
Image of
jumper link
N.O
Volt-free
3
2
1
N.C
Volt-free
3
2
1
J1J3 J2
J1J3 J2
N.O
12vDC300mA
MAX
J1J3 J2
3
2
1
Please refer to the operation guide for release instructions
8
APKITBLK Manual.indd 8 26/04/2017 09:40:03
Page 9

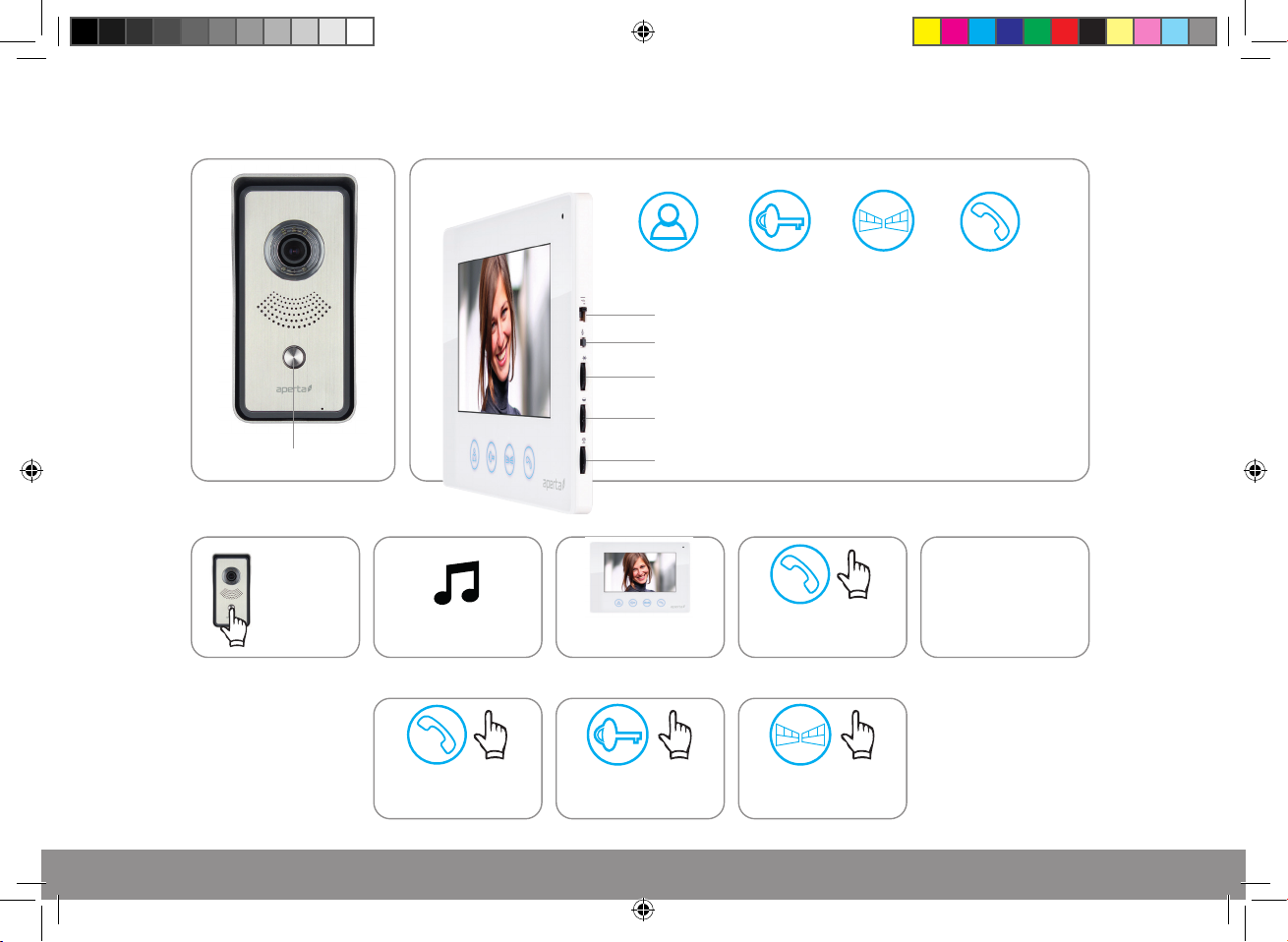

User Guide
Call Button
Preview
Press once to view
door station image
Chime Volume: Slide switch for High, Medium and Low setting
Chime Selection: Press button to select chime melody
Monitor Brightness: Adjustment for brightness levels
Monitor Chroma: Adjustment for the intensity of colour
Talking Volume: Adjust the volume level of the monitor
Lock Gate Talk
Press once
to release lock
Press once
to release lock 2
Press once
to talk to visitor
A B C D E
The visitor
presses the
call button
A chime will sound The visitor’s image will
appear on the monitor
Press the ‘Talk’ button
and begin conversation
Then choose between
the 3 options below
1 2 3
Press the ‘Talk’ button
to end call
APKITBLK Manual.indd 9 26/04/2017 09:40:04
Press the ‘Lock’ button
to release lock and press
‘Talk’ to end call
Press the ‘Gate’ button
to release lock 2 and press
‘Talk’ to end call
9
Page 10
Installer’s Guide
Master / Slave Setting
In the event of no video
or audio signals coming
from the monitor, or if the
call button or audio cannot
be activated on the door
station, check the following;
In the event of a lock
release issue,
check the following;
When using multiple monitors on 1 system;
Only the 1 handset set as the MASTER will display an image when the door station is activated.
All other monitors will ring, and will display the image once the ‘Talk’ button is pressed.
A That the system is powered sufficiently.
B Each monitor needs to be set to a MASTER or SLAVE position
C All system cabling is secured and properly connected.
D All system cabling is clear of breaks or short circuits.
E Bench test the system if the issue cannot be found.
A The user instructions and operation of the monitor has been understood.
B That the lock is powered sufficiently.
C All system cabling is secured and properly connected.
D All system cabling is clear of breaks or short circuits.
E On the rear of the door station, ensure the lock output is switching when activated by the monitor.
10
APKITBLK Manual.indd 10 26/04/2017 09:40:04
Page 11
APKITBLK Manual.indd 11 26/04/2017 09:40:04
11
Page 12
Elite Security Products
Unit 7, Target Park, Shawbank Rd
Lakeside, Redditch B98 8YN
Telephone: 01527 51 51 50
Fax: 01527 51 51 43
email: [email protected]
E&OE - Errors and omissions excepted. D17
www.espuk.com
