Elite Screens WB30VW, WB58VW, WB77VW, WB87XW, WB94HW User Manual

Whiteboard Projection Screen

WhiteBoardScreen™ Universal

Series

User’s Guide

Rev. 111110-JA

www.elitescreens.com [e-mail]

Parts List for WhiteBoardScreen Universal

Parts List

QTY

a. Wall screws

12

b. Bottom hanging brackets

2

c. Hollow wall (drywall) anchors

12

d. Top hanging brackets

2

e. Eraser

2

f. Dry-erase markers

2

g. Cleaning solution

1

Note: The WhiteBoardScreen Universal

Series eraser should only be used for the

Elite Screens Whiteboard

.

Please make sure all parts listed are included before proceeding with installation

a b c d

e f g

Installation

1. Mark the location the WhiteBoardScreen Universal will be installed and drill your
holes for all of the Top Hanging Brackets (d). Once the holes have been drilled, insert
and screw the wall screws (a) as shown below. It is strongly recommended to install
the WhiteBoardScreen Universal on wood studs for added stability. If the location
does not have wood studs, then use the included hollow wall (drywall) anchors (c).

1

2. Hang the WhiteBoardScreen™ Universal on the Top Hanging Brackets (d), making sure the

wall

top lip inserts into the rail on back of the frame.

3. Next, attach the Bottom Hanging Brackets (b) to the bottom frame, again making sure the lip
of the bracket inserts in the rail.

4. Drill and insert the hollow wall anchors (c) into the drilled holes, and then screw
the bottom hanging bracket to wall.

2

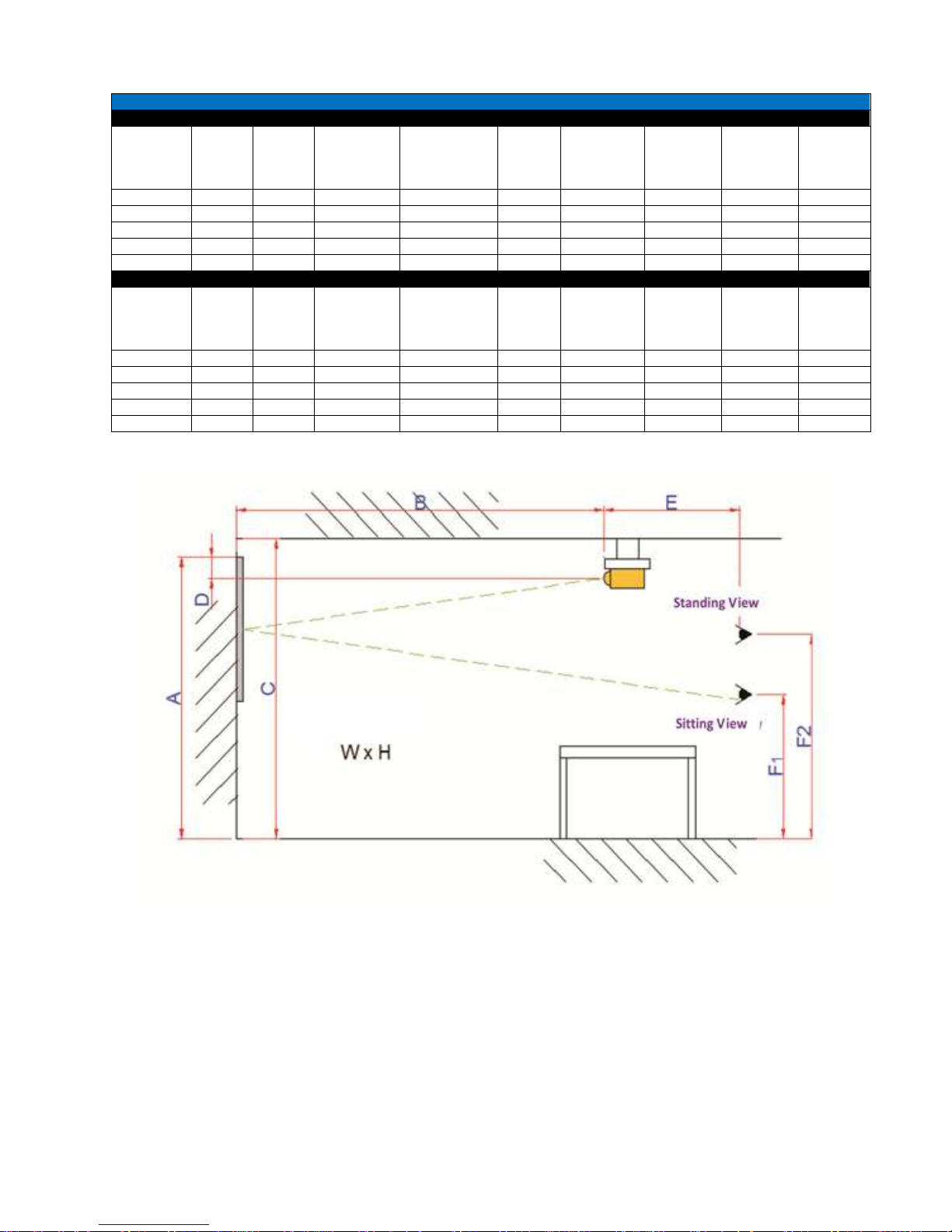

Overhead Projector Installation

Unit:mm

Models

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance (B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB30VW

610.0

457.2

2340

1500-2500

2500

174

1200

1200

1700

WB58VW

1178.0

884.0

2340

1950-2950

2500

130

1200

1200

1700

WB77VW

1565.0

1174.0

2340

2750-3750

2500

174

1200

1200

1700

WB87XW

1874.0

1174.0

2340

2750-3750

2500

174

1200

1200

1700

WB94HW

2081.0

1170.0

2340

3200-4200

2500

29

1200

1200

1700

Unit: Inches

Models

Overall

Width

(W)

Overall

Height

(H)

Installation

Height (A)

Suggested

Projection

Distance (B)

Ceiling

Height

(C)

Suggested

Offset (D)

Viewer

Distance

(E)

Sitting

View

Height

(F1)

Standing

View

Height

(F2)

WB30VW

24.0

18.0

92.1

59-98.4

98.4

6.9

47.2

47.2

66.9

WB58VW

46.3

34.8

92.1

76.8-116.1

98.4

5.1

47.2

47.2

66.9

WB77VW

61.6

46.2

92.1

108.3-147.6

98.4

6.9

47.2

47.2

66.9

WB87XW

73.8

46.2

92.1

108.3-147.6

98.4

6.9

47.2

47.2

66.9

WB94HW

81.9

46.0

92.1

126-165.3

98.4

1.1

47.2

47.2

66.9

3

Warranty Policy



Two (2) year parts and labor warranty from defects in workmanship from purchase date as

follows (except

 Three (3) year parts and labor warranty from defects in workmanship for GEMR (Government,

Educational, Military, & Religious) purchases of new product only.



Refurbished units carry a 90-day parts and labor warranty.



Each party will be responsible for one way shipping during the warranty period.

 A

RMA (Return Merchandise Authorization) number must be issued in order to process a

for refurbished units as specified below):

replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option
replace or repair the defective unit with a replacement *(see exceptions below) after the defective
unit is received. Once the product is received, Elite Screens will send out a replacement *unit to
the customer by ground service (subject to inventory availability).



Do not return any unauthorized items to Elite Screen, as they will be refused and returned
at your expense. The RMA number must be included on the outside label of your shipping
box. Our warehouse is not authorized to accept returns without an RMA number on the
shipping label.



RMA numbers are valid for 45 days from the date of issue.



Missing Parts must be reported within 7-days of receipt. If reported after 7 days, customer will

only be responsible for shipping and handling fees. If reported after 30 days of receipt, customer
is responsible for cost of the parts and shipping & handling fees.

*A new or refurbished replacement will be sent out to the customer depending on the type of purchase (new or
refurbished) or based on stock availability.

North America only, U.S. and Canada

For Warranty and Service requests please fill out a RMA /Service Form at:

http://www.elitescreens.com/service_form

Please Visit this link for full Warranty information:

http://www.elitescreens.com/warranty

For Customer Service and Technical questions, please contact Elite Screens at:
Telephone: (877)‐511‐1211

Fax:(562)‐483‐8498

R

EMEMBER TO REGISTER YOUR PRODUCT AT

WWW.ELITESCREENS.COM/REGISTER
