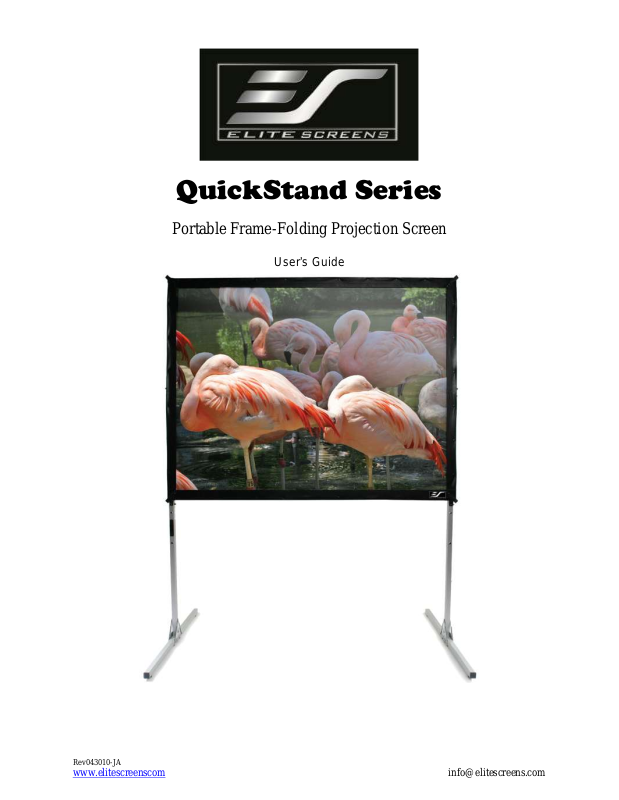

Elite Screens QuickStand User Manual
QuickStand Series
Portable Frame-Folding Projection Screen
User’s Guide
Rev043010-JA
www.elitescreenscom info@elitescreens.com
fig 2
Top
fig 1
fig 3
Lock down the corners
Snap latch
Snap latch
Top
Two Section Frame
(For presentation screens that are less than 120” in diagonal
measurement)
1. Take the frame out of the case and remove its wrappings.
Unfold the main joints as shown in (fig 1).
2. Once the main joints are unfolded, make sure that the snap
latches “click” into the locked position. The frame should now
be fully elongated as in (fig2). *Note: The snap latches will
automatically lock when the joint is straightened. Press the
snap latch button in order to release the lock.
3. While holding the bottom of the frame in place, lift the top of
the frame to unfold the sides which will cause the snap latches
lock when fully extended. Secure the corner braces into the
locked position. The screen frame should now be fully opened
as in (fig 3).

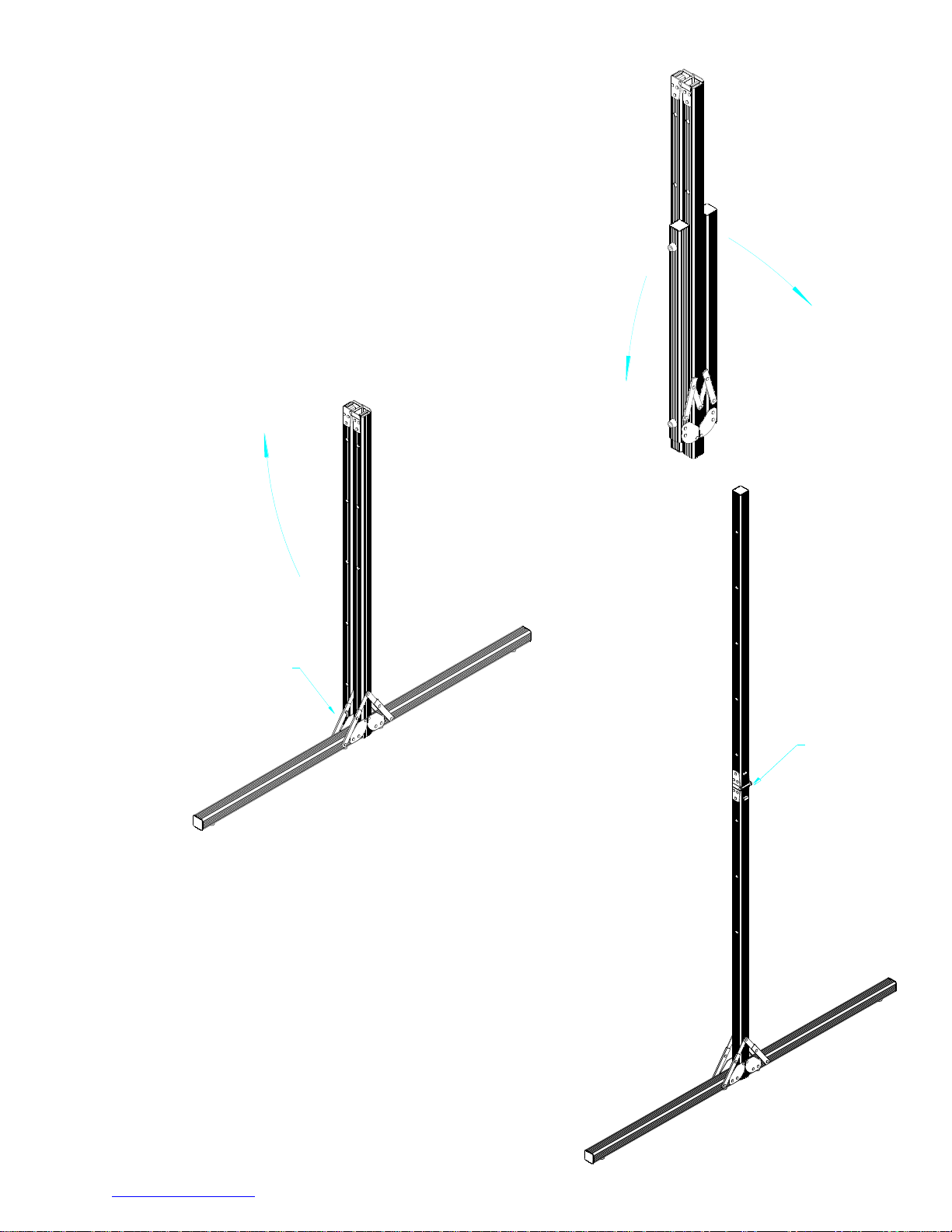

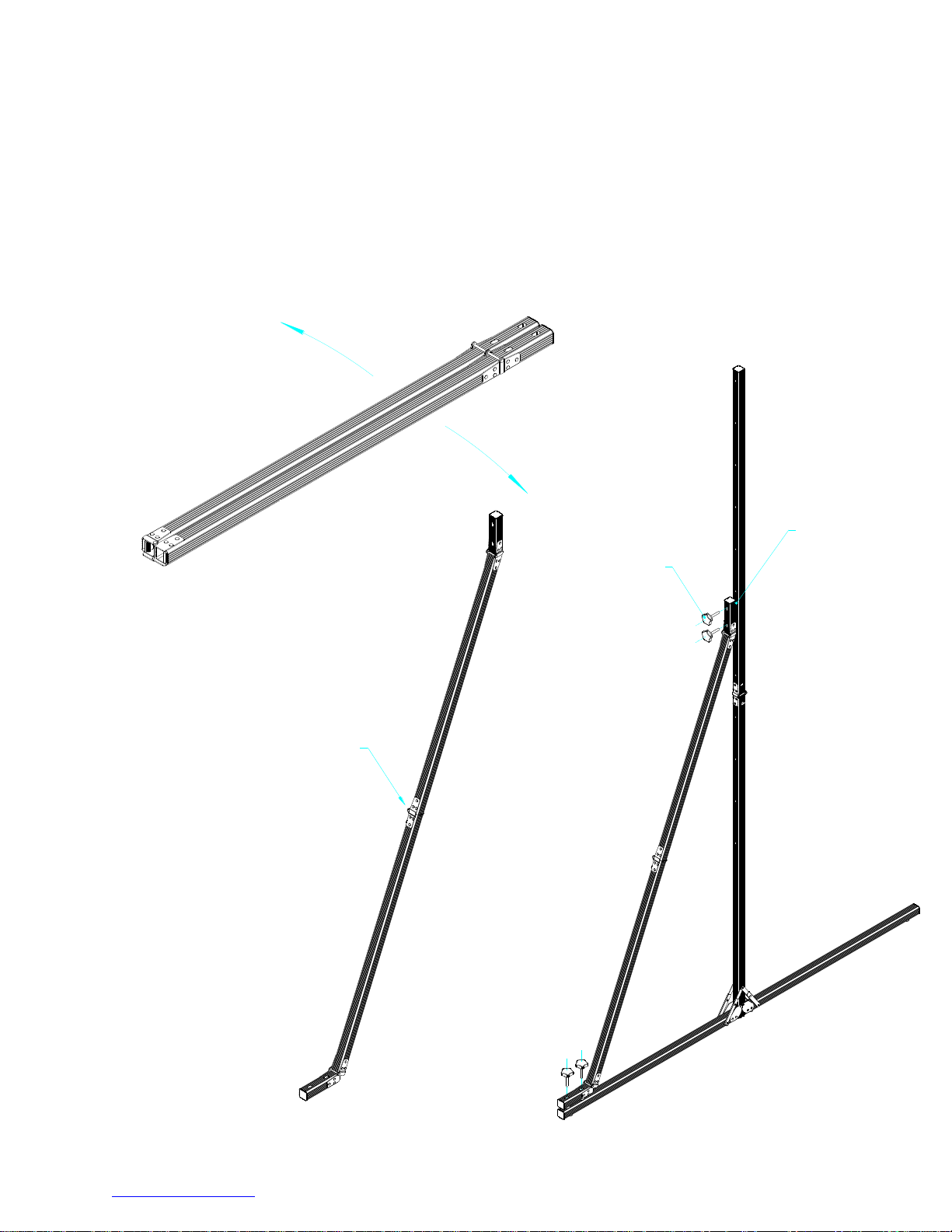

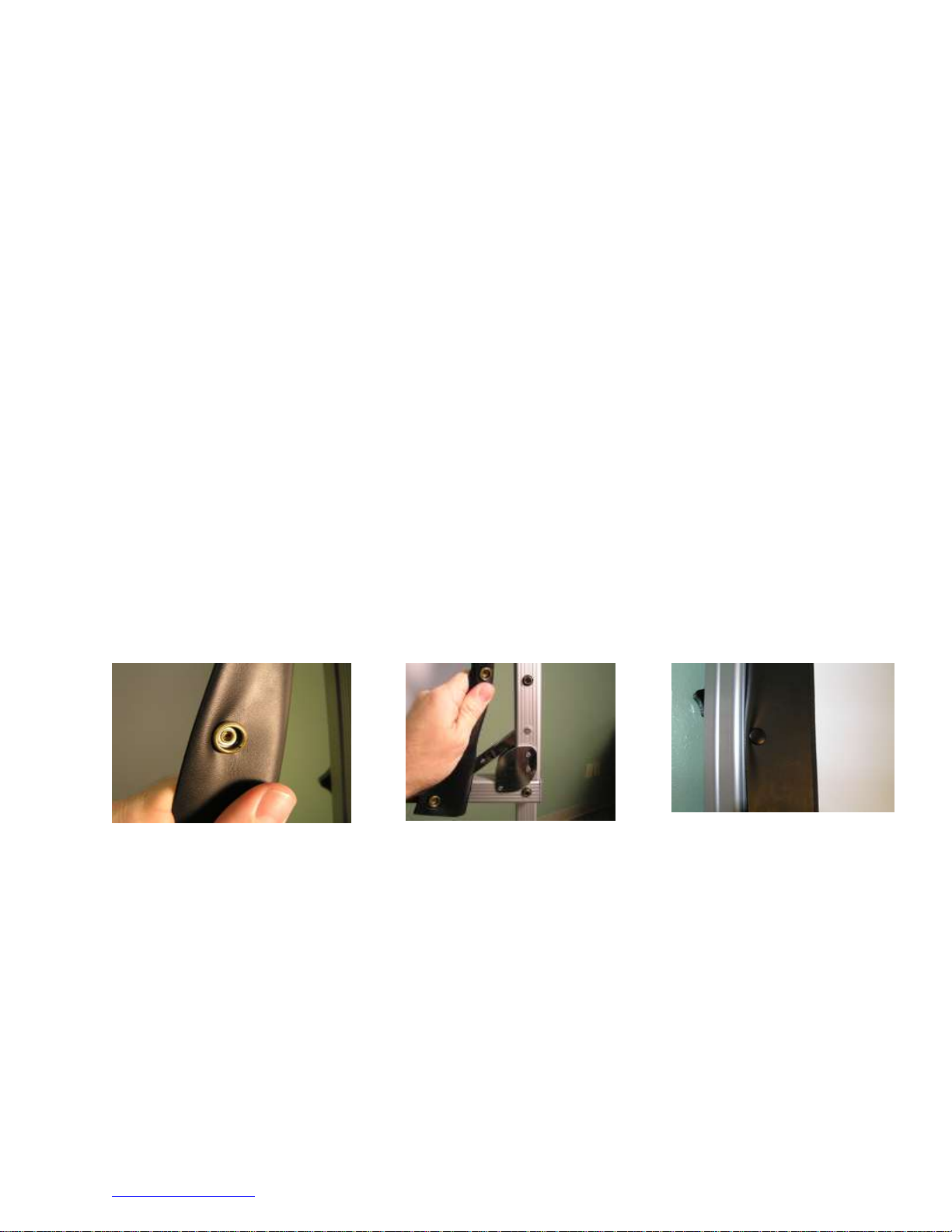

Setup Procedure
The frame and supports are made of 1 3/8” aluminum tubing with an anodized finish. Please follow the
instructions in this package. With proper care, your QuickStand screen will provide many years of reliable
service.
Rev043010-JA
www.elitescreenscom info@elitescreens.com
Three Section Frame
(For large presentation screens that are 120” or more in diagonal
measurement)
1. Take the frame out of the case and remove its
wrappings. Unfold the main joints making sure that
both the end and middle spans are in prefect alignment
as shown in (fig 4).
2. Make sure that the snap latches have locked the joints in
the frame so that it is at its full horizontal extension as
shown in (fig 5)
3. While holding the bottom of the frame in place, lift the
top of the frame to unfold the sides which will cause the
snap latches lock when fully extended. Secure the
corner braces into the locked position. The screen frame
should now be fully opened as in (fig 6).
fig 6
Lock down the corners
Snap latch
Snap latch
Top
fig 4
Rev043010-JA
www.elitescreenscom info@elitescreens.com
