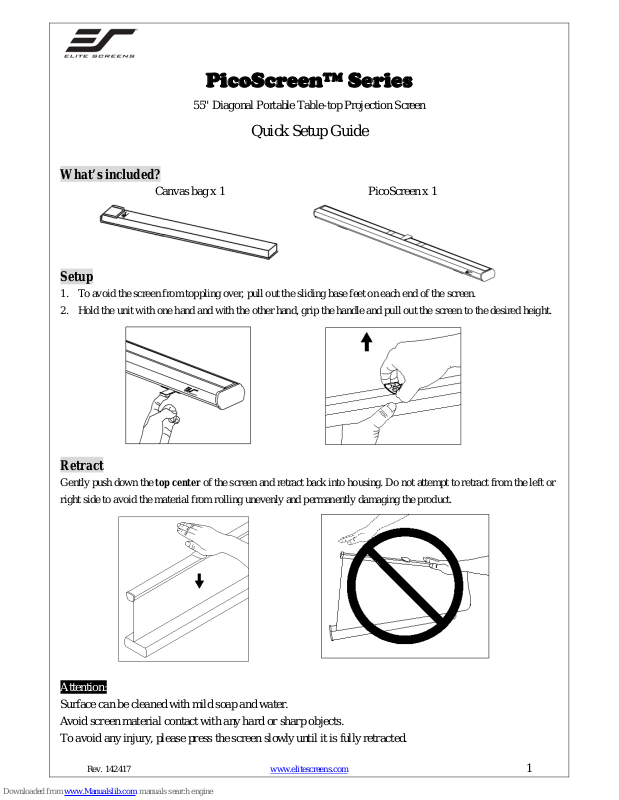

Elite Screens PicoScreen Series, PC55W, PC35W, PC45W Quick Setup Manual

Rev. 142417 www.elitescreens.com 1

PicoScreen™ Series

55" Diagonal Portable Table-top Projection Screen

Quick Setup Guide

What’s included?

Canvas bag x 1 PicoScreen x 1

Setup

1. To avoid the screen from toppling over, pull out the sliding base feet on each end of the screen.

2. Hold the unit with one hand and with the other hand, grip the handle and pull out the screen to the desired height.

Retract

Gently push down the top center of the screen and retract back into housing. Do not attempt to retract from the left or
right side to avoid the material from rolling unevenly and permanently damaging the product.

Attention:

Surface can be cleaned with mild soap and water.
Avoid screen material contact with any hard or sharp objects.

To avoid any injury, please press the screen slowly until it is fully retracted.

Rev. 142417 www.elitescreens.com 2

Tilt Adjustment Instructions Guide

If, in rare instances, your PicoScreen™ does not stand perfectly straight, please follow the steps below to adjust.

1. Front Tilted 2. Rear Tilted 3. Normal

Setup

1. Fully deploy the screen from the case.

2. Using one hand to keep hold of the base, use the other hand to gently pull the screen towards the appropriate
direction to bring it back to a normal position. See figures below .

1. Front Tilted 2. Rear Tilted

For more information, te chnical support or your lo cal Elite Scre ens contact,

please visit www.elitescreens.com
