Page 1
K
eep away from
chil
dren
Keep
hands clear
f
rom the
closing panels
Kestrel Series
(Version 2)
Electric Floor Rising
Projection
Screen
USER’S GUIDE
IMPORTANT SAFETY NOTES
1. Please r e ad th is m a nu al be f or e u se an d f ol l ow t h e p ro ce d u r es sp e c if i ed :
a. Please retain this manual for future reference.
b. To avoid any damage s to the screen, do no t use any acce ssories or parts not reco mmended
by Elite Screens.
c. H andle the device carefully during transportatio n.
d. Do not set up screen on une ven surf ac e s.
e. To pre vent electrica l shock or fire ; never over load the power cord, and avoid contacting the
motorized components with liquids or foreign objects.
2. The tubular motor equipped in the electric screen feature an overheat protection sensor.
If the screen is consecutively brought up and down between 3-4 minutes, the motor will
automatically shut-off to prevent the motor from sustaining damage through overheating. If
the automatic shutoff is activated, please allow 30 minutes cool down before resuming
operation.
3. The Kestrel Series Screen is equipped with a strong tension cross-spring system. Please do not
attempt any unnecessary repairs. It is at your own risk to open the inside cover or
dismantle/work on the screen. Individual modifications to this product are prohibited and will
void the user’s warranty.
4. When using the screen, please
a. Avoid strong wind , rain, or electrical storms.
b. No direct sunshine (UV Radiation)or moisture.
c. Keep awa y from fire source s and high tempera ture devices.
d. Turn off the powe r before moving this product.
11/29/2016 www.elitescreens.com 1
Page 2
Qty 1
Qty 1
Qty 1
NOT E
• This equipment has been tes ted and found to comply with t he limits for a Class B digital device
pursuant to Part 15 of the FCC Guidelines.
• The p roducts a re designe d to provide reas onab le pro tection aga inst ha rmfu l interf e renc e in
a residential/commercial in s tallation and end user app l ication and may radiate radio frequency
energy.
• However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. The power outlet should be close to the unit and easily acces s ible.
2.
Re-orient or re l ocate the receiving an tenn a.
3. Increase the separation between the equipment and the receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

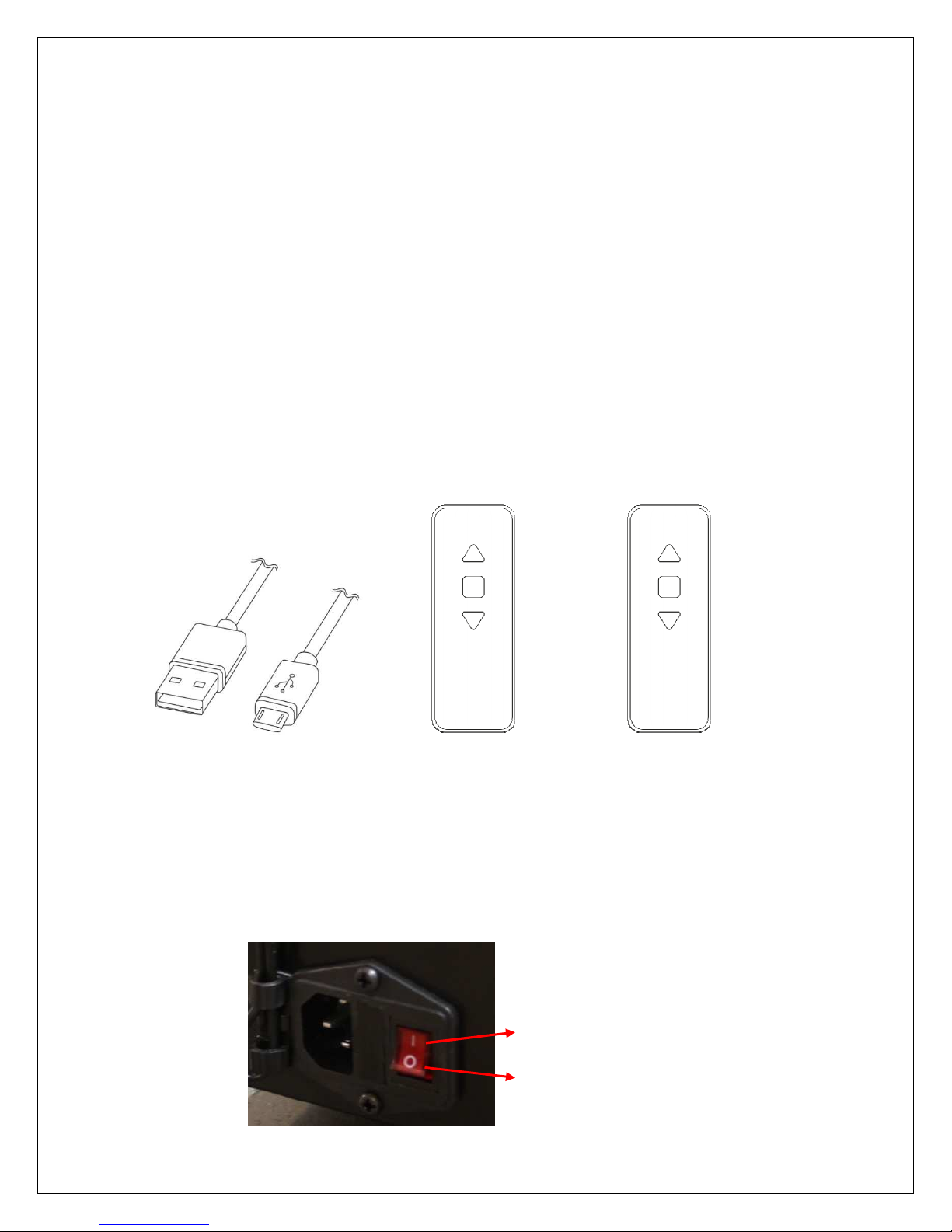

Kestrel Accessories:
Micro USB
Charge Cable
Infrared
Remote Control
Radio Frequency
Remote Control
Screen Operation:
Power:
Connect the screen to the power supply and switch the power button on. Now it is ready for use.
ON
OFF
11/29/2016 www.elitescreens.com 2
Page 3
IR receiver
Setup:
Remove the IR Receiver from the housing on the left side of
the Kestrel
Floor Electric Screen as
shown in the pictures below.
About the Control System:
1.
Manual Operation Switch:
raise, lower and stop the screen without the use of the RF/IR remote. See image below for reference.
Please note, the screen power supply switch must be ON for use of this Manual Switch.
2.
RF (Radio Frequency) and IR (Infrared) Remotes:
RF receivers that enable the consumer to use either the RF or the IR remote control. The RF remote is
best used when the screen is concealed or long distance control is required. The RF technology therefore
is more versatile as it does not require line of sight to operate the screen.
The IR remote requires a direct line of sight through the screen’s IR receiver.
The left side of the screen's housing includes a UP/STOP/DOWN switch to
Up / Stop / Down
The Kestrel Series screen includes both IR and
11/29/2016 www.elitescreens.com 3
Page 4
About the RF/IR Remote Controls:
The new remotes, included in this version of the Kestrel
Series, are touch sensitive remote controls. Please be sure
to place your finger directly in the center of the button when
attempting to control your screen. You will see a blue light
flash above the buttons when used properly.
Note: When operating your screen to open, the motor will automatically roll back and adjust to make sure
the fabric is properly tensioned as the screen raises to the suitable position.
Charge port
UP
STOP
DOWN
Charging the RF/IR Remote Control:
Once charging is needed, plug the Micro USB Charge Cable into any USB power source and into the left
side of your RF or IR Remote Control. While charging, you will see a solid red light above the touch
sensitive buttons. For your convenience, you may use the remote while it charges.
Note: The red light may dim while charging.
Storing the screen:
Always store the screen flat horizontally. Never store the screen in a vertical position.
Screen Maintenance
1. Always close the screen when not in use
2. Do not touch the screen surface
3. Keep away from direct sun and high/low temperatures
4. For indoor use only
5. Clean with soft water
6. Do not drop/close screen consecutively for more than 3 minutes. This is to avoid overload protection
shut-off. If automatic shut-off occurs, please wait for 20-30 minutes to try again.
For local Elite Screens contact or Technical Support, please visit
11/29/2016 www.elitescreens.com 4
