Model Number
Nominal
Aspect Ratio
R84WH2 84"(16:9) 1981 1862 1171 1052 61 41 1111
R100H2 100"(16:9) 2329 2210 1359 1240 61 41 1310
R100WH2 100"(16:9) 2329 2210 1359 1240 61 41 1310
R106WH2 106"(16:9) 2461 2342 1440 1321 61 41 1385
R110WH2 110"(16:9) 2555 2436 1491 1369 61 41 1435
R120H2 120"(16:9) 2779 2659 1610 1491 61 41 1559
R120WH2 120"(16:9) 2779 2659 1610 1491 61 41 1559
R135H2 135"(16:9) 3109 2990 1801 1679 61 41 1745
R135WH2 135"(16:9) 3109 2990 1801 1679 61 41 1745
R150WH2 150"(16:9) 3442 3320 1991 1869 61 41 1935
R165WH2 165"(16:9) 3772 3653 2174 2055 61 41 2120
R180WH2 180"(16:9) 4105 3985 2360 2240 61 41 2307
R200WH2 200"(16:9) 4519 4397 2611 2489 61 41 2555
R109WX2 109"(16:10) 2456 2337 1580 1461 61 41 1532
R114WX2 114"(16:10) 2558 2438 1643 1524 61 41 1600
R125WX2 125"(16:10) 2812 2692 1802 1682 60 40 1747
R144WX2 144"(16:10) 3222 3102 2059 1939 60 40 2004
R100RH2 100"(16:9) 16:9 2210 1359 1240 61 41 1310
R120RH2 120"(16:9) 16:9 2659 1610 1491 61 41 1559
R135RH2 135"(16:9) 16:9 2990 1801 1681 61 41 1745
Nominal
Aspect Ratio
R84WH2 84"(16:9) 78.0 73.3 46.1 41.4 2.4 1.6 43.7
R100H2 100"(16:9) 91.7 87.0 53.5 48.8 2.4 1.6 51.6
R100WH2 100"(16:9) 91.7 87.0 53.5 48.8 2.4 1.6 51.6
R106WH2 106"(16:9) 96.9 92.2 56.7 52.0 2.4 1.6 54.5
R110WH2 110"(16:9) 100.6 95.9 58.7 53.9 2.4 1.6 56.5
R120H2 120"(16:9) 109.4 104.7 63.4 58.7 2.4 1.6 61.4
R120WH2 120"(16:9) 109.4 104.7 63.4 58.7 2.4 1.6 61.4
R135H2 135"(16:9) 122.4 117.7 70.9 66.1 2.4 1.6 68.7
R135WH2 135"(16:9) 122.4 117.7 70.9 66.1 2.4 1.6 68.7
R150WH2 150"(16:9) 135.5 130.7 78.4 73.6 2.4 1.6 76.2
R165WH2 165"(16:9) 148.5 143.8 85.6 80.9 2.4 1.6 83.5
R180WH2 180"(16:9) 161.6 156.9 92.9 88.2 2.4 1.6 90.8
R200WH2 200"(16:9) 177.9 173.1 102.8 98.0 2.4 1.6 100.6
R109WX2 109"(16:10) 96.7 92.0 62.2 57.5 2.4 1.6 60.3
R114WX2 114"(16:10) 100.7 96.0 64.7 60.0 2.4 1.6 63.0
R125WX2 125"(16:10) 110.7 106.0 70.9 66.2 2.4 1.6 68.8
R144WX2 144"(16:10) 126.9 122.1 81.1 76.3 2.4 1.6 78.9
R100RH2 100"(16:9) 91.7 87.0 53.5 48.8 2.4 1.6 51.6
R120RH2 120"(16:9) 109.4 104.7 63.4 58.7 2.4 1.6 61.4
R135RH2 135"(16:9) 122.4 117.7 70.9 66.2 2.4 1.6 68.7
Note: Data Error may be ±1"

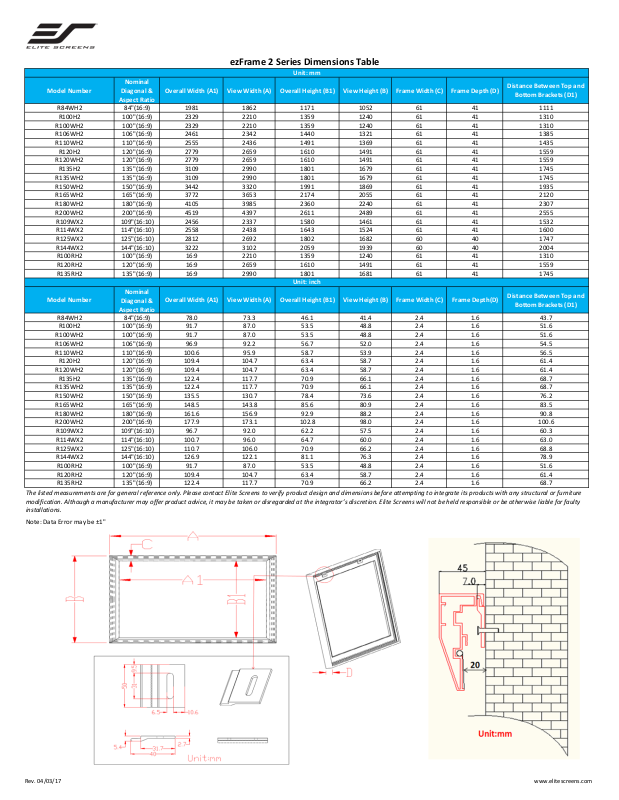

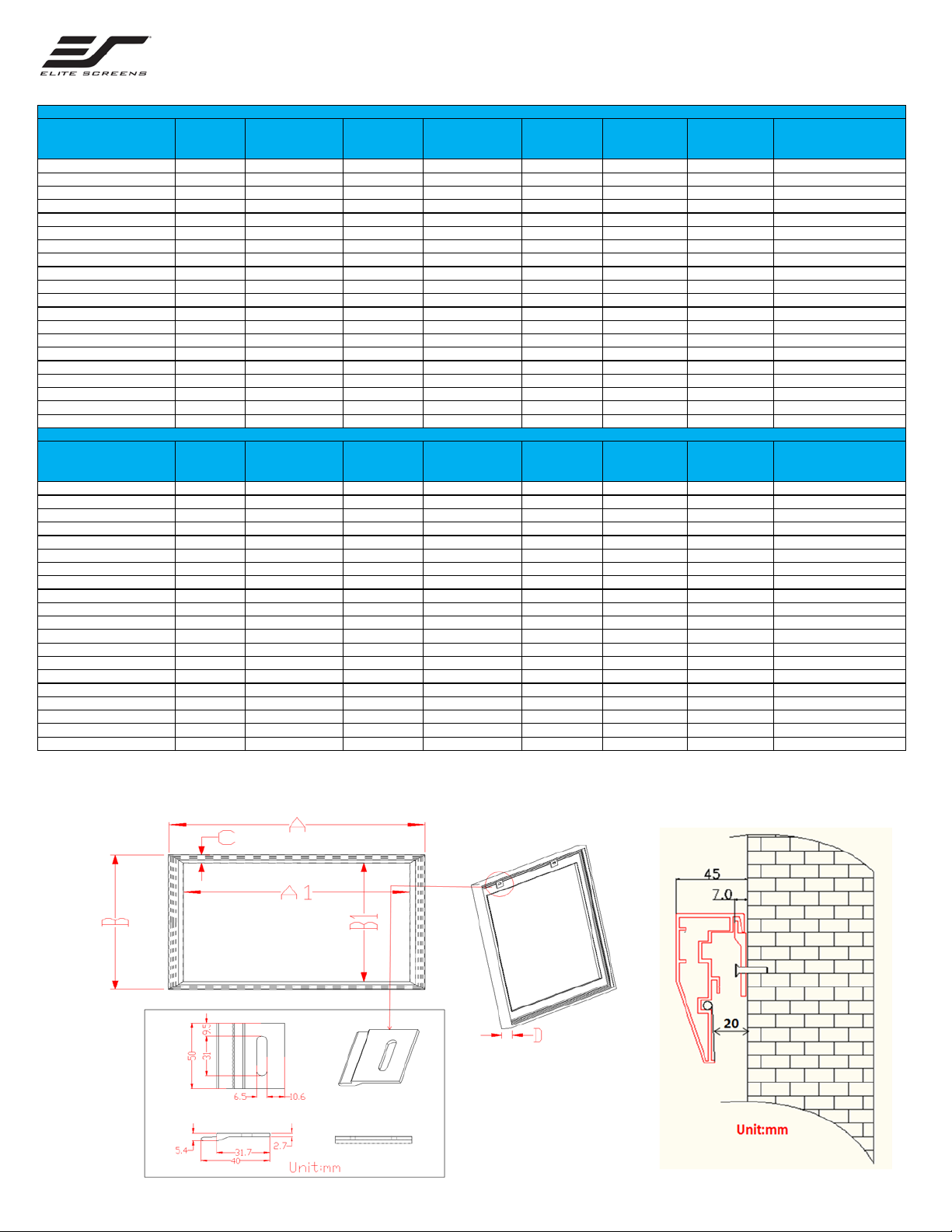

ezFrame 2 Series Dimensions Table
Unit: mm
Unit: inch
The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture
Diagonal &
Overall Width (A1) View Width (A) Overall Height (B1) View Height (B) Frame Width (C) Frame Depth (D)
Distance Between Top and
Bottom Brackets (D1)
Model Number
modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held r esponsible or be otherwise liable for faulty
installations.
Diagonal &
Overall Width (A1) View Width (A) Overall Height (B1) View Height (B) Frame Width (C) Frame Depth(D)
Distance Between Top and
Bottom Brackets (D1)
Rev. 04/03/17 www.elitescreens.com
