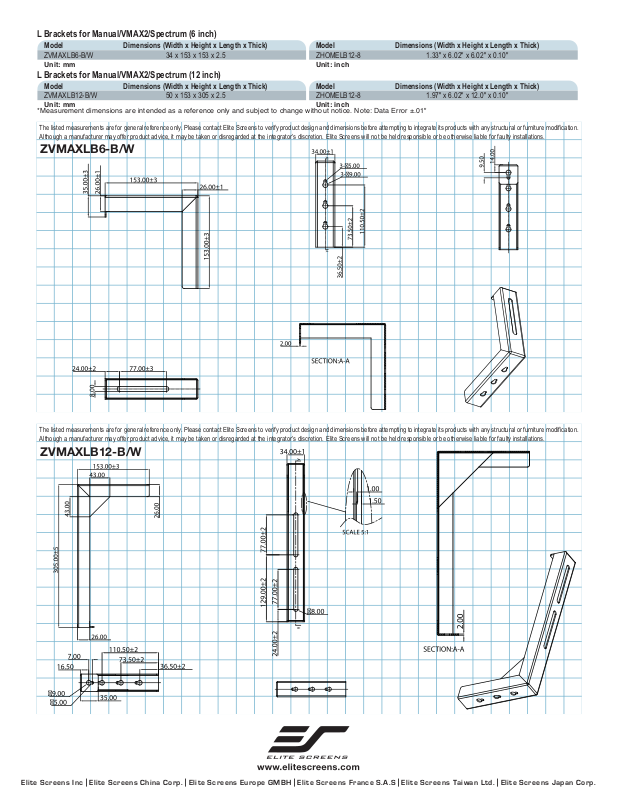

L Brackets for Manual/VMAX2/Spectrum (6 inch)
Model Dimensions (Width x Height x Length x Thick)
ZVMAXLB6-B/W 34 x 153 x 153 x 2.5
Unit: mm
L Brackets for Manual/VMAX2/Spectrum (12 inch)
Model Dimensions (Width x Height x Length x Thick)
ZVMAXLB12-B/W 50 x 153 x 305 x 2.5
Unit: mm
*Measurement dimensions are intended as a reference only and subject to change without notice. Note: Data Error ±.01"
The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.
Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
Model Dimensions (Width x Height x Length x Thick)
ZHOMELB12-8 1.33" x 6.02" x 6.02" x 0.10"
Unit: inch
Model Dimensions (Width x Height x Length x Thick)
ZHOMELB12-8 1.97" x 6.02" x 12.0" x 0.10"
Unit: inch
ZVMAXLB6-B/W
The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.
Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
ZVMAXLB12-B/W
