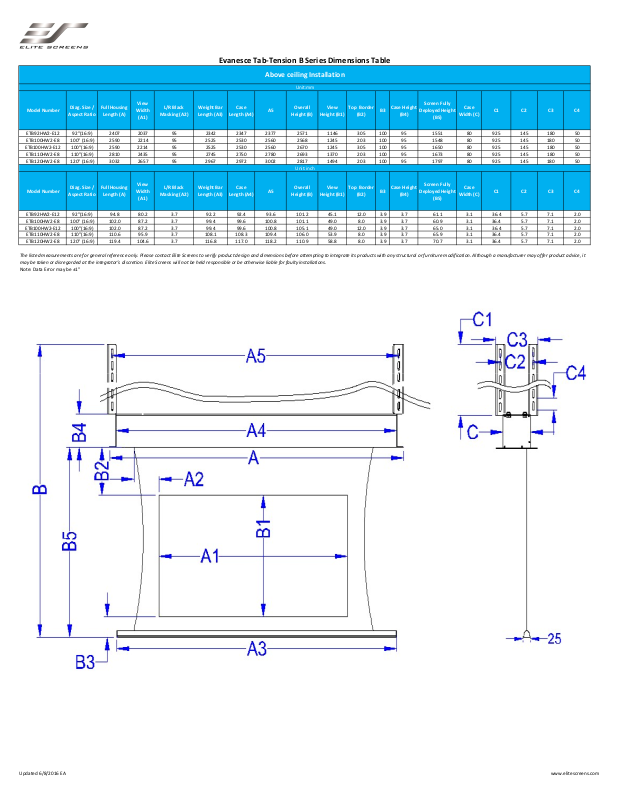

Evanesce Tab-Tension B Series Dimensions Table
Above ceiling Installation
Unit:mm
Model Number
ETB92HW2-E12 92"(16:9) 2407 2037 95 2342 2347 2377 2571 11 46 305 100 95 1551 80 925 145 180 50
ETB100HW2-E8 100" (16:9) 2590 2214 95 2525 2530 2560 2568 1 245 203 100 95 1548 80 925 14 5 180 50
ETB100HW2-E12 100"(16:9) 2590 2214 95 2525 2530 2560 2670 1245 305 100 95 1650 80 925 145 180 50
ETB110HW2-E8 11 0"(16:9) 2810 2435 95 2745 2750 2780 2693 1370 203 100 95 1673 80 925 145 180 50
ETB120HW2-E8 120" (16:9) 3032 2657 95 2967 2972 3002 2817 1 494 203 100 95 1797 80 925 14 5 180 50
Model Number
ETB92HW2-E12 92"(16:9) 94. 8 80 .2 3.7 92.2 92.4 93.6 101.2 45.1 12.0 3.9 3.7 61.1 3.1 36.4 5.7 7.1 2.0
ETB100HW2-E8 100" (16:9) 102 .0 87.2 3.7 99.4 99.6 100.8 101. 1 49.0 8.0 3.9 3.7 60.9 3.1 36.4 5.7 7.1 2.0
ETB100HW2-E12 100"(16:9) 102.0 87.2 3.7 99.4 99.6 100.8 105.1 49.0 12.0 3.9 3.7 65.0 3.1 36.4 5.7 7.1 2.0
ETB110HW2-E8 11 0"(16:9) 110 .6 95.9 3.7 108.1 108.3 109.4 106.0 53 .9 8.0 3.9 3.7 65.9 3.1 36.4 5.7 7.1 2.0
ETB120HW2-E8 120" (16:9) 119 .4 10 4.6 3. 7 1 16.8 117.0 118.2 110.9 58.8 8.0 3.9 3.7 70.7 3.1 36.4 5.7 7.1 2.0
The listed measurements are for ge neral reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification. Although a manufacturer may offer pr oduct advice, it
may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
Note: Data Error may be ±1"
Diag. Size /
Aspect Ratio
Diag. Size /
Aspect Ratio

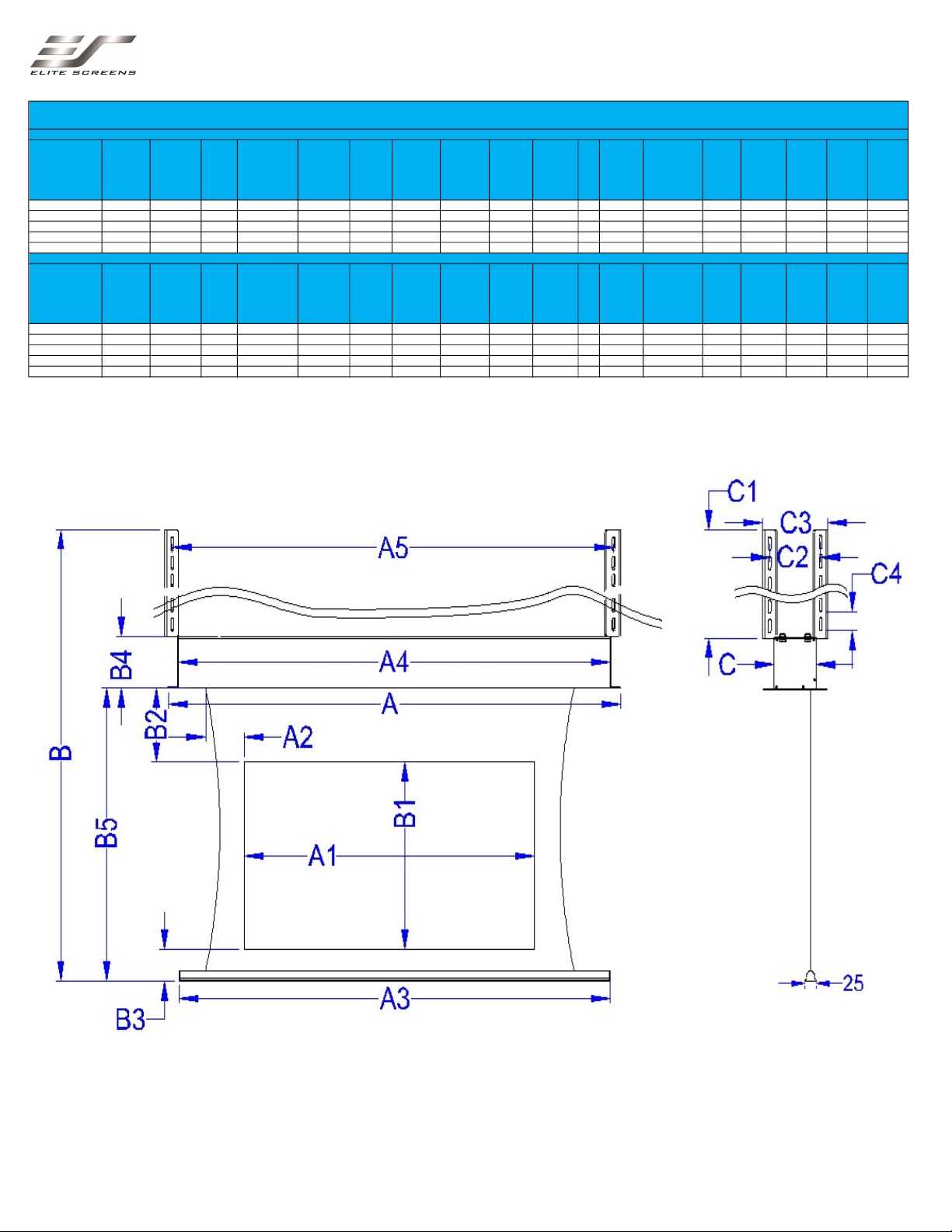

Full Housing
Length (A)
Full Housing
Length (A)
View
Width
(A1)
View
Width
(A1)
L/R Black
Masking (A2)
L/R Black
Masking (A2)
Weight Bar
Length (A3)
Weight Bar
Length (A3)
Case
Length (A4)
Case
Length (A4)
Overall
A5
Height (B)
Unit:inch
Overall
A5
Height (B)
View
Height (B1)
View
Height (B1)
Top Border
(B2)
Top Border
(B2)
B3
B3
(B4)
(B4)
Screen Fully
(B5)
Screen Fully
(B5)
Case
Width (C)
Case
Width (C)
C1 C2 C3 C4
C1 C2 C3 C4
