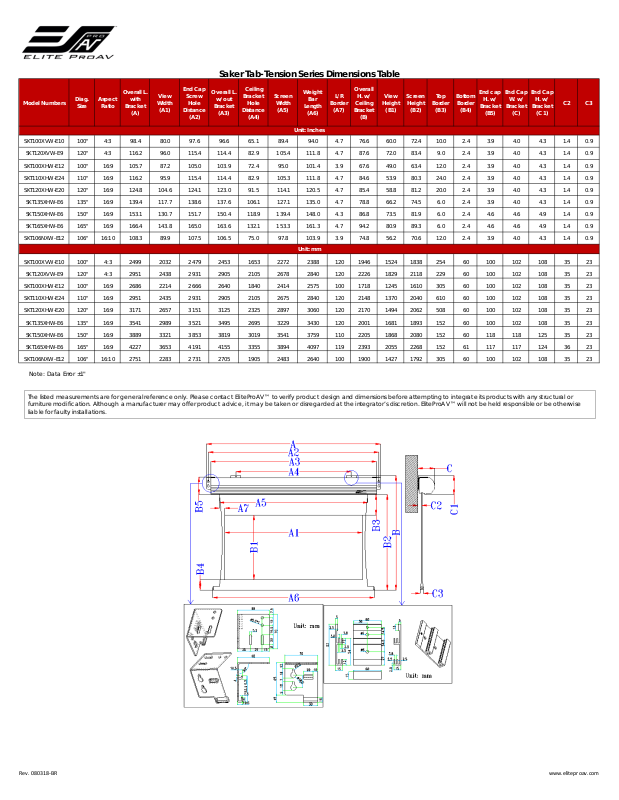

Saker Tab-Tension Series Dimensions Ta b le
Unit: Inches
Note: Data Error ±1"
View
Ratio
with
Bracket
(A)
Diag.
Model Numbers
SKT100XVW-E10 100" 4:3 98.4 80.0 97.6 96.6 65.1 89.4 94.0 4.7 76.6 60.0 72.4 10.0 2.4 3.9 4.0 4.3 1.4 0.9
SKT120XVW-E9 120" 4:3 116.2 96.0 115.4 114.4 82.9 105.4 111.8 4.7 87.6 72.0 83.4 9.0 2.4 3.9 4.0 4.3 1.4 0.9
SKT100XHW-E12 100" 16:9 105.7 87.2 105.0 103.9 72.4 95.0 101.4 3.9 67.6 49.0 63.4 12.0 2.4 3.9 4.0 4.3 1.4 0.9
SKT110XHW-E24 110" 16:9 116.2 95.9 115.4 114.4 82.9 105.3 111.8 4.7 84.6 53.9 80.3 24.0 2.4 3.9 4.0 4.3 1.4 0.9
SKT120XHW-E20 120" 16:9 124.8 104.6 124.1 123.0 91.5 114.1 120.5 4.7 85.4 58.8 81.2 20.0 2.4 3.9 4.0 4.3 1.4 0.9
SKT135XHW-E6 135" 16:9 139.4 117.7 138.6 137.6 106.1 127.1 135.0 4.7 78.8 66.2 74.5 6.0 2.4 3.9 4.0 4.3 1.4 0.9
SKT150XHW-E6 150" 16:9 153.1 130.7 151.7
SKT165XHW-E6 165" 16:9 166.4 143.8 165.0 163.6 132.1 153.3 161.3 4.7 94.2 80.9 89.3 6.0 2.4 4.6 4.6 4.9 1.4 0.9
SKT106NXW-E12 106" 16:10 108.3 89.9 107.5 106.5 75.0 97.8 103.9 3.9 74.8 56.2 70.6 12.0 2.4 3.9 4.0 4.3 1.4 0.9
SKT100XVW-E10 100" 4:3 2499 2032 2479 2453 1653 2272 2388 120 1946 1524 1838 254 60 100 102 108 35 23
SKT120XVW-E9 120" 4:3 2951 2438 2931 2905 2105 2678 2840 120 2226 1829 2118 229 60 100 102 108 35 23
SKT100XHW-E12 100" 16:9 2686 2214 2666 2640 1840 2414 2575 100 1718 1245 1610 305 60 100 102 108 35 23
SKT110XHW-E24 110" 16:9 2951 2435 2931 2905 2105 2675 2840 120 2148 1370 2040
SKT120XHW-E20 120" 16:9 3171 2657 3151 3125 2325 2897 3060 120 2170 1494 2062 508 60 100 102 108 35 23
SKT135XHW-E6 135" 16:9 3541 2989 3521 3495 2695 3229 3430 120 2001 1681 1893 152 60 100 102 108 35 23
SKT150XHW-E6 150" 16:9 3889 3321 3853 3819 3019 3541 3759 110 2205 1868 2080 152 60 118 118 125 35 23
SKT165XHW-E6 165" 16:9 4227 3653 4191 4155 3355 3894 4097 119 2393 2055 2268 152 61 117 117 124 36 23
SKT106NXW-E12 106" 16:10 2751 2283 2731 2705 1905 2483 2640 100 1900 1427 1792 305 60 100 102 108 35 23
Size
Aspect
Width
(A1)
Screw
Hole
Distance
(A2)
Ceiling
Bracket
w/out
Bracket
Hole
Distance
(A3)
(A4)
150.4 118.9 139.4 148.0 4.3 86.8 73.5 81.9 6.0 2.4 4.6 4.6 4.9 1.4 0.9
Screen
Width
(A5)
Weight
Bar
Length
(A6)
Unit: mm
L/R
Border
(A7)
Overall
H. w/
Bracket
(B)
View
Height
(B1)
Top
Height
Border
(B2)
(B3)
610 60 100 102 108 35 23
Border
(B4)
H. w/
Bracket
(B5)
W. w/
Bracket
(C)
H. w/
(C1)
C2 C3
The listed measurements are for general reference only. Please contact EliteProAV™ to verify product design and dimensions before attempting to integr ate its pro duc ts with any structu ral o r
furniture modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. EliteProAV™ will not be held responsible or be otherwise
liable for faulty installatio ns.
