Elite Screens ELI1771 Dimensions

Download
Page 1
®

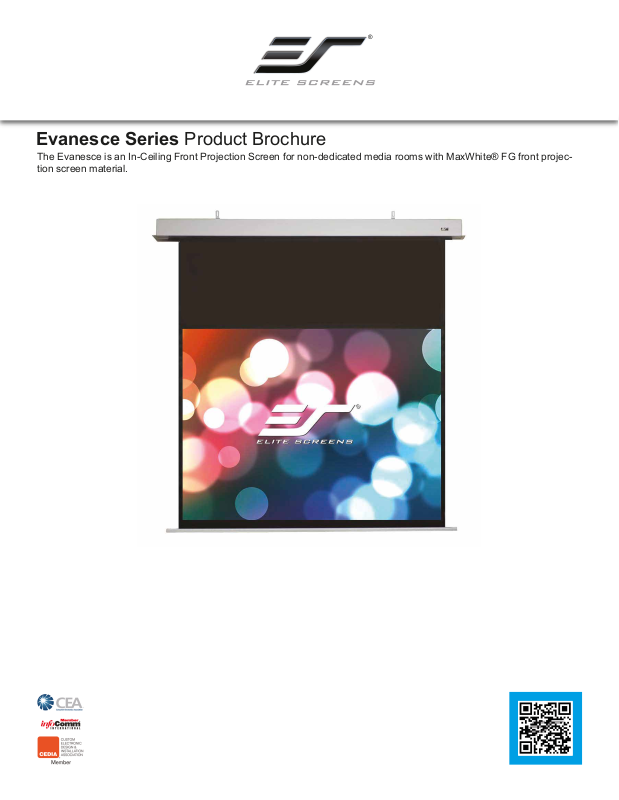

Evanesce Series Product Brochure
The Evanesce is an In-Ceiling Front Projection Screen for non-dedicated media rooms with MaxWhite® FG front projec­tion screen material.
Page 2
Evanesce Series
The Evanesce is an In-Ceiling Front Projection Screen for non-dedicated media rooms with MaxWhite™ FG front projection screen material.
Screen Material:
• MaxWhite® Fiberglass (FG) 1.1 Gain black backed matte white screen material
• 180° wide-viewing angle for commercial and residential presentations
• Black masking borders enhance picture contrast
• 4K Ultra HD, Active 3D, and HDR Ready
• Durable and easy to clean surface
• Also available in AcousticPro UHD Material
• Available in the following diagonal sizes:
• 126" in 4:3 format
• 90", 106", 112", and 126" in 16:9 format
• 114", 120" and 132" in 16:10 format
• 110" in 2.35:1 format
Design and Installation:
• Disappearing recessed in-ceiling design for non-dedicated media rooms
• Below and above ceiling access installation design
• Integrated ceiling projection screen ships fully assembled, ready to install
• Aluminum housing with white finish (RAL9003) is strong and moisture resistant
• Instllation kit included
Control System:
• Internal Radio Frequency/Infrared receivers with IR, RF remotes included
• Low voltage 3-way wall switch
• Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle
• Optional ZR800D IR Universal Remote Control, wireless 5-12 volt trigger, Universal 5-12 volt trigger (for projectors that don't have a trigger ouput port) and In-wall switch
Quality and Reliability:
• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• ETL, FCC, CE, CB GOSTCE & ISO9001:2008 Certified
• Flame Retardant: Complies with NFPA 701 Standards (MaxWhite® FG & AcousticPro UHD)
• GREENGUARD® and GREENGUARD® Gold Certified UL | 2818
• Conforms to UL 2043 - Plenum Rated: Suitable for air-handling spaces
• 2-year Parts & Labor manufacturer's warranty
• 3-year warranty offered through ENR-G program (Education, Non-Profit, Religious and Government)
Evanesce Series
Model
IHome126VW2-E8 126"(4:3) 75.6 100.8 192.0 256.0 45.0 62.0 20.5 28.2 114"x7.5"x8.5" 1.1 MaxWhite® FG IHome90HW2-E24 90"(16:9) 44.1 78.4 112.1 199.2 35.9 50.5 16.3 22.9 91"x9.1"x8.3" 1.1 White IHome106HW2-E18 106"(16:9) 52.0 92.4 132.0 234.7 43.2 55.5 19.6 25.2 105"x7.5"x8.5" 1.1 White IHome112HW2-E16 112"(16:9) 54.9 97.6 139.5 248.0 42.6 57.7 19.3 26.2 111"x7.5"x8.5" 1.1 White IHome126HW2-E20 126"(16:9) 61.8 109.8 156.9 278.9 50.6 68.2 23.0 31.0 122"x9.8"x8.3" 1.1 White IHome114XW2-E20 114"(16:10) 60.4 96.7 153.5 245.5 43.2 59.4 19.6 27.0 109"x7.5"x8.5" 1.1 White IHome120XW2-E18 120"(16:10) 63.6 101.8 161.5 258.5 44.4 62.2 20.2 28.2 114.2"x11x8.3" 1.1 White IHome132XW2-E12 132"(16:10) 70.0 111.9 164.4 263.0 45.9 61.2 20.8 27.8 124.4"x11.4"x8.3" 1.1 White IHome110C-E24 110"(2.35:1) 43.1 101.2 109.5 257.0 41.1 57.7 18.7 26.2 113.5"x7.2"x8.2" 1.1 White
IHome106H2-E14-AUHD 106"(16:9) 52.0 92.4 132.1 234.7 45.6 68.6 20.7 31.1 107.9"x7.5”x8.5" White IHome126H2-E12-AUHD 126"(16:9) 61.8 109.8 157.0 278.9 57.9 83.5 26.3 37.9 127.0"x7.9"x8.7" White IHome140H2-E6-AUHD 140"(16:9) 68.7 122.0 174.5 309.9 58.8 90.0 26.7 40.8 137.0"x11.0"11.2" White
Screen Diag. &
Aspect Ratio
View
Height (in)
View Width
(in)
View
Height
(cm)
View Width
(cm)
N.W. (lbs.)
G.W. (lbs.)
1
N.W. (kgs)
G.W.
Packaging Dimensions
(Kgs)
(LxHxW)
Gain Screen Material
MaxWhite® FG MaxWhite® FG MaxWhite® FG MaxWhite® FG MaxWhite® FG MaxWhite® FG MaxWhite® FG MaxWhite® FG
1.0 AcousticPro UHD
1.0 AcousticPro UHD
1.0 AcousticPro UHD
Case Color
White
Page 3
Evanesce Series Dimensions Table (Above ceiling)
Screen
Model
IHOME126VW2-E8 126"(4:3) 2561 50 2770 2830 2370 2765 1920 203 2199 118 2317 76 98 50 925 145 180 1145-1205 148 IHOME90HW2-E24 90"(16:9) 1993 50 2191 2251 1791 2186 1121 610 1807 118 1925 76 98 50 925 145 180 1145-1205 148 IHOME106HW2-E18 106"(16:9) 2347 50 2545 2605 2145 2540 1320 457 1853 118 1971 76 98 50 925 145 180 1145-1205 148 IHOME112HW2-E16 112"(16:9) 2480 50 2678 2738 2278 2673 1395 406 1877 118 1995 76 98 50 925 145 180 1145-1205 148 IHOME126HW2-E20 126"(16:9) 2790 50 2988 3048 2588 2983 1569 508 2153 118 2271 76 98 50 925 145 180 1145-1205 148 IHOME114XW2-E20 114"(16:10) 2456 50 2660 2720 2260 2655 1535 508 2119 118 2237 76 98 50 925 145 180 1145-1205 148 IHOME120XW2-E18 120"(16:10) 2585 50 2783 2843 2383 2778 1615 457 2148 118 2266 76 98 50 925 145 180 1145-1205 148 IHOME132XW2-E12 132"(16:10) 2844 50 3042 3102 2642 3037 1777 305 2158 118 2276 76 98 50 925 145 180 1145-1205 148 IHOME110C-E24 110"(2.35:1) 2571 50 2770 2830 2370 2765 1094 610 1780 118 1898 76 98 50 925 145 180 1145-1205 148 IHOME106H2-E14-AUHD 106"(16:9) 2347 51 2545 2606 2144 2535 1321 356 1753 117 1869 76 98 50 925 145 180 1145-1205 148 IHOME126H2-E12-AUHD 126"(16:9) 2789 51 2987 3048 2588 2977 1570 305 1951 117 2068 76 98 50 925 145 180 1145-1205 148 IHOME140H2-E6-AUHD 140"(16:9) 3099 51 3300 3340 2901 3289 1745 152 1956 150 2106 61 135 50 925 175 211 1145-1205 175
Unit: mm For D- D3 refer to website
Diag. & Aspect
Ratio
View Width
(A)
L/R
Borders
(A1)
Length
Case
(A2)
Full
Housing
Length
(A3)
Distance Between J-Hooks
(A4)
A5
View
Height
(B)
Top Black Mask-
ing
(B1)
Screen
Fully
Deployed
(B2)
Case
Height
(B3)
Overall
Height
(B4)
Bottom Border
C C1 C2 C3 C4 C5 C6
(B5)
Screen
Model
IHOME126VW2-E8 126"(4:3) 100.8 2.0 109.1 111.4 93.3 108.9 75.6 8.0 86.6 4.6 91.2 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME90HW2-E24 90"(16:9) 78.5 1.5 86.3 88.6 70.5 86.1 44.1 24.0 71.1 4.6 75.8 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME106HW2-E18 106"(16:9) 92.4 2.0 100.2 102.6 84.4 100.0 52.0 18.0 73.0 4.6 77.6 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME112HW2-E16 112"(16:9) 97.6 2.0 105.4 107.8 89.7 105.2 54.9 16.0 73.9 4.6 78.6 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME126HW2-E20 126"(16:9) 109.8 2.0 117.6 120.0 101.9 117.4 61.8 20.0 84.8 4.6 89.4 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME114XW2-E20 114"(16:10) 96.7 2.0 104.7 107.1 89.0 104.5 60.4 20.0 83.4 4.6 88.1 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME120XW2-E18 120"(16:10) 101.8 2.0 109.6 111.9 93.8 109.4 63.6 18.0 84.6 4.6 89.2 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME132XW2-E12 132"(16:10) 112.0 2.0 119.8 122.1 104.0 119.6 70.0 12.0 85.0 4.6 89.6 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME110C-E24 110"(2.35:1) 101.2 2.0 109.1 111.4 93.3 108.9 43.1 24.0 70.1 4.6 74.7 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME106H2-E14-AUHD 106"(16:9) 92.4 2.0 100.2 102.6 84.4 99.8 52.0 14.0 69.0 4.6 73.6 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME126H2-E12-AUHD 126"(16:9) 109.8 2.0 117.6 120.0 101.9 117.2 61.8 12.0 76.8 4.6 81.4 3.0 3.9 2.0 36.4 5.7 7.1 45.1-47.4 5.8 IHOME140H2-E6-AUHD 140"(16:9) 122.0 2.0 129.9 131.5 114.2 129.5 68.7 6.0 77.0 5.9 82.9 2.4 5.3 2.0 36.4 6.9 8.3 45.1-47.4 6.9
Unit: inch
Note: Data Error ±1". The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture
modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
Diag. & Aspect
Ratio
View Width
(A)
L/R
Borders
(A1)
Length
Case
(A2)
Full
Housing
Length
(A3)
Distance Between J-Hooks
(A4)
A5
View
Height
(B)
Top Black Mask-
ing
(B1)
Screen
Fully
Deployed
(B2)
Case
Height
(B3)
Overall
Height
(B4)
Bottom Border
C C1 C2 C3 C4 C5 C6
(B5)
For D- D3 refer to website
2
Page 4
Evanesce Series Dimensions Table (Below ceiling)
Model
IHOME126VW2-E8 126"(4:3) 2830 2561 50 2760 2770 2795 2348 1920 203 100 118 148 98 120 IHOME90HW2-E24 90"(16:9) 2251 1993 50 2181 2191 2216 1948 1120 610 100 118 148 98 120 IHOME106HW2-E18 106"(16:9) 2605 2347 50 2535 2545 2570 1996 1321 457 100 118 148 98 120 IHOME112HW2-E16 112"(16:9) 2738 2480 50 2668 2678 2703 2021 1397 406 100 118 148 98 120 IHOME126HW2-E20 126"(16:9) 3048 2790 50 2978 2988 3013 2296 1570 508 100 118 148 98 120 IHOME114XW2-E20 114"(16:10) 2714 2456 50 2644 2654 2679 2260 1534 508 100 118 148 98 120 IHOME120XW2-E18 120"(16:10) 2843 2585 50 2773 2783 2808 2290 1615 457 100 118 148 98 120 IHOME132XW2-E12 132"(16:10) 3102 2844 50 3032 3042 3067 2300 1777 305 100 118 148 98 120 IHOME110C-E24 110"(2.35:1) 2830 2571 50 2760 2770 2795 1922 1094 610 100 118 148 98 120 IHOME106H2-E14-AUHD 106"(16:9) 2606 2347 50 2535 2545 2571 1869 1321 356 76 117 148 98 120 IHOME126H2-E12-AUHD 126"(16:9) 3048 2789 50 2977 2987 3012 2068 1570 305 76 117 148 98 120 IHOME140H2-E6-AUHD 140"(16:9) *Installation Method not Available *Installation Method not Available *Installation Method not Available
Unit: mm *For D- D3 refer to website
Screen Diag. &
Aspect Ratio
Overall Length
View
L/R black
Width
(A1)
masking (A2)
(A)
Weight Bar
Length (A3)
Housing
Length
(A4)
Top of screen
A5
case to bottom of
screen (B)
View
Height
(B1)
Top Black
Masking
(B2)
Bottom Border
(B3)
Case
Height
(B4)
C C1 C2
Model
IHOME126VW2-E8 126"(4:3) 111.4 100.8 2.0 108.7 109.1 110.0 92.4 75.6 8.0 3.9 4.6 5.8 3.9 4.7 IHOME90HW2-E24 90"(16:9) 88.6 78.5 2.0 85.9 86.3 87.2 76.7 44.1 24.0 3.9 4.6 5.8 3.9 4.7 IHOME106HW2-E18 106"(16:9) 102.6 92.4 2.0 99.8 100.2 101.2 78.6 52.0 18.0 3.9 4.6 5.8 3.9 4.7 IHOME112HW2-E16 112"(16:9) 107.8 97.6 2.0 105.0 105.4 106.4 79.6 55.0 16.0 3.9 4.6 5.8 3.9 4.7 IHOME126HW2-E20 126"(16:9) 120.0 109.8 2.0 117.2 117.6 118.6 90.4 61.8 20.0 3.9 4.6 5.8 3.9 4.7 IHOME114XW2-E20 114"(16:10) 106.9 96.7 2.0 104.1 104.5 105.5 89.0 60.4 20.0 3.9 4.6 5.8 3.9 4.7 IHOME120XW2-E18 120"(16:10) 111.9 101.8 2.0 109.2 109.6 110.6 90.2 63.6 18.0 3.9 4.6 5.8 3.9 4.7 IHOME132XW2-E12 132"(16:10) 122.1 112.0 2.0 119.4 119.8 120.7 90.6 70.0 12.0 3.9 4.6 5.8 3.9 4.7 IHOME110C-E24 110"(2.35:1) 111.4 101.2 2.0 108.7 109.1 110.0 75.7 43.1 24.0 3.9 4.6 5.8 3.9 4.7 IHOME106H2-E14-AUHD 106"(16:9) 102.6 92.4 2.0 99.8 100.2 101.2 73.6 52.0 14.0 3.0 4.6 5.8 3.9 4.7 IHOME126H2-E12-AUHD 126"(16:9) 120.0 109.8 2.0 117.2 117.6 118.6 81.4 61.8 12.0 3.0 4.6 5.8 3.9 4.7 IHOME140H2-E6-AUHD 140"(16:9)
Unit: inch
Note: Data Error ±1". The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture
modification. Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.
Screen Diag. &
Aspect Ratio
Overall Length
View
L/R black
Width
(A)
masking (A2)
(A1)
*Installation Method not Available *Installation Method not Available *Installation Method not Available
Weight Bar
Length (A3)
Housing
Length
(A4)
Top of screen
A5
case to bottom of
screen (B)
View
Height
(B1)
Top Black
Masking
(B2)
Bottom Border
(B3)
Case
Height
C C1 C2
(B4)
*For D- D3 refer to website
