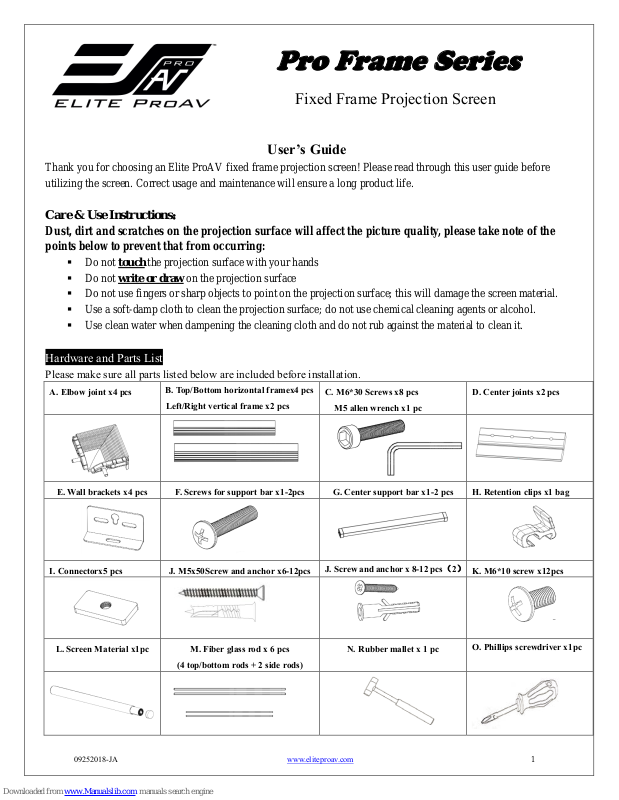

Elite ProAV Pro Frame Series User Manual

09252018-JA www.eliteproav.com 1
Pro Frame Series
Fixed Frame Projection Screen
User’s Guide
Thank you for choosing an Elite ProAV fixed frame projection screen! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
Care & Use Instructions
Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the points below to prevent that from occurring:
Do not touch the projection surface with your hands Do not write or draw on the projection surface Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x4 pcs
B. Top/Bottom horizontal framex4 pcs Left/Right vertical frame x2 pcs
C. M6*30 Screws x8 pcs M5 allen wrench x1 pc
D. Center joints x2 pcs
E. Wall brackets x4 pcs
F. Screws for support bar x1-2pcs
G. Center support bar x1-2 pcs
H. Retention clips x1 bag
I. Connectorx5 pcs
J. M5x50Screw and anchor x6-12pcs
J. Screw and anchor x 8-12 pcs2
K. M6*10 screw x12pcs
L. Screen Material x1pc
M. Fiber glass rod x 6 pcs
(4 top/bottom rods + 2 side rods)
N. Rubber mallet x 1 pc
O. Phillips screwdriver x1pc
09252018-JA www.eliteproav.com 2
Frame Assembly
1. Insert the center joint into one of the ½ horizontal frames (B) and fasten it with the two M6x10 screws(K).
2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M6x10 screws(K).
3. Repeat steps 1 and 2 for assembling the second horizontal frame.
Push Push
4. Place the assembled top and bottom frame on the protective film and insert three connectors (I) into the bottom
frame, and two connectors (I) into the top frame.
5. Insert the Elbow joint (A) into each end of the horizontal frame (B) as shown below. Then insert the two
vertical frames (B) into the Elbow joint (A). Note: Make sure all four corners are properly in place to form a perfect square. Then fasten the four angles using the supplied M5 allen wrench with the M6x30 Screws (C).
Top right Frame
Top left Frame
Center joints
Vertical short frame(B)
Connector (I)
Insert 2 connectors into the top frame
Insert 3 connectors into the bottom frame
protective film
Horizontal long frame (B)
Elbow joint (A)
Locating hole on the frame
Plug pin on the Elbow joint
M6*30 Screws (C)
Vertical short frame (B)
Vertical short frame (B)
Horizontal long frame (B)
Horizontal long frame (B)
Note: Connectors (I) are for the Wall Bracket (E) and Support Bar (G) installation
09252018-JA www.eliteproav.com 3
Attaching the screen material to the frame
1. Make sure the screen material and frame are both lying face down on a clean, dry, and non-abrasive surface.
2. Carefully unroll the material inside the frame.
Please note the material will be noticeably smaller than the frame, as the material must be stretched to create sufficient amount of tension to achieve a smooth flat projection surface.
3. Insert the fiberglass rods separately into the edges of all four corners of the material.
Fiberglass Rod (Vertical) x 2
Fiberglass Rod (Horizontal) x 4
Fiberglass Rod (Horizontal) x 4
Fiberglass Rod (Vertical) x 2
Four corners join correctly to form a perfect rectangle. Use the included allen wrench to fasten the M6x30 screws (C) into each
corner by aligning the frame screw holes to
the holes in the elbow joint (A).
09252018-JA www.eliteproav.com 4
4. Retention clip installation
(1) Begin by securing the four corners in the following order A→B→C→D as shown below. (2) Attach the screen material’s edge (fiberglass rod) in the c-shape cradle side of the retention clip (H) and pull
up the retention clip to secure it on the frame.
(3) Place a retention clip in the center
of each side in the following order
EFGH.
(4) Repeat the previous steps to complete attaching the screen material to the frame using the remainder of the
retention clips. Make sure to keep the material uniformly tensioned on all sides to achieve a flat taut
installation.
A D B
C
E F G
H
Retention clip (H)
Screen material (L)
Fiber glass rod (M)
Pull up
Top cleat part of
retention clips on frame
C-shape cradle
09252018-JA www.eliteproav.com 5
Wall brackets
distance = A
Screen
Installing the support bar to the screen
1. Slide the center Connector (I)located on the bottom frame to the middle. Then place the Support Bar (G) on
top of the frame and align both screw holes of the connector and support bar. Use the Support Bar Screw (F)
to secure the bottom of the support bar. Once the screw has been fully inserted, attach the top part of the support
bar to the top part of the frame
Installation
1. Locate your desired installation location with a stud
finder (recommended) and mark the drill-hole area of where the screen is to be installed using the wall brackets
2. Drill a pilot hole with a 3/16 bit for the wood
screws included for top/bottom placement of the wall brackets.
3. Line up and level the two top/bottom wall brackets with
the pilot holes and screw them in using a Phillips screwdriver.
Note: Make sure distance A is over 5-10mm than the height of the frame.
4. Position the fixed frame screen onto the top wall brackets and push down
at the center of the bottom frame to secure the installation.
5. Then secure the brackets using the M6x10 Screw (K) into the connector (I) on the top and bottom of the frame.
For a local Elite ProAV contact or Technical Support, please visit
www.eliteproav.com
Center support bar (E)
Plastic hole
Connector(I)
Screws for support bar (F)
