ELITEGROUP COMPUTER SYSTEMS SKM U MPCM User Manual
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.
Version 2.0
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no
representations or warranties with respect to the contents hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular purpose. The manufacturer
reserves the right to revise this publication and to make changes from time to time in the content
hereof without obligation of the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium,
Pentium-II, Pentium-III, Celeron are registered trademarks of IntelCorporation. Other product names
used in this manual are the properties of their respective owners and are acknowledged.
Regulatory Compliance Information
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different form that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between
the radiator and your body.
This device meets the government¡¯s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government,
Industry Canada, and other national regulatory agencies.
SKM-U mPC
i
Any special accessories needed for compliance must be specified in the instruction manual. Use
本產品符合低功率電波輻射性管理辦法 第十二條、第十四條等條文
規定
1. 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原
設計之特性及功能。
2. 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干
擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電
通信。 低功率射頻電機須忍受合法通信或工業、
科學及醫療用電波輻射性電機設備之干擾。
Cet équipement est conforme aux limites d’exposition aux
rayonnements IC établies pour un environnement non
contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de
rayonnement et votre corps.
Tout changement ou modification n
on expressément approuvé par
l'autorité compétente peut annuler le droit du propriétaire à u t iliser
l'équipement
only shielded and terminated cables to connect I/O devices to this equipment.
Warning!
Any changes or modications made to the equipment which are not expressly
approved by the relevent standards authority could void your authority to
operate the equipment.
Attention!
MPE
Exposure to Radio Frequency Radiation:
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm
must be maintained between the antenna of this device and all persons. This device must not be
co-located or operating conjunction with any other antenna or transmitter.
CE, FCC, NCC RF
USA RF: FCC Caution
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
Canada RF: IC Caution
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
Taiwan RF: NCC Caution
ii
SKM-U mPC
Japan VCCI Statement
電磁波曝露量 MPE 標準值 1mW/cm2，送測產品實測值為：
0.0941mW/cm
2
®
CE mark. Declaring compliance to all the applicable European Union (EU) Directives.
Waste disposal instruction
Do not throw this electronic device into the trash can when discarding. Tominimize pollution and ensure utmost protection of the global
environment, please recycle it in European WEEE (waste electrical
and electronic equipment) directive system or recycle system in Taiwan.
SKM-U mPC
Part NO. Edition 2
Printed in China AUG 2016
iii
Packing List
Pour éviter un choc électrique, ne pas reti rer le couvercle.
Aucune pièce réparable par l'utilisateur, voir l'entretien à du personnel
qualifié.
1. Le voltage d'entrée nominale de 100-240V~, 50-60Hz. Max à 1.5A
Le voltage de sortie nominal 3.43A, 19Vdc
2. Le voltage d'entrée nominale de 100-240V~, 50-60Hz. Max à 1.5A
Le voltage de sortie nominal 3.74A, 19Vdc
3. La maintenance :
Entretenez et nettoyez les surfaces avec soin, Utiliser
seulement les produits ratifiés ou nettoyer avec un applicateur sec
Before setting up the system, check that the items listed below are included and in good condition. If any items are missing, please contact your dealer immediately.
SKM-U mPC x1
Adapter 65W / 90W x1 (Optional)
User Manual x1
Antenna x2 (Optional)
Extension HDD Box x1 (Optional)
Extension COM Box x1 (Optional)
Micro B to Type A Cable x1 (Optional)
DB44 to DB9 Cable x1 (Optional)
VESA Mount Bracket x1 (Optional)
Warning!
To prevent electric shock, Do not remove cover.
No user serviceable parts inside, refer servicing to qualified personnel.
Attention!
Additional Information and Assistance
1. Visit the ECS websites at www.ECS.com.tw where you can find the latest information about the
product.
2. Contact your distributor, sales representative, or ECS’s customer service center for technical
support if you need additional assistance. Please have the following information ready before
you call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (operating system, version, application software, etc.)
- A complete description of the problem
- The exact wording of any error messages
- This equipment is a source of electromagnetic waves. Before use, please make sure that
there are not EMI sensitive devices in its surrounding which may malfunction therefore
Warning!
1. Input voltage rated 100-240V~, 50~60Hz, 1.5A max
Output Voltage rated 3.43A, 19Vdc
2. Input voltage rated 100-240V~, 50~60Hz, 1.5A max
Output Voltage rated 4.74A, 19Vdc
3. Maintenance: to properly maintain and clean the surfaces, use only
approved products or clean with a dry applicator
Attention!
iv
SKM-U mPC
Warning!
Danger d'explosion si la pile est remplacée de façon incorrecte.
Remplacez-la exclusivement par une batterie identique ou par
un type de batterie équivalent recommandé par le fabricant
La mise au rebut des batteries usagées doit se faire conformément aux
indications du fabricant de ces batteries.
Prudence!
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
SKM-U mPC
v
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth.
Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must
be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may
cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from overheating.
DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
10. All cautions and warning on the equipment should be noted.
11. If the equipment is not used for a longt time, discounnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by
qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the user¡¯s
manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TMPERATURE
MAY GO BELOW -20° C (-4° F) OR ABOVE 60°C (140° F). THIS COULD DAMAGE THE EQUIP MENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
16. If your computer is losing time significantly or the BIOS configuration resets itself to be
default, the battery may have no power.
17. IMPROPER INSALLATION OF VESA MOUNTING CAN RESULT IN SERIOUS PERSONAL INJURY!
VESA mount installation should be performed by a professional technician; please contact
the service technician or your retailer if you need this service.
18. Maintenace: to properly maintain and clean the surfaces, use only the approved products or
clean with a dry applicator.
vi
SKM-U mPC
Contents
Chapter 1 System Information........................................................................................................1
1.1 Introduction.................................................................................................................1
1.2 Specifications..............................................................................................................2
1.3 Claeaning/Disinfecting.................................................................................................4
Chapter 2 Getting Started.............................................................................................................5
2.1 System Tour................................................................................................................5
Figure 2.1 Top View........................................................................................5
Figure 2.2 Bottom V iew...................................................................................5
Figure 2.3 Bottom View..................................................................................5
Figure 2.4 I/O Side View.................................................................................6
2.2 Distribution Description...............................................................................................8
2.3 Powering the System...................................................................................................8
Chapter 3 Hardware Installation...................................................................................................9
3.1 Motherboard Introduction...........................................................................................9
3.2 Installing the Motherboard.........................................................................................12
Chapter 4 Using BIOS...............................................................................................................21
4.1 About the Setup Utility...............................................................................................21
4.2 Using BIOS..............................................................................................................22
Chapter 5 Feature Information....................................................................................................49
5.1 Introduction..............................................................................................................49
SKM-U mPC
vii
MEMO
viii
SKM-U mPC
Chapter 1
System Information
1.1 Introduction
The product has onboard Intel® SkylakeTM U SoC for pesonal micro desktop markets or educational
usage.
Below is a brief summary of the computer’s many features:
NOTE:
The features listed in this section is for your reference only . The exact configuration of the system depends on
the model purchased.
SKM-U mPC
1
1.2 Specifications
CPU/SoC Intel® SkyLake™ U SOC
Super I/O IT8607
Dimension 101.6*104*1.6mm
Channel/DIMM type 2 channels/DDR4 2133
Socket numbers/type 2 sockets/SO‐DIMM Slot
MEM size Max 32GB
M.2 SSD 1x2280, for SSD(SATA interface) Ke y M
SATA 6GB/s 1xSATA connector, for 2.5"/HDD(customized)
M.2 WLA N Intel/3165NGW
AUDIO chip Realtek ALC283‐CG
LAN chip Realtek RTL8111H
USB 3.1 Type ‐A1
USB 3.1 Type ‐C1
IR 1
Audio 1x UAJ(Combo jack)
HDMI 1x A type HDMI, support 4K/2K
DP 1x mini DP, support 4K/2K
LAN 1x LAN connector, Gigabit LAN
USB 3.0 2x USB 3. 0 ports
1x DC jack,(base on power consumption)
19V 3.43A( 65W)
19V 4.74A( 90W)
DC Jack
MEMORY
STORAGE
Additional Feature
Chip
Front Port I/O
Rear I/O
Description
CPU
Super I/O
PCB Dimension
System Dimension
116.6*112*64.6mm(w/HDD)
116.6*112*64.6mm(w/o HDD)
Dimension
2
SKM-U mPC
19Vdc, 4.74A.90W
INTERNAL I/O CONNECTORS & HEADERS
FPC header
2 (Type design by EE, USB 3.0 signal
FPC Header for Pogo Pin
Top: 14 Pin FPC to 10 Pogo Pin
Bottom: 16 Pin FPC to 10 Pogo Pin
CPU FAN 1 (H4x1, 4pins, P=1.25mm)
Serial SATA III 1x SATA connector, for 2.5" HDD
SATA PWR 1 (H5x 1, 5pins, P=1. 25mm)
Battery connector 1 (H2x1, 2pins, P=1.25mm)
CLR CMOS 1 (SWITCH.TACT, 2P 180D.H1.5mm)
Power ON LED 1 (SMD, Color.blue)
LOGO LED header 1 (H2x1, P=2.0mm, P=1.25mm)
Wireless charger header (Not Support) (H2x1, 2pins, P=1.25mm)
Speaker
NFC he ader
HDD LED 1 (SMD, Color.Green)
Power button 1 (Design by RD)
OS Windows 10
BIOS 64 Mb SPI ROM
Adapter
(Optional) (H4x1, 4pins, P=0.8mm)
(Optional) (H8x1, 8pins, p=05.mm)
SYSTEM
Description
FSP ADAPTER/FSP065‐10AABA
19Vdc, 3.43A.65W
APD ADAPTER/WA‐65B19R
19Vdc, 3.43A.65W
APD ADAPTER/DA‐90F19
SKM-U mPC
3
1.3 Cleaning/Disinfecting
Ne pas immerger ou rincer SKM-U mPC ou ses périphériques. Si vous
renversez par accident un liquide sur l'appareil, débranchez l'appareil de
la source d'alimentation. Contactez votre Biomed concernant la sécurité
continue de l'unit é avant de la remettre en service.
Ne pas pulvéris er l' agent de nettoyage sur le ch âssis.
Ne pas utiliser de désinfectants contenant du phénol.
Ne pas passer à l' autoclave ou SKM-U
mPC propre ou ses périphériques
avec fortes, cétone, éther, ou d'autres solvants, des outils tranchants ou
abrasifs aromatiques chlorés. Ne jamais plonger c onnecteurs électriques
dans l'eau ou d' autres liquids.
During normal use SKM-U mPC may become solied and should, therefore, be cleaned regularly.
Steps:
1. Wipe SKM-U mPC with a clean cloth that has been moistened in the cleaning solution.
2. Prepare agent per manufacturer’s instructions or hospital protocol.
3. Wipe thoroughly with a clean cloth.
Caution!
Attention!
Do not immerse or rinse SKM-U mPC or its peripherals. If you accidentally spill liquid
on the device, disconnect the unit from the power source. Contact your Biomed personnel regarding the continued safety of the unit before placing it back in operation.
Do not spray cleaning agent on the chassis.
Do not use disinfectants that contain phenol.
Do not autoclave or clean SKM-U mPC or its peripherals with strong aromatic, chlorinated, ketone, ether, or other solvents, sharp tools or abrasives. Never immerse electrical connectors in water or other liquids.
4
SKM-U mPC
Chapter 2
Getting Started
2.1 System Tour
Before you start to set up system, take a moment to become familiar with the location sand
purposes of the controls, drives, connections and ports, which are illustrated in the figures below.
Figure 2.1 Top View
Figure 2.2 Bottom View
Figure 2.3 Bottom View
SKM-U mPC
5
No Components No Components
9 USB 3. 1 (Type A / BC1.2)
10 Combo Audio Jack (Mic In & Line Out)
2 Wireless Charger / LED (Optional) 11 Kensington Lock
3 Pogo Pin (Optional) 12 DC Jack
4 Speaker (Optional) 13 Thermal Opening
5 HDD LED 14 DP
6 USB 3. 1 (Type C) 15 HDMI
7 IR Sensor 16 RJ45 Port
8 Power Button 17 USB3.0
1
Wire le ss Charger LED (Optional)
(Power Transfer Green Blink, Fault Red Blink)

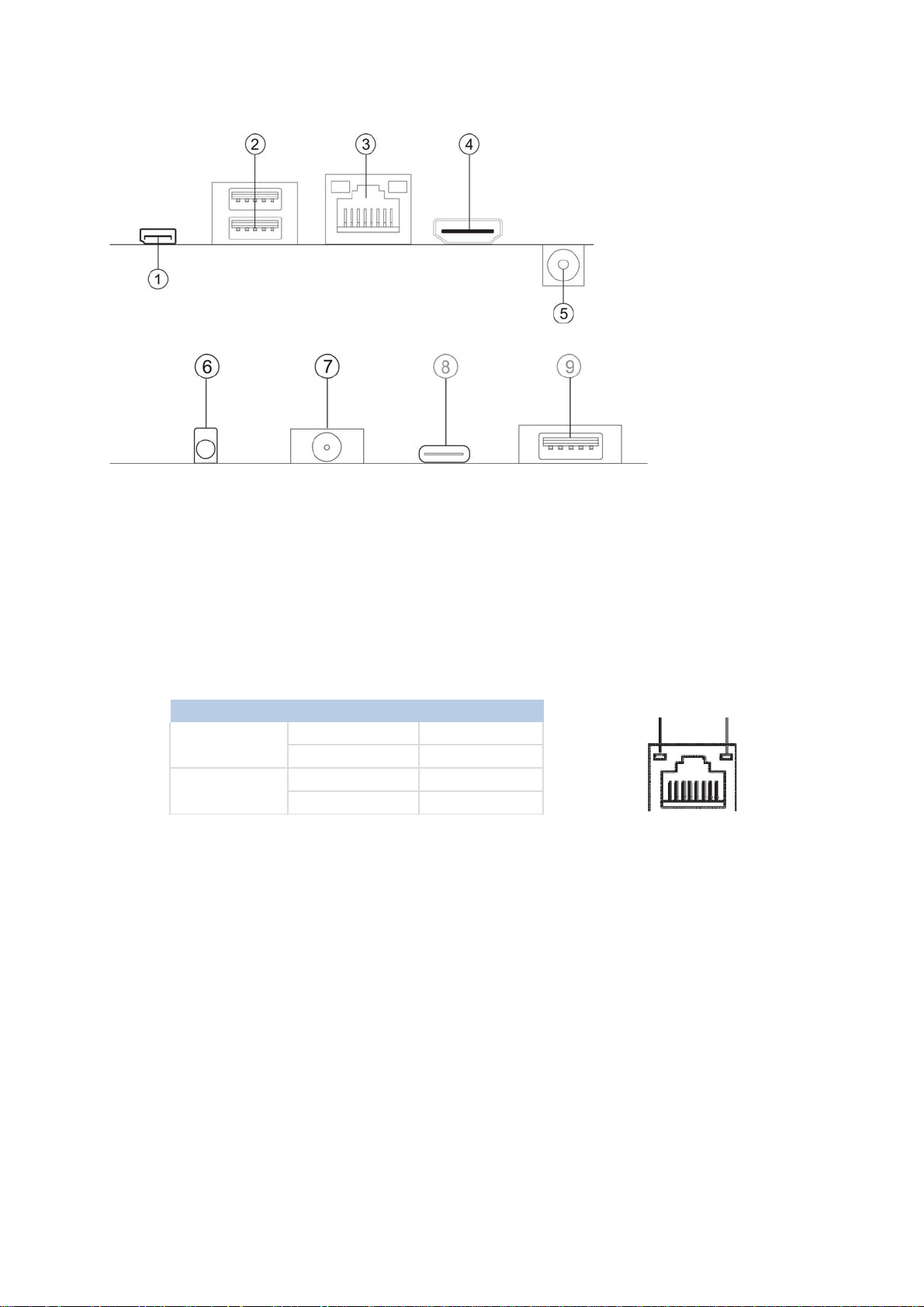

Figure 2.4 IO Side View
Figure 2.5 Side View
Figure 2.6 IO Side View
6
SKM-U mPC
Install the VESA Mount
HDD LENS
Micro USB 3.0
Latch
USB 2.0
DC Jack
DB-44 / RS232
COM Port RS422
COM Port RS485
Latch
Extension COM Box (Optional)
Extension HDD Box (Optional)
SKM-U mPC
7
DC-In
Assembly-COM Box / HDD Box
COM Box
HDD
2.2 Distribution Description
The operating system is based on Windows 10 64bit / FreeDOS.
2.3 Distribution Description
Connecting a 19V adapter to the DC-In Jack, the system will start up automatically.
8
SKM-U mPC
Chapter 3
Hardware Installation

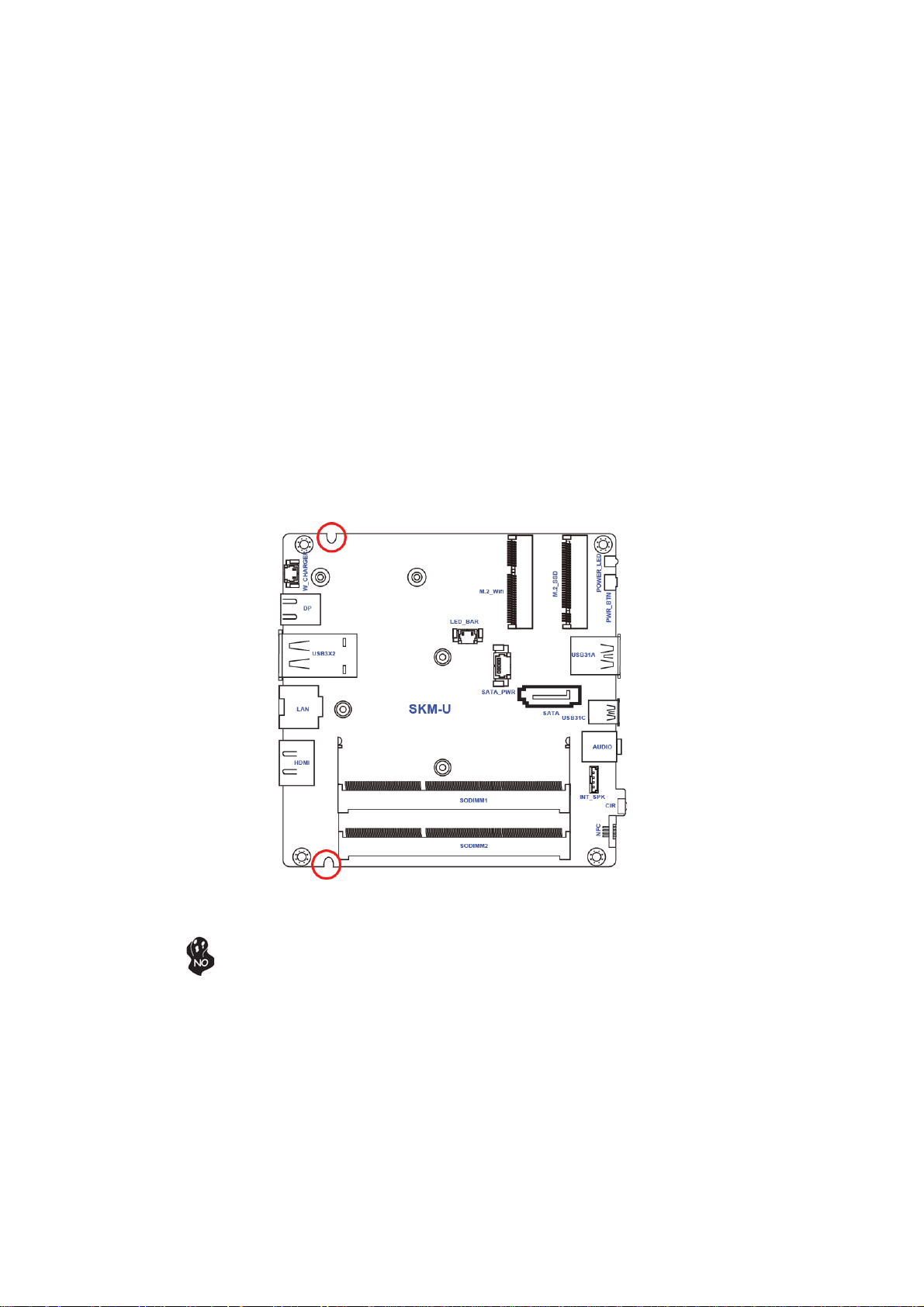

3.1 Motherboard introduction
Before you start to set up system, take a moment to become familiar with the location sand
purposes of the controls, drives, connections and ports, which are illustrated in the figures below.
SKM-U mPC
9
Table of Motherboard Components
LABEL COMPONENTS
1.CPU Intel® SkyLake™ U SOC

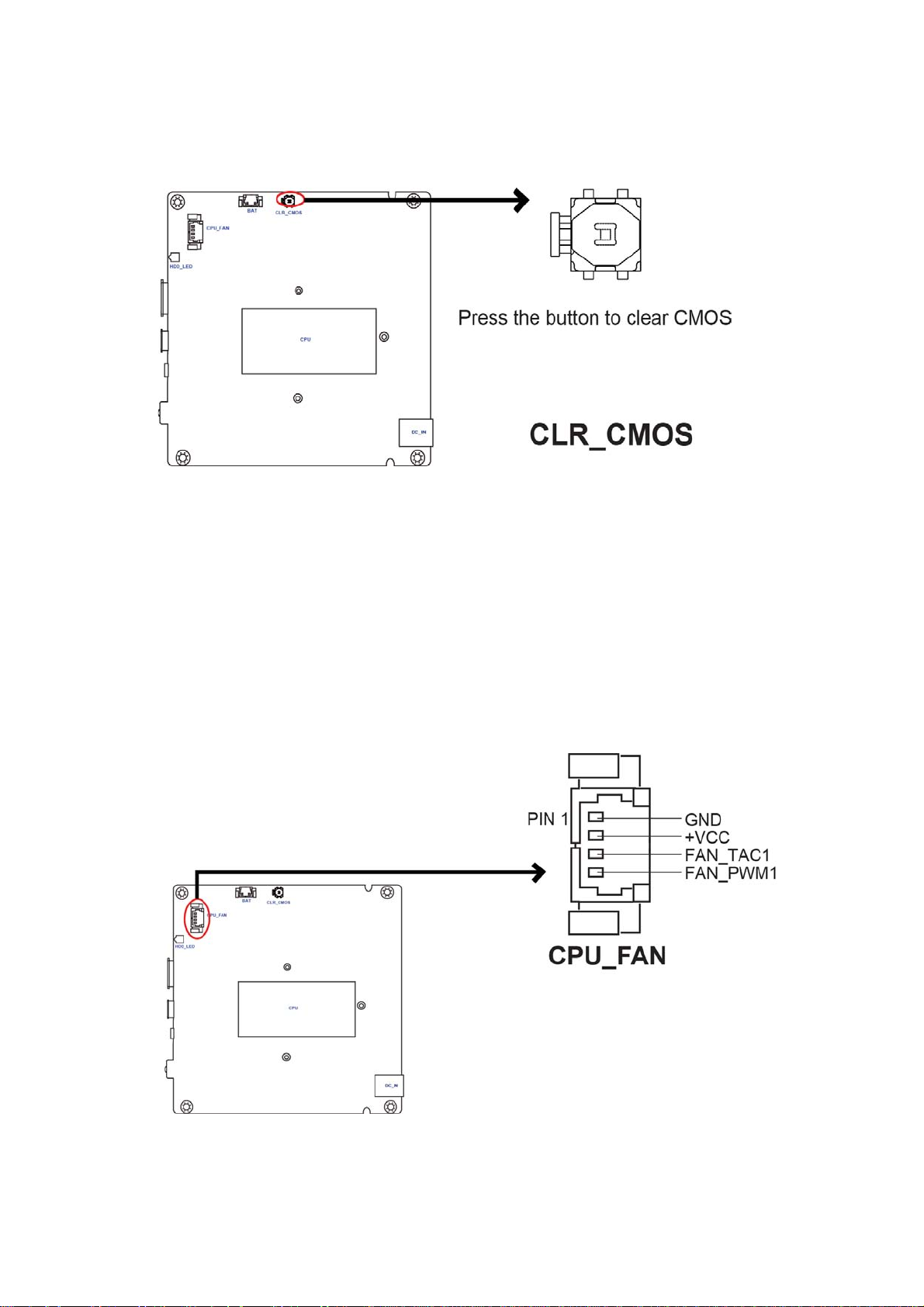

2.CPU_FAN CPU cooling fan connector

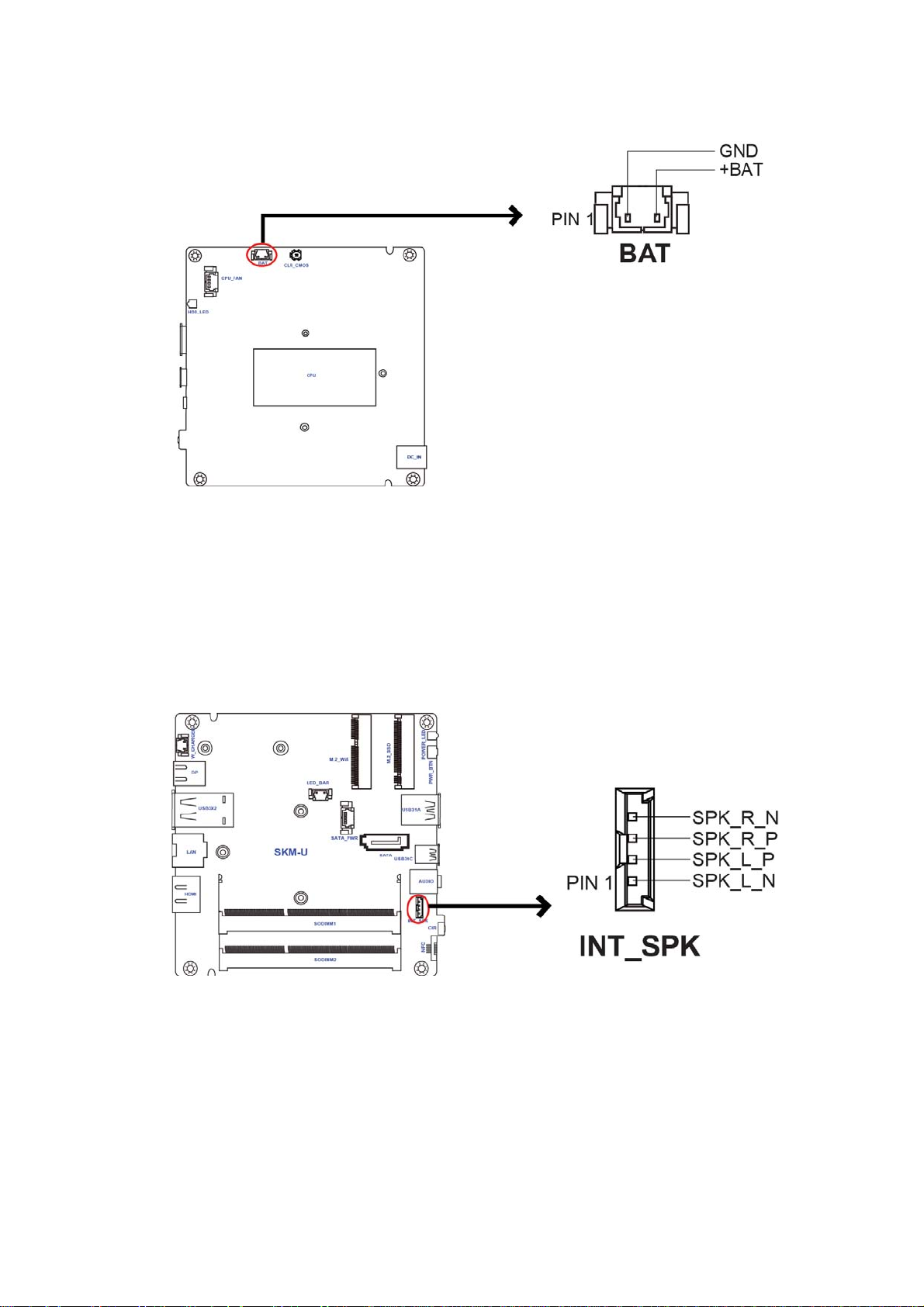

3.BAT Battery connector
4.CLR_CMOS Clear CMOS jumper
5.LED_BAR Logo LED connector

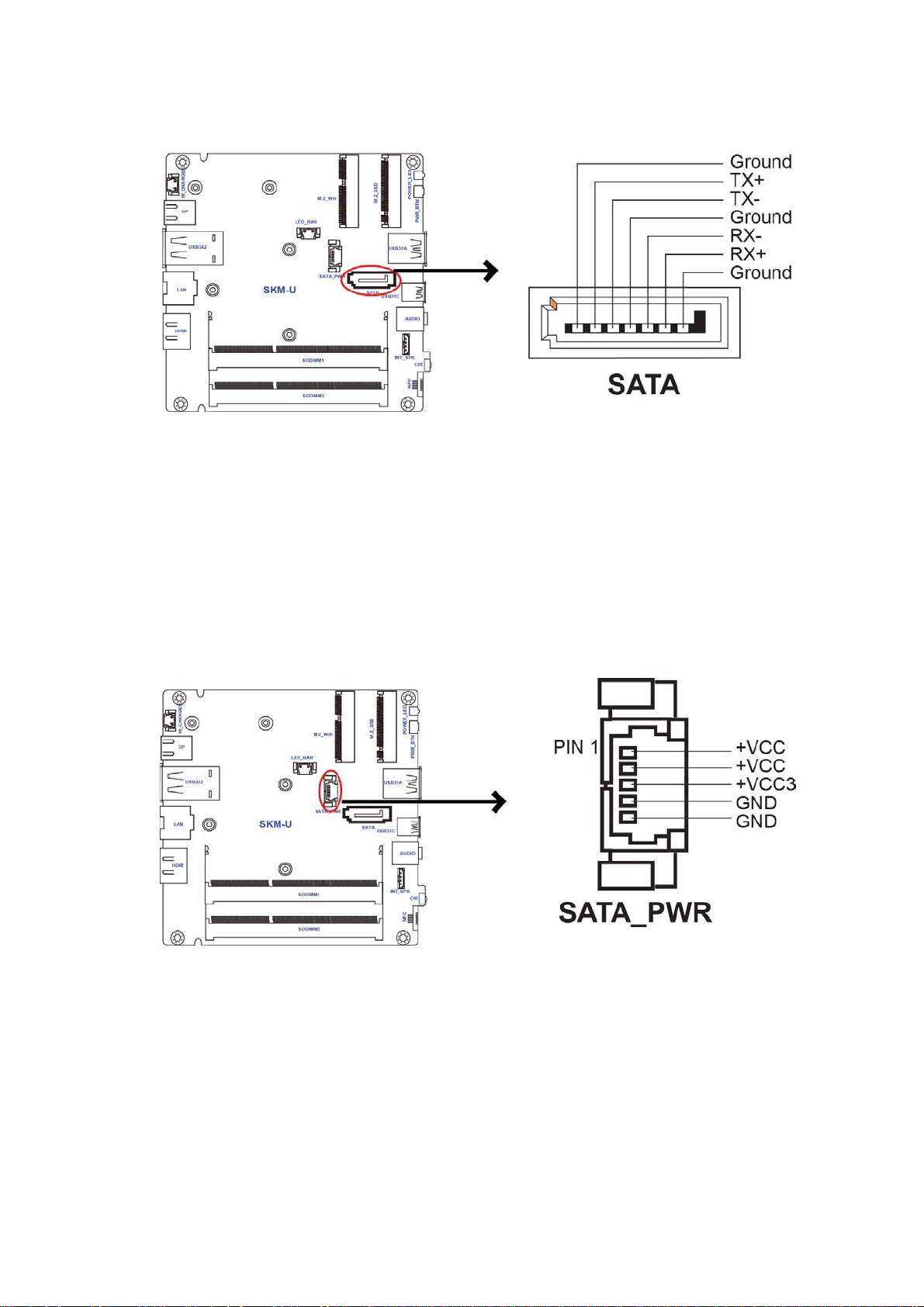

6.SATA_PWR SATA power connector

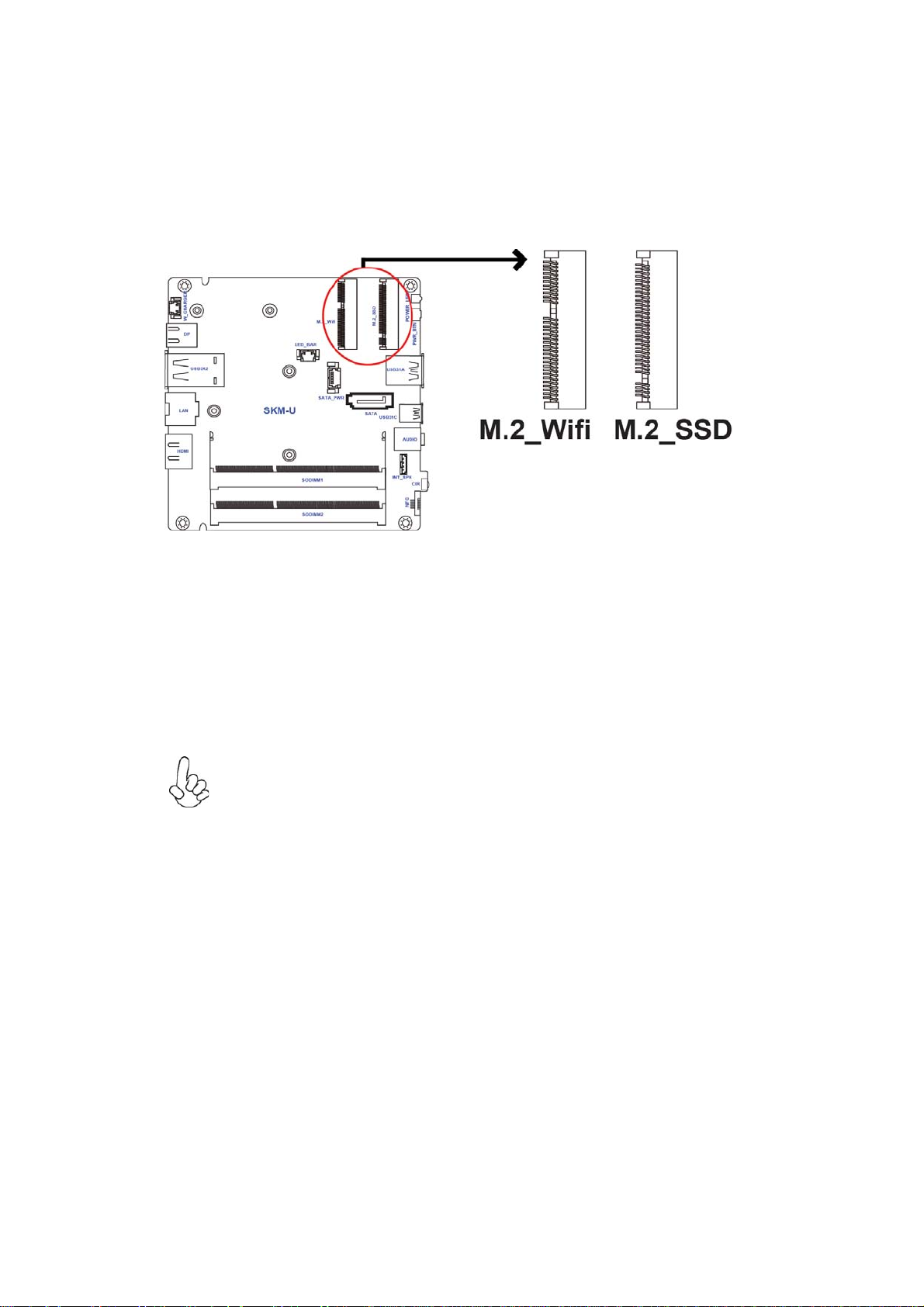

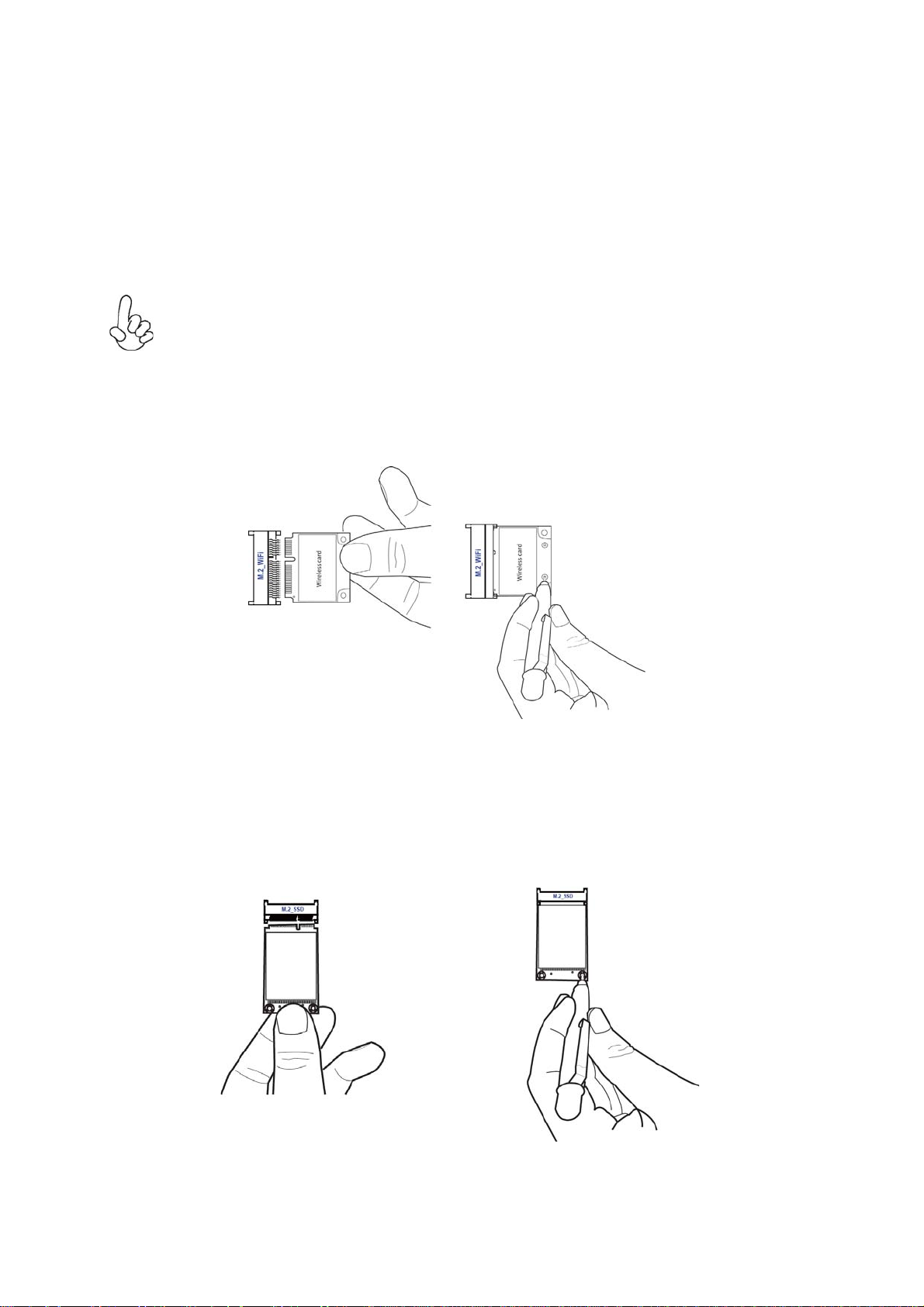

7.M.2_Wifi M.2 slot for Wifi
8.M.2_SSD M.2 slot for SSD
9.PWR_BTN Power button
10.SATA Serial ATA connector
11.INT_SPK Internal Speaker connector
12.NFC NFC connector
13.SODIMM1~2 DDR4 2133 SO-DIMM slots
14.W_CHARGER Wireless charger connector
10
SKM-U mPC
Loading...
