ELITEGROUP COMPUTER SYSTEMS 536XQBGX Users Manual
i
536(E)
Preface
Copyright 2005
All Rights Reserved.
The information in this document is subject to change without prior
notice in order to improve reliability, design and function and does not
represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to
use the product or documentation, even if advised of the possibility of
such damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Trademarks
AutoCAD and Autoshade are trademarks of Autodesk, Inc. IBM, OS/2,
and VGA are trademarks of International Business Machines Corp. Lotus,
1-2-3, and Symphony are trademarks of Lotus Development Corp.
Windows, Word, MS-DOS, and Microsoft are trademarks of Microsoft
Corp. VESA is a trademark of Video Electronics Standards Association.
Other product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of
their respective companies.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this
manual, the manufacturer and distributor assume no liability resulting
from errors or omissions in this manual, or from the use of the
information contained herein.
i
Notices
Federal Communications Commission Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and if not
installed and used in accordance with the instruction manual may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
• Consult the dealer or an experienced radio TV technician for help
Notice:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Shielded interface cables and a non-shielded AC power cord must be used
in order to comply with emission limits.
This equipment is to be used with power supply:
Input: 100-240V AC, 50-60Hz, 1.5A, Universal
Output: 19V DC, 3.16A,
There is no internal power supply.
ii
Table of Content
Before you Start------------------------------------------------------------ 1
Conventions of This Manual......................................................................1
Safety Precautions .......................................................................................1
Wichtige Sicherheitshinweise....................................................................3
Things you must remember before working on your computer............6
Let your computer acclimate itself ........................................6
Heat, Cold, Humidity, and Glare...........................................6
Suitable place to work..........................................................7
Introduction ----------------------------------------------------------------- 9
Welcome to the Notebook PC...................................................................9
Getting to Know Your Computer...........................................9
Getting Started ------------------------------------------------------------- 17
Connecting to a Power Source...................................................................17
Connecting the AC Adapter ..................................................17
Turning On Your Notebook Computer...................................18
Operating on Battery Power .................................................18
Using the Notebook Computer ----------------------------------------- 21
Adjusting the LCD Screen Display........................................21
A Tour of the Notebook’s Keyboard ......................................22
The TouchPad......................................................................23
Connecting an External Tracking Devices ............................24
The CD-ROM/DVD-ROM/Combo..........................................24
Power Saving Modes ..................................................................................26
The Battery Power System...................................................26
Removing the Battery Pack..................................................26
Battery Calibration................................................................28
Desktop Operation -------------------------------------------------------- 31
Audio ...................................................................................31
Connecting Peripheral Devices.............................................32
Internet Connection------------------------------------------------------- 33
Using a modem for Connection to Internet............................33
Using a wired LAN for Connection to Internet.......................33
Using Both DHCP and Static IP for Connection to Internet.................36
Using Wireless LAN Network for Connection to Internet (Microsoft’s
Service Pack 2) (Optional).........................................................................38
Running BIOS Setup------------------------------------------------------ 39
iii
Introduction..................................................................................................39
Navigating through BIOS Setup............................................39
Accessing the BIOS Setup Program .....................................39
The Menu Bar ......................................................................39
The Legend Bar ...................................................................40
Launching Submenus...........................................................41
General Help ........................................................................41
The Main Menu....................................................................42
The Advanced Menu ............................................................43
The Security Menu ...............................................................44
The Boot Menu.....................................................................45

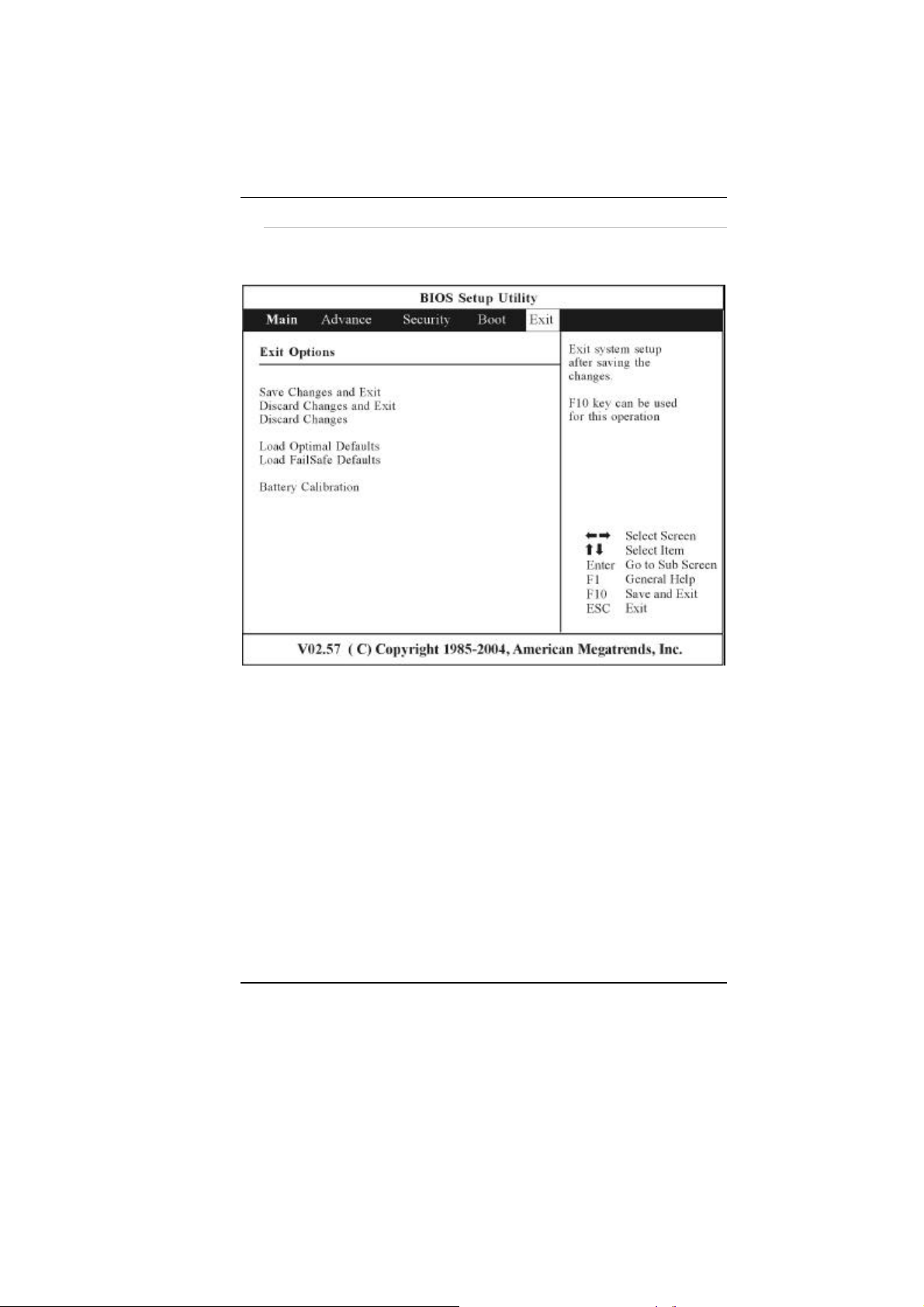

The Exit Menu......................................................................46
VGA Utilities----------------------------------------------------------------- 47
AutoRun Installation...................................................................................47

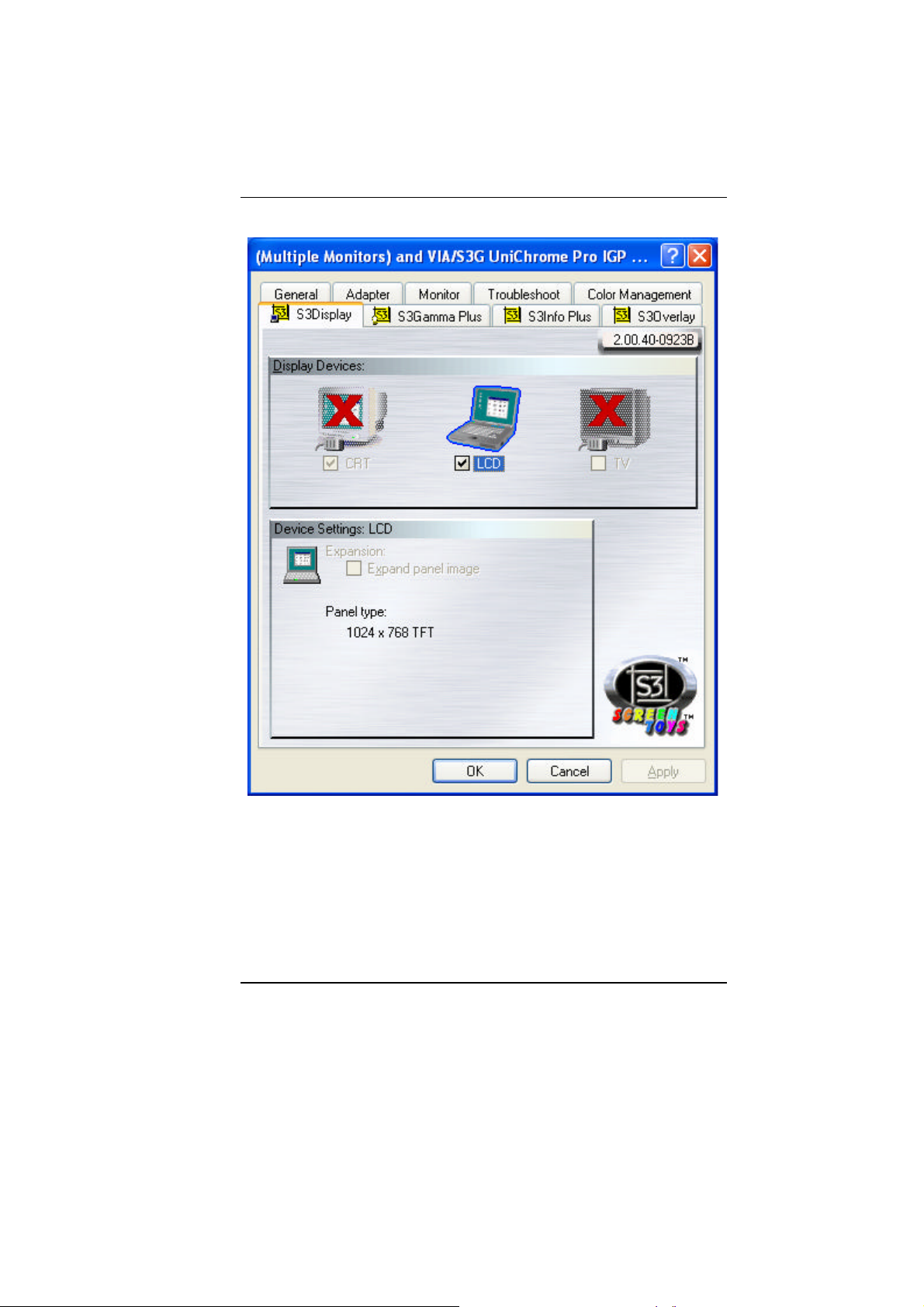

VGA Utilities.........................................................................47
Troubleshooting------------------------------------------------------------51
Locating a Problem.....................................................................................51
Checking Cables and Connections.......................................51
The Power-On Self Test .......................................................52
General Hardware Problems ................................................53
Contacting Your Dealer ........................................................54
Upgrading your System-------------------------------------------------- 55
Upgrading your Memory............................................................................55
Upgrading your Top Side Memory...........................................................56
The Easy to Upgrade HDD Module..........................................................57
Upgrading your System CPU.....................................................................58
Specification ---------------------------------------------------------------- 61
Detailed Notebook Specifications.............................................................61
iv
Canadian DOC Notice For Class B Computing Devices
This Class B digital apparatus meets all requirements of the Canadian
Interference - Causing Equipment Regulations.
Cet appareil numerique de la classe B repecte toutes les exigences du
Règlement sur le matèriel brouilleur du Canada.
Personal Inventory
This Notebook computer system is designed for years of productive and
pleasurable computing. Use this section to keep notes about details of
your purchase. Update this section when you add new options.
Date of Purchase:
Dealer’s Name:
Phone:
Address:
E-Mail Address:
WWW Site:
Serial Number:
CPU Type:
Hard Disk Capacity:
Memory Capacity:
Optional Equipment:
v
BEFORE YOU START
Conventions of This Manual
Use this manual will help you get the most from your notebook computer.
• If you are an experienced user of computers and/or Microsoft’s
Windows operating systems, you might find it useful to read the
Quick Start Guide that comes along with your accessories.
• If you are a less experienced user, you should through the manual
carefully before using your system.
Whether or not you are an experienced user, you should consult on the
Troubleshooting Chapter if you encounter any problems with your
notebook.
Safety Precautions
This section is designed to assist you in identifying potentially unsafe
conditions while working with this product. Required safety features have
been installed in the computer to protect you from injury. However, you
should use good judgment to identify potential safety hazards:
1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning.
Don't use liquid or sprayed detergent for cleaning. Use moisture
sheet or cloth for cleaning.
4. For pluggable equipment, that the socket-outlet shall be installed
near the equipment and shall be easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment on a reliable surface when installed. A drop or
fall could cause injury.
7. Make sure to use the right voltage for the power source when
connecting the equipment to the power outlet.
8. Place the power cord in such a way that people can not step on it.
1
Do not place anything on top of the power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not use for a long time, disconnect the equipment
from the main power outlet to avoid being damaged by transient
overvoltage.
11. Never pour any liquid into the opening, this could cause fire or
electrical shock.
12. Never open the equipment. For safety reason, the equipment should
only be opened by a qualified service personnel.
13. If on the following situations arises, get the equipment checked by a
service personnel:
a. The Power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment has not worked well or you cannot get it work
according to the user's manual.
e. The equipment has dropped and damaged.
f. If the equipment has obvious sign of breakage.
14. Do not leave this equipment in an environment unconditioned,
storage temperature above 60°C (140°f), it may damage the
equipment.
15. The unit can be operated at an ambient temperature of max. 35°C.
16. The sound pressure level at the operators position according to IEC
704-1: 1982 is equal or less than 70 dB(A).
17. Power Cord Requirements
The power cord set used with the AC adaptor must meet the
requirements of the country where you use the AC adaptor, whether
it is 100-120 or 200-240 Vac. The following information explains
the requirements for power cord set selection.
Ø The cord set must be approved for the country in which
it is used.
Ø The appliance coupler must have a configuration for
mating with a CEE22/EN6032/IEC 320 appliance inlet.
A. For U.S. and Canada:
Ø The cord set must be UL Listed and CSA Certified.
Ø The minimum specifications for the flexible cord are
No. 18 AWG.
B. For Japan:
2
Ø All components of the cord set must bear a “PSE” or
“ T ” mark and registration number in accordance with
the Japanese Dentori Law.
Ø The minimum specifications for the flexible cord
are .75m㎡ conductors.
C. For Other Countries:
Ø The cord set fittings must bear the certification mark of
the agency responsible for evaluation in a specific
country.
Ø The flexible cord must be of a HAR (harmonized) type
H03VV-F.
Ø The cord set must have a current capacity of a least 2.5
Amperes and voltage rating of 125 or 250 Vac.
18. When using your telephone equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric shock
and injury to persons. These precautions includes the following:
Ø Do not use this product near water, for example, near a
bathtub, washbowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.
Ø Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.
Ø Do not use the telephone to report a gas leak in the
vicinity of the leak.
Ø Use only the power cord indicated in this manual.
19. Do not use the AC adapter near open water or other liquids. Never
spill liquid into the AC adapter.
20. Laser Warning: Laser Class I Product Caution - Invisible laser
radiation when open avoid exposure to beam.
21. Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's
instructions. Never remove the battery pack while the power is on as
this may result in data loss when the system loses power.
22. The input receptacle is used as the main disconnecting device.
Wichtige Sicherheitshinweise
1. Bitte lesen Sie diese Hinweis sorgfältig durch.
2. Heben Sie dirse Anleitung für den späteren Gebrauch auf.
3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen.
Versenden Sie Keine Flüssig- oder Aerosolreiniger. Am besten
3
eignet sich ein angefeuchtetes Tuch zur Reinigung.
4. Die Netzanschlußsteckdose soll nahe dem Gerät angebracht und
leicht zugänglich sein.
5. Das Gerät ist vor Feuchtigkeit zu schützen.
6. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten.
Ein Kippen oder Fallen könnte Beschädigungen hervorrufen.
7. Beachten Sie beim Anschluß an das Stromnet die Anschlußwerte.
8. Verlegen Sie die Netzanschlußleitung so, daß niemand darüber fallen
kann. Es sollte auch nichts auf der Leitun abgestellt werden.
9. Alle Hinweise und Warnungen, die sich am Gerät befinden, sind zu
beachten.
10. Wird das Gerät üeinen längeren Zeitraum nicht benutzt, sollten Sie
es vom Stromnetz trennen. Somit wird im Falle einer Überspannung
eine Beschädigung vermieden.
11. Durch die Lüftungsöffnungen dürfen niemals Gegenstände oder
Flüssigkeien in das Gerät gelangen. Dies könne einen Brand bzw.
Elektrischen Schlag auslösen.
12. Öffnen Sie niemals das Gerät. Das Gerät darf aus Gründen der
elektrischen Sicherheit nur von authorisiertem Servicepersonal
geöffnet werden.
13. Wenn folgende Situationen auftreten ist das Gerät vom Stromnetz zu
trennen und von einer qualifizierten Servicestelle zu Überprüfung.:
a. Netzlabel oder Netzstecker sind beschädigt.
b. Flüssigkeit ist in das Gerät eingedrungen.
c. Das Gerät war Feuchtigkeit ausgesetzt.
d. Wenn das Gerät nicht der Bedienungsanleitung entsprechend
funktioniert oder Sie mit Hilfe dieser Anleitung keine
Verbesserung erzielen.
e. Das Gerät ist gefallen und/oder das Gehäuse ist beschädigt.
f. Wenn das Gerät deutliche Anzeichen eines Defektes aufweist.
14. VORSICHT: Explosiongsgetahr bei unsachgemäßen Austausch der
Batterie. Ersatz nur durch denselben oder einem vom Hersteller
empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien
nach Angaben des Herstellers.
15. Dieses Schaltnetzteil kann bis zu einer Außentemperatur von
maximal 35ºC.
16. Die Ausgangswerte dürfen nicht die auf dem Label angegebenen
Werte überschreiten.
17. Anforderungen an das Stromkabel
Das Kabel-Set, das an das Netzteil angeschlossen wird, muss den
4
Anforderungen des Landes, in dem Sie das Netzteil einsetzen,
genügen, je nachdem, ob die Netzspannung 100-120 oder 200 -240V
Wechselspannung beträgt.
Ø Das Kabel-Set muss für das Land, in dem es eingesetzt
wird, zugelassen sein.
Ø Der Gerätestecker des Kabels muss in eine CEE22/
EN603/ IEC 320 Buchse passen.
A. Für die USA und Kanada:
Ø Das Kabel-Set muss UL-gelistet und CSA zertifiziert
sein.
Ø Die Minimalanforderungen für das Kabel entsprechen
No. 18 AWG.
B. Für Japan:
Ø Alle Teile des Kabel-Sets müssen entsprechend dem
japanischen Dentori Law mit einem „PSE“ or „T”Symbol markiert sein
Ø Die Minimalanforderungen für das Kabel sind .75m ㎡
Leiter.
C. Für andere Länder:
Ø Die Zubehörteile des Kabel-Sets müssen das Prüfsiegel
derjenigen Stelle, die in dem jeweiligen Land für die
Sicherheitsprüfung zuständig ist, tragen.
Ø Das Kabel muss vom HAR (harmonisierten) Typ
H03VV-F sein.
Ø Das Kabel-Set muss eine Stromkapazität von
mindestens 2,5 Ampere haben und Spannungen von
125 oder 250 V Wechselstrom gestatten.
18. Bei der Benutzung Ihres Telefongerätes sollten Sie immer die
grundlegenden Sicherheitsmaßnahmen beachten, um das Risiko von
Feuer, Stromschlägen und Verletzungen zu minimieren. Zu beachten
sind u.a. folgende Punkte:
• Benutzen Sie das Gerät nicht in der Nähe von Wasser,
wie zum Beispiel Badewanne, Waschbecken, Spülbecken,
Waschbottich, in feuchten Kellerräumen oder in der Nähe
von Schwimmbecken.
• Benutzen Sie kein Telefon (ausgenommen schnurlose
Modelle) während eines Gewitters. Es besteht das
geringe Restrisiko eines Blitzschlages.
• Benutzen Sie das Telefon nicht um ein Gasleck zu
melden, falls es sich in der Nähe des Lecks befindet.
5
• Benutzen Sie nur solch ein Stromkabel, wie in dieser
Anleitung beschrieben.
19. Benutzen Sie das Netzteil nicht in unmittelbarer Nähe zu Wasser
oder anderen Flüssigkeiten. Gießen Sie nie Flüssigkeiten über das
Netzteil.
20. Achtung Laser: Laser Produkt der Klasse I. Achtung - Unsichtbarer
Laserstrahl, vermeiden Sie Kontakt mit dem Strahl bei offenem
Gehäuse.
21. Es besteht Explosionsgefahr, wenn der Akku nicht ordnungsgemäß
ersetzt wird. Ersetzen Sie den Akku nur durch einen Akku gleichen
oder äquivalenten Typs, der vom Hersteller empfohlen wird.
Entsorgen Sie Akkus entsprechend den Anweisungen des Herstellers.
Entfernen Sie den Akku auf keinen Fall bei eingeschaltetem
Notebook, da hierdurch Daten verloren gehen könnten.
22. Der Netzeingabeanschluss dient als Hauptschalter des Geräts.
Things you must remember before working on your
computer
Let your computer acclimate itself
Your notebook can easily stand temperature extremes but it doesn’t like
rapid changes in temperature, like going from the cold outdoors to a
warm office. Rapid changes in temperature can cause water droplets to
condense inside your case, threatening to damage the electronic parts
inside.
After receiving your notebook when it’s hot or cold outside, try not to
power up the computer immediately, let the computer adjust to the room
temperature gradually at least for three to four hours.
If your system arrives in cold weather, do not apply power to the
computer or monitor until they have been allowed to come to room
temperature.
Heat, Cold, Humidity, and Glare
Find a suitable place for your computer that’s not too hot, too cold, too
dark, or too bright. Glare can make it hard to read the screen.
• Try to avoid the computer components from being destroyed if it is
over heated, so try to allow plenty of room for air to circulate around
the case.
• Do not block the ventilation opening.
6
• Do not place your computer in direct sunlight.
Suitable place to work
Your computer will run well wherever you’re comfortable but extremes
of temperature and humidity can be challenging to your system’s parts.
There are some things you can tolerate that the computer can’t – things
like static electricity, dust, water, steam and oil. In case you decide to pull
over for roadside computing, try to choose a clean, comfortable work area
for your system.
A lithium-ion battery pack will be available when you are traveling. If
you are running your system for the first time on battery power, remove
the battery from the package, install it into the system and recharge the
battery to fully prepare for service.
7
8
INTRODUCTION
Welcome to the Notebook PC
Congratulations on your purchase of the Notebook PC. Your Notebook
features the latest advances in portable computing technology. The
Notebook’s modular design provides maximum expandability without
compromising portability. The high-performance CPU and enhanced IDE
hard drive provides you with extra processing power for handling
complex graphics and running large programs.
Getting to Know Your Computer
Opening the LCD Panel
At the front of the Notebook you will find a retaining latch on the display
panel that locks the display in closed position when the Notebook is not
in use.
1. Slide the display panel latch to the right until the display panel
releases, and then raise the LCD screen.
2. At any time you can tilt the display toward or away from you to a
comfortable viewing position.
9
To avoid damage to the display panel:
1. Try not to slam the display upon closing it.
2. Try not to place any object on top when it is closed or open.
3. Be sure the system is turned off or in suspend mode before you
close the display panel.
With the LCD screen open, you will see several features important for
operating your Notebook computer.
Each of these features is briefly described below.
1. LCD Cover Release Latch
2. LCD Screen
3. Internet Explorer Button
4. Wireless LAN Button
10
cross the screen
To make the wireless functional, there should be an AP (Access
Point) available within the range on the area that you are working.
5. System Status Indicator Panel
HDD
Indicates that the computer is accessing the hard disk
drive.
Numeric Lock
Indicates that the keyboard is in Num Lock mode.
Caps Lock
Indicates when the keyboard is in Caps Lock mode. In
this mode, the keyboard produces uppercase text when
you press a key. When you press the Caps Lock key
again, the indicator goes off and the keyboard produces
lowercase text.
Scroll Lock
Indicates when the keyboard is in Scroll Lock mode.
Some applications will move information a
differently when Scroll Lock is on.
Wireless Connection
Indicates when the system LAN is functioning.
• Green light: Scroll lock ON
• Red light: Wireless ON
• Orange light: Scroll lock & Wireless ON
6. Power/Resume Button
7. TouchPad
8. Scroll Button
9. TouchPad Buttons
10. The Built-in Microphone
11
The Left Side
1. Ventilation Opening
2. USB Port
3. USB Port
4. The LAN Port
When using a LAN, please use an EMI Shielding Cable to minimize
an inteference when transmitting.
5. The Modem Port
Always disconnect all telephone lines from the wall outlet before
servicing or disassembling this equipment. To reduce the risk of fire
use only No. 26 AWG or larger telecommunication line cord.
6. Microphone Jack
7. Audio Line Out Jack
12
LED Indicators
following functions: Power On,
Suspend Mode and Battery
This indicator will lit when
These three LED indicators are
separately program for the
Charge.
1. Power On
the notebook is powered
On.
2. Battery Charge
This indicator will lit green when the battery is in charging status.
When the indicator light turns off, it indicates the system is in full
charge.
3. Suspend Mode
This indicator will lit when the notebook enter the suspend mode.
The Right Side
1. The CD-ROM/DVD-ROM or DVD CD-RW Combo (Option)
2. DC IN Connector
13
The Rear
1. Ventilation Opening
2. Kensington Lock
3. S-Video Port
4. Parallel Port
5. External CRT Port
6. USB Ports
The Bottom Panel
14
Loading...
