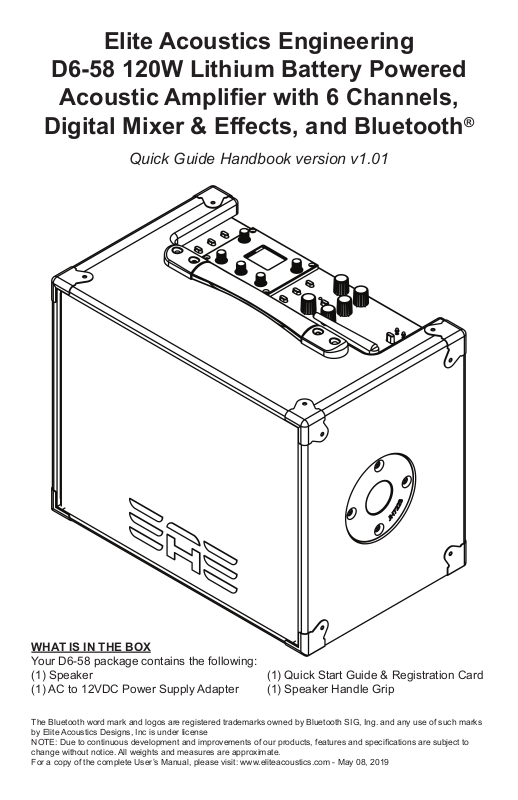

Elite Acoustics Engineering D6-58 Quick Manual

Elite Acoustics Engineering

D6-58 120W Lithium Battery Powered

Acoustic Amplier with 6 Channels,

Digital Mixer & Effects, and Bluetooth

Quick Guide Handbook version v1.01

®

WHAT IS IN THE BOX

Your D6-58 package contains the following:
(1) Speaker
(1) AC to 12VDC Power Supply Adapter

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks
by Elite Acoustics Designs, Inc is under license

NOTE: Due to continuous development and improvements of our products, features and specications are subject to

change without notice. All weights and measures are approximate.
For a copy of the complete User’s Manual, please visit: www.eliteacoustics.com - May 08, 2019

(1) Quick Start Guide & Registration Card
(1) Speaker Handle Grip

QUICK START MIC AND ACOUSTIC GUITAR

In this example we connect an acoustic guitar to Chan 1, and a
Mic to Chan 2.

1. Set Battery Switch to “Connect”

2. With “Speaker Volume” turned down, Turn “Power Switch” to
“On” position.

3. Connect the Line Level Output of your acoustic guitar into

Chan 1, Line 1/4” input jack. Note: Chan 1 Source is set to

“Mic/Line.”

4. Connect your Mic to Chan 2, XLR input jack. Note: Chan 2
Source is set to “Mic/Line.”

5. Set input levels. Press “System”; the LCD shows a level bar

graph for each channel. Adjust rear panel “Gain” control until

the display shows -12dB for Guitar and Mic.

5A. Adjust Master Volume for desired output level.

6. Set Mic Mix, EQ, and Reverb.

6A. Press “Main” adjust chan 2 encoder to +9, i.e., approxi-

mately 75% of max level.
6B. Press Chan 2 Encoder: LCD shows EQ parameters for

Chan 2. Adjust 5 encoders as necessary to set your EQ.
For our example we’ll set “LowC” to 180 Hz, “Low” to +4.0,
“Mid” to +5, “MidF” to 2.0k and “Hi” to +2.0.
6C. Press “Reverb” Chan 2 encoder +2.0.

7. Repeat step 6 for Chan 1 (acoustic guitar) Mix, EQ, and Re-

verb.

8. Start with master EQ, Low, Mid, and High set at (detent

position) and adjust as needed.

To Avoid Distortion:

1. Make sure NOT to clip the input Signals.

2. Set input levels. Press “System”; the LCD shows a lev-

el bar graph for each channel. Adjust rear panel “Gain”

control until the display shows -12dB for Guitar and Mic.
inputs.

Main

LCD FUNCTIONS

Main

Pan

Ch1

Ch2 Ch3 Ch4

Ch56

Chorus

Aux

System

Delay

Reverb

Menu Buttons with LCD:

Press any of the 6 menu buttons(black button located to the

left and right of LCD) or 5 encoders(blue knobs located around

LCD) to access and adjust features and settings. Most menus

have several pages of options, which are adjusted by turning the

corresponding encoder.

Main

Mix

Ch1

Ch2 Ch3 Ch4

Ch56

“Main” Page 1: “Main Mix”

Adjust the level of each of the

5 channels.

Main

“Main” Page 2: “Main Pan”

Adjust the stereo panning for each of

the 5 channels.

Main

Pan

Ch1

Ch2 Ch3 Ch4

Ch56

Aux

“Aux” : “Aux Mix” Adjust the level of each of the 5

channels sent to the Aux Outputs.

“Aux” : “Aux Pan” Adjust the panning between
“Aux Send 1” and “Aux Send 2” for each of the 5
channels.

Aux
Mix

Ch1

Ch2 Ch3 Ch4

Ch1

Ch2 Ch3 Ch4

Aux
Pan

Ch56

Ch56

System

“System” : “Routing”

Assign “Pre” or “Post” fader i.e., “Main

Mix” Channel 1 through Channel 6,
signals to the Aux Sends. You can also
select either “Main” mix or “Aux” mix as

the source for the XLR outputs.

Xlr Out

Eq

LCut

LowM idF

Hi

Mid

“System” : “XLR out EQ”

Setting for EQ for the XLR outputs

when it is SET on “MAIN outputs”

Chorus

Sends

Ch1

Ch56

“System” : “Scenes”

Save and Recall up to 10 mixes i.e.,

scenes.

“System” : “Input Levels”

Displays a bar graph for each

channel’s input level. Adjust the

channel’s “Gain” pot to set desired

level.

Ch2 Ch3 Ch4

Chorus

“Chorus” : “Chorus Sends”

Adjust the Chorus level of each of

the 5 channels.

Delay

Param

Mod

Fbck TimX BPM

1 120

Lvl

Delay

“Delay” : “Delay Param”

Adjust “Modulation,” “Feedback,”

“Time Offset,” “BPM” Delay Time, and

“Level” of the delay.

Reverb
Sends

Ch1

Ch56

Reverb

Ch2 Ch3 Ch4

“Reverb” : “Reverb Sends”

Adjust the Reverb level of each

of the 5 channels.

“Chorus” : “Chorus Param”

Adjust the Depth of the Chorus for

each of the 5 channels.

Delay
Route

1

Chan

“Reverb” : “Delay Routes”

Assign a channel to the delay. Note

that this is an “insert” type effect and

is intended for a selectable single

channel. It precedes the Reverb and

Chorus effects.

“Reverb” : “Reverb Param”

Adjust the Decay and Tone of the

Reverb.

Ch 1

Util

V dB

=

Pol

V Hz

“Encoder Select” (press to enable):

“Ch 1 EQ”

Adjust the EQ settings for which ever

channel is selected. (Chan 1- 5/6)

Ch 1

Insert

Gain

Gate Cmp

“Encoder Select” (press to enable):

“Ch 1 Insert”

Adjust the Insert settings for the

selected channel (Ch.1-4). Note: this

includes Gain and Threshold settings

as well as an independent Noise Gate.

Reference Diagram

“Encoder Select” (press to enable):

“Ch 1 UTIL

Adjust Phase and Notch Filter level/

Freq. settings for channel selected.

(CHAN 1 to CHAN 4)

“Encoder Select” (press to enable):

“Ch 5/6 Insert”

Adjust the Insert settings for Channel

5/6. Note: this includes Gain and

Threshold settings as well as an

independent Noise Gate.

Main

Aux

System

ELITE ACOUSTICS

Chorus

Delay

Reverb

+48V

D6-58 - Acoustic Guitar and Vocal Amplifier

-15+ 15

01 0

Peak

Signal

01 0

Aux In

Mono

Monitor

High

-15+ 15

Mid

-15+ 15

Low

On/Off : Hold

Pair : Quick Tap

+48V

-15+ 15

High

-15+ 15

Mid

-15+ 15

Low

Peak

Signal

01 0

Aux In

Mono

01 0

Monitor

+48V LED [2]: Indicates Phantom Power is on

Monitor Output Controls

Speaker Volume [3]: Control speakers’ volume level
Mono [4]: Changes speaker output to Mono sound
Equalizer [5]: Adjust High, Mid, and Low Frequency response
Peak LED [6]: RED indicate Signal Clip
Signal LED [7]: GREEN indicate Signal Present
Aux Input/Level [8]: Connect audio source with 1/8” jack from MP3/CD player

On/Off : Hold

Pair : Quick Tap

BLUETOOTH® FUNCTION

• To turn ON/OFF Bluetooth® function
PRESS/HOLD down MODE button for
approximately 5 seconds
Both LEDs will ash at the

same time

• To pair device to the speaker system
Bluetooth® needs to be turned ON
QUICK TAP the MODE button once

REFERENCE DIAGRAM

AUX INPUT

+48V

CHAN 1 CHAN 2 CHAN 3 CHAN 4 CHAN 5/6

INSTR

INSTR

01 0

60501020

Gain

Mute MuteMuteMute

PAD

Mic/Line
Instrument

Instrument

Line

Mic

Mic/Line
Instrument

Instrument

60501020

305010-10

Gain

Gain

PAD

Line
Mic

Gain

PAD

PAD

Line

Line

Mic

Mic

305010-10

Level

Left

(Mono)

Right Right

Monitor

Right

Output

Left Right

Outputs

01 0

Aux Send

Left

Output Source

01 0

Level

Main Outputs
CHAN 1/2
Direct Output

Charging

Low

Battery Level

Normal

Charged

Battery Switch

ConnectD isconnect

+48V

CHAN 1 CHAN 2 CHAN 3 CHAN 4 CHAN 5/6

INSTR

020 10 50 6

Gain

PAD

Source

Mic/Line
Instrument

Instrument

INSTR

020 10 50 6

Gain

PAD

Source

Mic/Line
Instrument

Instrument

01-0 10 50 3

Gain

PAD

01-0 10 50 3

Gain

PAD

01 0

Level

(Mono)

Right

Monitor

Right

Output

Charging

Low

Normal

D6-58 - Acoustic Guitar and Vocal Amplifier

with 6 Channels, Digital Mixer & Effects,

Charged

DC INPUT

12V

D

C

Left

MIDI

In Out

Lithium Battery and Bluetooth

www.EliteAcoustics.com

Designed, Assembled, & Tested

in California, USA.

Serial Number

5A

01 0

Aux Send

Level

Aux Send 1

Aux Send 2

Output Source

®

A

OnOff

Main Outputs
CHAN 1/2

Direct Output

Line

Mic 1

Line

Mic 2

Line

Mic 3

Line

Mic 4

01 0

Level

Outputs

Left Right

CHAN 1 CHAN 2

INSTR

020 10 50 6

Gain

PAD

Source

Mic/Line
Instrument

INSTR

020 10 50 6

Gain

PAD

Source

Mic/Line
Instrument

Channel 1

Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce

input level

Source[12]: Select Mic/Line or

Instrument input

Instrument In [13]: 1/4” TRS inputs
Line In [14]: 1/4” TRS inputs
Mic In [15]: XLR for Microphone Input

Instrument

CHAN 3 CHAN 4

01-0 10 50 3

Line

Mic 1

Gain

PAD

Line

Instrument

Line

Mic 2

01-0 10 50 3

Gain

PAD

Line

Channel 2

Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce

input level

Source[12]: Select Mic/Line or

Instrument input

Instrument In [13]: 1/4” TRS inputs
Line In [14]: 1/4” TRS inputs

Channel 3

Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce

input level

Line In [14]: 1/4” TRS inputs
Mic In [15]: XLR for Microphone Input

Channel 4

Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce

input level

Line In [14]: 1/4” TRS inputs
Mic In [15]: XLR for Microphone Input

Mic 3

Mic 4

CHAN 5/6

01 0

Level

Left

(Mono)

Right

01 0

Aux Send

Level

Aux Send 1

Aux Send 2

Channel 5/6

Level [26]: Level control
Left (Mono) [16]: 1/4” balance

TRS input

Right [17]: 1/4” balance TRS

input

Aux

Aux Send Level [18]: Aux output

level control

Aux Send 1 [19]: 1/4” balance

TRS output

Aux Send 2 [20]: 1/4” balance

TRS output

Output Source

Monitor

Right

Output

Outputs

Left Right

01 0

Level

Main Outputs
CHAN 1/2

Direct Output

Monitor Output: Connect with extra speakers/monitors

Monitor Right Output [21]: Connect to another speaker using 1/4” TRS
Output Source [22]: Select either Main Mix or Direct Output for Chan 1 & 2
Main Output [23]: XLR Left/Right Output

MIDI

MIDI: MIDI IN/OUT [24]: 5 PIN DIN

connectors for MIDI controllers

In Out

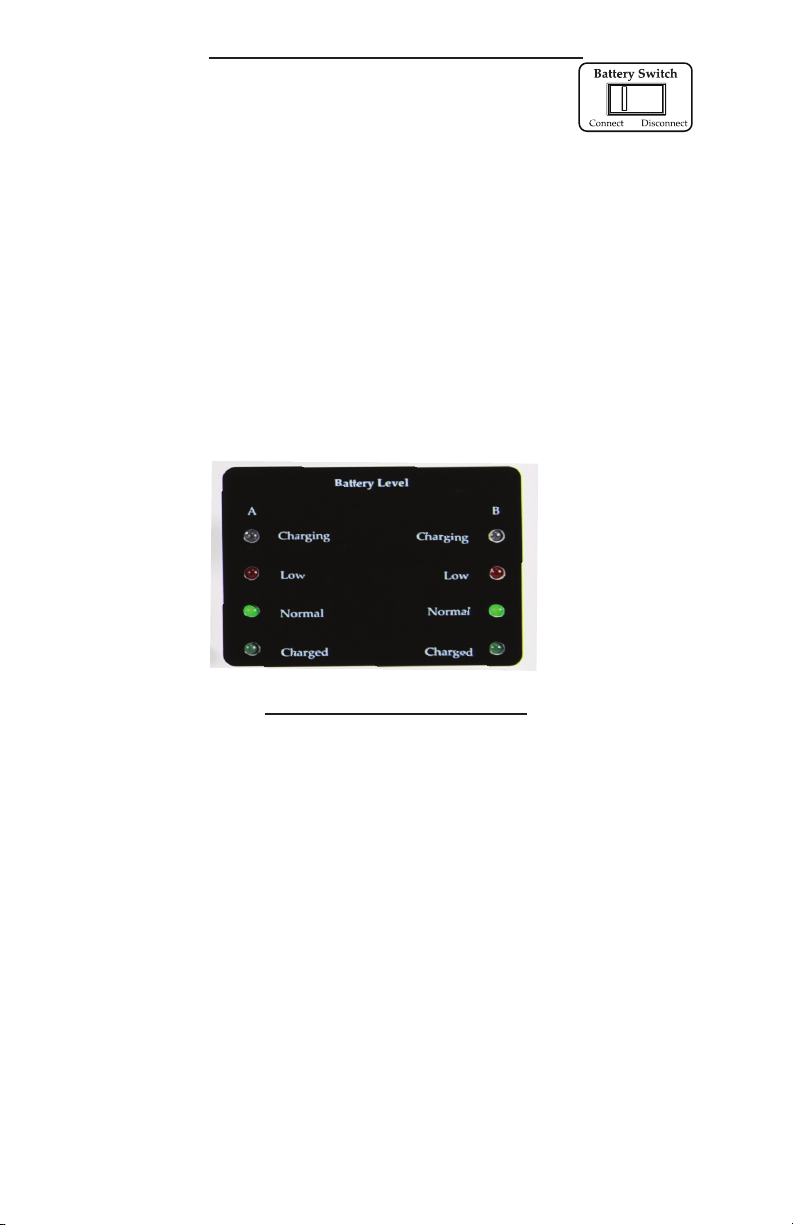

EAE BATTERY & RECHARGING INFORMATION

1. To fully charge a unit –

a. Set Battery Switch to “CONNECT”
b. Turn Power Switch OFF
c. Connect “AC” adaptor to Power Jack.
d. Blue “Charge” LED should be lit, Charge time is about 5-6 hours.

2. When unit is powered with “AC” adaptor, Battery Switch should be in “CONNECT”
position.

If unit is always plugged in, it is recommendate to put Battery Swtich in

Disconnected position, but make sure to recharge unit monthly.

3. Battery Switch should be on “DISCONNECT” when unit is packed for transit or unit
is in storage. Make sure battery is fully charged before UNIT is put into storage. We
recommend fully charging the battery at least once each month.

4. Lithium Iron Phosphate (LifePO4) battery lifetime is typically 3 – 4 years depending on
usage.

5. Recharge Battery every month if not in use.

FOR MAXIMUM BATTERY LIFE

• Battery TYPE - LifePO4

• Battery METER indicators -

•

• FULLY CHARGED. - GREEN LED ON (will turn off once unit is in use)

• NORMAL - GREEN ON

• NORMAL and LOW -- Both LEDS are ON less then (about 10% - 25%)

• LOW - RED ON (less then 10%)

• CHARGING - BLUE LED ON. (will turn off when Fully Charged)

•

• For Maximum Battery Life

• - Recharge when battery is low. 5

• - Drain & recharge battery at least once a month

• - Do not leave power switch in the “ON” position when it is not in use.

• - Keep unit in a cool, dry place away from extreme temperatures

• - Do not service, modify, or replace the battery

• - If the battery fails to charge, contact Elite Acoustics

•

• If unit is always plugged in, it is recommendate to put Battery Swtich in Dis­connected position, but make sure to recharge unit monthly.

• System Architecture : Ultra high-speed high-capacity DSP with lossless A/D and D/A
conversion. Integrated Digital Mixer supports routing and seamless signal-level management

for ve fully congurable audio channels. Color Graphic LCD presents a highly intuitive GUI for

settings, save & recall, and MIDI functionality.

• Digital Effects and Controls: Channel Parametric EQ, Notch Filter, Compressor, Noise Gate,
Main and Aux panning, Reverb, Chorus, Delay, Real-Time Chan-Level Bar Graphs, Save & Recall
Programs.

• Analog Master controls: Master Volume, Mono Switch, Equalizer (Low, Mid, High)

• Speakers: 8” Woofer; 5 1/4” woofer, 1” Silk-dome Tweeters

• Amplier: 120W Class D Ampliers

• Nominal output levels (1 kHz): Right Channel Link out: -10 dBu Main/Direct Output: +4dBu

• Stereo Inputs: 1/4” Left/Right input jacks

• Phantom Power: +48V

• Aux in control: Level knob

• Displays: Color Graphic LCD; signal, peak, sys power, phantom power, and batter level LEDs

• Connectors: CH1 & 2: Input jacks (mic XLR, 1/4” Line, 1/4” Instrument ), CH3/4: (mic XLR, 1/4”
Line), CH5/6: Left/Right stereo input (1/4” TRS), AUX in: (1/8” jack), Right channel output (1/4”),

XLR Direct Out (Chan 1 & 2) or Main Mix outputs, DC in jack

• Power Switch

• Power Supply Adaptor: DC 12V, 5000mA

• Built-in Battery: 11000mAh Lithium Iron Phosphate (LifePO4)

approximately 4 to 6 hrs play timewith full charge.

• Other features:

Playback from Bluetooth device
Optimized front ports for extended low-frequency response
Rechargeable Battery can be recharged from Car battery when using DC car
adaptor cord *Optional*
Built-in pole-mount, 35mm receptacle on bottom of unit

• Accessories: AC cord, AC adaptor, DC cord for the car, Owner’s manual

• Dimensions: 15.30”WX13.1”Hx9.80”D

• Weight: 30 lbs

SYSTEM SPECIFICATIONS

For a copy of the complete User’s Manual, please visit: www.eliteacoustics.com

CAR ADAPTOR “OPTIONAL”

• Unit can operate normally when plug into the Car Adaptor.

• Battery can also be charged by using the Car Adaptor.

• It is not recommedate that you leave the unit plugged in while car is not running.

Legal Notice: CALIFORNIA PROPOSITION 65 WARNING

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS.

1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

WARRANTY (USA ONLY)

Contact the Distributor in your area for service and warranty info.

Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding
battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants
the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the
original retail purchaser. To be protected by this warranty, the purchaser must complete and return the enclosed
warranty card within 14 days of purchase. During the warranty period EAE shall, as its sole and absolute option,
either repair or replace, free of charge, any product that proves to be defective on inspection by EAE or its authorized
service representative. To obtain warranty service, contact Elite Acoustics Engineering Technical Support via email:
[e-mail]. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT
TO AN ELITE ACOUSTIC ENGINEERING SERVICE CENTER. All inquires must be accompanied by a description
of the problem. All authorized returns must be sent to the EAE repair facility postage prepaid, insured and properly
packaged. EAE reserves the right to update any unit returned for repair. EAE reserves the right to change or
improve the design of the product at any time without prior notice. This warranty does not cover claims for damage
due to abuse, neglect, alteration, or attempted repair by unauthorized personnel and is limited to failures arising
during normal use that are due to defects in material or workmanship in the product. Any implied warranties,

including implied warranties of merchantability and tness for a particular purpose, are limited in duration to the

length of this limited warranty. Some states do not allow limitations on how long an implied warranty lasts, therefore
above limitation may not apply to you. In no event will EAE be liable for incidental, consequential, or other damages
resulting from the breach of any express or implied warranty, including among other things, damage to property,
damage based on inconvenience or on loss of use of the product, and, to the extent permitted by law, damages

for personal injury. Some states do not allow the exclusion of limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you

may also have other rights, which vary from state to state. This warranty only applies to products sold and used in
the United States of America. For warranty information in all other countries please refer to your local distributor.

©Elite Acoustics Engineering Inc.
