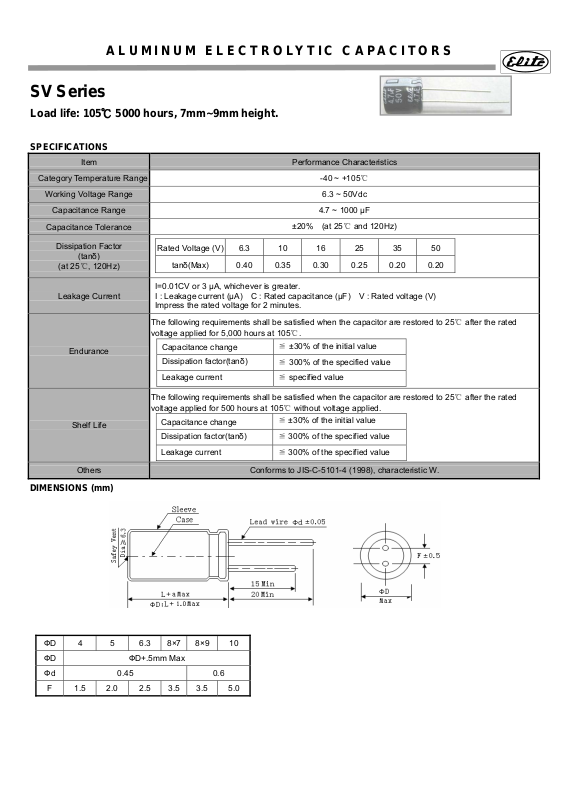

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
SV Series
Load life: 105℃ 5000 hours, 7mm~9mm height.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 6.3 ~ 50Vdc
Capacitance Range 4.7 ~ 1000 μF
Capacitance Tolerance
-40 ~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

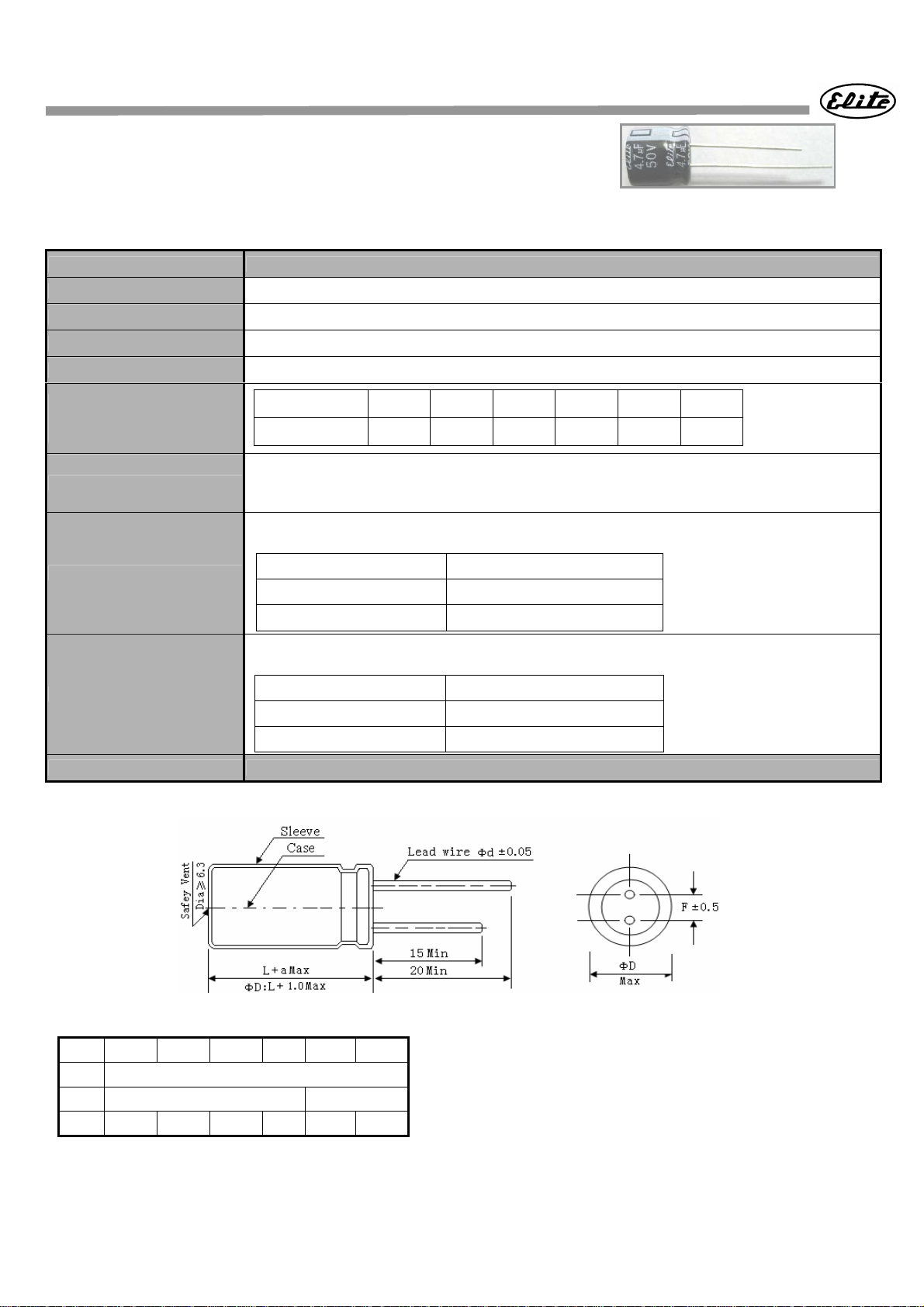

DIMENSIONS (mm)
Rated Voltage (V) 6.3 10 16 25 35 50
tanδ(Max) 0.40 0.35 0.30 0.25 0.20 0.20
I=0.01CV or 3 μA, whichever is greater.
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 5,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ)
Leakage current
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ)
Leakage current
≦ ±30% of the initial value
≦ 300% of the specified value
≦ specified value
≦ ±30% of the initial value
≦ 300% of the specified value
≦ 300% of the specified value
ФD 4 5 6.3 8×7 8×9 10
ФD ФD+.5mm Max
Фd 0.45 0.6
F 1.5 2.0 2.5 3.5 3.5 5.0
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
SV Series
Case size & Permissible rated ripple current: (mA rms) at 105℃ / 120Hz
Vdc
uF
4.7 4×7 23
10 4×7 28 5×7 30
15 4×7 35
18 5×7 48 6.3×7 50
22 4×7 40 6.3×7 62
27 5×7 57
33 4×7 43 8×7 100 8×7 85 8×7 75
39 5×7 65
47 4×7 47 8×7 115 8×7 95 8×7 90
56 5×7 68
68 8×7 125 8×7 130
82 5×7 75 8×9 160
100
120 6.3×7 100 10×9 315
150 8×7 95 8×7 140 8×7 125
180 6.3×7 110 8×9 175
220 8×7 140 8×7 170 8×7 170 8×9 190 10×9 360
270 8×7 165
330 8×7 180
470 8×9 200 8×9 210
560 8×9 230
680 10×9 470
1000 10×9 480
6.3V 10V 16V 25V 35V 50V
ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC
8×7 180
8×9 200
6.3×7
6.3×7 85
8×7 115
6.3×7 95
8×7 105
8×9 195 10×9 450
8×9 230
10×9 460
8×7 135 8×7 125
8×7 140
8×9 155
8×7 105 8×7 115
8×9 180
76
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
4.7 ~ 6.8 0.65 1.00 1.20 1.30 1.50
6.3 ~ 50
10 ~ 82 0.80 1.00 1.20 1.30 1.50
100 ~ 1000 0.80 1.00 1.10 1.15 1.20
Frequency (Hz)
60(50) 120 500 1k 100k≤
