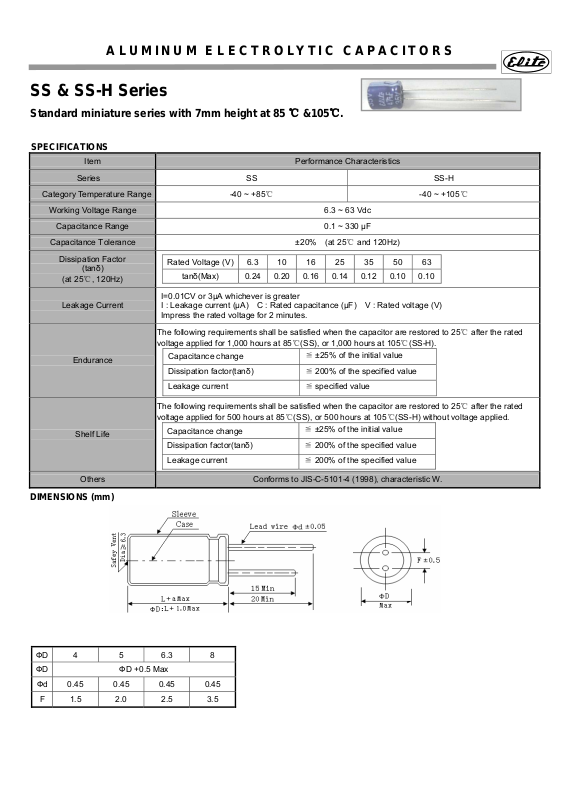

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
SS & SS-H Series
Standard miniature series with 7mm height at 85 ℃ &105℃.
SPECIFICATIONS
Item Performance Characteristics
Series SS SS-H
Category Temperature Range
Working Voltage Range 6.3 ~ 63 Vdc
Capacitance Range 0.1 ~ 330 μF
Capacitance Tolerance
-40 ~ +85℃ -40 ~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

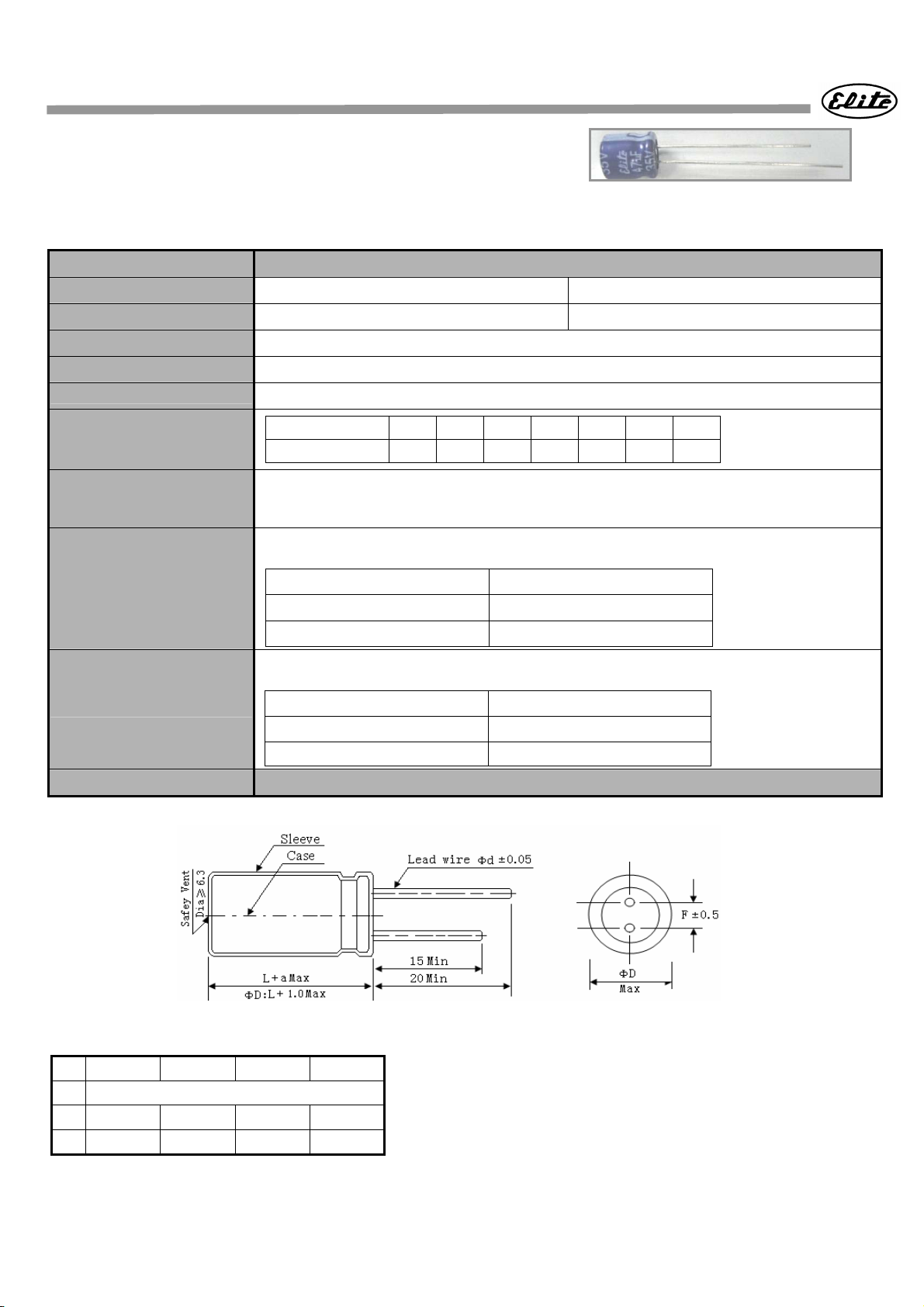

DIMENSIONS (mm)
Rated Voltage (V) 6.3 10 16 25 35 50 63
tanδ(Max) 0.24 0.20 0.16 0.14 0.12 0.10 0.10
I=0.01CV or 3μA whichever is greater
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 85℃(SS), or 1,000 hours at 105℃(SS-H).
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 85℃(SS), or 500 hours at 105℃(SS-H) without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±25% of the initial value
≦ ±25% of the initial value
ФD 4 5 6.3 8
ФD ФD +0.5 Max
Фd 0.45 0.45 0.45 0.45
F 1.5 2.0 2.5 3.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
SS-H Series
Case size & Permissible rated ripple current (mA rms) at 105℃/120Hz:
Vdc
uF
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7 4×7 15
10 4×7 28 4×7 29
22 4×7 34 4×7 35 4×7 37 4×7 45
33 4×7 39 4×7 40 4×7 42 5×7 47
47 4×7 40 4×7 41 5×7 60 6.3×7 61
100 5×7 65 5×7 70 6.3×7 90 8×7 92
220 6.3×7 100 6.3×7 102 8×7 105
330 8×7 130 8×7 135
Vdc
uF
0.1 4×7 1 4×7 1
0.22 4×7 2 4×7 2
0.33 4×7 3 4×7 4
0.47 4×7 5 4×7 6
1.0 4×7 10 4×7 13
2.2 4×7 19 4×7 21
3.3 4×7 24 4×7 26
4.7 4×7 20 4×7 29 5×7 33
10 5×7 30 5×7 32 6.3×7 35
22 5×7 47 6.3×7 50 8×7 52
33 6.3×7 52 8×7 62
47 6.3×7 62 8×7 70
100 8×7 93
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
ФD×L RC ФD×L RC ФD×L RC
6.3 10 16 25
35 50 63
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
60 120 1K 10K 100K
6.3 ~ 25 0.75 1.00 1.10 1.13 1.20
35 ~ 63 0.80 1.00 1.15 1.20 1.25
Frequency (Hz)
