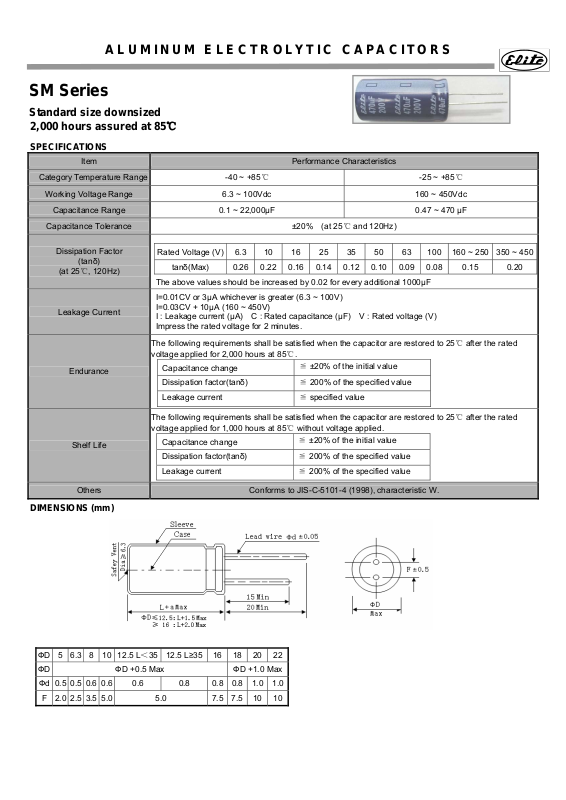

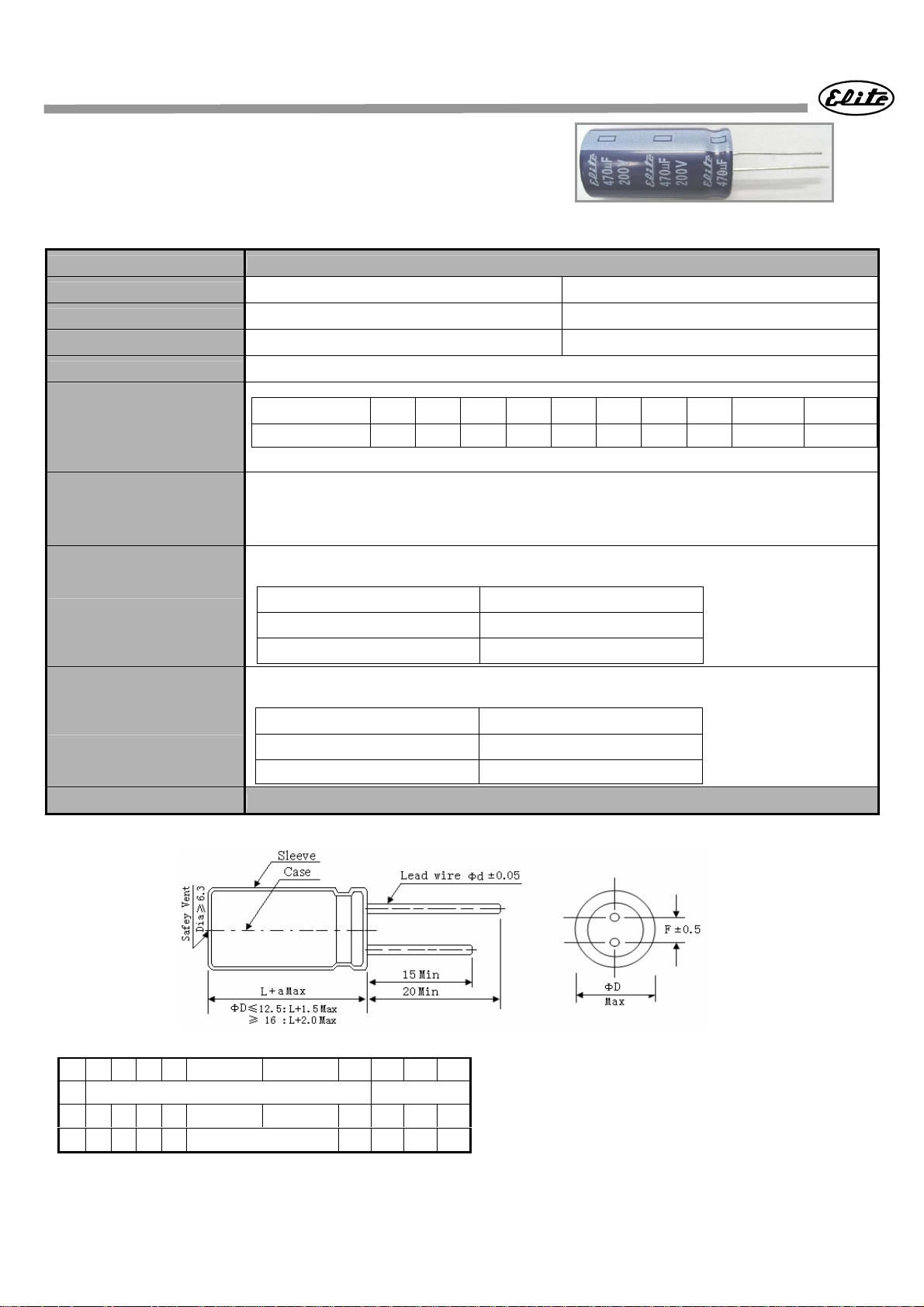

ALUMINUM ELECTROLYTIC CAPACITORS
SM Series
Standard size downsized
2,000 hours assured at 85℃
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 6.3 ~ 100Vdc 160 ~ 450Vdc
Capacitance Range 0.1 ~ 22,000μF 0.47 ~ 470 μF
Capacitance Tolerance
-40 ~ +85℃ -25 ~ +85℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
DIMENSIONS (mm)
Rated Voltage (V) 6.3 10 16 25 35 50 63 100 160 ~ 250 350 ~ 450
tanδ(Max) 0.26 0.22 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.20
The above values should be increased by 0.02 for every additional 1000μF
I=0.01CV or 3μA whichever is greater (6.3 ~ 100V)
I=0.03CV + 10μA (160 ~ 450V)
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 hours at 85℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 85℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
ФD 5 6.3 8 10
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 1.0 1.0
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10 10
12.5 L＜35
12.5 L≥35 16 18 20 22
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
SM Series
Case size & Permissible rated ripple current: (mA rms) at 85℃ / 120Hz
Vdc
uF
4.7 5×11 30
10 5×11 40 5×11 55
22 5×11 65 5×11 65 5×11 75 5×11 80
33 5×11 80 5×11 85 5×11 90 5×11 95
47 5×11 95 5×11 100 5×11 110 5×11 120
68 5×11 100 5×11 110 5×11 120 6.3×11 145
100 5×11 130 5×11 150 5×11 160 6.3×11 190
150 5×11 150 5×11 160 6.3×11 210 6.3×11 210
220 5×11 200 5×11 220 6.3×11 270 8×12 320
330 6.3×11 270 6.3×11 300 8×12 370 8×12 400
470 6.3×11 330 6.3×11 360 8×12 440 10×12 520
680 8×12 445 8×12 445 10×12 500 10×16 605
1000 8×12 540 10×12 650 10×16 770 10×20 930
2200 10×16 930 10×20 1130 12.5×20 1300 12.5×25 1550
3300 10×20 1230 12.5×20 1450 12.5×25 1700 16×25 1730
4700 12.5×20 1520 12.5×25 1790 16×25 1840 16×32 2140
6800 12.5×25 1890 16×25 1940 16×32 2280 18×36 2630
10000 16×25 2030 16×32 2470 18×36 2750
15000 16×36 2590 18×36 2870
22000
Vdc
uF
0.1 5×11 2 5×11 3
0.22 5×11 3 5×11 5
0.33 5×11 5 5×11 7
0.47 5×11 14 5×11 16
1 5×11 20 5×11 23
2.2 5×11 30 5×11 34
3.3 5×11 37 5×11 42
4.7 5×11 35 5×11 40 5×11 45 5×11 50
10 5×11 60 5×11 65 5×11 65 6.3×11 80
22 5×11 90 5×11 95 5×11 95 6.3×11 120
33 5×11 110 6.3×11 120 6.3×11 130 8×12 170
47 5×11 130 6.3×11 160 6.3×11 160 10×12 220
68 6.3×11 160 6.3×11 170 8×12 180 10×12 235
100 6.3×11 210 8×12 270 10×12 290 10×16 340
150 8×12 290 10×12 345 10×12 345 12.5×20 490
220 8×12 360 10×12 430 10×16 470 12.5×25 710
330 10×12 490 10×20 600 12.5×20 660 12.5×25 870
470 10×16 580 12.5×20 760 12.5×20 850 16×25 1010
680 10×20 720 12.5×20 875 12.5×25 1000 16×36 1100
1000 12.5×20 1200 12.5×25 1360 16×25 1310 18×36 1350
2200 16×25 1880 16×36 2060 18×36 2220
3300 16×36 2190 18×36 2500
4700 18×36 2560
ФD × L RC ФD × L RC ФD × L RC ФD × L RC
18×36 3220 18×40 3300
ФD × L RC ФD × L RC ФD × L RC ФD × L RC
6.3 10 16 25
35 50 63 100
Page 3
ALUMINUM ELECTROLYTIC CAPACITORS
SM Series
Case size & Permissible rated ripple current: (mA rms) at 85℃ / 120Hz
Vdc
uF
0.47 5×11 12 5×11 12 5×11 12 5×11 14
1 5×11 17 5×11 17 6.3×11 17 6.3×11 18
2.2 6.3×11 26 6.3×11 26 6.3×11 30 8×12 28
3.3 6.3×11 35 6.3×11 35 8×12 35 8×12 35
4.7 6.3×11 40 8×12 45 8×12 45 10×12 41
10 8×12 65 8×12 70 10×12 70 10×16 70
22 10×16 110 10×20 110 10×20 130 12.5×20 110
33 10×20 150 10×20 160 12.5×20 160 12.5×25 140
47 12.5×20 180 12.5×20 180 12.5×20 210 16×25 220
68 12.5×25 230 12.5×25 230 16×25 250 16×32 260
82 12.5×25 250 12.5×25 260 16×25 265 18×32 270
100 12.5×25 300 16×25 330 16×32 310 18×32 305
120 12.5×25 325 16×25 350 16×32 345 18×32 340
150 16×25 360 16×32 400 16×36 530 18×36 380
180 16×32 415 16×36 430 18×36 540 18×40 410
220 16×32 510 16×36 520 18×36 600
330 18×36 600 18×36 635
470 18×40 700 18×40 705
Vdc
uF
0.47 6.3×11 14 6.3×11 14
1 6.3×11 18 8×12 19
2.2 8×12 28 8×12 25
3.3 8×12 32 10×12 32
4.7 10×16 41 10×16 50
10 10×20 70 12.5×20 75
22 12.5×25 120 12.5×25 110
33 16×25 140 16×25 150
47 16×25 160 16×32 220
68 16×36 280 18×32 230
82 18×32 290 18×36 245
100 18×32 300 18×40 280
120 18×36 330 18×45 300
150 18×40 360
180 18×45 400
ФD × L RC ФD × L RC ФD × L RC ФD × L RC
ФD × L RC ФD × L RC
160 200 250 350
18×40 650
400 450
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
0.1 ~ 68 0.75 1.00 1.57 2.00 2.00
6.3 ~ 100
160 ~ 450
100 ~ 680 0.80 1.00 1.34 1.40 1.50
1000 ~ 22000 0.85 1.00 1.13 1.13 1.13
0.47 ~ 220 0.80 1.00 1.40 1.40 1.40
330 ~ 470 0.90 1.00 1.13 1.13 1.13
Frequency (Hz)
50/60 120 1K 10K 100K
