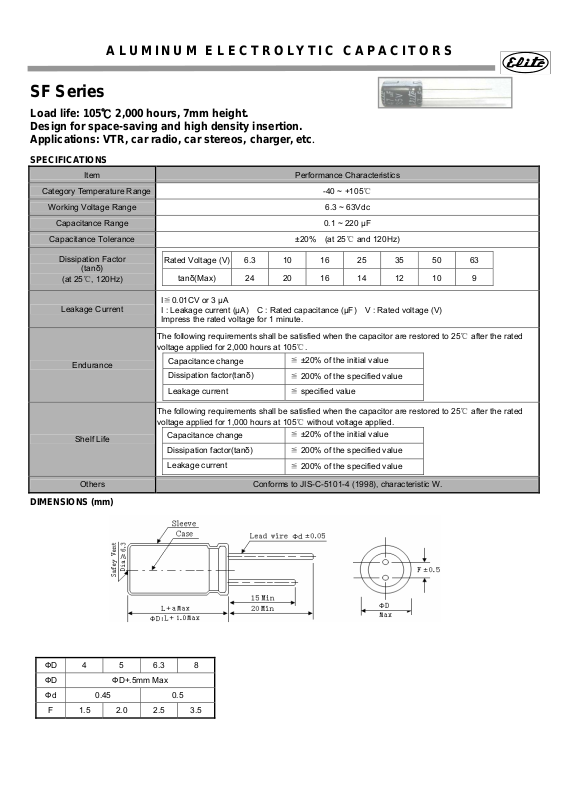

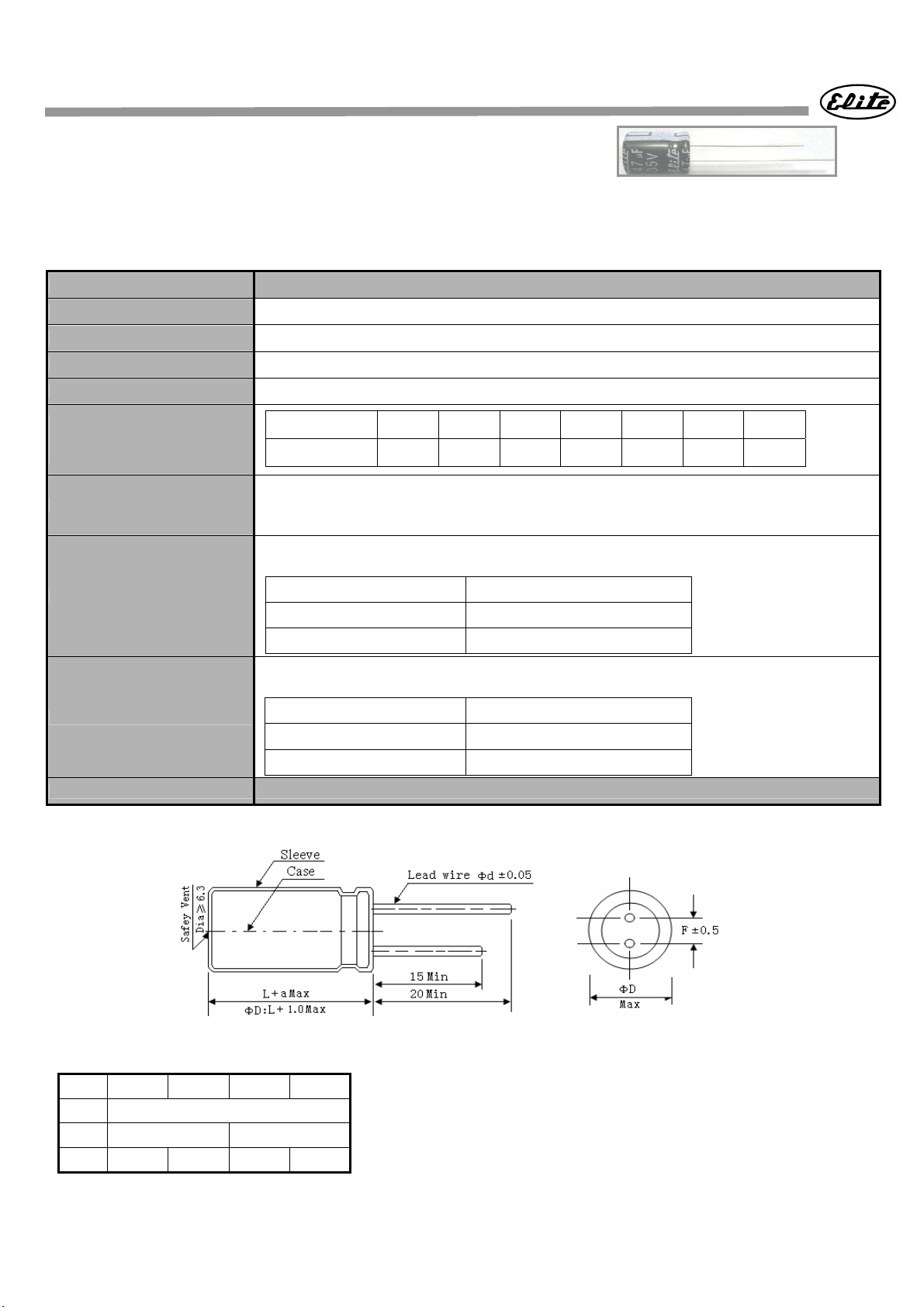

ALUMINUM ELECTROLYTIC CAPACITORS
SF Series
Load life: 105℃ 2,000 hours, 7mm height.
Design for space-saving and high density insertion.
Applications: VTR, car radio, car stereos, charger, etc
SPECIFICATIONS
Item Performance Characteristics
.
Category Temperature Range
Working Voltage Range 6.3 ~ 63Vdc
Capacitance Range 0.1 ~ 220 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 6.3 10 16 25 35 50 63
tanδ(Max) 24 20 16 14 12 10 9
I≦0.01CV or 3 μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 1 minute.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ)
Leakage current
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ)
Leakage current
≦ ±20% of the initial value
≦ 200% of the specified value
≦ specified value
≦ ±20% of the initial value
≦ 200% of the specified value
≦ 200% of the specified value
-40 ~ +105℃
±20% (at 25℃ and 120Hz)
DIMENSIONS (mm)
ФD 4 5 6.3 8
ФD ФD+.5mm Max
Фd 0.45 0.5
F 1.5 2.0 2.5 3.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
SF Series
Case size & Permissible rated ripple current: (mA rms) at 105℃ / 120Hz
Vdc
uF
4.7 4×7 17
6.8 4×7 16 4×7 19
10 4×7 28
15 4×7 26 4×7 30 5×7 35
ФD × L RC ФD × L RC ФD × L RC ФD × L RC
6.3 10 16 25
4×7 28
5×7 33
22 4×7 28 4×7 32
33
47 5×7 47 5×7 51 6.3×7 67 8×7 75
68 5×7 50 6.3×7 68
100 6.3×7 75
220
Vdc
uF
0.1 4×7 1.5 4×7 1.5
0.15 4×7 1.8 4×7 1.8
0.22 4×7 2.5 4×7 2.5
0.33 4×7 3.5 4×7 3.5
0.47 4×7 5 4×7 6
0.68 4×7 7 4×7 7
1 4×7 10 4×7 12
1.5 4×7 13 4×7 14
2.2 4×7 20 4×7 20
3.3 4×7 26 5×7 28
4.7 4×7 22
6.8
10 5×7 35 6.3×7 38 6.3×7 40
15
22 6.3×7 60 8×7 63 8×7 65
33
47 8×7 80
68 8×7 85
4×7 35 5×7 43
5×7 42 6.3×7 45
4×7 32
5×7 35
8×7 92 8×7 130
35 50 63
ФD × L RC ФD × L RC ФD × L RC
4×7 24 5×7 32
5×7 28 6.3×7 33
5×7 38
6.3×7 45
6.3×7 50
8×7 68
5×7 48 5×7 50 6.3×7 62
6.3×7 70
8×7 78
6.3×7 80
8×7 95
4×7 27 5×7 29
5×7 29 6.3×7 33
6.3×7 52 8×7 55
8×7 78
8×7 110 8×7 115
6.3×7 35
8×7 80
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc Cap.(uF)
6.3 ~ 63
CAP ≦ 10 0.80 1.00 1.30 1.45 1.65 1.70
100< CAP ≦220 0.80 1.00 1.23 1.36 1.36 1.53
Frequency (Hz)
50/60 120 400 1K 10K 50K-100K
