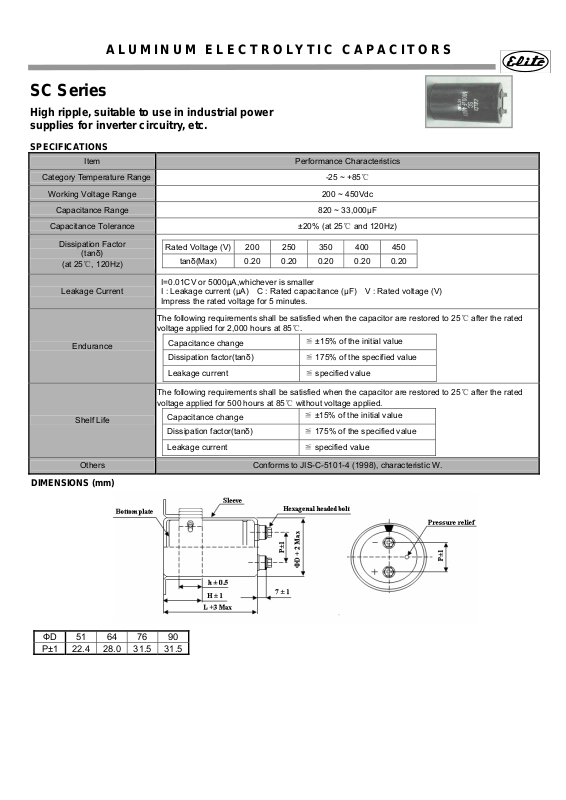

ALUMINUM ELECTROLYTIC CAPACITORS
SC Series
High ripple, suitable to use in industrial power
supplies for inverter circuitry, etc.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 200 ~ 450Vdc
Capacitance Range 820 ~ 33,000μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Rated Voltage (V) 200 250 350 400 450
tanδ(Max) 0.20 0.20 0.20 0.20 0.20
I=0.01CV or 5000μA,whichever is smaller
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 5 minutes.
-25 ~ +85℃
±20% (at 25℃ and 120Hz)
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

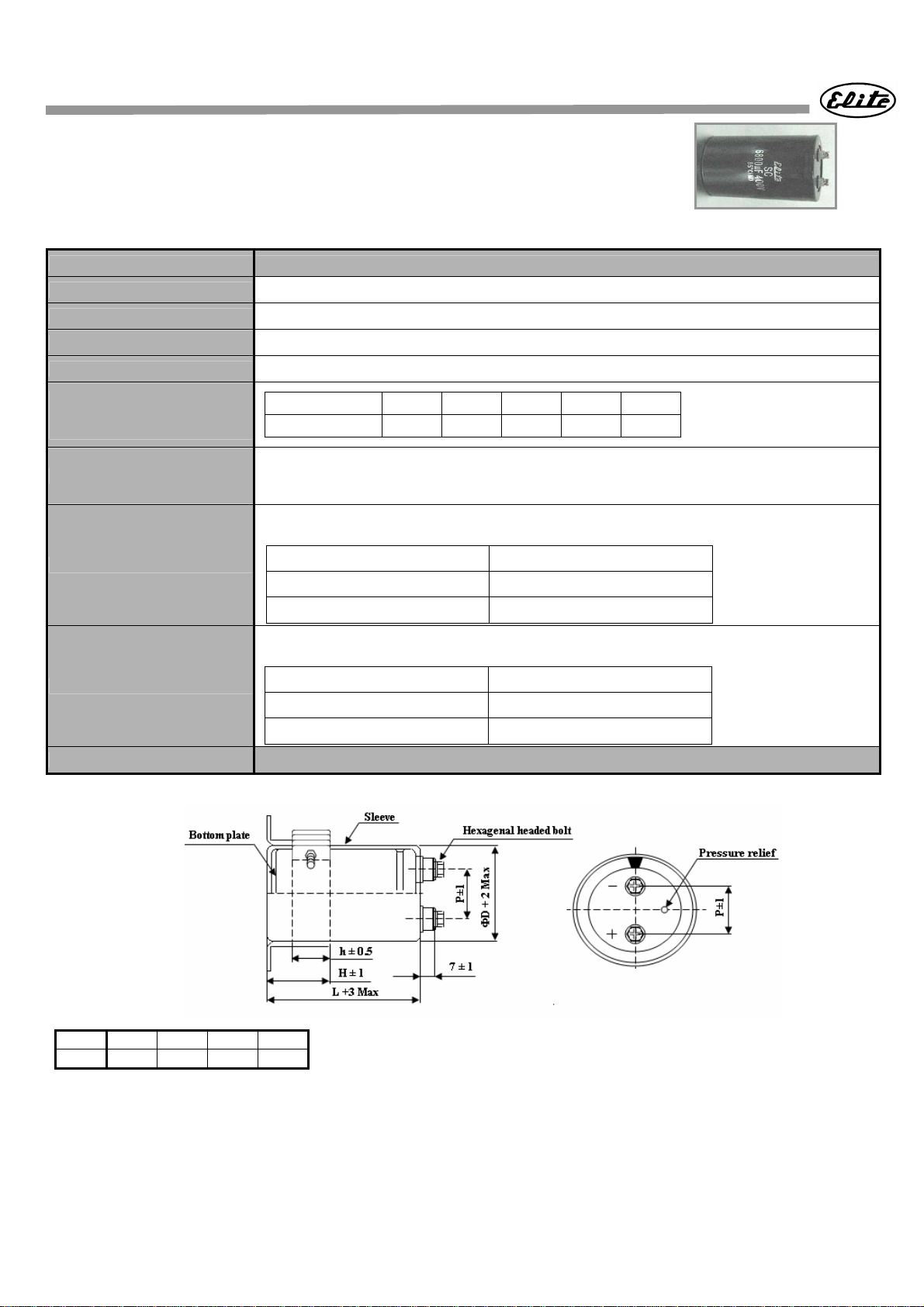

DIMENSIONS (mm)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 hours at 85℃.
Capacitance change
Dissipation factor(tanδ) ≦ 175% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 85℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 175% of the specified value
Leakage current ≦ specified value
≦ ±15% of the initial value
≦ ±15% of the initial value
ФD 51 64 76 90
P±1 22.4 28.0 31.5 31.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
SC Series
Case size & Permissible rated ripple current (A rms) 120Hz / 85℃:
Vdc
ФD Ф51 Ф64 Ф76 Ф90 Ф51 Ф64 Ф76 Ф90
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC
2200 51×80 3.9
2700 51×80 4.4
3300 51×80 4.9 51×100 5.4
3900 51×80 5.3 51×120 6.2 64×80 6.2
4700 51×100 6.4 64×80 6.4 51×120 7.1 64×100 7.1
5600 51×120 7.5 64×80 7.5 64×100 7.7
6800 51×120 8.7 64×100 8.7 64×120 9.1
8200 64×100 9.3 64×120 10 76×100 10
10000 64×100 10.3 76×100 11.6
12000 64×120 12 76×100 12 76×120 12.8
15000 76×100 14.4 76×120 15 90×100 15
18000 76×120 16.5 90×100 16.5 76×150 17.6 90×100 14.5
22000 76×150 19.6 90×120 19.6 90×150 20.9
27000 76×150 21.5 90×120 21.5
33000 90×150 25.5
200 250
Vdc
ФD Ф51 Ф64 Ф76 Ф90 Ф51 Ф64 Ф76 Ф90
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC ФD×L RC
1000 51×80 3.8
1200 51×80 4.2 51×80 4.5
1500 51×80 4.9 51×100 5.3
1800 51×100 5.6 51×100 6 64×80 6.3
2200 51×100 6.7 64×80 7 51×120 7 64×100 6.8
2700 51×120 8 64×100 8.4 64×100 8.2
3300 64×100 9.6 64×120 9.6 76×100 9.3
3900 64×120 10.4 76×120 10.5
4700 76×100 11.9 76×120 12.3 90×100 13.1
5600 76×120 13.5 90×100 14.4 76×120 14.3 90×100 14.5
6800 76×150 16 90×120 16.2 76×150 16 90×120 16.3
8200 76×150 18.7 90×120 19 90×150 19
10000 90×150 20 90×180 21
12000 90×150 21.3
350 400
Vdc
ФD Ф51 Ф64 Ф76 Ф90
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC
820 51×80 3.6
1000 51×80 4
1200 51×100 4.7
1500 51×120 5.4 64×80 5.6
1800 51×120 5.9 64×100 6.1
2200 64×100 7.2
2700 64×120 8.6 76×100 8.3
3300 76×100 9.7
3900 76×120 11.2 90×100 11.3
4700 76×150 12.9 90×100 13.1
5600 76×150 15.3 90×120 15.3
8200 90×150 17.3
450
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Frequency (Hz)
Vdc
60 120 360 1K 10K
200 ~ 450 0.82 1.00 1.20 1.35 1.40
Page 3
ALUMINUM ELECTROLYTIC CAPACITORS
SC Series

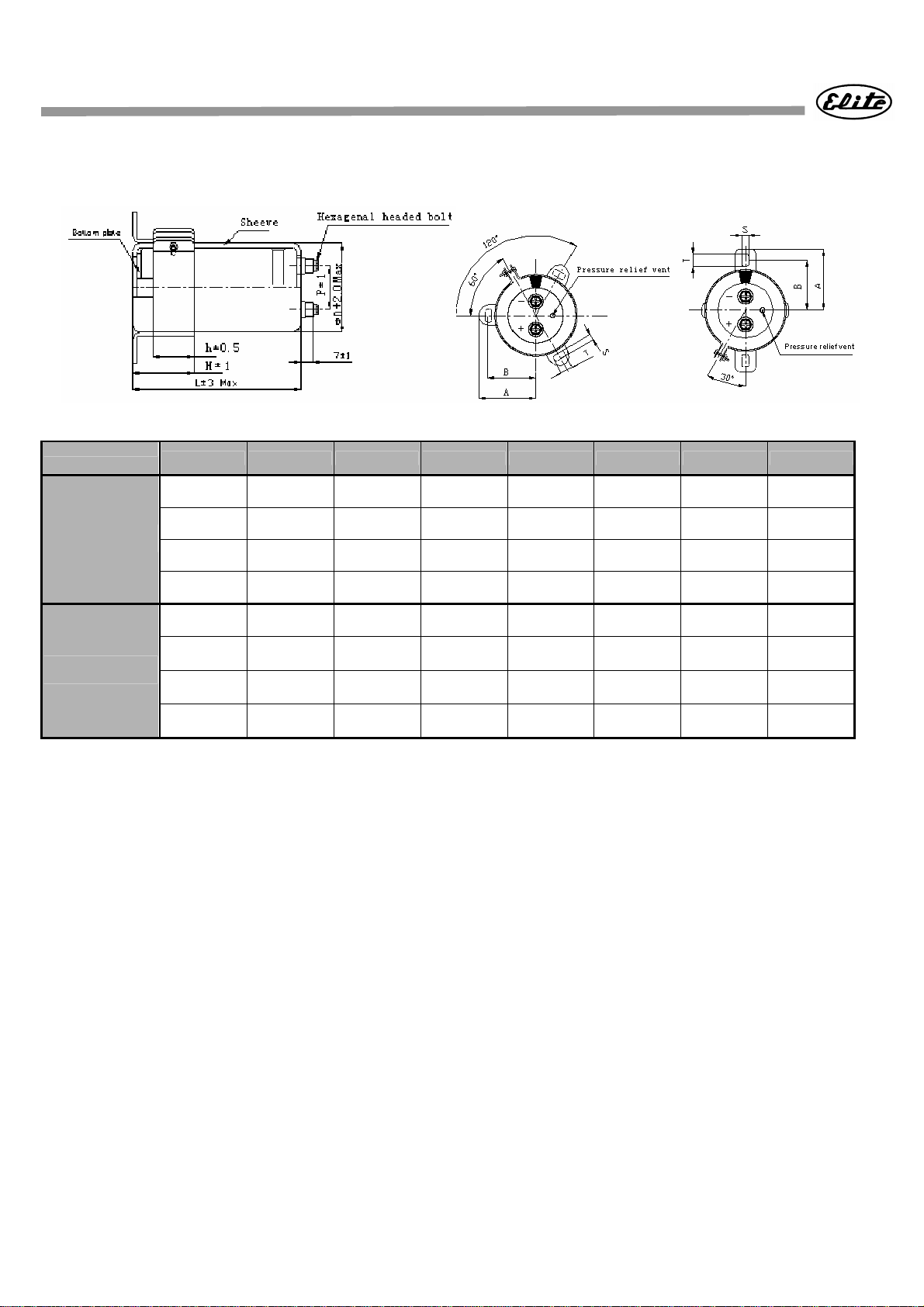

DIMENSIONS (Screw-Mount) [mm]:
D P±1 A±2 B±1 T±0.5 S±0.5 H±1 h±0.5
51 22.4 40.0 34.0 7.0 5.0 30 24
Two
Terminal
Three
Terminal
64 28.0 46.5 40.5 7.0 5.0 30 24
76 31.5 53.0 46.8 7.0 5.0 30 24
90 31.5 60.3 54.0 7.0 5.0 35 20
51 22.4 36.5 31.8 7.0 5.0 30 24
64 28.0 43.6 38.1 7.0 5.0 30 24
76 31.5 50.2 44.5 7.0 5.0 30 24
90 31.5 56.5 50.8 7.0 5.0 30 24
