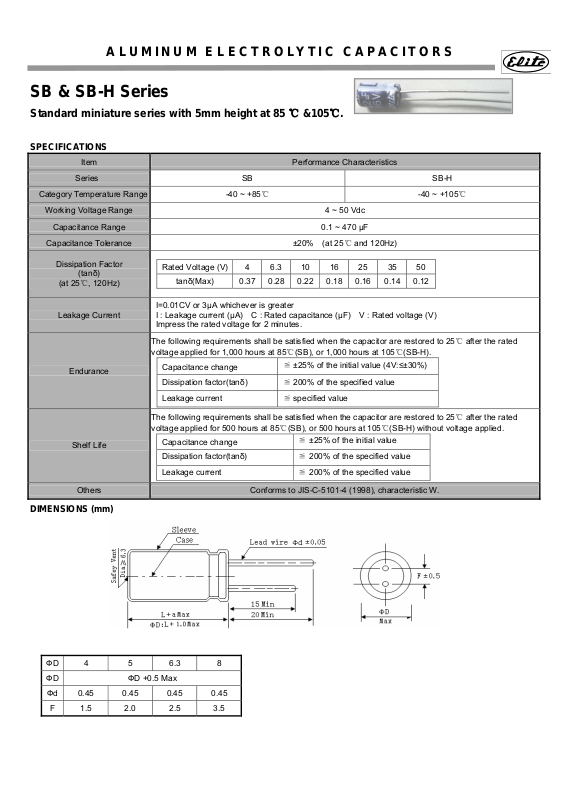

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
SB & SB-H Series
Standard miniature series with 5mm height at 85 ℃ &105℃.
SPECIFICATIONS
Item Performance Characteristics
Series SB SB-H
Category Temperature Range
Working Voltage Range 4 ~ 50 Vdc
Capacitance Range 0.1 ~ 470 μF
Capacitance Tolerance
-40 ~ +85℃ -40 ~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

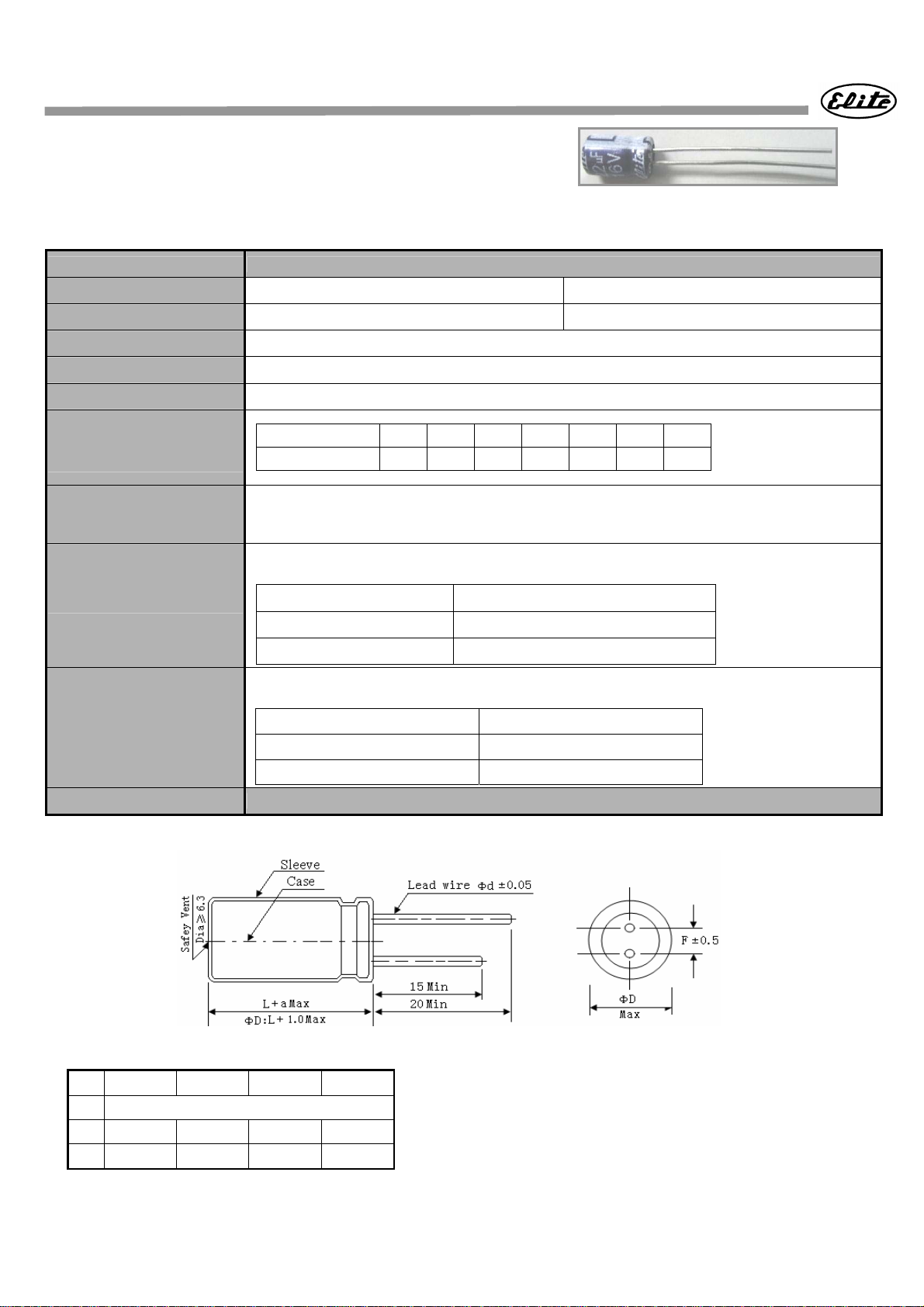

DIMENSIONS (mm)
Rated Voltage (V) 4 6.3 10 16 25 35 50
tanδ(Max) 0.37 0.28 0.22 0.18 0.16 0.14 0.12
I=0.01CV or 3μA whichever is greater
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 85℃(SB), or 1,000 hours at 105℃(SB-H).
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 500 hours at 85℃(SB), or 500 hours at 105℃(SB-H) without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±25% of the initial value (4V:≤±30%)
≦ ±25% of the initial value
ФD 4 5 6.3 8
ФD ФD +0.5 Max
Фd 0.45 0.45 0.45 0.45
F 1.5 2.0 2.5 3.5
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
SB Series
Case size & Permissible rated ripple current (mA rms) at 85℃/120Hz:
Vdc
uF
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22 4×5 32
33 5×5 38 5×5 42
47 5×5 35 5×5 41 5×5 45 6.3×5 58
100 6.3×5 63 6.3×5 70 6.3×5 73 6.3×5 80
220 6.3×5 70 6.3×5 95 8×5 120 8×5 125
330 8×5 80 8×5 150
470 8×5 150
Vdc
uF
0.1 4×5 1
0.22 4×5 2
0.33 4×5 2.8
0.47 4×5 4
1.0 4×5 8.4
2.2 4×5 13
3.3 4×5 17
4.7 4×5 18 5×5 20
10 4×5 24 5×5 29 6.3×5 33
22 5×5 37 6.3×5 46 8×5 55
33 6.3×5 45 6.3×5 50 8×5 65
47 6.3×5 60 8×5 68
100 8×5 90
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
ФD×L RC ФD×L RC ФD×L RC
4 6.3 10 16
25 35 50
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
4 ~ 25 0.75 1.00 1.10 1.13 1.20
35 ~ 50 0.80 1.00 1.15 1.20 1.25
60 120 1K 10K 100K
Frequency (Hz)
