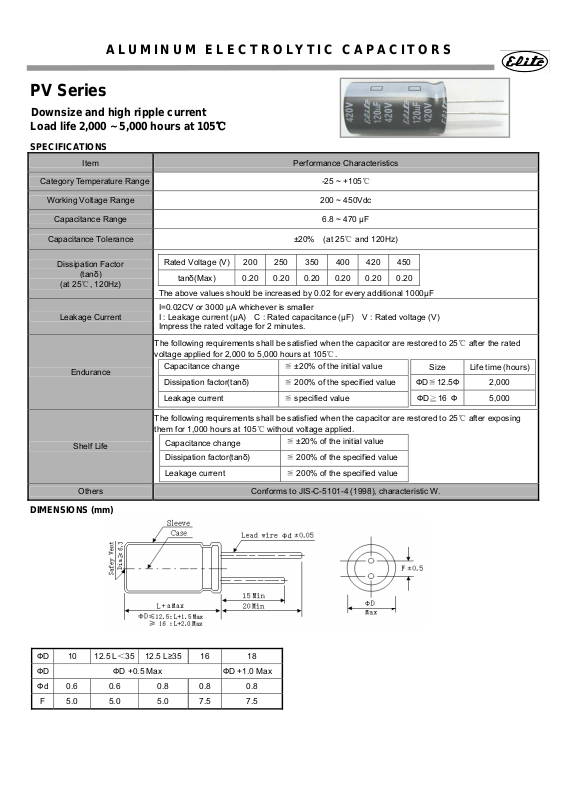

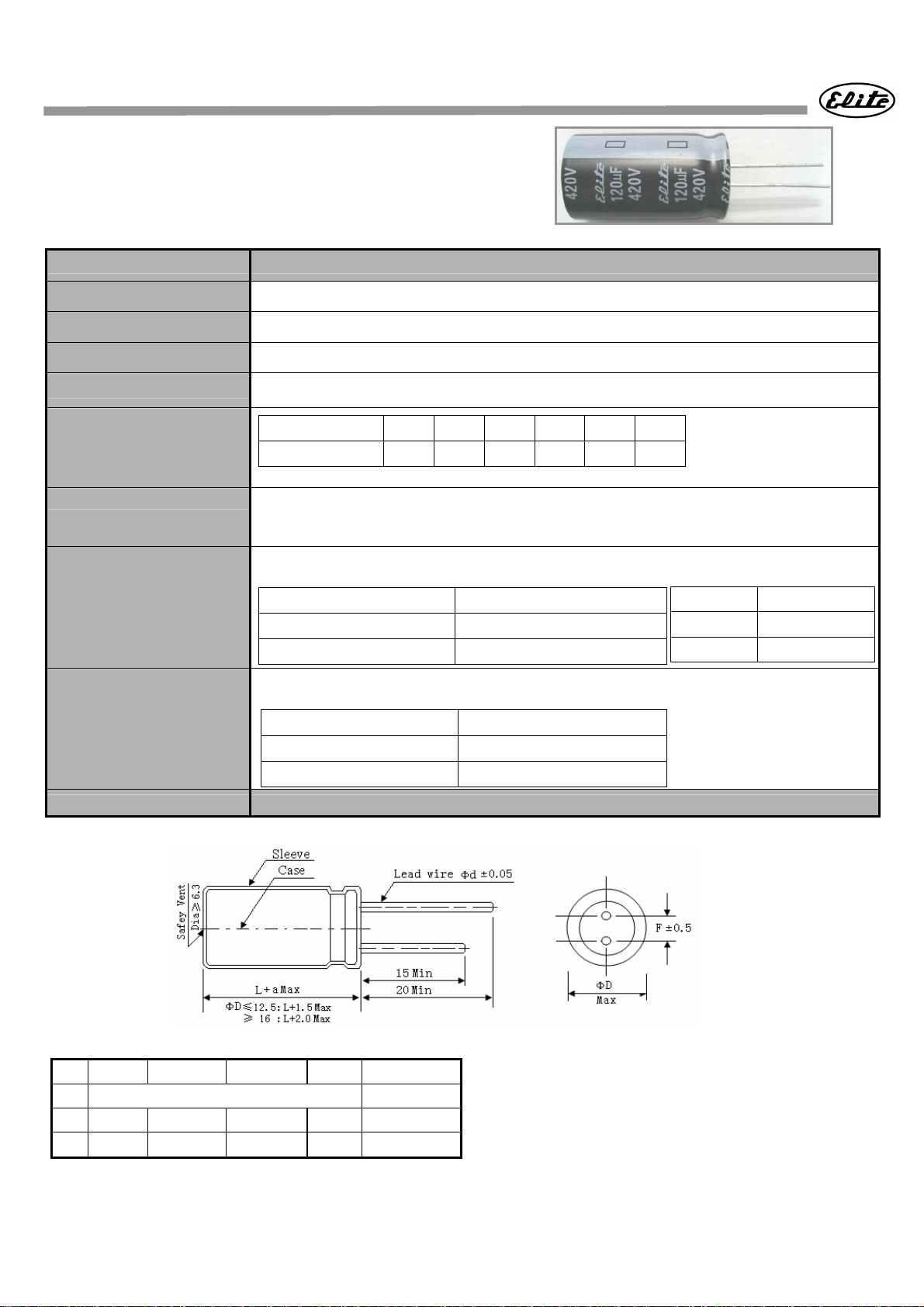

ALUMINUM ELECTROLYTIC CAPACITORS
PV Series
Downsize and high rippl e current
Load life 2,000 ~ 5,000 hours at 105℃
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range -25 ~ +105℃
Working Voltage Range 200 ~ 450Vdc
Capacitance Range 6.8 ~ 470 μF
Capacitance Tolerance ±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
DIMENSIONS (mm)
Rated Voltage (V) 200 250 350 400 420 450
tanδ(Max) 0.20 0.20 0.20 0.20 0.20 0.20
The above values should be increased by 0.02 for every additional 1000μF
I=0.02CV or 3000 μA whichever is smaller
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 2,000 to 5,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
Size Life time (hours)
ФD≦12.5Ф 2,000
ФD≧16 Ф 5,000
ФD 10
ФD ФD +0.5 Max ФD +1.0 Max
Фd 0.6 0.6 0.8 0.8 0.8
F 5.0 5.0 5.0 7.5 7.5
12.5 L＜35
12.5 L≥35 16 18
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PV Series
Case size & Permissible rated ripple current: (mA rms) at 105℃ / 120Hz
Vdc
uF
6.8 10×16 90
10 10×16 100 10×20 110 10×20 110
15 10×16 110 10×20 130 10×20 130
22 10×20 180 10×20 180 12.5×20 235
33 10×20 215 12.5×20 245 12.5×25 265
47 12. 5×20 310 12.5×25 340 16×25 400
68 12.5×25 420 16×25 460 18×25 510
82 16×25 490 16×25 490 18×32 570
100 18×25 560 18×25 610 18×36 650
120 18×25 600 18×25 650 18×40 750
150 18×32 780 18×32 810 20×34 840
220 18×36 920 18×36 940
330 18×40 1010
390 18×45 1130
470 18×50 1270
ФD × L RC ФD × L RC ФD × L RC
200 250 350
18×50 1050
Vdc
uF
6.8 10×16 90 10×16 90 10×20 80
10 10×20 110 10×20 110 12.5×20 130
15 12.5×20 180 12.5×20 180 12.5×20 160
22 12.5×25 240 12.5×25 240 12.5×25 200
33 16×25 280 16×25 290 16×25 310
47 16×32 390 16×32 390 18×25 400
68 16×36 505 16×40 510 18×32 550
82 18×32 560 18×32 570 18×36 635
100 18×36 640 18×36 610 18×40 720
120 18×40 745 18×40 660 18×45 770
150 18×45 760 18×50 710 18×50 820
ФD × L RC ФD × L RC ФD × L RC
400 420 450
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
200 ~ 350 0.80 1.00 1.20 1.30 1.40
400 ~ 450 0.80 1.00 1.15 1.25 1.35
50/60 120 1K 10K 100K
Frequency (Hz)
