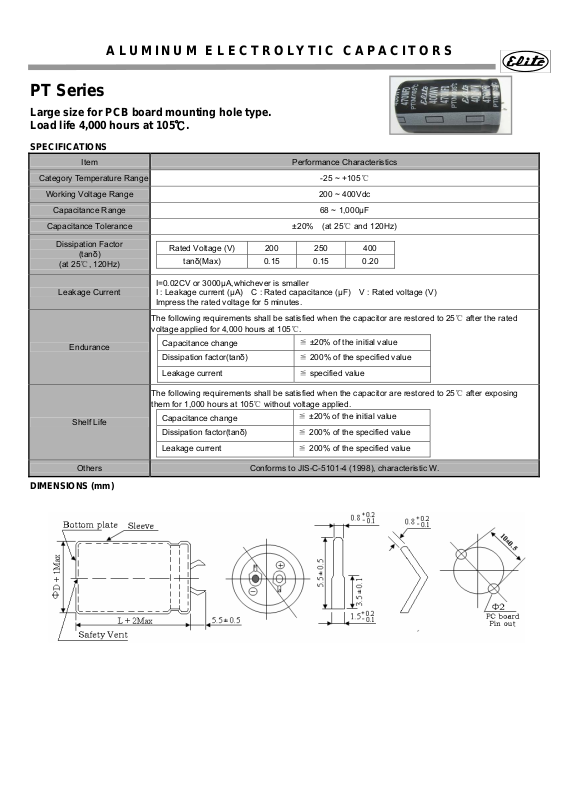

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
PT Series
Large size for PCB board mounting hole type.
Load life 4,000 hours at 105
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 200 ~ 400Vdc
Capacitance Range 68 ~ 1,000μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
℃.
Rated Voltage (V) 200 250 400
tanδ(Max) 0.15 0.15 0.20
I=0.02CV or 3000μA,whichever is smaller
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 5 minutes.
-25 ~ +105℃
±20% (at 25℃ and 120Hz)
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.

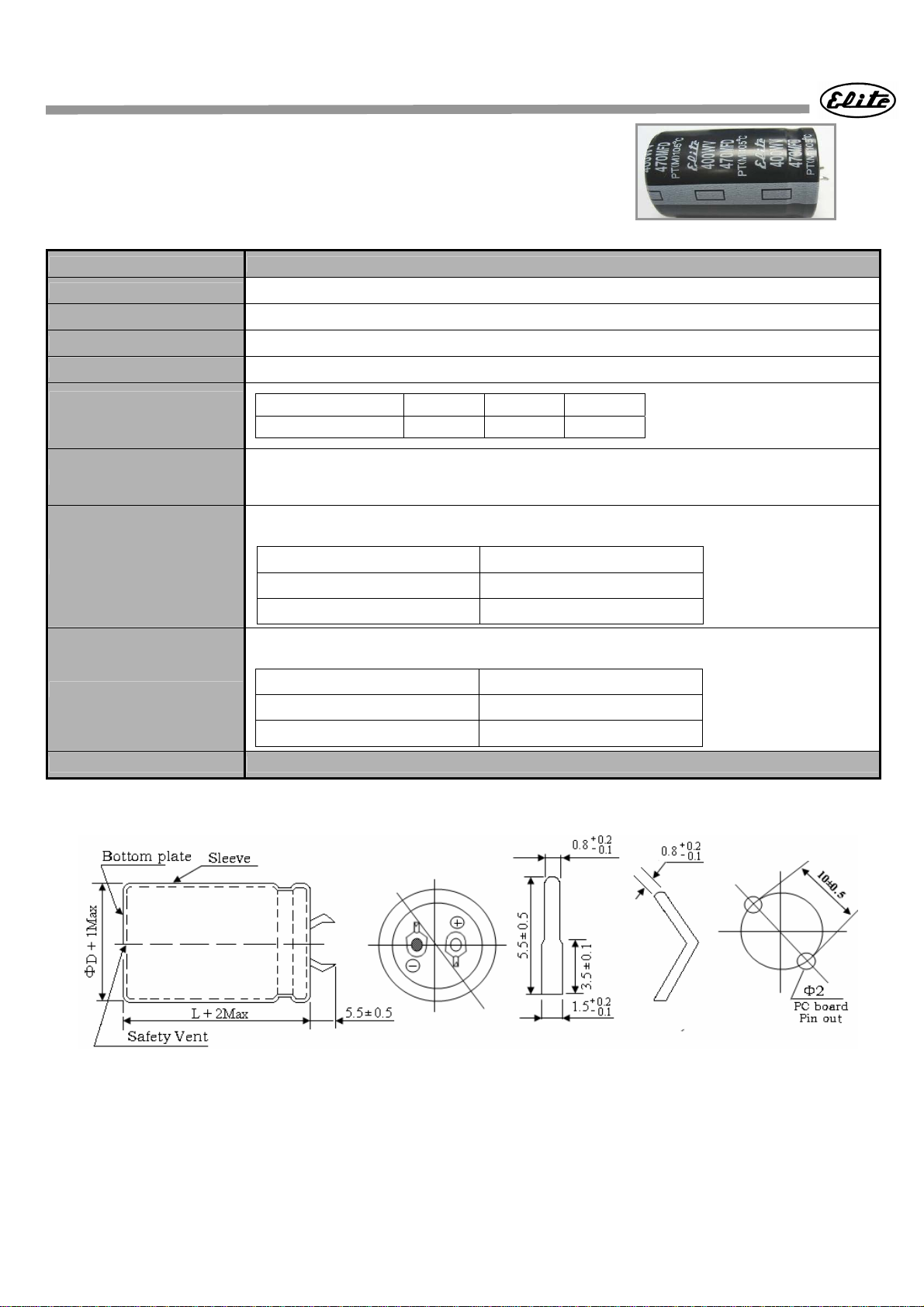

DIMENSIONS (mm)
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 4,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PT Series
Case size & Permissible rated ripple current (mA rms) at 105℃/120Hz:
Vdc
ФD
uF
68 68
100 100 22×25 400
120 22×25 430 120 22×31 440
150 22×25 480 150 22×31 550
220 22×31 670 220 22×35 750
330 22×35 960 330 22×45 1020
470 22×45 1100 470 25×51 1200
680 25×51 1350 680 30×51 1450
820 30×45 1600 820 35×45 1700
1000 30×51 1750 1000 35×51 1850
Vdc
ФD
uF
68 22×25 280
100 22×35 470
120 25×35 520
150 25×41 600
220 25×51 820
330 30×51 1010
470 35×51 1300
Ф 22 Ф 25 Ф30 Ф 22 Ф 25 Ф30 Ф35
ФD×L RC ФD×L RC ФD×L RC
Ф 22 Ф 25 Ф30 Ф35
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
200
uF
Vdc
ФD
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
400
250
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
50/60 120 1K 10K 100K
160 ~ 250 0.80 1.00 1.15 1.17 1.20
350 ~ 500 0.90 1.00 1.10 1.13 1.15
Frequency (Hz)
