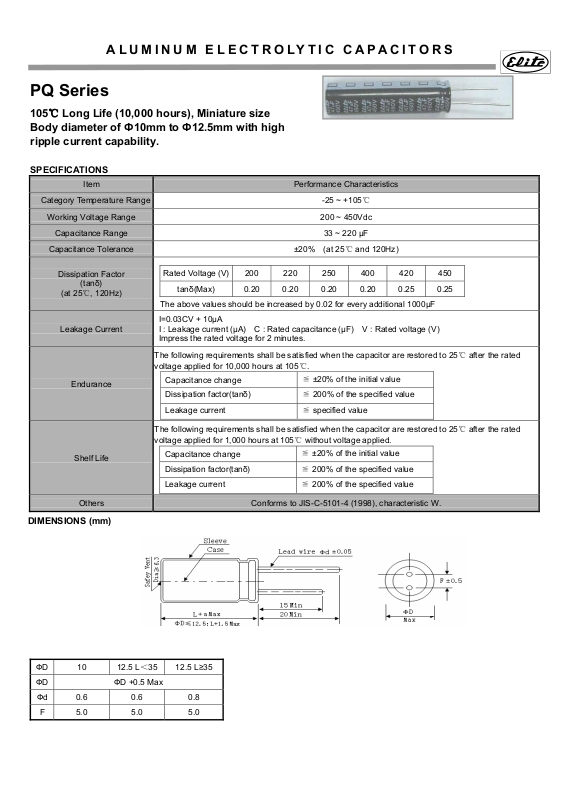

ALUMINUM ELECTROLYTIC CAPACITORS
PQ Series
105℃ Long Life (10,000 hours), Miniature size
Body diameter of Ф10mm to Ф12.5mm with high
ripple current capability.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 200 ~ 450Vdc
Capacitance Range 33 ~ 220 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 200 220 250 400 420 450
tanδ(Max) 0.20 0.20 0.20 0.20 0.25 0.25
The above values should be increased by 0.02 for every additional 1000μF
I=0.03CV + 10μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 10,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
-25 ~ +105℃
±20% (at 25℃ and 120Hz)
≦ ±20% of the initial value
≦ ±20% of the initial value
DIMENSIONS (mm)
ФD 10
ФD ФD +0.5 Max
Фd 0.6 0.6 0.8
F 5.0 5.0 5.0
12.5 L＜35
12.5 L≥35
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PQ Series
Case size & Permissible rated ripple current: (mA rms) at 105℃ / 120Hz
Vdc
uF
82 10×45 610
100 10×40 630 10×40 0.66
120 10×45 750
150
180 12.5×40 920 12.5×45 990
ФD × L RC ФD × L RC ФD × L RC
10×50 830
12.5×35 800
200 220 250
10×50 750
12.5×35 740
12.5×40 860 12.5×45 920
10×50 680
12.5×35 690
12.5×40 790
220 12.5×50 1090
Vdc
uF
33
39 10×45 400
47
56 12.5×40 500 12.5×40 520 12.5×45 530
68 12.5×45 580 12.5×50 580
82 12.5×50 650
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
60(50) 120 500 1k 10k≤
ФD × L RC ФD × L RC ФD × L RC
12.5×35 440
400 420 450
10×45 360
10×50 450
Frequency (Hz)
10×40 370
12.5×30 370
10×45 410 10×50 410
12.5×30 390 12.5×35 420
12.5×35 450 12.5×40 480
200 ~ 250 0.80 1.00 1.20 1.30 1.40
400 ~ 450 0.80 1.00 1.25 1.40 1.50
