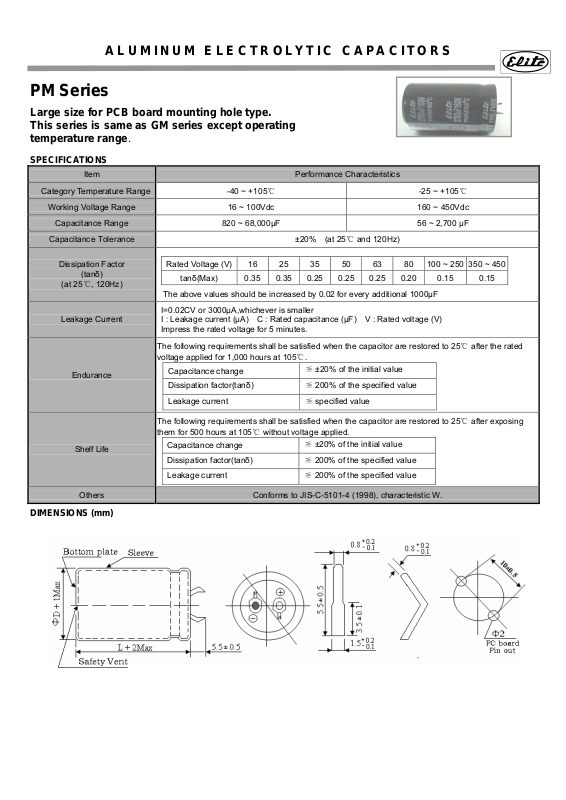

ALUMINUM ELECTROLYTIC CAPACITORS
PM Series
Large size for PCB board mounting hole type.
This series is same as GM series except operating
temperature range.
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 16 ~ 100Vdc 160 ~ 450Vdc
Capacitance Range 820 ~ 68,000μF 56 ~ 2,700 μF
Capacitance Tolerance
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
Rated Voltage (V) 16 25 35 50 63 80 100 ~ 250 350 ~ 450
tanδ(Max) 0.35 0.35 0.25 0.25 0.25 0.20 0.15 0.15
The above values should be increased by 0.02 for every additional 1000μF
I=0.02CV or 3000μA,whichever is smaller
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 5 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after exposing
them for 500 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 200% of the specified value
-40 ~ +105℃ -25 ~ +105℃
±20% (at 25℃ and 120Hz)
≦ ±20% of the initial value
≦ ±20% of the initial value

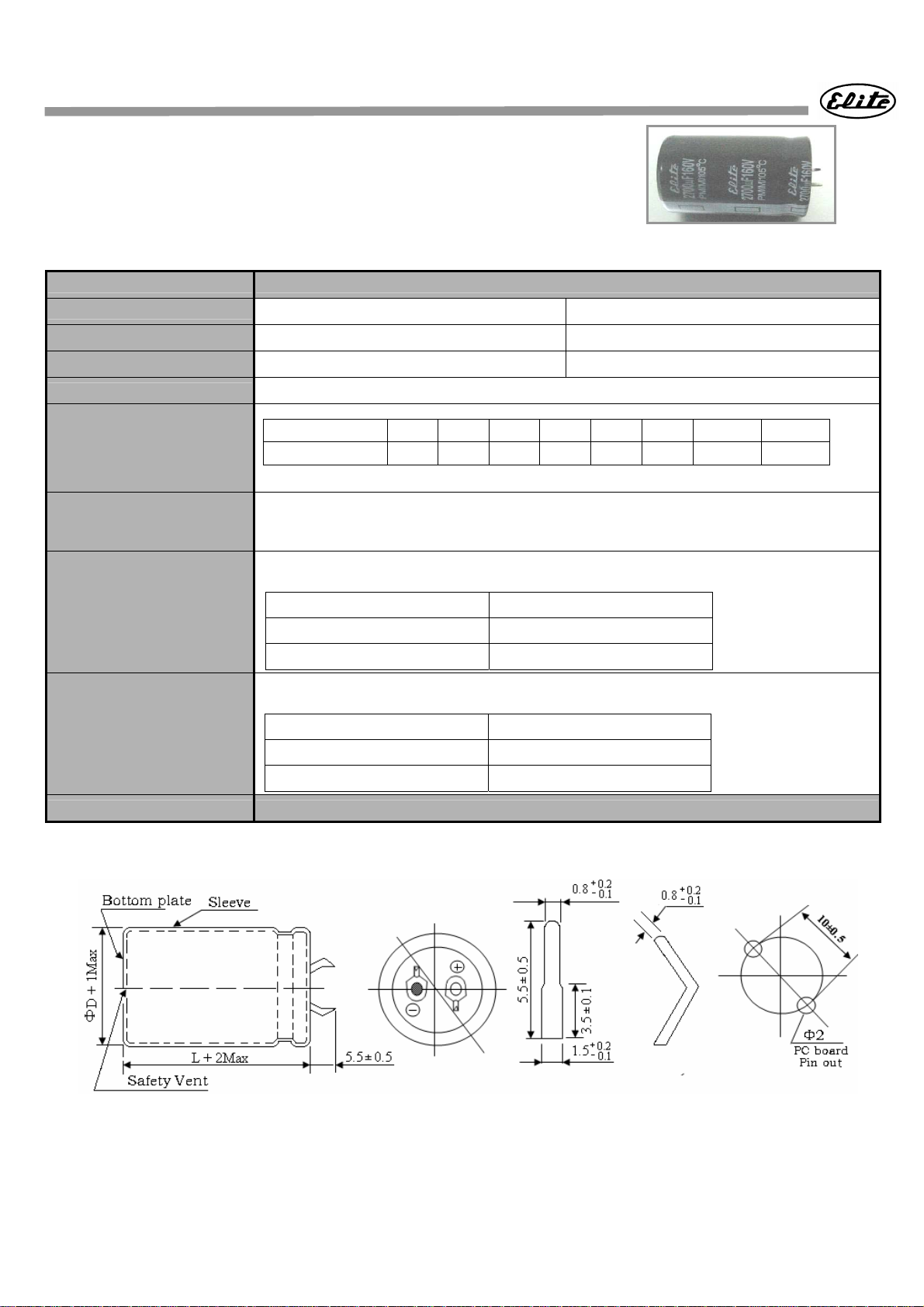

DIMENSIONS (mm)
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PM Series
Case size & Permissible rated ripple current (mA rms) at 105℃ / 120Hz:
Vdc
ФD Ф 22 Ф 25 Ф30 Ф35 ФD Ф 22 Ф 25 Ф30 Ф35
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC
8200 22×25 2330 4700
10000 22×25 2570 5600 22×25 2055
12000 22×31 2660 25×25 2660 6800 22×31 2375 25×25 2375
15000 22×35 3300 25×31 3300 30×25 3300 8200 22×35 2600 25×25 2600
18000 22×41 3720 25×35 3720 30×25 3720 10000 22×41 2930 25×31 2930 30×25 2930
22000 22×51 3960 25×41 3960 30×31 3960 35×25 3960 12000 22×45 3290 25×35 3290 30×31 3290 35×25 3290
27000 25×45 4480 30×35 4480 35×31 4480 15000 22×51 3675 25×41 3675 30×31 3675 35×25 3675
33000 25×51 4955 30×41 4955 35×31 4955 18000 25×45 4140 30×35 4140 35×31 4140
39000 30×45 5535 35×35 5535 22000 25×51 4845 30×45 4845 35×35 4845
47000 30×51 6315 35×41 6315 27000 30×51 5510 35×41 5510
56000 35×45 7090 33000 35×45 6280
68000 35×51 8030 39000 35×51 7030
Vdc
ФD Ф 22 Ф 25 Ф30 Ф35 ФD Ф 22 Ф 25 Ф30 Ф35
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC
3900 22×25 2065 2200 22×25 1775
4700 22×31 2250 25×25 2250 3300 22×31 2210 25×25 2210
5600 22×35 2560 25×25 2560 3900 22×35 2465 25×31 2465 30×25 2465
6800 22×41 2600 25×31 2600 30×25 2600 4700 22×41 2610 25×35 2610 30×25 2610
8200 22×45 2880 25×35 2880 30×31 2880 35×25 2880 5600 22×45 3135 25×35 3135 30×31 3135 35×25 3135
10000 22×51 3320 25×41 3320 30×31 3320 35×25 3320 6800 22×51 3580 25×41 3580 30×35 3580 35×31 3580
12000 25×45 3700 30×35 3700 35×31 3700 8200 25×51 4100 30×41 4100 35×31 4100
15000 25×51 4200 30×41 4200 35×35 4200 10000 30×45 4625 35×35 4625
18000 30×45 5150 35×41 5150 12000 30×51 5190 35×41 5190
22000 30×51 5615 35×45 5615 15000 35×45 5990
27000 35×51 6410 18000 35×51 6245
Vdc
ФD
uF
1500 1200 22×25 1570
1800 22×25 1690 1500 22×25 1745
2200 22×31 2145 25×25 2145 1800 22×31 1990 25×25 1990
2700 22×35 2230 25×25 2230 2200 22×35 2270 25×31 2270 30×25 2270
3300 22×35 2455 25×31 2455 30×25 2455 2700 22×41 2580 25×35 2580 30×25 2580
3900 22×41 2790 25×35 2790 30×31 2790 35×25 2790 3300 22×45 2985 25×41 2985 30×31 2985 35×25 2985
4700 22×51 3125 25×41 3125 30×31 3125 35×25 3125 3900 22×51 3255 25×45 3255 30×35 3255 35×25 3255
5600 25×45 3490 30×35 3490 35×31 3490 4700 25×51 3765 30×41 3765 35×31 3765
6800 25×51 3970 30×41 3970 35×31 3970 5600 30×45 4230 35×35 4230
8200 30×45 4490 35×35 4490 6800 30×51 4780 35×41 4780
10000 30×51 5110 35×41 5110 8200 35×45 5420
12000 35×45 5760 10000 35×51 6170
Ф 22 Ф 25 Ф30 Ф35
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
16
35
63
Vdc
Vdc
Vdc
ФD
uF
Ф 22 Ф 25 Ф30 Ф35
ФD×L RC ФD×L RC ФD×L RC ФD×L RC
25
50
80
Page 3
ALUMINUM ELECTROLYTIC CAPACITORS
PM Series
Case size & Permissible rated ripple current (mA rms) at 105℃ / 120Hz:
Vdc
ФD Ф 22 Ф 25 Ф30 Ф35 ФD Ф 22 Ф 25 Ф30 Ф35
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC
820 22×25 1725 330 22×25 1300
1200 22×31 1950 25×25 1950 390 22×25 1410
1500 22×35 2260 25×31 2260 30×25 2260 470 22×31 1610 25×25 1610
1800 22×41 2560 25×35 2560 30×25 2560 560 22×35 1810 25×25 1810
2200 22×45 2920 25×41 2920 30×31 2920 35×25 2920 680 22×41 2000 25×31 2000 30×25 2000
2700 22×51 3300 25×45 3300 30×35 3300 35×31 3300 820 22×45 2325 25×35 2325 30×31 2325 35×25 2325
3300 25×51 3765 30×41 3765 35×31 3765 1000 22×51 2600 25×41 2600 30×31 2600 35×25 2600
3900 30×45 4180 35×35 4180 1200 25×45 2930 30×35 2930 35×31 2930
4700 30×51 4750 35×41 4750 1500 25×51 3430 30×45 3430 35×35 3430
5600 35×45 5350 1800 30×51 3470 35×41 3470
6800 35×51 6050 2200 35×45 4445
8200 2700 35×51 5070
Vdc
ФD Ф 22 Ф 25 Ф30 Ф35 ФD Ф 22 Ф 25 Ф30 Ф35
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC
270 22×25 1175 180 22×25 860
330 22×31 1345 25×25 1345 220 22×25 1065
390 22×31 1465 25×25 1465 270 22×31 1225 25×25 1225
470 22×35 1670 25×31 1670 30×25 1670 330 22×35 1400 25×31 1400 30×25 1400
560 22×41 1860 25×35 1860 30×25 1860 390 22×41 1540 25×31 1540 30×25 1540
680 22×51 2135 25×41 2135 30×31 2135 35×25 2135 470 22×45 1725 25×35 1725 30×31 1725 35×25 1725
820 25×45 2415 30×35 2415 35×25 2415 560 22×51 1950 25×41 1950 30×35 1950 35×25 1950
1000 25×51 2745 30×41 2745 35×31 2745 680 25×51 2270 30×41 2270 35×31 2270
1200 30×45 3075 35×35 3075 820 30×45 2560 35×35 2560
1500 30×51 3550 35×41 3550 1000 30×51 3085 35×41 3085
1800 35×45 4015 1200 35×45 3280
2200 35×51 4575 1500 35×51 3755
Vdc
ФD Ф 22 Ф 25 Ф30 Ф35 ФD Ф 22 Ф 25 Ф30 Ф35
uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC uF ФD×L RC ФD×L RC ФD×L RC ФD×L RC
82 22×25 720 56 22×25 600
100 22×31 835 25×25 835 68 22×25 660
120 22×35 945 25×25 945 82 22×31 760 25×25 760
150 22×41 1075 25×31 1075 30×25 1075 100 22×35 864 25×25 864
180 22×45 1225 25×35 1225 30×31 1225 35×25 1225 120 22×41 960 25×31 960 30×25 960
220 22×45 1365 25×41 1365 30×31 1365 35×25 1365 150 22×45 1100 25×35 1100 30×31 1100 35×25 1100
270 22×51 1520 25×45 1520 30×35 1520 35×31 1520 180 22×51 1235 25×41 1235 30×35 1235 35×25 1235
330 25×51 1765 30×41 1765 35×31 1765 220 25×51 1430 30×41 1430 35×31 1430
390 30×45 1980 35×35 1980 270 30×45 1650 35×35 1650
470 30×51 2230 35×41 2230 330 30×51 1865 35×41 1865
560 35×45 2500 390 35×45 2085
680 35×51 2825 470 35×51 2350
100
200
400
Vdc
Vdc
Vdc
160
250
450
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
50/60 120 1K 10K 100K
16 ~ 100 0.90 1.00 1.15 1.15 1.15
160 ~ 250 0.88 1.00 1.15 1.17 1.20
350 ~ 450 0.90 1.00 1.10 1.12 1.15
Frequency (Hz)
