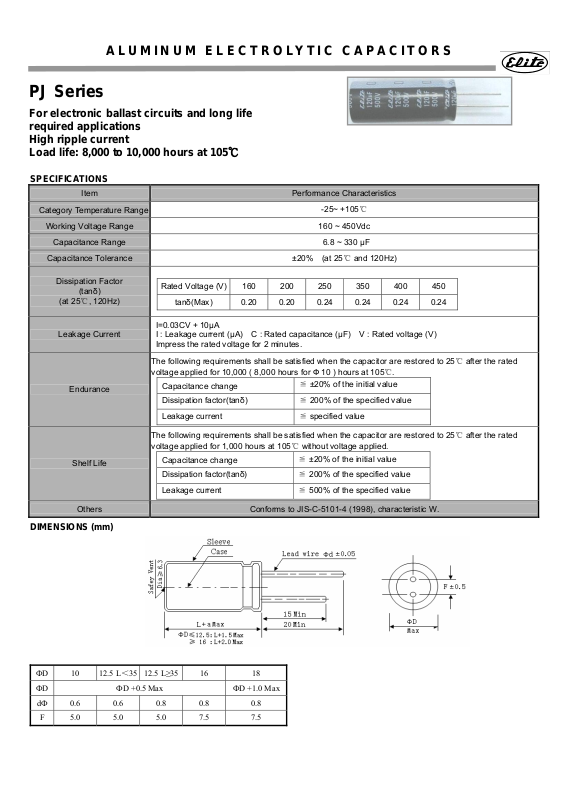

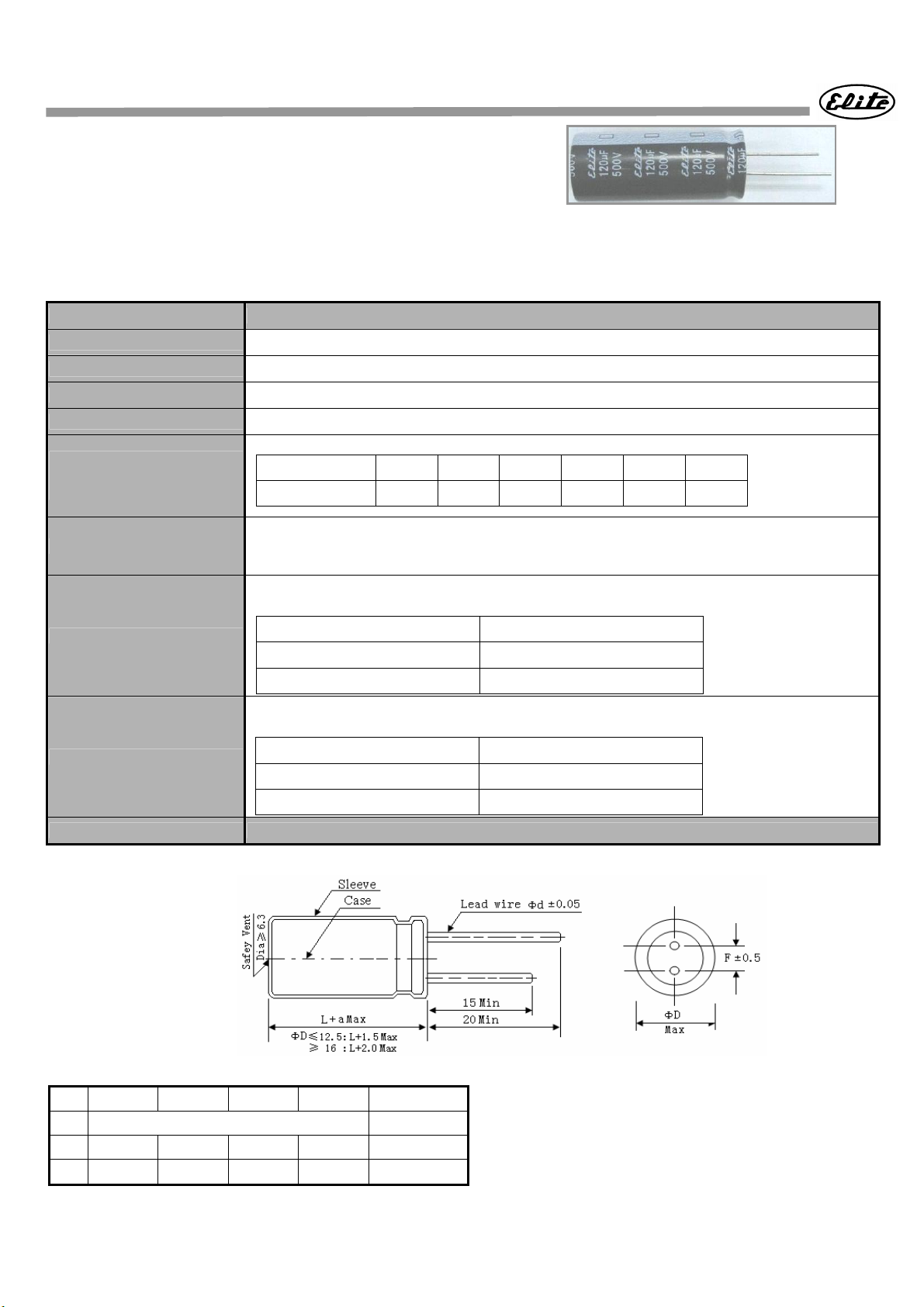

Page 1
ALUMINUM ELECTROLYTIC CAPACITORS
PJ Series
For electronic ballast circuits and long life
required applications
High ripple current
Load life: 8,000 to 10,000 hours at 105
SPECIFICATIONS
Item Performance Characteristics
Category Temperature Range
Working Voltage Range 160 ~ 450Vdc
Capacitance Range 6.8 ~ 330 μF
Capacitance Tolerance
℃
-25~ +105℃
±20% (at 25℃ and 120Hz)
Dissipation Factor
(tanδ)
(at 25℃, 120Hz)
Leakage Current
Endurance
Shelf Life
Others Conforms to JIS-C-5101-4 (1998), characteristic W.
DIMENSIONS (mm)
Rated Voltage (V) 160 200 250 350 400 450
tanδ(Max) 0.20 0.20 0.24 0.24 0.24 0.24
I=0.03CV + 10μA
I : Leakage current (μA) C : Rated capacitance (μF) V : Rated voltage (V)
Impress the rated voltage for 2 minutes.
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 10,000 ( 8,000 hours for Ф 10 ) hours at 105℃.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ specified value
The following requirements shall be satisfied when the capacitor are restored to 25℃ after the rated
voltage applied for 1,000 hours at 105℃ without voltage applied.
Capacitance change
Dissipation factor(tanδ) ≦ 200% of the specified value
Leakage current ≦ 500% of the specified value
≦ ±20% of the initial value
≦ ±20% of the initial value
ФD 10
ФD ФD +0.5 Max ФD +1.0 Max
dФ 0.6 0.6 0.8 0.8 0.8
F 5.0 5.0 5.0 7.5 7.5
12.5 L＜35
12.5 L≥35 16 18
Page 2
ALUMINUM ELECTROLYTIC CAPACITORS
PJ Series
Case size & Permissible rated ripple current: (mA rms) at 105℃ / 120Hz
Vdc
uF
10 10×16 125 10×16 125 10×20 140
22 10×20 200 10×20 200 10×20 200
33 10×20 250 10×20 260 12.5×20 320
47 10×20 300 12.5×20 390 12.5×20 390
68 12.5×20 470 12.5×25 470 16×20 520
82 12.5×20 510 16×20 550 16×20 550
100
150 16×25 770 16×25 840 18×25 860
220 16×30 1020 18×25 1050 18×32 1130
Vdc
uF
330 18×32 1390 18×36 1430
6.8 10×16 110 10×16 110 10×20 110
10 10×20 140 10×20 140 12.5×20 180
15 12.5×20 220 12.5×25 240
22 12.5×20 260 12.5×25 260 16×20 290
33 16×20 360 16×20 360
47 16×25 430
68
82 18×25 610 18×30 610 18×36 715
100 18×30 700 18×32 765 18×40 800
120 18×32 830 18×36 865
150 18×40 960 18×45 985
ФD × L RC ФD × L RC ФD × L RC
12.5×25 620
16×20 630
ФD × L RC ФD × L RC ФD × L RC
16×30 560
18×20 550
160 200 250
16×20 630 16×25 680
350 400 450
16×25 470
18×20 450
18×25 585 18×32 630
16×25 390
18×20 380
18×25 480
RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Vdc
6.8 ~ 82 1.00 1.75 2.25 2.50
100 ~ 330 1.00 1.67 1.75 2.25
120 1k 10k 100k
Frequency (Hz)
